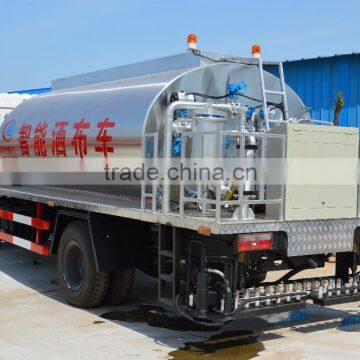

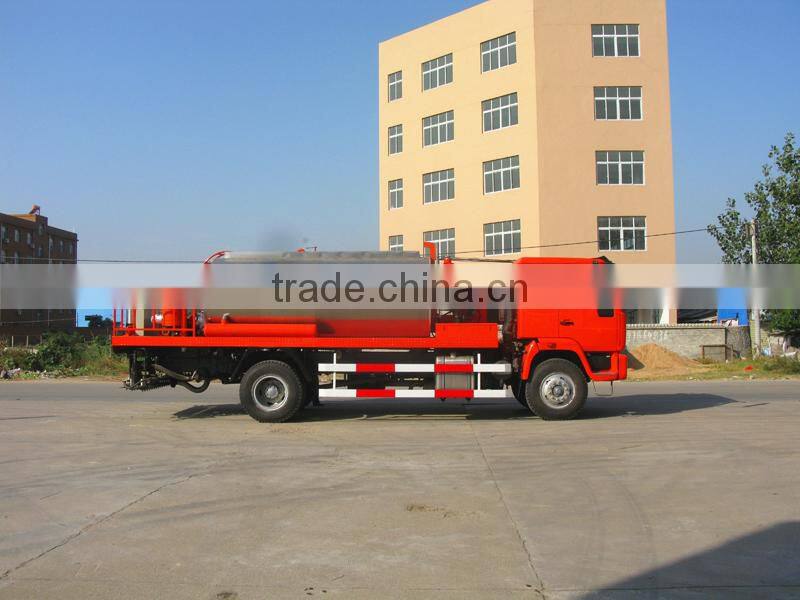

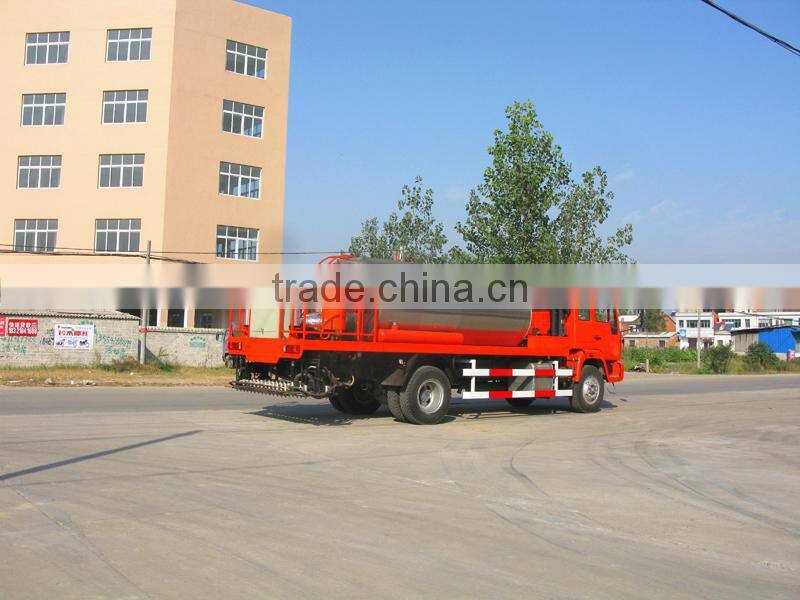

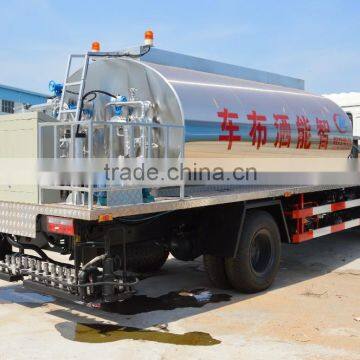

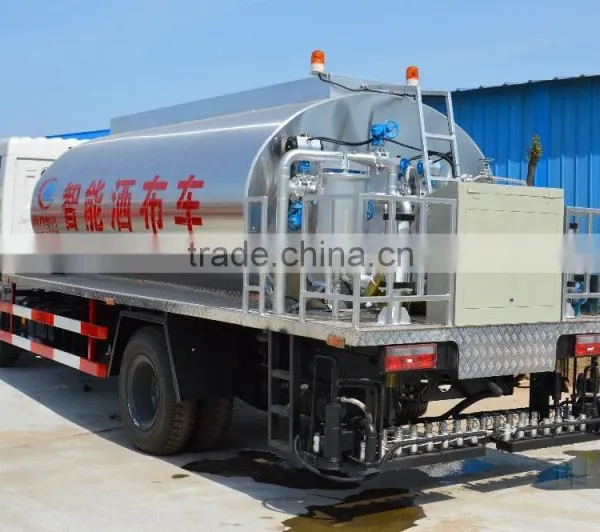

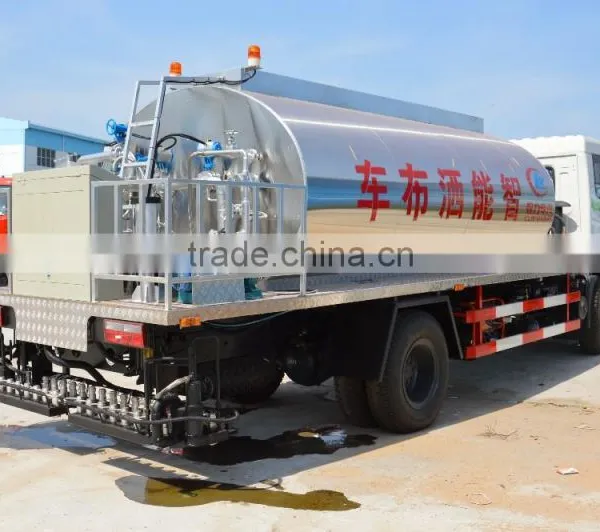

Sinotruk 8000L pavement maintenance truck/intelligent asphalt distributor truck for sale
The bitumen distributor truck consist of chassis, asphalt tank, asphalt pump , spray system, hot oil heating system , hydraulic system, burning system, control system, pneumatic system and operational platform. It is a kind of professional distributing emulsified asphalt, heat diluted asphalt, asphalt, high viscosity modified asphalt, it is an intelligent automation high-tech truck. The truck sprinkles road surface with asphalt and spray the priming oil, waterproof layer, bond layer on asphalt roadbed. It is widely used in highway, urban road, airport and wharf.
Sinotruk 8000L pavement maintenance truck/intelligent asphalt distributor truck for sale
No. | Name | Technical specification | Remarks |
1 | Truck name, Model | CLW5160GLQZ3 Bitumen Distributor Truck | |
1 | Chassis | ZZ1164K4715C1 | Sinotruk |
2 | Engine | YC6J220-30 |
|
3 | Engine manufacture | Guangxi yuchai machinery co., LTD |
|
3 | Displacement / Power | 6500ml / 162kw |
|
| Transmission | 6 forward gears, 1 reverse gear |
|
4 | Emission standard | Euro III |
|
5 | Fuel type | Diesel |
|
6 | Wheelbase | 4700 mm |
|
7 | Tire specification | 10.00R20 |
|
8 | Gross weight | 16000 kg |
|
9 | Payload | 5500 kg |
|
10 | Curb weight | 10305 kg |
|
| Overall dimension | 8650×2480×3070 mm |
|
| Cabin | Car interior, with sleeper and power steering, air conditioning can be equiped if customer requires. | |
| Asphalt Tank volume | 8000L |
|
| Outside tank dimension | 3800 x 2350 x 1650 mm |
|
| Inside tank dimension | 3560 x 2110 x 1410 mm |
|
| Tank Insulation Thickness | 120 mm |
|
Performance Feature:
1. Adjust the nozzles in any form through the computer according to the asphalt spraying quantity and working width.
2. Control the nozzles independently through the manual/automatic control, this can adjust the nozzles in any form.
3. It can control the asphalt spraying quantity not only in the cab but also on the operational platform at the end of the truck.
4. The automatic system can measure the truck speed, it also can automatically calculate the revolution of asphalt pump according to entered asphalt spraying quantity and spraying width, then adjust the pump number through the automatic system
5. Equipped with Italy imports of diesel burner heating, with auto ignition and temperature control. It can improve the heating efficiency and reduce the construction time to ensure the spray temperature.
6. Adopt to the advanced high viscosityasphalt pump, can put outside pump in the Tank to achieve self-absorption, also can put the asphalt out of the tank.
7. In order to make sure the vehicle reliabilityand extend the service life, the critical part of the vehicle adopt to the international famous parts.
8. All the heat pipe has the insulation layer to reduce heat release and avoid to scald the operator at the same time.

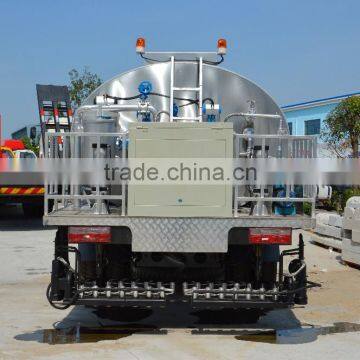

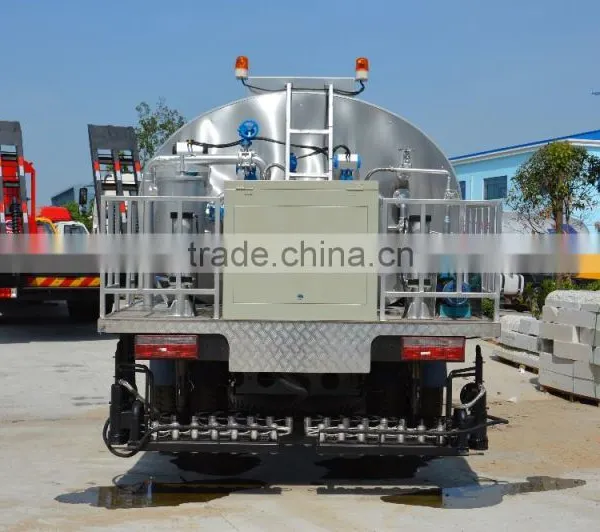

9. The asphalt spray bar is designed three-stage folded structure, move the asphalt spray up and down to achieve dual or multiple spraying, move the asphalt spray left and right to achieve extend the distributing range, what’ more . It can avoid obstacles efficiently.
10.The manual spraying function can make spraying through the hand nozzle,it is quite flexible but only applicable to small and marginal construction Condition.
11. Blow the rest asphalt through the spray nozzle function, this function also can prevent the asphalt frozen on the nozzle, thus can extend the nozzle service life.
12. It has good thermal insulation layer, this is preservative and durable and ensure the static heat preservation performance index ≤12℃/8h.
