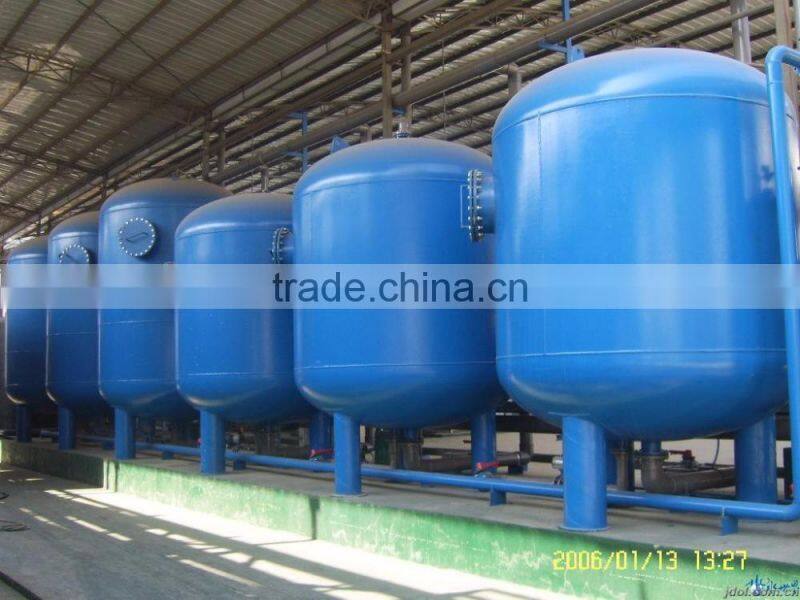

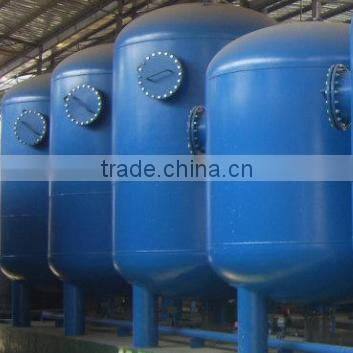

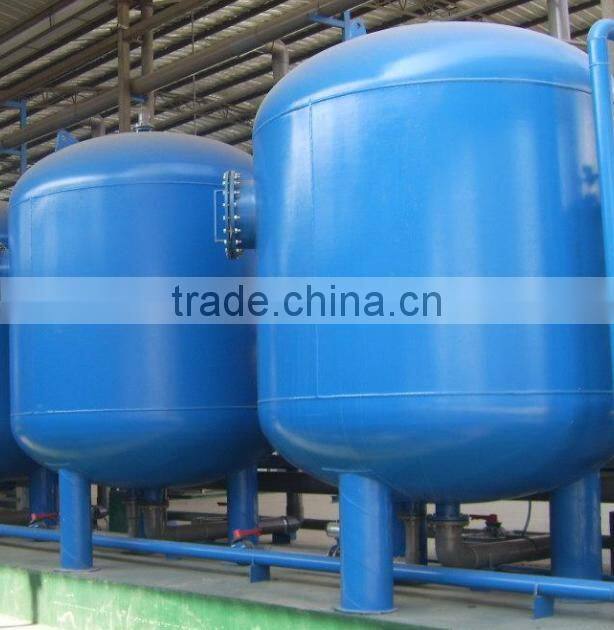

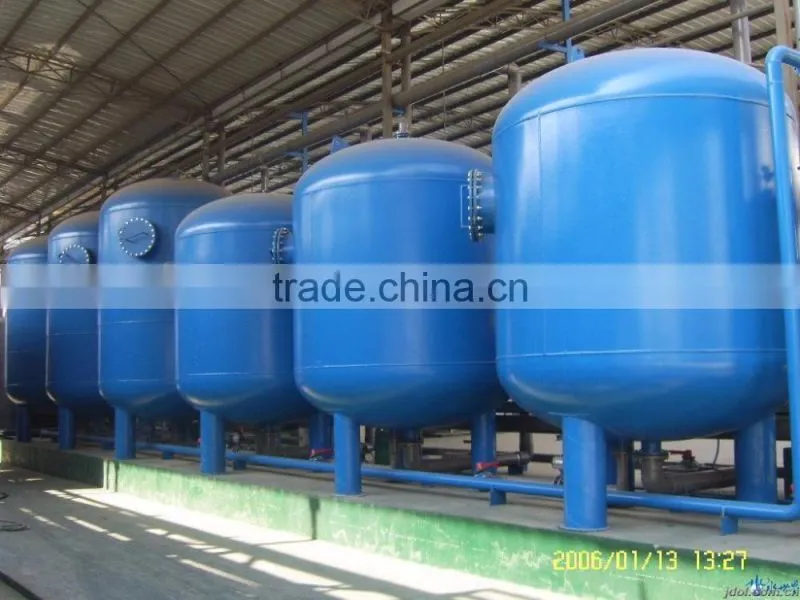

Factory price of the Multi media filter used in industrial circulating water treatment system
Multi Media Filter
Quarzt Sand filter is the best useful way of dislodged seston and the important unit of deep treatment and re-used of wastewater and feed water treatment.
Active Carbon filter has to be used with sand filter synchronously. The main function is that can be dislodged active chlorine, chroma, smell and organics.
Applicable conditions
1. Sand filter is matched for industrial, village, town and residential area with water treatment. (The turbidity of water:≤5mg )
2. Treat water to outlet standard when sheet condensation is appeared in water
Application
1. Preprocess pure water, drinking water, mineral water, and the water involves in the industry of electricity, printing and dyeing, paper-making, chemical.
2. Filter industrial wastewater after secondary treatment.
3. Further filtering of circulating water treating system.
4. Eliminate suspend solid in industrial wastewater.
Material: Carbon steel or stainless steel
TECHNICAL DATA:
1. Design Flow: 8-12m/h;
2. Backwash : 9-15L/second. m2;
3. Washing time: 5-7 minutes;
4. Feed water pressure: ≥0.04Mpa,
5. Backwash feed water pressure: ≥0.2Mpa;
6. Expansion rate: 20%-50%;
7. Filter media: quartz sand, manganese sand, blind coal;
8. Grit diameter 0.5-1.2mm.
FEATURES:
(1) High filter accuracy, multilayer filter media, large filter area, lower pressure loss.
(2) Various control method: automatic control, pressure difference control, manual control.
(3) Easy for maintenance, and easy for filter media replace.
(4) Local control and remote control: Remote control can be added in special condition.
(5) Operation condition output, and fault alarm output is available to ensure the machine safety running.
WIDELY USED:
(1) Water pretreat for power plant, chemical, papermaking, etc.
(2) For agriculture irrigating system.
(3) Water pretreatment for life water.
(4) water treatment for swimming pool.
(5) Side filtering system for circulating water.
(6) Color remove and reduce turbidity for surface water and underground water.
(7) Sewage treatment.
(8) metallurgy and industry.
