Specification:
Specification of zl06 wheel loader
| Performance | Rated Loading: 600KG |
| Bucket Capacity: 0.3CBM | |
| Tread: 1,160MM | |
| Wheel Base: 1,620MM | |
| Min. Turning Radius: 3,000MM | |
| Min. Ground Clearance: 220MM | |
| Max Dump Height: 2,300MM | |
| Dump Distance: 900MM | |
| Lifting Time Of Bucket: 4.5S | |
| Total Three Phases Time: 11S | |
| Max. Breakout Force: 21KN | |
| Overall Dimension: 3900x1400x2300MM | |
| Operating Weight: 2,000KG | |
| Engine | Model: Changchai L22 |
| Type: Single Cylinder, Direct Injection, Horizontal, Four Stroke, Diesel Engine | |
| Cooling System: Hopper | |
| Starting method: Electric Starting Motor | |
| Engine Power: 15.5KW | |
| Rated Speed: 2,200RPM | |
| Specific Fuel Consumption: 244.8G/KW.H Max | |
| Dimension: 858 X 450X 699MM | |
| Net Weight: 180KG |
Quick coupler
Pallet fork, wood grapple, 4 in 1 bucket
Grass cutter, grass grapple, pitchfork
Snow blower, snow blade, V snow blade, snow bucket
Dustpan bucket, mixing bucket, sand bucket, sweeper

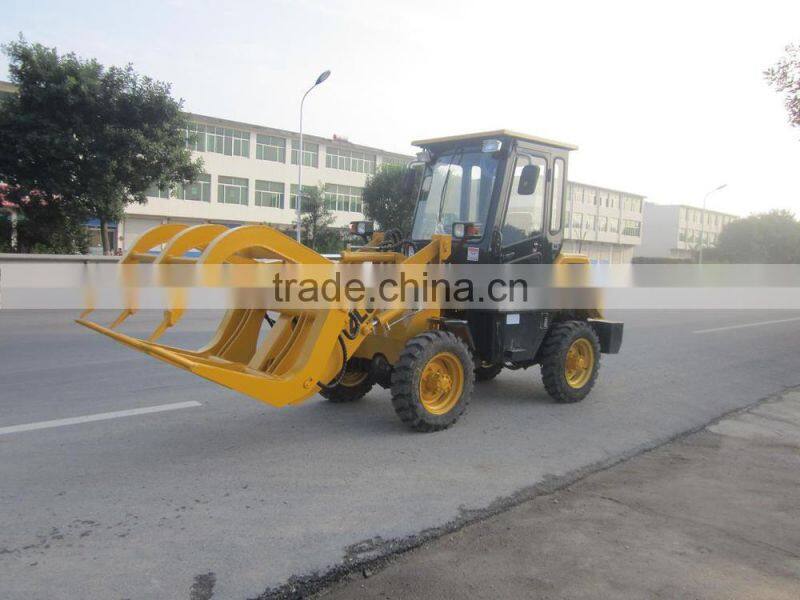

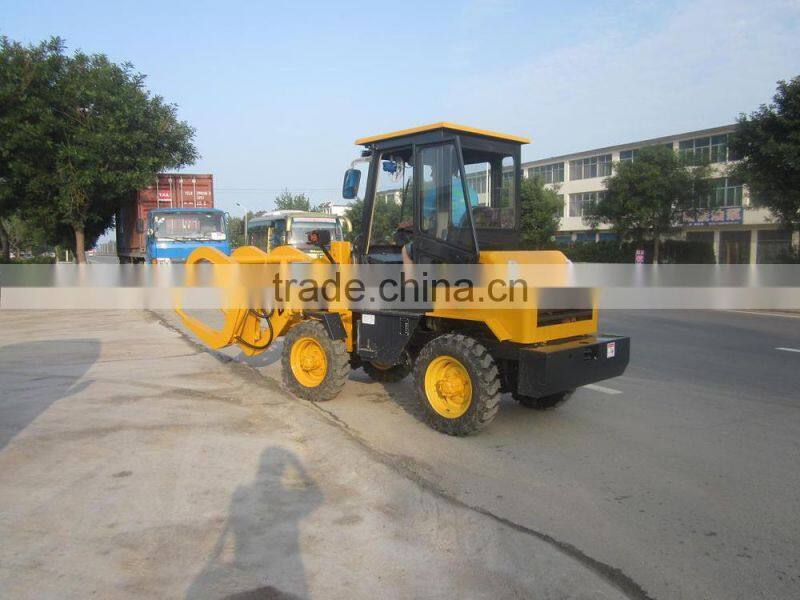

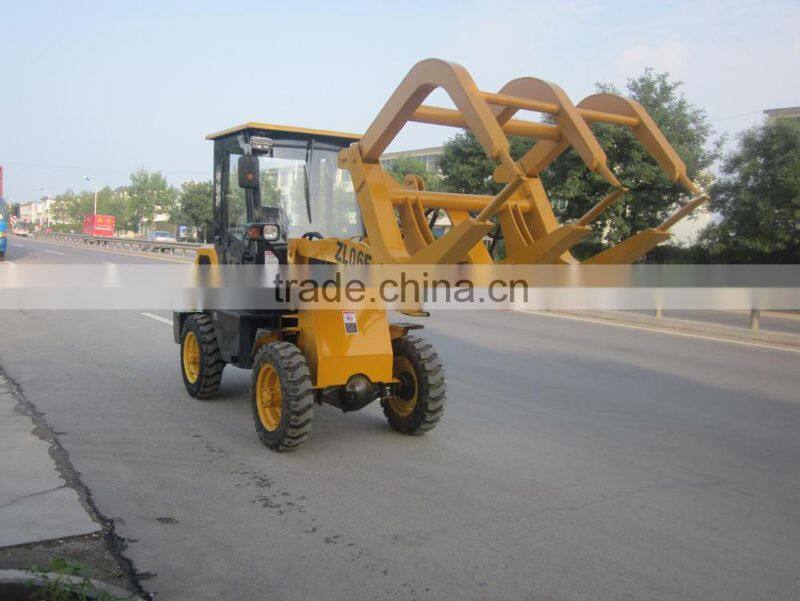

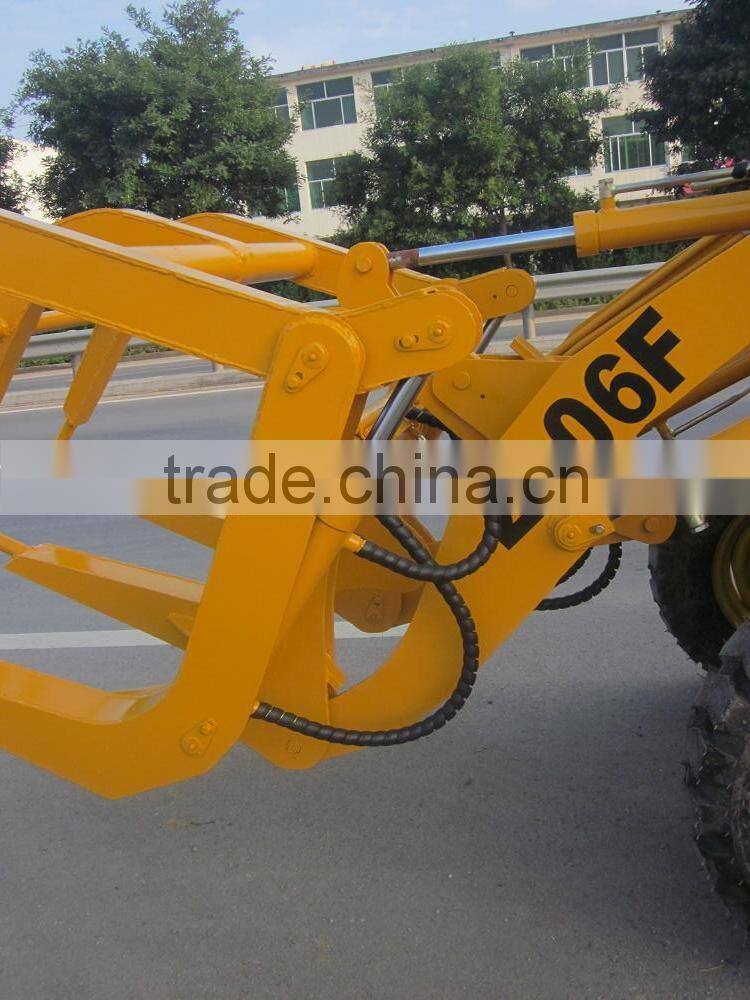

Barrel clamp, bale clamp, grapple
Anti-roll cab, LED light, reverse camera
1,Engine power features low energy consumption and environmental protection
2,The closed hydrostatic system has the feature of lower energy consumption
3,Simple quick-change construction can meet multipurpose operation of users
4,The integrated multi-functional control handle makes operation simple
5,The unique frame hinge type is compacted and durable
6,The widely applied broad-face tyre and damping seat is safe and comfortable
7,The bucket pin shaft have dustproof apron, extended the pin shaft and the service life of the lining sleeve
