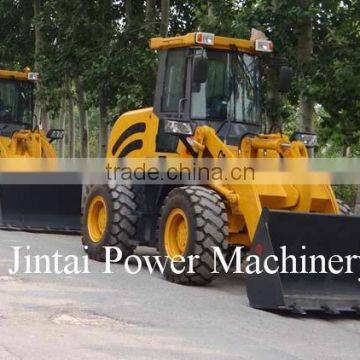

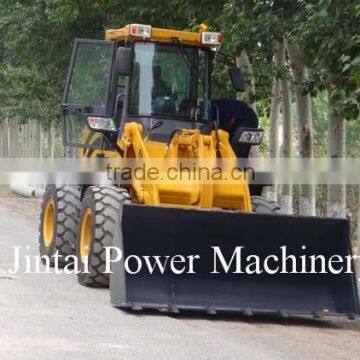

Help Center2.0 Ton Mini Loader, JT920 Wheel Loader With Timber Grapple
Related Products
-
China 2 Ton CE Approved Mini Wheel Loader ZL20F for ExportNegotiableMOQ: 1 Set -
Latest Export 1.0 Ton Wheel Loader, 0.5CBM Mini Wheel Loader ZL10FUS$ 1 - 2MOQ: 1 Set
-
2 TON 1.0-1.2CBM China JT920 Wheel Loader With CE Well SaleUS$ 1 - 2MOQ: 1 Set
-
China 800kg Wheel Loader, Small Wheel Loader With Snow BladeUS$ 1 - 2MOQ: 1 Set
-
China 2 Ton Mini Loader, JT920 Wheel Loader With Timber GrappleNegotiableMOQ: 1 Set
Specification:
Specification |
overall weight(kg) |
5600 |
L×W×H(mm) |
5950×2200×2850 |
|
rated bucket capacity(m3) |
1.1(1.4 big bucket) |
|
Rated load(kg) |
2000 |
|
Maximum dump height (mm) |
2850/3200 |
|
Dump distance |
1084 |
|
Max. breakout force(KN) |
70 |
|
Engine |
Model |
Weichai4108 |
Optional |
C u m m i n s 4BT3.9-C100 |
|
Type |
In-line arrangement, Water cooling, four-stroke |
|
Rated power(kw) |
60kw/75kw |
|
Rated speed(r/min) |
2400 |
|
Transmission system |
Model of torque converter |
YJ280 |
Type |
3-element single stage |
|
Gearbox type |
Fixed-spindle power shift |
|
Gear shift |
2 gears ahead,2 gear astern |
|
Hydraulic system |
Working pump |
CBF25 |
System working pressure |
16MPA |
|
Steering system |
Type |
Articulated hydraulic steering |
Max. turning angle |
35±1° |
|
Min turning radius(mm) |
4500 |
|
Brake system |
Brake type |
Air assisted oil disc on four wheel |
Tire |
Standard tire |
16/70-20 |
1. standard 2 ton wheel loader
2. L x W x H: 5950x2200x2850mm
* CE approved wheel loader standard ZL20 model
* Best and beautiful european design, best configuration
* Joystick & pilot control, quick hitch device, various optional attachments
* A/C, heater cab, comfortable operation environment
* Hot sale model
1. Streamlined ordinary and European appearance design, elegant and generous.
2. Bucket can be set level automatically, computer is adopted to optimize design, single tipping bucket cylinder, “Z” type turning bucket structure, to realize the enormous shovel digging forces.
3. Gearbox and torque converter has integral structure, realize performance.
4. The dynamical system selects the engine of WEICHAI model and Cummins model and EPA approve model, reliable performance, high efficiency and economizing on fuel.
5. Complete hydraulic changing direction system, reliable performance.
6. Can allocate many kinds of selectable assembly, to meet the needs of various working states, like pallet fork, grass fork, snow blower, snow shovel, 4 in 1 multi-function bucket, snow bucket, and so on.
Why choose us?
1) CE,BV,SGS,ROPS and FOPS verified.
2) We are a wheel loader manufacturer with 10-year experience.
3) Customers-focused,anytime,any question we will reply you ASAP.
4) All wheel loaders have best premium quality and reasonable price.
5) Providing a one year warranty for after-sales service.
6) Easy-demaged components are not included in warranty.
7) Delivery term:within 15 days after down payment. An 8)integrated customer follow-up system had been built that helping us to provide premium after-sales service,saving your precious time.
