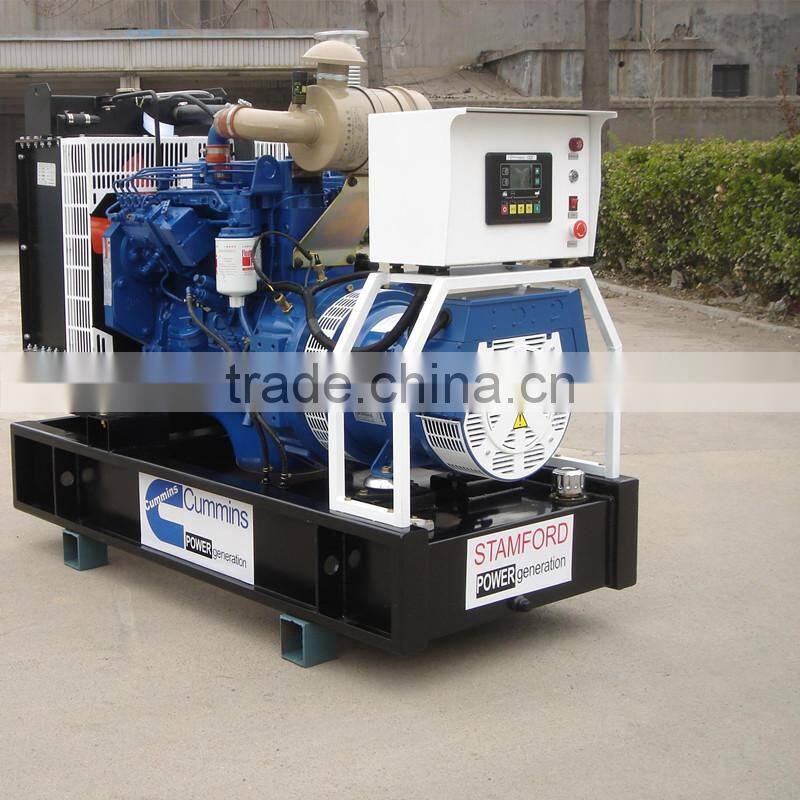

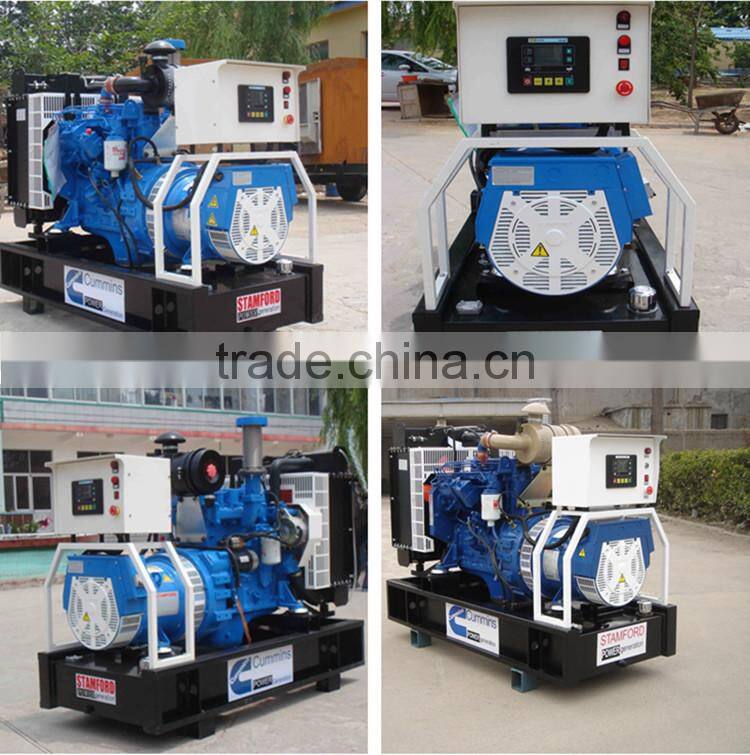

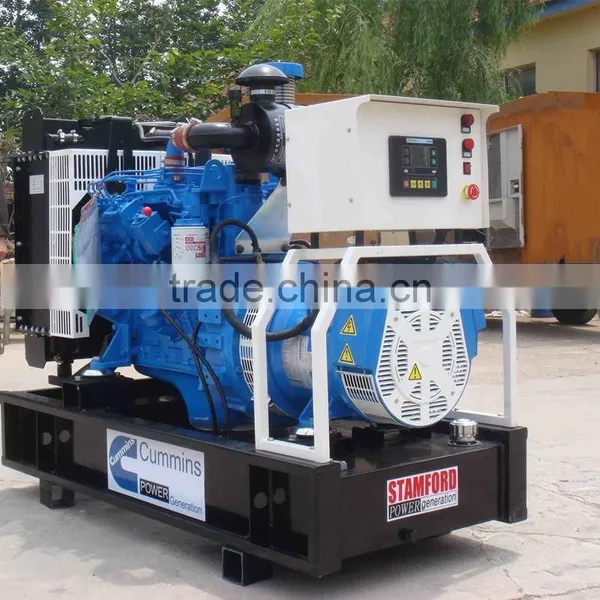

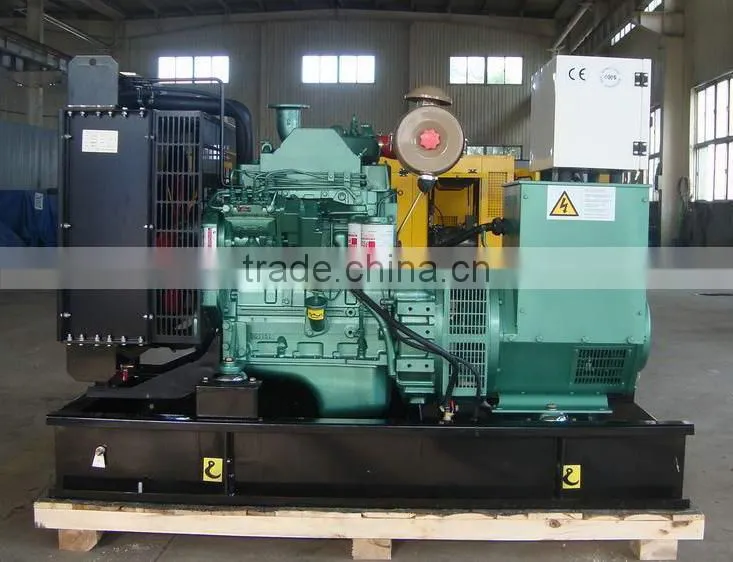

Hot sales 25kva diesel generator price
1, Description of the Goods
1. 25kva diesel generator price with world famous brand engine, low oil consumption and low emission.
2. Alternator "STAMFORD" "MARATHON" "Leroy Somer" Brand 100% copper brushless alternator.Protection Class: IP23, Insulation Class:H
3. 8-24 hours fuel tank
4. Super silent: 65-70dB(A)-7M
5. It adopts advanced design idea and advanced technology. Featured with good ecomomic peroformance, low oil consumption, small volume, compact structure, great power, running stability, easy-installation, easy-operation and maintenance.
6. Automatic controller with ATS. can also connect to grid.
7. It is galvanized. Moistureproof and derusting processing, effectively protect the genset from humid weather

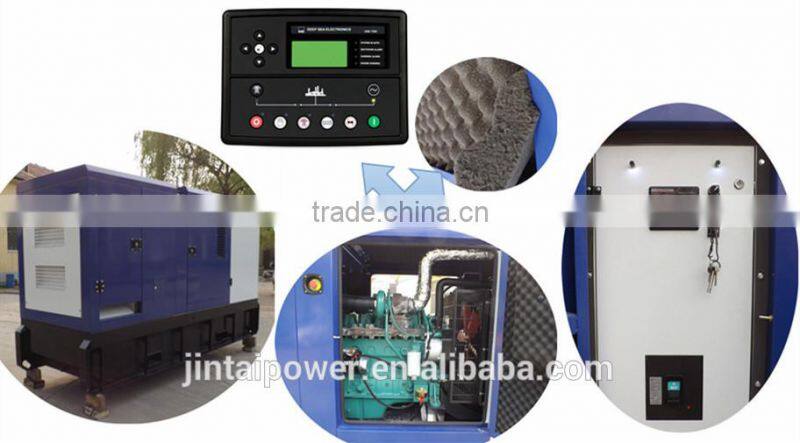

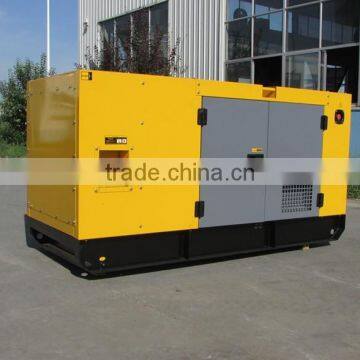

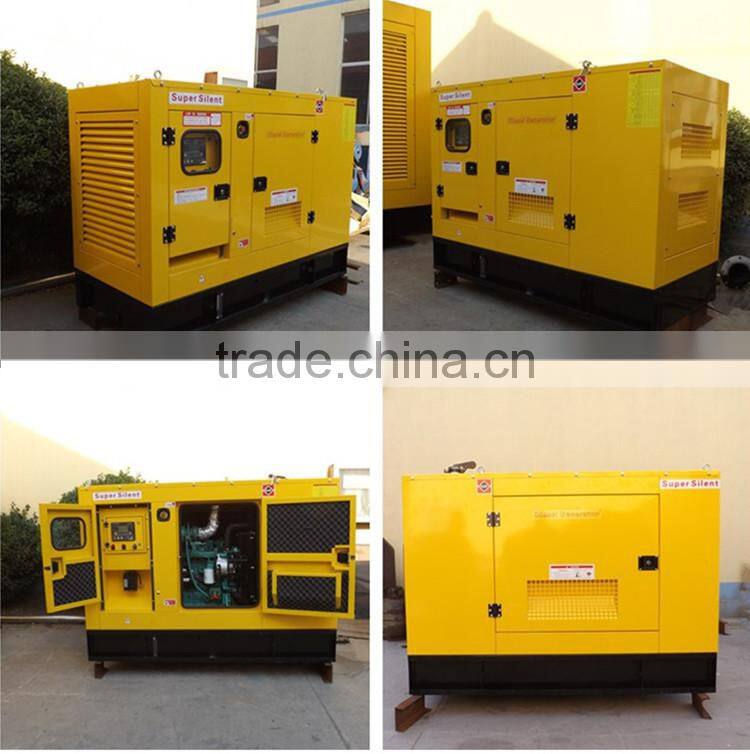

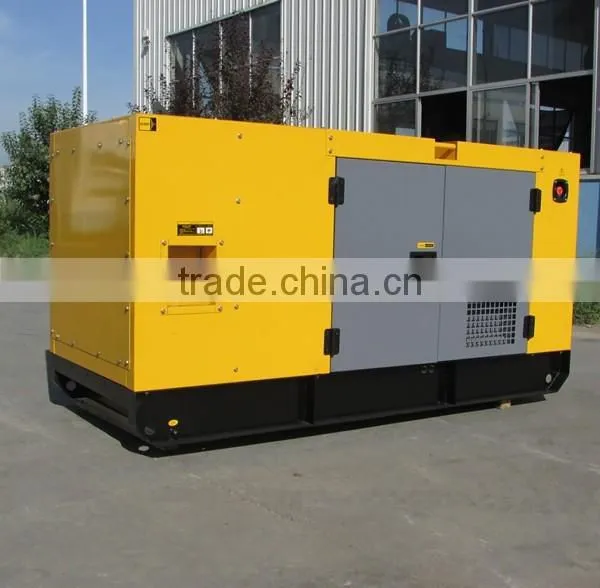

8. Type: Open skid/ Soundproof/Mobile trailer/Container/Canopy, it can meet different demand.
9. ISO, CE, SONCAP
2. The advantage of 25kva diesel generator price engine
|
1) Low oil consumption A: PT fuel system. ultra-high injection pressure, ensure that the engine good atomization, combustion. B: Efficient Holset turbocharger exhaust ensure intake more fully, improve engine efficiency and further improve combustion. C: Air cooling technology to ensure intake more fully, less fuel consumption |
|
2) Compact, easy to maintain A: Replaceable vet cylinder liners, cooling effect, easy to replace B:All spare parts versatility, high degree of serialization, and easy maintenance. C: Block and head are taking a built-in pressure lubricants road, compact, low failure rate |
|
3) Advanced design and reliable performance A: Cylinder: high-strength alloy cast iron, rigidity, vibration, low noise. B: Cylinder head: four-valve per cylinder design, optimized air/fuel ratio, improve combustion and emissions C: Camshaft: single camshaft design can accurately control valve and injection timing, cam profile optimization can reduce the impact force, improve reliability and durability |
3.Technology Data for 25kva diesel generator price
1 |
Type:open skid /soundproof/weatherproof/mobile trailer |
2 |
Output power range:20KW |
3 |
Rated voltage:220/380V,230/400V,240/415V,120/240V |
4 |
Frequency:50/60HZ, Rated speed:1500/1800rpm |
5 |
Power factor:0.8 |
6 |
Output type:AC three phase/single phase |
7 |
Short circuit protection: MCCB air switch |
8 |
Automatic control and automatic transfer switch |
9 |
8-24 hours base fuel tank |
10 |
If soundproof, the noise should be 70 d(B)A-7M |
11 |
Connecting type:3PH star, 3PH-DELTA |
12 |
Mechanical or electric governor |
13 |
Filter system: oil, fuel and air filter |
14 |
Accessories: exhaust elbow, bellow, muffler |
Packing for 25kva diesel generator price
| 25KVA/20KW Diesel Generator | ||
| Genset Model | JT-20GF | |
| Prime Power (kva/Kw) | 25/20 | |
| Rated Current(A) | 36 | |
| Overall Size(mm) | Length*Width* Height (mm) | 1800x800x900 |
| Open | Gross Weight (Open frame) | 750 |
| Oversize (mm) | Length*Width* Height (mm) | 2200*1000*1200 |
| Silent type | Gross Weight (Silent type) | 950 |
| Diesel Engine | Model | CUMMINS 4B3.9-G1 |
| Manufacturer | Dongfeng Cummins Engine Co. LTD. | |
| Type | Four Stroke, Water Cooled, In-line Direct Injection | |
| Prime Power(KW) | 24 | |
| Max. Power(KW) | 26.4 | |
| Aspiration | Natural | |
| No.of Cylinder | Liner 4-cylinder , diesel | |
| Bore x Stroke(mm) | 102*120 | |
| Piston Speed (M/S) | 6 | |
| Compression ratio | 16.8:1 | |
| Mechanical Governor Rate | ≤5% | |
| Rated Fuel Consumption(L/h) | 6.7 | |
| Displacement(L) | 3.9 | |
| Lub oil capacity | 11 | |
| Exhaust Gas Highest | 475 | |
| Temperature (℃) | ||
| Starting method | DV 12/24V Electric starter | |
| Alternator | Model | HJI-20 |
| Rated Power(kva) | 25/20 | |
| Frequency(Hz) | 50/60 | |
| Voltage Regulation | ≤ ±1 | |
| Excitation Type | 100% cooper Brushless with AVR | |
| Protection Class | IP23 | |
| Insulation Class | H | |
| Other terms | Delivery time | Within 15 days after the deposit |
| Payment terms | 30% deposit, the balance T/T before shipment; | |
| Warranty | 12months or 2000 running hours, take the first as standard | |
| Supply scope | Direct-injection diesel engine; | |
| AC synchronous generator; | ||
| Fan and water tank cooling system; | ||
| Common base fuel tank | ||
| MCCB and control panel with voltage meter, frequency meter, | ||
| ampere meter etc. | ||
Mobile trailer type 25kva diesel generator price
The mobile diesel generator set has a variety of structures and functions, such as : hand-push type, three-wheel type, four-wheel type, automobile type, trailer power station, mobile silent power station, mobile container power station, electric power station, electric power project vehicles.
| 1 | Traction: adopt mobile pothood, 360 degree turntable, flexible to ensure |
| the safety when travelling | |
| 2 | Brake: with a reliable air brake interface and hand-brakesystem to ensure |
| the safety when travelling | |
| 3 | Supporting: in order to ensure the stability of power supplying, the genset |
| is equipped with four hydraulic or chemical supporting devices. | |
| 4 | Door and windows: ventilation windows in the front, folio doors at the tail, |
| doors for operators to access from both sides | |
| 5 | Soundproof: decorated with double-layer materials for trunk and doors, |
| The minimum noisecan be 75 dB(A) | |
| 6 | Appearance: adopt polyurethane polymer paint. The color is up to customers' |
| perferance. The vent-pipe is at the bottom to ensure its good looking. |
4.Technical Performance Parameter for 25kva diesel generator price
1 |
No-load voltage setting range ≥(95-105)% |
2 |
Steady state voltage regulation rate ≤ ±1% |
3 |
Transient state voltage regulation rate ≤-15%--+20% |
4 |
Voltage recover time ≤ 2s |
5 |
Voltage fluctuation rate ≤ ± 0.5% |
6 |
Transient state frequency regulation rate ≤±10% |
7 |
Frequency stabilization time ≤3s |
8 |
Line-voltage waveform sinusoidal distortion rate ≤2.5% |
9 |
Voltage fluctuation rate (between cold state and hot state) ≤2% |
10 |
Steady state frequency regulation rate ≤5% |
5. Optional components of 25kva diesel generator price
Other output power diesel generator

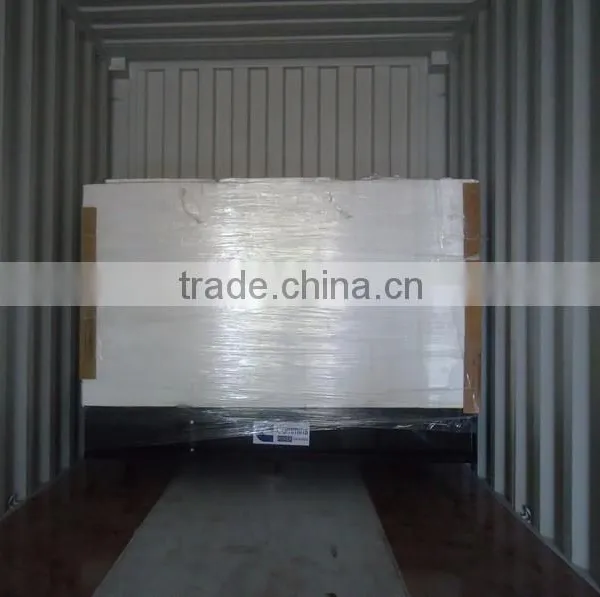

Packing for 25kva diesel generator price
Weifang Jintai Power Machinery Co., Ltd. is specializing in generator sets, construction machinery and agricultural equipments. The generators include diesel generators and gas generators, its output power from 5KVA to 2000KVA with world famous brand engine. All of products are produced in according with ISO 9001 quality management system and are rigorous tested before delivery.
We also offer after-sale service to our customer. We offer spare parts in free within the warranty and help you to install it.
PRE-SALE, ON SALE AND AFTER SALE SERVICE for 25kva diesel generator price
Presale: Expert engineers offer technical consultation and assort guidance to our customers, such as choose the generator type, assort, design the generator room, and so on. To solve any questions and offer technical help during any time.
Onsale: Once we get inform from our customer, we send technical engineers to scene and help to installation and debug the generator, and cooperate with customer to check and accept the generator.
After-sale: 1. Design machine room and the power distribution of the generator.
2. Installation and debug the generator.
3. Train the technical engineer of operating and the maintenance for the customer.
4. Establish record system and offer follow-up service and regular inspection.
5. Offer spare parts and technical help at any time.
Guarantee for 25kva diesel generator price
1). Guarantee period: one year or one thousand hours, take the first as standard.
2). Any trouble of breakdown caused by installation, design or material, we will take charge of the repairment
3). Any trouble or breakdown of the easily damaged parts and other parts which caused operation or no maintenance will not included in the guarantee, but we offer spare parts with cost price, and our engineers can help to repair the generator to work again.
