Superior 8-500kw small gas turbine generator
1.8--500KW small gas turbine generator with world famous brand engine, such as VOLVO, DEUTZ, MAN,RICARDO, WEICHAI, YUCHAI, JICHAI,low oil consumption and low emission.
2. Alternator "STAMFORD" "MARATHON" "Leroy Somer" Brand 100% copper brushless alternator.Protection Class: IP23, Insulation Class:H
3. Super silent: 65-70d(B)A-7M
4. It adopts advanced design idea and advanced technology. Featured with good ecomomic peroformance, low oil consumption, small volume, compact structure, great power, running stability, easy-installation, easy-operation and maintenance.
5. With CHP
6. Automatic controller with ATS. can also connect to grid.
7. It is galvanized. Moistureproof and derusting processing, effectively protect the genset from humid weather
(1)Advantage of small gas turbine generator
| 1 | Stability, reliability and easy-service | |||||||
| 2 | Low operating and maintenance cost. CNG gas has a rich high profit, | |||||||
| reserve with low cost and a high rate of return, | ||||||||
| low operation cost, supply of electricity and thermal | ||||||||
| power at the same time, low maintenance cost. | ||||||||
| 3 | Widely used, location to meet customer needs | |||||||
| 4 | Easy-installation, easy-operation and maintenance | |||||||
| 5 | Longer life: Special design engine has longer life and overhaul time of | |||||||
| 3000hours | ||||||||
| 6 | Clean and environmental | |||||||
| 7 | To put anti-rust treatment | |||||||
| 8 | Global warranty | |||||||
2.Technology Data for small gas turbine generator
1 |
Type:open skid /soundproof/weatherproof/mobile trailer/container type |
2 |
Output power range: 8---500KW |
3 |
Rated voltage:220/380V,230/400V,240/415V,120/240V |
4 |
Frequency:50/60HZ, Rated speed:1500/1800rpm |
5 |
Power factor:0.8 |
6 |
Output type:AC three phase/single phase |
7 |
Short circuit protection: MCCB air switch |
8 |
Automatic control and automatic transfer switch |
9 |
Fuel: LPG |
10 |
If soundproof, the noise should be 70 d(B)A-7M |
11 |
Connecting type:3PH star, 3PH-DELTA |
12 |
Mechanical or electric governor |
13 |
Filter system: oil, fuel and air filter |
14 |
Accessories: exhaust elbow, bellow, muffler |
3. Technology data for small gas turbine generator
Model |
JT-8GFQ------------JT-500GFQ |
|
Structure |
integral |
|
Exciting method |
AVR Brushless |
|
Rated Power (kVA/kW) |
10KVA/8KW---------625KVA/500KW |
|
Rated Current(A) |
14.4A-----------900A |
|
Rated Voltage(V) |
400/230 |
|
Rated Frequency(Hz) |
60/50 |
|
Rated Power Factor |
0.8 LAG |
|
Overall dimension (L x W x H)(mm) |
Different |
|
Net weight (kg) |
800-----12000kgs |
|
Gas Engine |
Model |
4105, 6105, 12V190 ETC |
Type |
I line 4 stroke, electric control ignition, pre-mixed stoichiometry burnge |
|
Cylinder number |
6 |
|
Bore x Stroke (mm) |
Different |
|
Air intake mode |
natural, TURBO |
|
CNG gas consumption(cbm/KW.H) |
0.3-0.35 |
|
Rated Power (kW) |
58 |
|
Rated Speed (r/min) |
1800/1500 |
|
Fuel Type |
LPG/NATURAL GAS |
|
Control panel |
Model |
Smartgen 6120K |
Control module |
Smartgen HGM6210 |
|
Operation language |
English, Span, Chinese, Russia |
|
Alternator |
Model |
Different |
Brand |
Stamford , Marathon |
|
Model |
100% cooper |
|
Rated Power (kW) |
50 |
|
Rating(kVA) |
62.5 |
|
Voltage Regulation |
≤1% |
|
Enclosure protection |
IP23 |
|
Insulation class |
H |
|

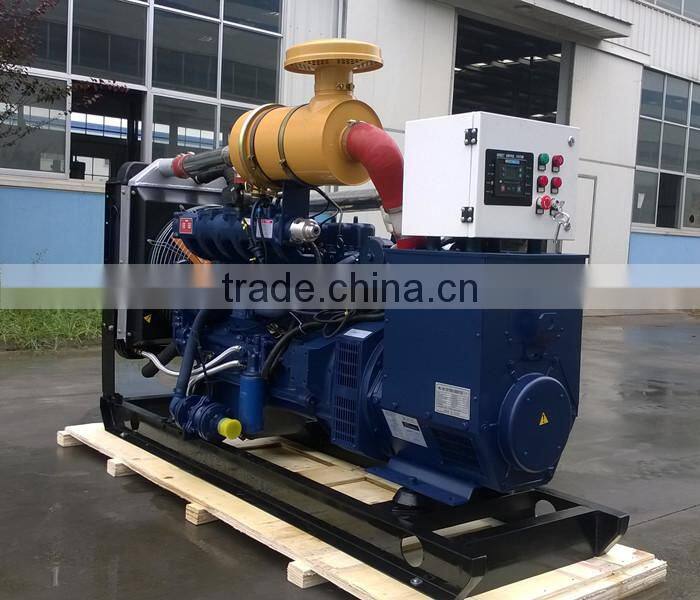

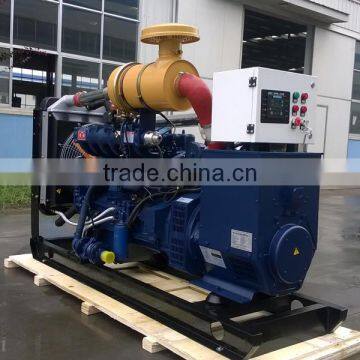

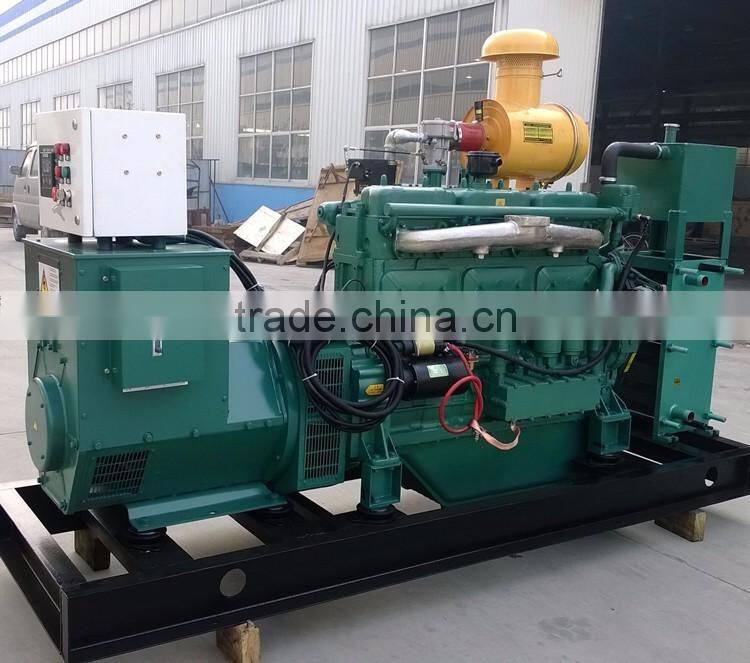

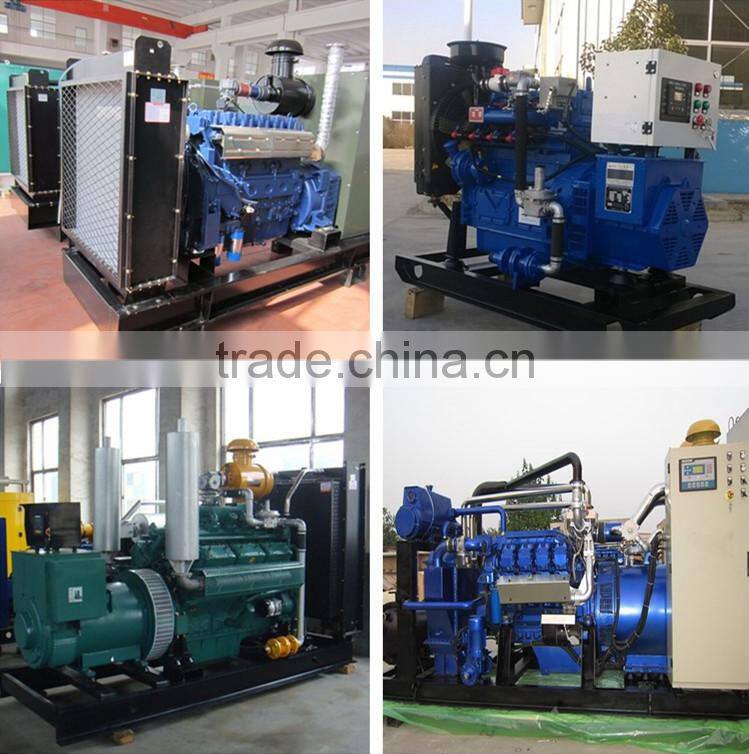

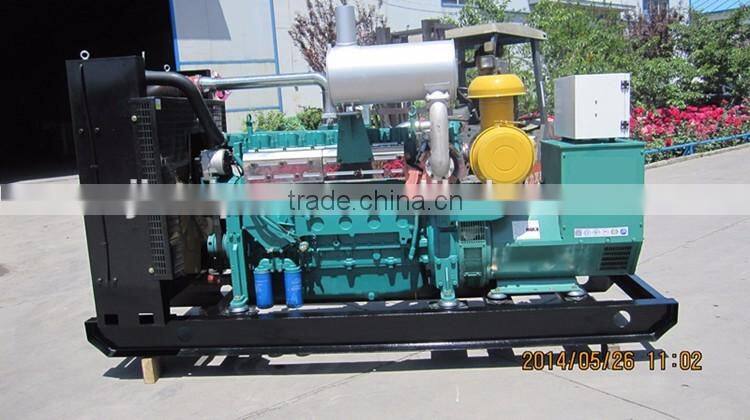

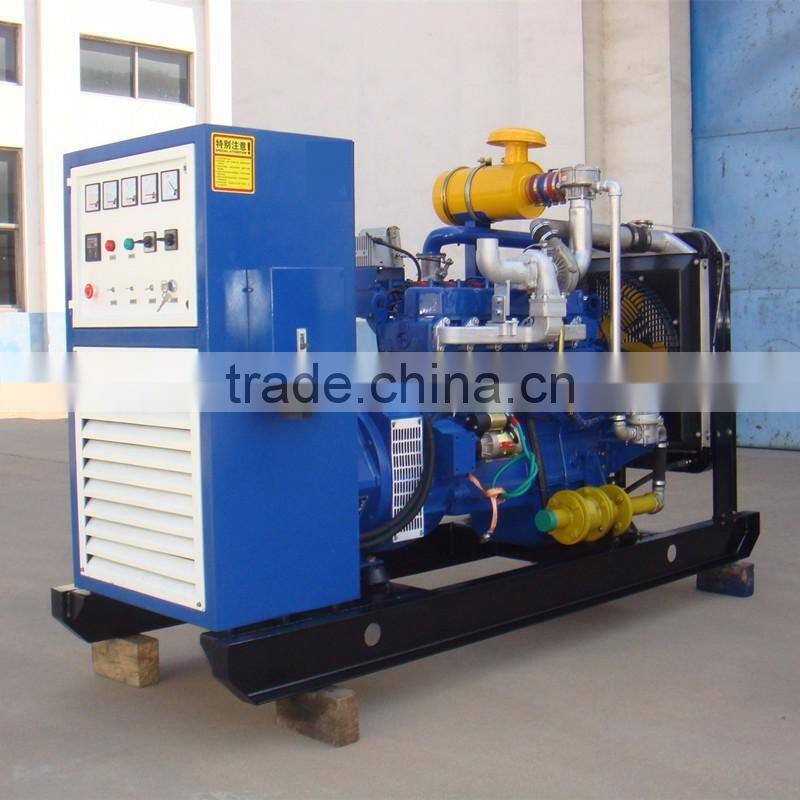

1. Open type small gas turbine generator

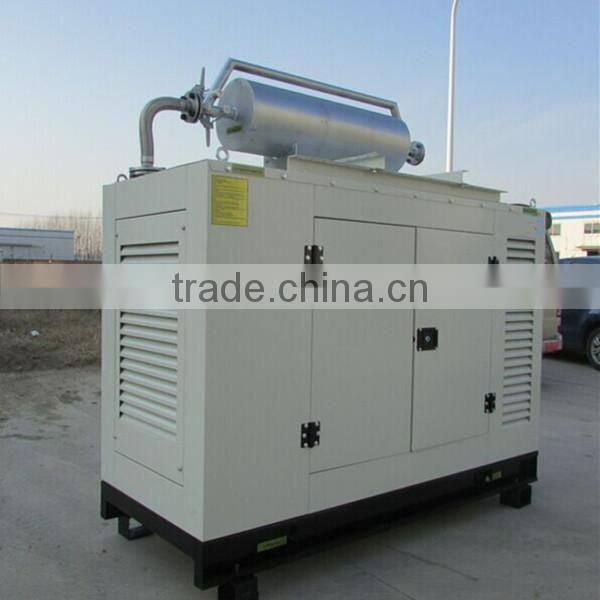

2. Silent small gas turbine generator
Features for small gas turbine generator
1 |
Meet the city’s requirements of environment protection and low noise. Sound-absorbing material : 6CM composite materials |
2 |
Noise of ordinary sets can be reduced to 75db(A) (L-7M measured) |
3 |
Ultra-low-noise can be 65db(A) (L-7M measured) |
4 |
Van-style power stations are equipped with soundproof cases. Its good ventilation and heat radiation measures ensure that the generator works in good conditions and temperature. |
5 |
Rain/Snow/Dust/Soundproof, It can be worked in harsh environment |

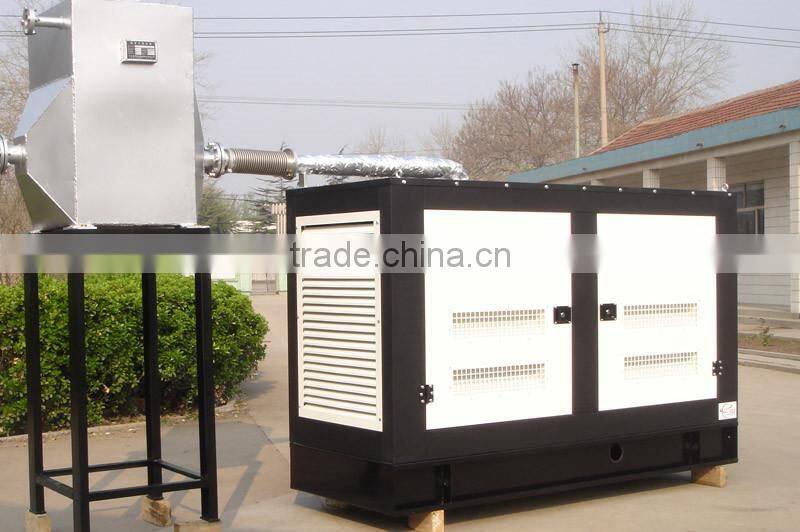

3. small gas turbine generator with CHP
Biogas generator exhaust gas temperature can up to 550 degree, it can set comprehensive utilization facilities on exhaust pipelines to recover waste heat fully (such as heating water, oil and so on) to provide heating, bath and other use, increasing economic benefits

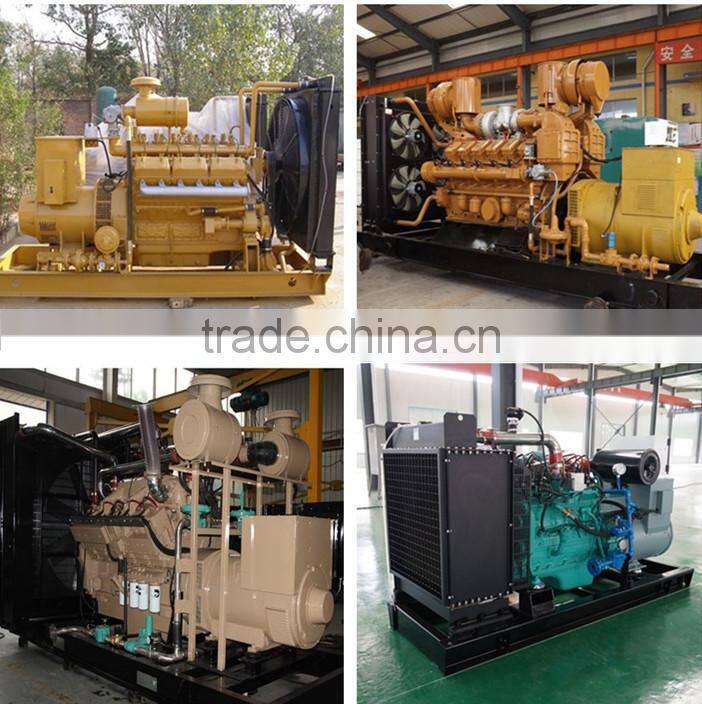

4. Different brand small gas turbine generator

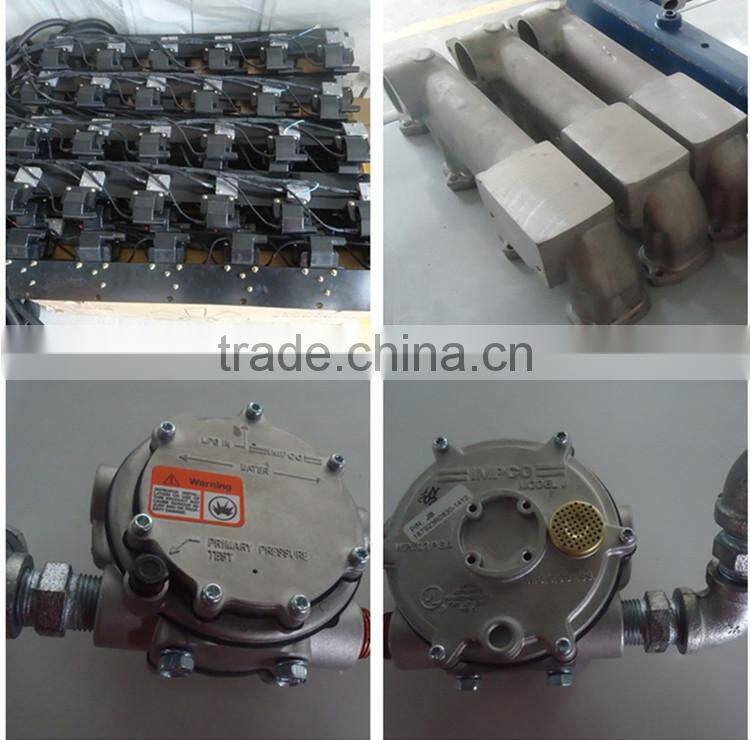

small gas turbine generator spare parts
Linda Wu
Weifang Jintai Power Machinery Co., Ltd.
Tel: +86 536 8278715 Mobile: 86 152 6466 8102
Trade manager: jintaipower
Wechat: lindamachine
WhatsAPP: 0086 152 64668102
Skype: lindamachine
QQ: 1521993639
Packing for small gas turbine generator
Weifang Jintai Power Machinery Co., Ltd. is specializing in generator sets, construction machinery and agricultural equipments. The generators include diesel generators and gas generators, its output power from 5KVA to 2000KVA with world famous brand engine.
Presale: Expert engineers offer technical consultation and assort guidance to our customers, such as choose the generator type, assort, design the generator room, and so on. To solve any questions and offer technical help during any time.
Onsale: Once we get inform from our customer, we send technical engineers to scene and help to installation and debug the generator, and cooperate with customer to check and accept the generator.
After-sale: 1. Design machine room and the power distribution of the generator.
2. Installation and debug the generator.
3. Train the technical engineer of operating and the maintenance for the customer.
4. Establish record system and offer follow-up service and regular inspection.
5. Offer spare parts and technical help at any time.
Guarantee for small gas turbine generator
1). Guarantee period: one year or one thousand hours, take the first as standard.
2). Any trouble of breakdown caused by installation, design or material, we will take charge of the repairment
3). Any trouble or breakdown of the easily damaged parts and other parts which caused operation or no maintenance will not included in the guarantee, but we offer spare parts with cost price, and our engineers can help to repair the generator to work again.

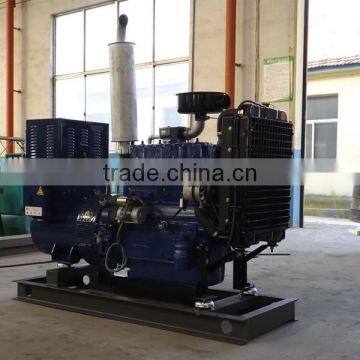

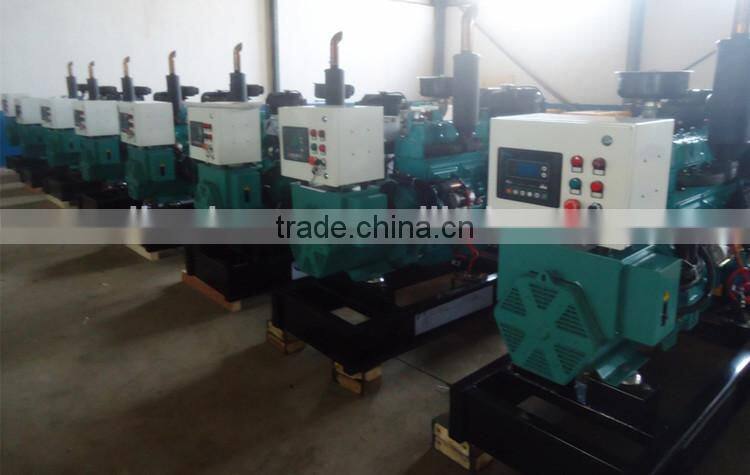

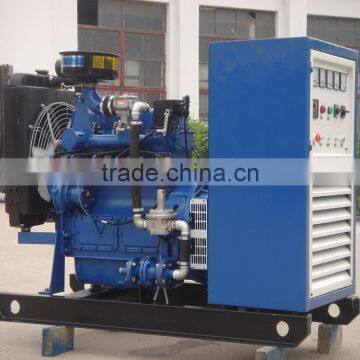

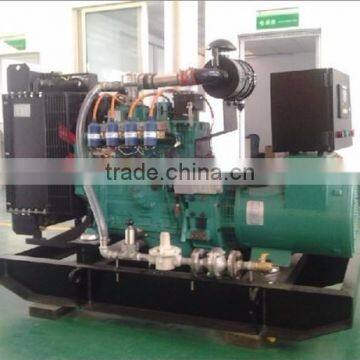

Photoes for small gas turbine generator
