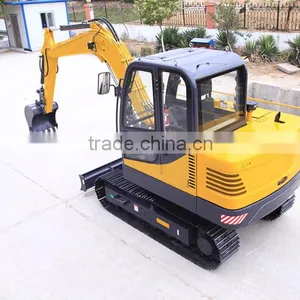

Help CenterEverun Brand ER65-8A(6.5Ton) China Mini Digger,China Mini Digger 5t
Related Products
-
Made in China ER65-8A(6.5Ton) Crawler Mini Excavator With Cummins EngineUS$ 35,000 - 43,000MOQ: 1 Unit -
Made in China ER85-8B (8.5Ton) Crawler Mini Excavator With Yanmar EngineUS$ 50,000 - 56,000MOQ: 1 Unit
-
Made in China ER65-8B(6.5Ton) Crawler Mini Excavator With Yammar EngineUS$ 35,000 - 43,000MOQ: 1 Unit
-
Made in China ER85-8A (8.5Ton) Crawler Mini Excavator With Cummins EngineUS$ 50,000 - 56,000MOQ: 1 Unit
-
Everun Brand ER-18 Crawler Hydraulic Excavator With CE CertificateUS$ 15,000 - 15,999MOQ: 1 Unit
Specifications
1)Imported Engine with CE approved(2)Hydrostatics System
(3)On-line digital monitoring and control system
(4)Steel pedrail
Product Description

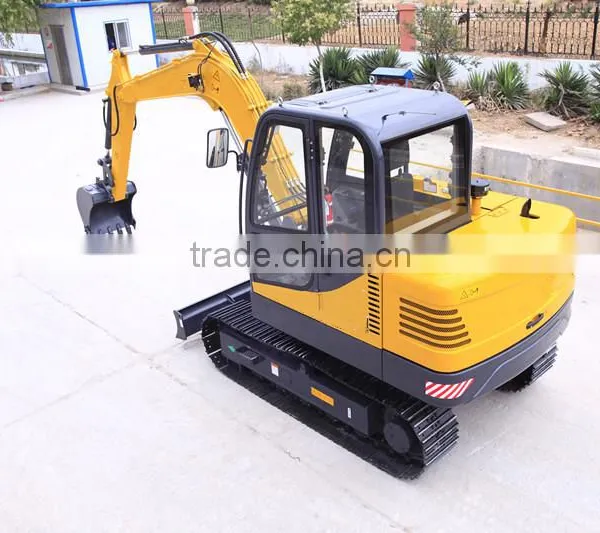

CT65-8A MINI EXCAVATOR:
1, YANMAR engine,
2, Imported hydraulic system with dual pump and dual circuit
3, On-line digital monitoring and control system
4, GPS satellite position and remote diagnose system(optional)
5, Cold&warm air conditioner supply under different kinds of weather conditions
6, Light and handy pilot operating system
7. Steel pedrail
SPECIFICATIONS :
Operating weight 6.200 KG
Travel speed 4.0/2.5km/h
Bucket Capacity 0.20m3(SAE)
Tracking Force 49.3kn
Engine power 38.1KW/2.200RPM
Gradeability 30(58%)
Swing speed 10RPM
Bucket digging Force 36.7 kn
Ground Pressure 34KPa
Arm digging Force 26.1kn
MAINLY DIMENSIONS:
Boom Length 3.050mm
Arm Length 1.600 mm
Upperstructure width 1.790mm
Undercarriage width 1.880 mm
Overall Height with cabinet 2.650 mm
Rear swing radius 1.770 mm
Clearance under counter weight 780 mm
Tumbler Distance 2.000 mm
Ground clearance 400 mm
Overall length for transportation 6.070 mm
WORKING RANGE :
MAX digging radius 6.245 mm
MAX digging radius at ground lever 6.100 mm
MAX digging depth 3.875 mm
MAX vertical wall digging depth 2.900 mm
MAX digging height 5.785 mm
MAX dumping height 4.095 mm
MAX dozer cutting depth 595 mm
MAX dozer lifting height 300 mm
