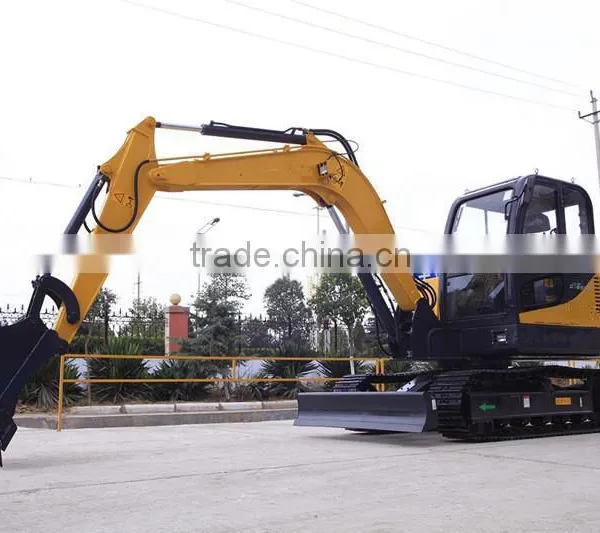

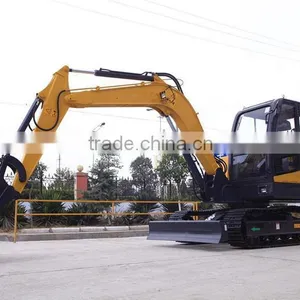

Help CenterMade in China ER85-8B (8.5Ton) Crawler Mini Excavator With Yanmar Engine
Related Products
-
Made in China ER65-8B(6.5Ton) Crawler Mini Excavator With Yammar EngineUS$ 35,000 - 43,000MOQ: 1 Unit -
Made in China ER85-8A (8.5Ton) Crawler Mini Excavator With Cummins EngineUS$ 50,000 - 56,000MOQ: 1 Unit
-
Everun Brand ER-18 Crawler Hydraulic Excavator With CE CertificateUS$ 15,000 - 15,999MOQ: 1 Unit
-
Everun Brand New ER18 Mini ExcavatorUS$ 35,000 - 43,000MOQ: 1 Unit
-
Everun New ER18 China Small Crawler Excavator With CE ApprovedUS$ 35,000 - 43,000MOQ: 1 Unit
Specifications
(1)Imported Engine with CE approved(2)Hydrostatics System
(3)On-line digital monitoring and control system
(4)Steel pedrail
Product Description:
CT85-8B MINI EXCAVATOR :
1. Imported hydraulic system with dual pump and dual circuit, stable work performance, fast speed.
2. Guarantee for 2 yrs under normal use and maintenance
3. On-line digital monitoring and control system
4. GPS satellite position and remote diagnose system(optional)
5. Cold&warm air conditioner supply under different kinds of weather conditions
6. Light and handy pilot operating system
7. Steel pedrail
SPECIFICATIONS :
Operating weight 8.200kg
Travel speed 4.6/2.9km/h
Bucket Capacity 0.105-0.51m3
Tracking force 70.8kn
Engine power 60KW/2.200RPM
Gradeability 30(58%)
Swing speed 11RPM
Bucket digging force 54.8 kn
Ground Pressure 38KPa
Arm digging force46.6 kn
MAINLY DIMENSIONS :
Boom Length3.905 mm
Arm Length 1.750 mm
Upperstructure width 2.170 mm
Undercarriage width 2.100 mm
Overall Height with cabinet2.510 mm
Rear swing radius 1.835 mm
Clearance under counter weight 785 mm
Tumbler Distance 2.200 mm
Ground clearance370 mm
Overall length for transportation6.430 mm
WORKING RANGE :
MAX digging radius 6.810 mm
MAX digging radius at ground lever 6.680 mm
MAX digging depth 4.375 mm
MAX vertical wall digging depth3.200 mm
MAX digging height 7.310 mm
MAX dumping height 4.895 mm
MAX dozer cutting depth 430 mm
MAX dozer lifting height 310 mm
