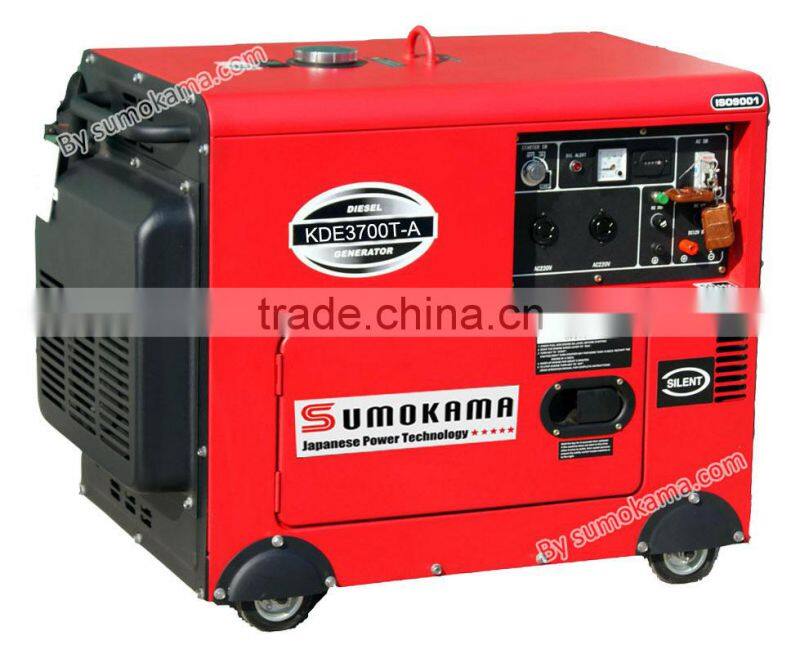

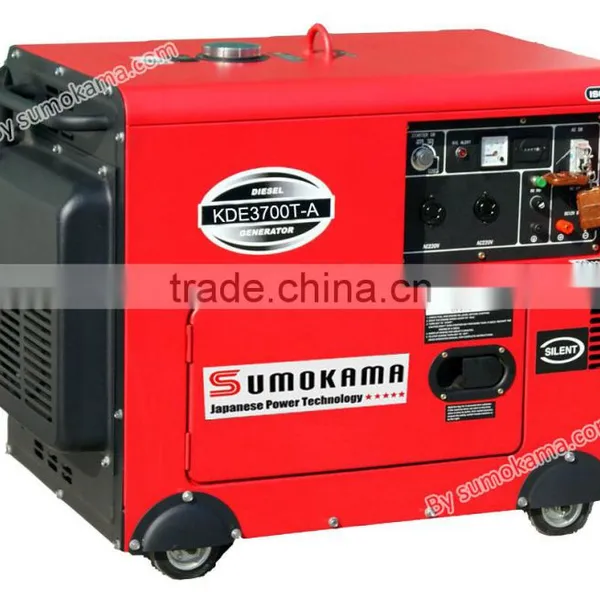

3kw Silent Diesel Generator

Name: 3kw Silent Diesel Generator
Brand: SUMOKAMA
SKU: 140761480
Availability: InStock

Changzhou Yarmax Power Co., Ltd.

Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

SUMOKAMA

Model Number:

KDE3700T-A

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name SUMOKAMA

Model Number KDE3700T-A

Output Type AC Single Phase

Speed 3000/3600

Frequency 50/60

Rated Power 3KW

Rated Voltage 220V

Specifications

generator silent type KDE3700T
High combustion efficiency,fuel efficiency
Worldwide Reliable& guara

Model	KDE3700TA
Frequency (HZ)	50	60
Rated Output (KVA)	2.8	3.0
Maximum Output (KVA)	3.0	3.2
Rated Voltage (V)	115/230	120/240
Rated current (A)	24.4/12.2	25/12.5
Rated rotation speed (rpm)	3000	3600
Phase No.	Single phase
Power Factor	1.0
Excitation Mode	Self-excitation, 2 pole and constant voltage (AVR)
DC Output	12V. /8.3A , Terminal Post
Structure Type	Soundproof
Noise Level (7m) dB(A)	72
Engine Model	KM178F
Engine type	Single-Cylinder, Vertical, Four-Stroke, Direct Injection, Air Cooled Diesel
Bore × Stroke(mm)	78 x 62
Displacement (L)	0.296
Rated Power KW	3.68/3000	4.0/3600
Fuel comsumption Rate(g. kw/h)	276.1	285.6
Compression Ratio	20: 1
Lubrication System	Pressure Splashed
Starting System	Electric Start with 30Ah MF battery
Fuel Type	0#(summer)-10#(winter), diesel
Lube Oil Brand	SAE10W30 (above CD Grade)
Lube Capacity (L)	1.1
Fuel Tank Capacity (L)	15
Continuous Running Time (hr)	12
Overall Dimension: LxWxH (mm)	955 x 560 x 780
Dry Weight (Kg)	140
Quantity in 20FT	72 Pcs
