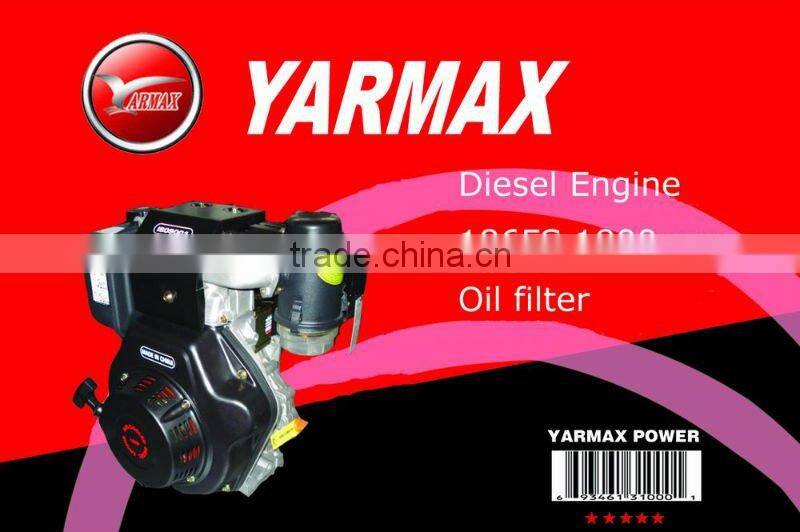

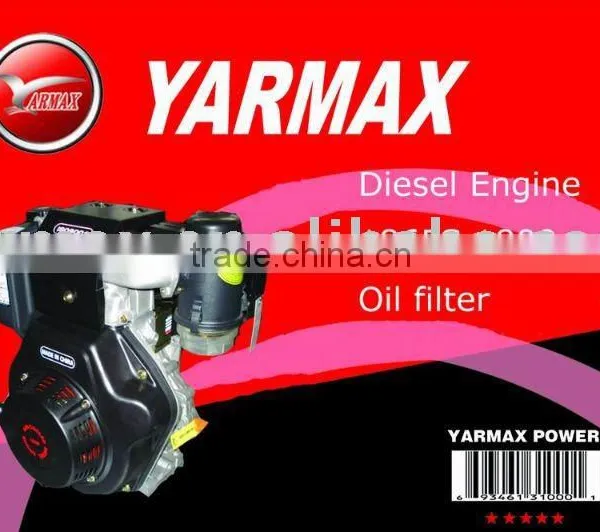

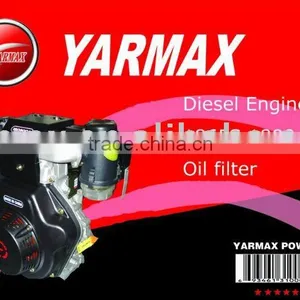

Yanmar Type 1800RPM Diesel Engine 186FS

Name: Yanmar Type 1800RPM Diesel Engine 186FS
Brand: YARMAX
SKU: 140761414
Availability: InStock

Changzhou Yarmax Power Co., Ltd.

US$ 185 - 220 MOQ: 10 Sets

Key Specifications

Usage:

Other, Agricultural

Fuel:

Diesel

Stroke:

4 Stroke

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Usage Other, Agricultural

Fuel Diesel

Stroke 4 Stroke

Cylinder Single Cylinder

Cold Style Other, Air-cooled

Start Kick Start

Place of Origin Jiangsu, China

Brand Name YARMAX

Model Number YM186FS

Specifications

Yanmar type Diesel engine
10HP Diesel Engine
Direct injection Diesel engine
Small Diesel Engine
186FS diesel engine

Model	YM186FS
Type	Single-cylinder,vertical,4-stroke air-cooled diesel engine
Combustion system	Direct lnjection
Bore X Stroke(mm)	86x70
Displacement(cc)	406
Engine Speed(rpm)	1500	1800
Max.output(kw)	6	6.3
Rated output(kw)	5.7	6
Fule	0# or -10# light diesel fuel
Fule oil tank volume(L)	5.5
Lubricatiom oil volume(L)	1.65
Fule oil consumption rate(g/kw.h)	275.1	281.5
Valve clearance (mm)	0.10-0.15
PTO Model	Camshaft
Starting system	Recoil or Electric
PTO rotation direction	It is clockwise as viewing from the flywheel end
Battery	Optional
Dimension(mm)	522x522x578
Net weight(kg)	45
20FT	220
We reserve the right to change specifications without notice
