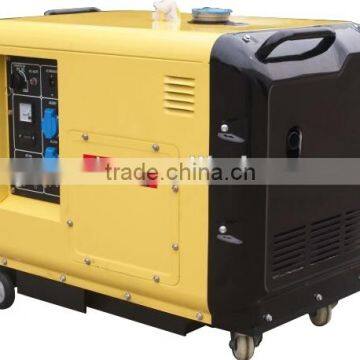

7KVA Air Cooled Portable Diesel Generator

Name: 7KVA Air Cooled Portable Diesel Generator
Brand: YARMAX
SKU: 140761150

US$ 560 - 560 MOQ: 144 Cartons

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

YARMAX

Model Number:

YM9900TN

Changzhou Yarmax Power Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name YARMAX

Model Number YM9900TN

Output Type AC Single Phase

Speed 3000/3600rpm

Frequency 50/60HZ

Rated Power 6.7KW

Rated Voltage 220V/380V

Rated Current 30A

Model	YM9900T
Rated frequency	50 60
Rated output(kVA)	6.5 6.7
Max. output(kVA)	6.7 7.0
Rated Voltage(V)	230 or as requested
Rated current (A)	26
Rated rotation speed(r/min)	3000 3600
Phase NO.	Single phase
Power factor(Cos Φ)	1
Insulation Grade	B
Pole number	2
Excitation mode	Self-excitation & constant voltage (AVR)
Panel Type	General Panel
Voltage(V)	230 or as requested
Receptacle	Two receptacles
Connection pole	Without
DC12V output	Connection pole output
Overall dimension(L×W×H)mm	930×530×740
Dry weight(kg)	172
Working assorting weight	187
Noise level(7m)dB(A)	68
Structure type	Silent type
Engine Model	New YM192FG
Engine Type	Single cylinder, vertical, four-stroke, direct injection
Cylinder NO.-bore×stroke(mm)	1-92×75
Displacement(ml)	548
Rated power[KW/(r/min)]	8.0/3000
Compression ratio	19:01
Rated rotation speed(r/min)	3000
Cooling system	Air cooled
Combustion system	Direct injection
Starting system	Electric starter
Fuel type	0#(summer)-10#(winter)-35#(chillness)diesel
Lube oil brand	CD grade or SAE10W-30,15W-40
Lube capacity(L)	1.65
Starting motor capacity( V-kW)	12V 0.8kW
Charging generator capacity ( V-A)	12V 3A
Battery capacity(v-Ah)	12V 30-36Ah
Fuel consumption(g/kw.h)	≤360
Fuel tank capacity(L)	15
Continuous running time(hr)	6
