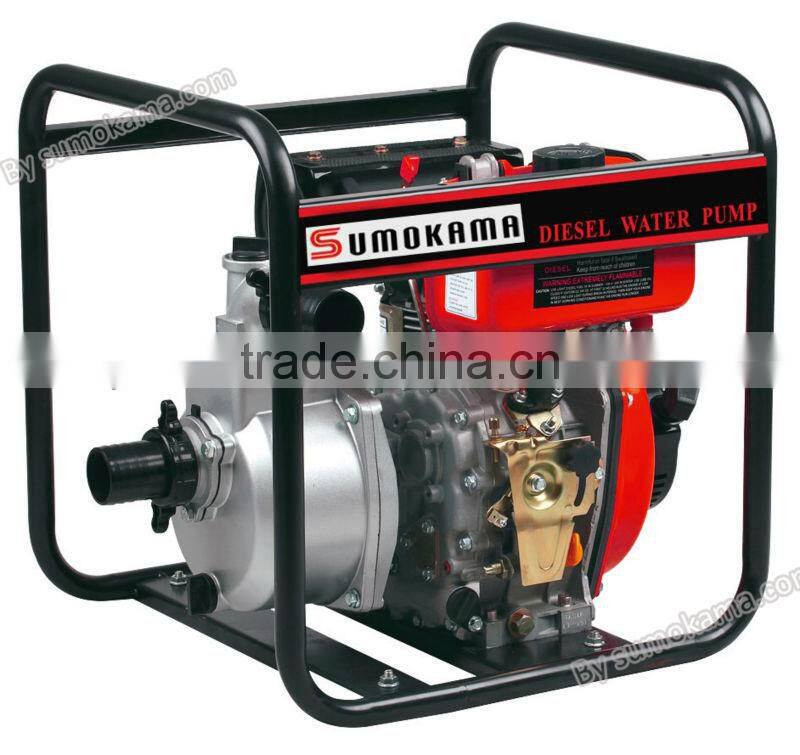

2 Inch KDP20 Powered by New Diesel Engine 170F Electric Water Pump

Model

KDP20

Suction, discharge port diameter[mm(in)]

50(2" )

Rated total head (m)

15

Max. total head (m)

26

Self-priming time (s/4m)

80

Max suction head (m)

8

Cont. capacity (m3/hr)

22

Max. capacity (m3/hr)

36

Fuel tank Capacity: L

2.5

Enigine model

KM170F

Type

Single-cylinder, Direct injection, vertical, 4-stroke air-cooled diesel

Bore X Stroke (mm)

70× 55

Fuel

Summer: 0# Winter: -10#

Lubricatiom Oil Model

SAE10W-30(above CD grade)

Lubricatiom oil volume: L

0.75

Fule oil consumption rate(g. kw/h)

517

Displacement: L

0.211

Power/ speed: KW, r/min

2.8/3600

Compression Ratio:

20

Noise level(dB(A)/7m)

74

alert

Yes

Connecter of infall, Connect of outfall

Yes

Fiffer

Yes

Seal ring

Yes

Hoop

Yes

Dimension: mm

520× 440× 560

Dry weight: kg

35

20FT

220

Luxury big fuel tank

optional

                        Electrical start

optional

30Ah MF Battery

optional

We reserve the right to change specifications without notice
