One and half year or 1500 hours which comes first
1) Economic,
2) Stable power,
3) High quality
Company Information
Since 2007 Changzhou Yarmax Power Co,. Ltd specialized in the ultimate power solution, research, design and production of Engines, Power Generators and Water Pumps with the state of art of the technology and unique design.
We only focus on the great goal to be the power expert by your side.
YARMAX Power. Power The World !
Our main products including Air Cooled Diesel Engine, Air Cooled Diesel Generators, Welding Generators, Water Pumps and Water Cooled Diesel Generator from power range of 10KVA-2000KVA with very strong capability, advanced production lines and quality inspections.
Moreover, we fully carry out quality management system and strictly enforce the management system of ISO9001; 2000 and CE.We keep seeking researching and producing new variety of products with our very skillful professional team of technicians and workers. Our products have good reputation and goodwill in both local and international market.
We encourage the participation of all our staff members to reply on quality, development and creativity. We also strictly follow the valuable feedback of our valuable customers and agents.
We are looking forward to co-work with overseas companies based on mutual benefits and provide the best service to the world !

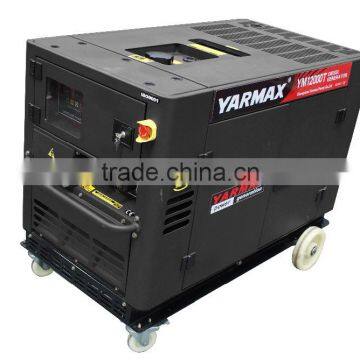

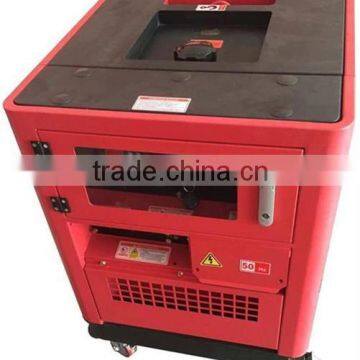

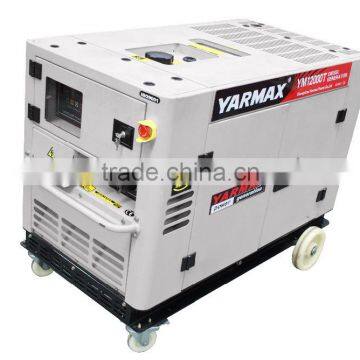

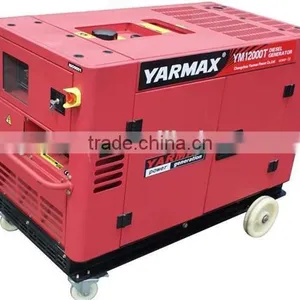

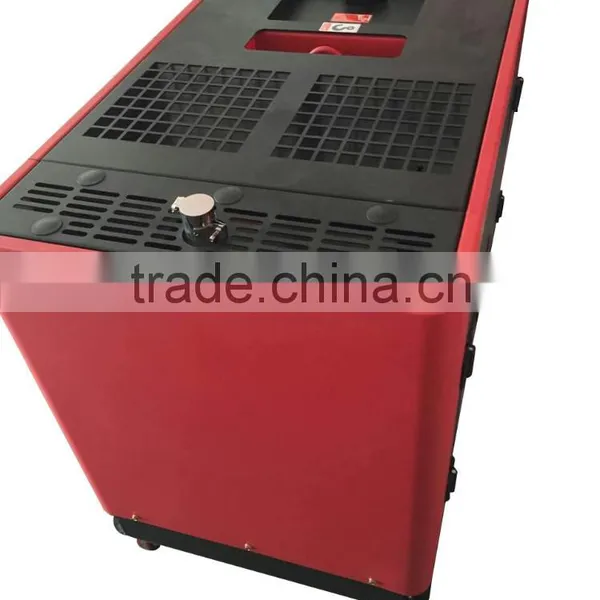

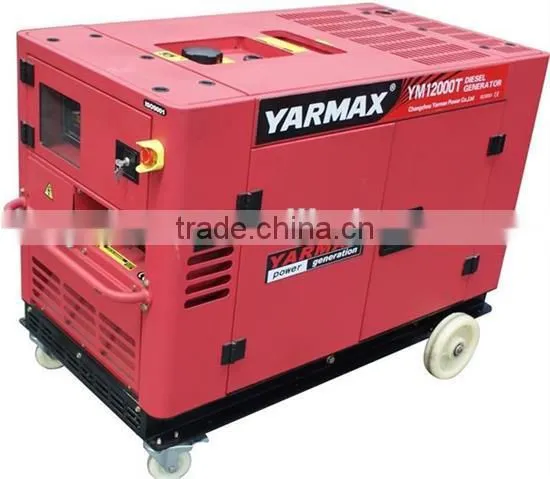

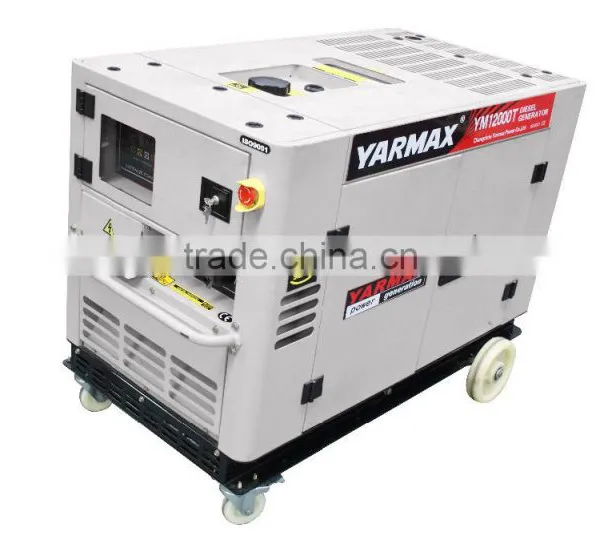

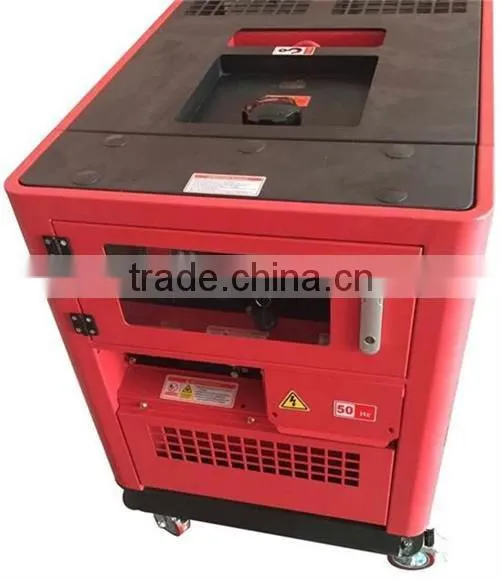

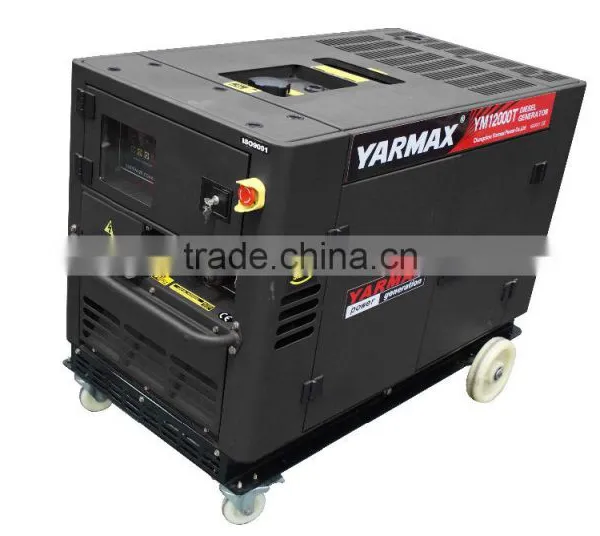

| Model | YM12000T |
| Frequency(Hz) | 50 60 |
| Rated Power(kVA) | 8.5 9.5 |
| Max.Power(kVA) | 9.5 11.0 |
| Rated voltage(V) | 230 or as requested |
| Rated current(A) | 37 |
| Rated rotation speed(r/min) | 3000 3600 |
| Phase No. | Single phase |
| Power factor(Cos Φ) | 1 |
| Insulation Grade | B |
| Pole number | 2 |
| Excitation mode | Self-excitation & constant voltage (AVR) |
| Panel Type | Digital panel |
| Voltage(V) | 230 or as requested |
| Receptacle | Two single-phase receptacles |
| Connection pole | With |
| DC12V output | Without |
| Overall dimension(L×W×H)mm | 1000×650×860 |
| Dry weight(kg) | 310 |
| Noise leveldB(A) | 66 |
| Structure type | Super silent type |
| Engine Model | EV80 |
| Engine Type | Two-cylinder, V-twin, air cooled, four stroke, direct injection |
| Cylinder NO.-bore×stroke(mm) | 2-80×79 |
| Displacement(ml) | 794 |
| Rated power[KW/(r/min)] | 11/3000 |
| Compression ratio | 19:01 |
| Rated rotation speed(r/min) | 3000 |
| Cooling system | Water cooled |
| Lubrication system | Pressure splashed |
| Starting system | Electric starter |
| Fuel type | 0#(summer)-10#(winter)-35#(chillness)diesel |
| Lube oil brand | CD grade or SAE10W-30,15W-40 |
| Lube capacity (L) | 2.27 |
| Starting motor capacity ( V-kW) | 12V 1.4kW |
| Charging generator capacity( V-A) | 12V 3A |
| Battery capacity(v-Ah) | 12V 45Ah |
| Fuel consumption(g/kw.h) | ≤340 |
| Fuel tank capacity(L) | 25 |
| Continuous running time(h) | 6 |
