Help Center5KVA AIR COOLED PORTABLE DIESEL GENERATOR
Related Products
| * Specifications | |||||
| Model | YM4000T | YM7000T | YM8000T | YM9000T | YM10000T |
| Rated frequency | 50 60 | ||||
| Rated output(kVA) | 2.8 3.0 | 4.5 5.0 | 4.8 5.0 | 5.2 5.5 | 5.5 5.8 |
| Max. output(kVA) | 3.0 3.2 | 5.0 5.5 | 5.0 5.2 | 5.5 5.8 | 5.8 6.2 |
| Rated Voltage(V) | 230 or as requested | ||||
| Rated current (A) | 24.3/12.2 | 19.6 | 21.7 | 23.9 | 26 |
| Rated rotation speed(r/min) | 3000 3600 | ||||
| Phase NO. | Single phase | ||||
| Power factor(Cos Φ) | 1 | ||||
| Insulation Grade | B | ||||
| Pole number | 2 | ||||
| Excitation mode | Self-excitation & constant voltage (AVR) | ||||

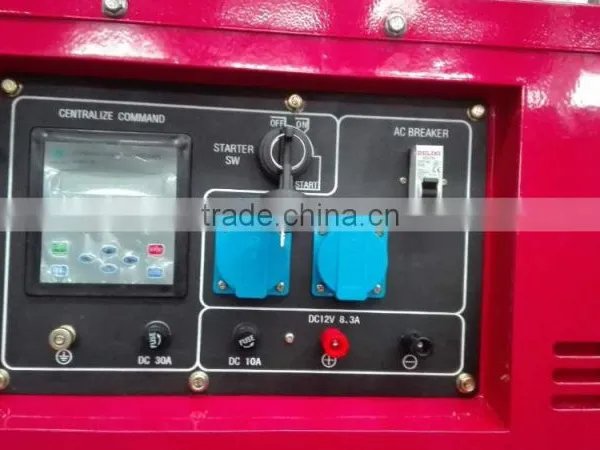

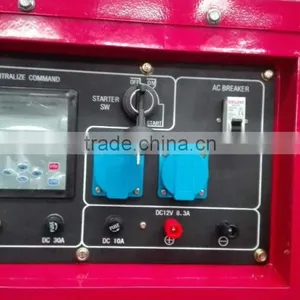

| Panel Type | General Panel | ||||
| Voltage(V) | 230 or as requested | ||||
| Receptacle | Two receptacles | ||||
| Connection pole | Without | ||||
| DC12V output | Connection pole output | ||||
| Overall dimension(L×W×H)mm | 930×530×740 | 930×530×740 | 930×530×740 | 930×530×740 | 930×530×740 |
| Dry weight(kg) | 164 | 170 | 171 | 171 | 172 |
| Working assorting weight | 179 | 185 | 186 | 186 | 187 |
| Noise level(7m)dB(A) | 72 | ||||
| Structure type | Silent type | ||||
| Engine Model | YM178FAG | YM186FAG | YM188FBG | YM190FG | YM192FG |
| Engine Type | Single cylinder, vertical, four-stroke, direct injection | ||||
| Cylinder NO.-bore×stroke(mm) | 1-78×62 | 1-86×72 | 88×74 | 1-90×74 | 1-92×75 |
| Displacement(ml) | 296 | 418 | 0.497 | 542 | 548 |
| Rated power[KW/(r/min)] | 3.68/3000 | 5.7/3000 | 7.3/3000 | 7.5/3000 | 8.0/3000 |
| Compression ratio | 20:01 | 19:01 | 19:01 | 19:01 | 19:01 |
| Rated rotation speed(r/min) | 3000 | 3000 | 3000 | 3000 | 3000 |
| Cooling system | Air cooled | ||||
| Combustion system | Direct injection | ||||
| Starting system | Electric starter | ||||
| Fuel type | 0#(summer)-10#(winter)-35#(chillness)diesel | ||||
| Lube oil brand | CD grade or SAE10W-30,15W-40 | ||||
| Lube capacity(L) | 1.1 | 1.65 | |||
| Starting motor capacity( V-kW) | 12V 0.8kW | ||||
| Charging generator capacity ( V-A) | 12V 3A | ||||
| Battery capacity(v-Ah) | 12V 30-36Ah | ||||
| Fuel consumption(g/kw.h) | ≤360 | ||||
| Fuel tank capacity(L) | 15 | ||||
| Continuous running time(hr) | 8 | 6 | |||
* Easy and quick start
* No smoke
* Less vibration and full capacity
* New AVR(Automatic Voltage Regulation),Stablizes the output power
* Low oil level alarming system will automatically stop the generator when lube oil is less than the set value
Features
Strong Power
All generator sets are equipped with YARMAX four-stroke engines.
Low Noise Running
High effective combustion system ensures complete combustion, Besides, a large silencer dampens exhaust noise and engine sounds which are contained by a double-wall structure and absorbed by a liner.
Low Oil Alarm System
Before the oil level drops to the limited level, the generator set will stop automatically. The whole set can be restarted only if the oil is refilled.
Application of New AVR
The AVR (Automatic Voltage Regulator) not only can smooth the output but also can provide reasonable protection against the overload of the whole set, thus avoid damage to the set.
Advanced Alternator Winding
Waveform distortion is kept at a minimum level and the output is stable. The winding design protects the generator from short circuits and provides a stable output while running inductive loads.
The best quality
The most competitive price
Long term spare parts supply
One and half year or 1500 hours which comes first
1) Economic,
2) Stable power,
3) High quality
Company Information
Since 2007 Changzhou Yarmax Power Co,. Ltd specialized in the ultimate power solution, research, design and production of Engines, Power Generators and Water Pumps with the state of art of the technology and unique design.
We only focus on the great goal to be the power expert by your side.
YARMAX Power. Power The World !
Our main products including Air Cooled Diesel Engine, Air Cooled Diesel Generators, Welding Generators, Water Pumps and Water Cooled Diesel Generator from power range of 10KVA-2000KVA with very strong capability, advanced production lines and quality inspections.
Moreover, we fully carry out quality management system and strictly enforce the management system of ISO9001; 2000 and CE.We keep seeking researching and producing new variety of products with our very skillful professional team of technicians and workers. Our products have good reputation and goodwill in both local and international market.
We encourage the participation of all our staff members to reply on quality, development and creativity. We also strictly follow the valuable feedback of our valuable customers and agents.
We are looking forward to co-work with overseas companies based on mutual benefits and provide the best service to the world !
