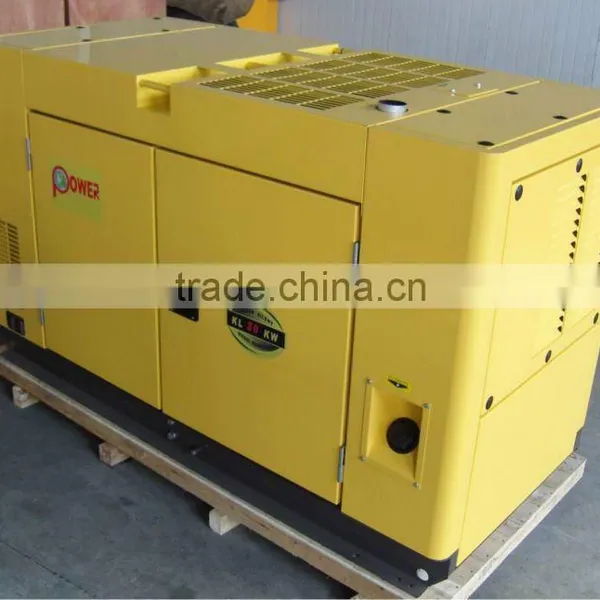

Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > Ricardo Silent Diesel Generator
US$ 3,000 - 12,000
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Ricardo
Model Number:
KDE-30GF
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Weichai Open Diesel Generator Sets From China ManufacturerUS$ 2,000 - 8,000MOQ: 1 Piece -
Low Price Good Quality Super Silent Diesel GeneratorNegotiableMOQ: 10 Sets
-
Low Price Good Quality 5kva Air-cooled Super Silent Diesel GeneratorNegotiableMOQ: 10 Sets
-
Low Price Best 10kva Air-cooled Diesel GeneratorNegotiableMOQ: 10 Sets
-
Low Price OEM Service Offered Open Type Diesel GeneratorNegotiableMOQ: 10 Sets
Place of Origin
Jiangsu, China
Brand Name
Ricardo
Model Number
KDE-30GF
Output Type
AC Three Phase
Speed
1500
Frequency
50
Rated Power
37.5kw
Rated Voltage
400/230v
Specifications
1.In accordance with ISO9001, ISO14001: 2004 standard; CE2.Stable performance, compact configuration, low fuel consumption
| Diesel Generator Set Data | |
| Manufacturer: | Nationery power group Co.,Ltd |
| Set Type: | KDE-30GF |
| Standby Power: | 30KW/37.5KVA |
| Prime Power: | 27KW/34KVA |
| Rated Current: | 49(A) |
| Rated Frequency: | 50(Hz) |
| Start-up time: | 5~6(s) |
| Power Factor: | 0.8(Lag) |
| Rated Voltage: | 400/230(V) |
| Diesel Engine Data | |
| Manufacturer: | LICARDO Engine Co |
| Model: | K4100D |
| Prime /Standby Power: | 30KW/33KW |
| Rated Speed: | 1500(r/min) |
| Cycle: | 4 stroke |
| Cylinder Arrangement: | 4 in line |
| Displacement: | 3.61L |
| Bore and Stroke: | 100*115(mm) |
| Compression Ratio: | 19:1 |
| Governor Type: | Mechanical |
| Start battery voltage: | 24V DC |
| Air Intake System | |
| Air Intake System: | Naturally aspirated |
| Max Intake Restriction: | 6.1kPa |
| Burning Capacity: | 6.2m3/min |
| Air Flow: | 168m3/min |
| Exhaust System | |
| Exhaust Gas Flow: | 12.2m3/min |
| Exhaust Temperature: | ≤470 |
| Max Back Pressure: | 3kpa |
| Fuel System | |
| Fuel System: | Direct Injection |
| 100%( Prime Power) Load: | 258.4g/kwh |
| Oil System | |
| Total Oil Capacity: | 12.5L |
| Oil Consumption: | ≤2.04g/kwh |
| Oil Pressure at Rated RPM: | 0.30-0.50MPa |
| Cooling System | ||
| Cooling Way: | Water-cooled | |
| Total Coolant Capacity: | 28L | |
| Max Water Temperature: | 95 | |
| Alternator Data | ||
| Manufacturer: | STARLIGHT/ STAMFORD / SIEMENS / MARATHON / ENGGA/ KEPU | |
| Excitation Mode: | Brushless self-excitation | |
| Number of phase and Access Act: | 3-phase 4-wire | |
| Connecting Type: | “Y” type connecting | |
| Alternator Capacity: | 37.5KVA | |
| Alternator Efficiencies: | 95% | |
| Overload: | (PRP)110% load can run 1h | |
| Protection Level: | IP22-IP23 | |
| Insulation Class, Temperature Rise: | H/H | |
| Telephone Influence Factor (TIF): | <50 | |
| THF: | <2% | |
| Voltage Regulation, Steady State: | ≤±1% | |
| Altitude: | ≤1000m | |
| Genset Electrical Performance | ||
| Voltage Regulation: | ≥±5% | |
| Voltage Regulation, Stead State: | ≤±1% | |
| Sudden Voltage Warp(100% Sudden Reduce): | ≤+25% | |
| Sudden Voltage Warp(Sudden Increase): | ≤-20% | |
| Voltage Stable Time (100% Sudden Reduce): | ≤6S | |
| Voltage Stable Time (Sudden Increase): | ≤6S | |
| Frequency Regulation, Stead State: | ≤5% | |
| Frequency Waving: | ≤1.5% | |
| Sudden Frequency Warp(100% SuddenReduce): | ≤+12% | |
| Sudden Frequency Warp(Sudden Increase): | ≤-10% | |
| FrequencyRecoveryTime(100%SuddenReduce): | ≤5S | |
| FrequencyRecoveryTime(Sudden Increase): | ≤5S | |
