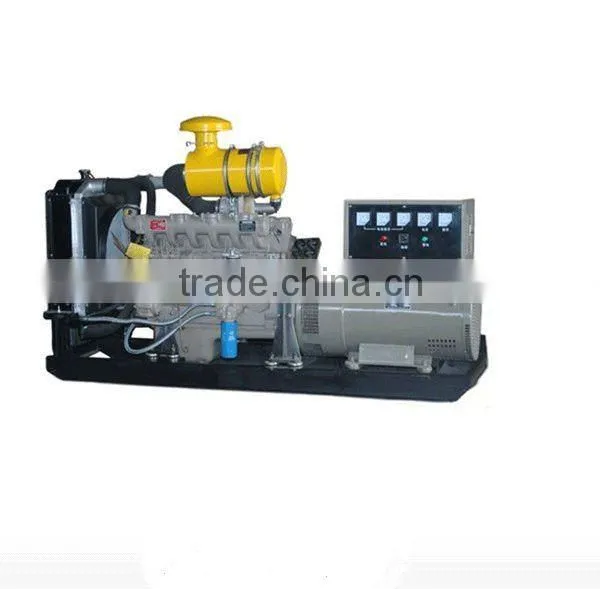

Weichai Open Diesel Generator Sets From China Manufacturer
US$ 2,000 - 8,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Weichai
Model Number:
JDW-100
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Low Price Good Quality Super Silent Diesel GeneratorNegotiableMOQ: 10 Sets -
Low Price Good Quality 5kva Air-cooled Super Silent Diesel GeneratorNegotiableMOQ: 10 Sets
-
Low Price Best 10kva Air-cooled Diesel GeneratorNegotiableMOQ: 10 Sets
-
Low Price OEM Service Offered Open Type Diesel GeneratorNegotiableMOQ: 10 Sets
-
Low Price Kama Silent Diesel Generator 3KWNegotiableMOQ: 10 Sets
Place of Origin
Jiangsu, China
Brand Name
Weichai
Model Number
JDW-100
Output Type
AC Three Phase
Speed
1500
Frequency
50hz
Rated Power
100kw
Specifications
1)Lowoil consumption2)high reliablity, easy to start
3) CE qualified product.
Product Description
SUMOKAMA POWER-WHECAI series generator set adopt WEICHAI 4105&6105 series engine produced by shanDong Weifang power factory. 4105&6105 series engines have more fine performances including low oil consumption, high reliability, easy to start, cheap price ect. It's one of our main products.
Weichai Power Generator
Model: JDW-100
Generator
Rated Power(kw): 100
Rated Voltage(V): 400V/230V
Frequency(Hz): 50Hz
Power Factor(COS&): 0.8(lagging)
Starting: Electric start
Engine
Model: R6105D
Ratedouput (kw): 120
Governing method: Mechanical
Intaking method: Natureal
Fuel Consumption(g/kw. H): 230
Crank Circumrotate Orientation: Anticlockwise
Cylinder Number: 6
Cylinder Type: Closed water cooled/electric starting
Alternator
Model: TFW-120
Rated ouput (kw): 120
Rated Current(A): 125
Phase / Connection: 3-phase 4-wire Y type connection
Excitation: Brushless
Voltage Regulation: Automatic
Insulation Class: H.
Weichai Power Generator
Model: JDW-100
Generator
Rated Power(kw): 100
Rated Voltage(V): 400V/230V
Frequency(Hz): 50Hz
Power Factor(COS&): 0.8(lagging)
Starting: Electric start
Engine
Model: R6105D
Ratedouput (kw): 120
Governing method: Mechanical
Intaking method: Natureal
Fuel Consumption(g/kw. H): 230
Crank Circumrotate Orientation: Anticlockwise
Cylinder Number: 6
Cylinder Type: Closed water cooled/electric starting
Alternator
Model: TFW-120
Rated ouput (kw): 120
Rated Current(A): 125
Phase / Connection: 3-phase 4-wire Y type connection
Excitation: Brushless
Voltage Regulation: Automatic
Insulation Class: H.
| SUMOKAMA POWER- SERVERS DIESEL GENERATOR SETS | |||||||||||||
| Generator | Model | JDW-15 | JDW-24 | JDW-28 | JDW-30 | JDW-32 | JDW-40 | JDW-50 | JDW-64 | JDW-80 | JDW-90 | JDW-100 | JDW-120 |
| Rated Power(kw) | 15 | 24 | 28 | 30 | 32 | 40 | 50 | 64 | 80 | 90 | 100 | 120 | |
| Rated Voltage(V) | 400V/230V | ||||||||||||
| Frequency(HZ) | 50/60HZ | ||||||||||||
| Power Factor(COS& ) | 0.8(lagging) | ||||||||||||
| Starting | Electric start | ||||||||||||
| ENGINE | Model | 4100D/25KW | 4100D | 495ZD | R4100ZD | R4105D1 | R4105ZD1 | R6105D | R6105ZD | R6105ZLD | R6105AZLD1 | R6105AZLD2 | R6113ZLD |
| Ratedouput (kw) | 25 | 30 | 35 | 41 | 40 | 56 | 58 | 84 | 100 | 110 | 122 | 155 | |
| Governing method | Mechanical | ||||||||||||
| Intaking method | Natural apirated | Turbocharged | Natural | Trubocharge | Natureal | Turbocharged/After Cooled | |||||||
| Fuel Consumption(g/kw. h) | 251 | 243 | 230 | 218 | |||||||||
| Crank Circumrotate Orientation | Anticlockwise | ||||||||||||
| Cylinder Number | 4 | 6 | |||||||||||
| Cylinder Type | vertical line | ||||||||||||
| Cooling Starting Method | Closed water cooled/electric starting | ||||||||||||
| Alternator | Model | TFW-15 | TFW-24 | TFW-28 | TFW-30 | TFW-32 | TFW-40 | TFW-50 | TFW-64 | TFW-80 | TFW-90 | TFW-100 | TFW-120 |
| Rated ouput (kw) | 15 | 24 | 28 | 30 | 32 | 40 | 50 | 64 | 80 | 90 | 100 | 120 | |
| Rated Current(A) | 28.9 | 42 | 50 | 54 | 60 | 72 | 90 | 115 | 144 | 162 | 180 | 216 | |
| Phase / Connection | 3-phase 4-wire Y type connection | ||||||||||||
| Excitation | Brushless | ||||||||||||
| Voltage Regulation | Automatic | ||||||||||||
| Insulation Class | H | ||||||||||||
