Specifications
brand of engine:deutz(famous in the world)Brushless stamford
Certificate:ISO9001,CE ,EPA
well guarrantee

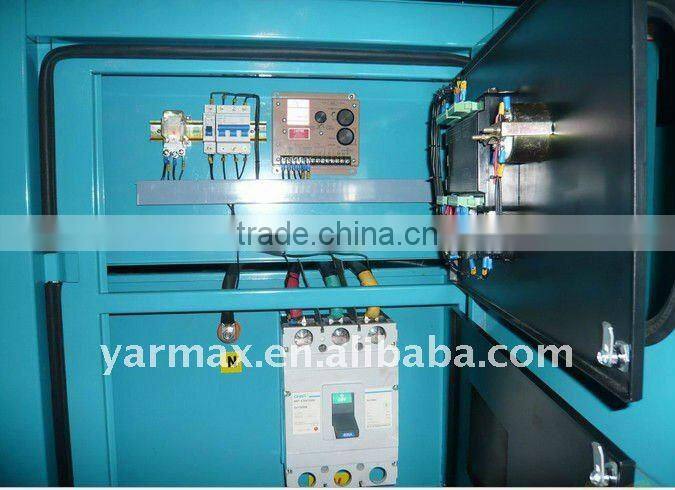

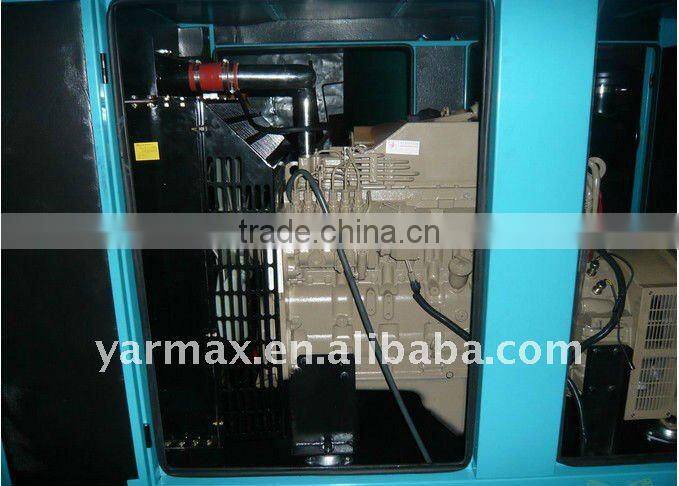

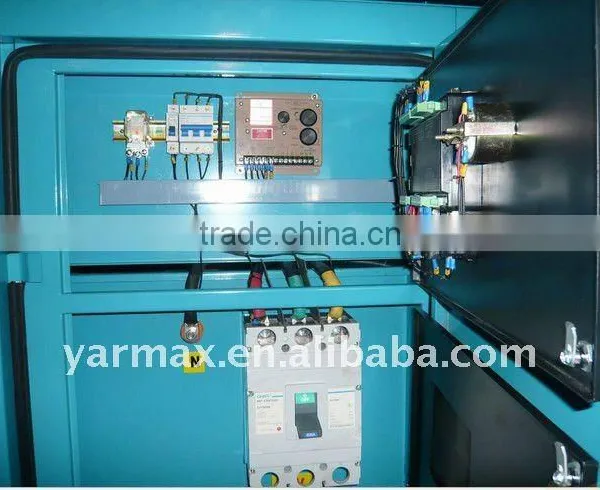

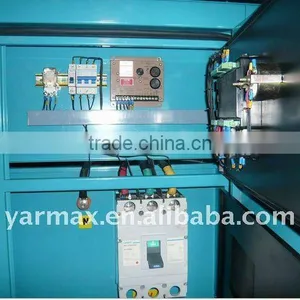

Silent diesel generator
Sumokama-DEUTZ 226B SERIES | |||||||
Engine | Model | GF-24 | GF-36 | GF-50 | GF-75 | GF-100 | GF-120 |
Engine Model | D226B-3D | TD226B-3D | TD226B-4D | TD226B-6D | TBD226B-6D | TBD226B-6D/13023811 | |
Rated Output(KW) | 30 | 45 | 60 | 90 | 120 | 132 | |
Max Output(KW) | 33 | 51 | 66 | 99 | 132 | 145.2 | |
Starting method | Electric starting | ||||||
Cooling method | Closed air cooled | ||||||
Governing method | Mechanical | ||||||
intaking method | natural apirated | turbocharged | turbocharged | ||||
Cylinder numbers | 3 | 4 | 6 | ||||
Fuel consumption(g/kw.h) | <208 | ≤205 | |||||
Bore/stroke(mm) | 105/120 | ||||||
Displacement(L) | 3.12 | 4.16 | 6.23 | ||||
Oil volume(L) | 7.25 | 13 | |||||
Type | Air cooling, in-line, four-stroke, humid cylinder liner,direct injection | ||||||
Crankshaft rotation direction | Counterclockwise(face to output end) | ||||||
Generator | Model | 184G | 184H | 224E | 274C | 274D | 274FS |
Rated Output(KW)(KVA) | 24(30) | 36(45) | 50(62.5) | 75(94) | 100(125) | 120(150) | |
Rated Voltage(V) | 400/230V | ||||||
Rated Current(A) | 43.2 | 64.8 | 90 | 135 | 180 | 216 | |
Frequency(HZ) | 50/60 | ||||||
Power Factor | 0.8 lagging | ||||||
Phase/Connection | 3-phase 4-wire Y-type connection | ||||||
Excitation | Harmonic or Brushless Excitation | ||||||
Voltage Regulation | Manual/Automatic | ||||||
Net weight(kg) | 650 | 660 | 800 | 1300 | 1450 | 1600 | |
Packing size LWH(cm) | 168*70*150 | 168*70*150 | 200*70*150 | 245*909*170 | 250*90*185 | 260*90*185 | |
Guarantee:The air-cooled comes with one year's guarantee or 8000 running hours when you receive or use it, During the Guarantee Period,Our company will provide the free easy-damageable spare parts of alternator caused by the generator sets, Over expiration period,Our company provides cost spare part
Should any of the items is interest ,contact me .
You can be assured that we are the best.
