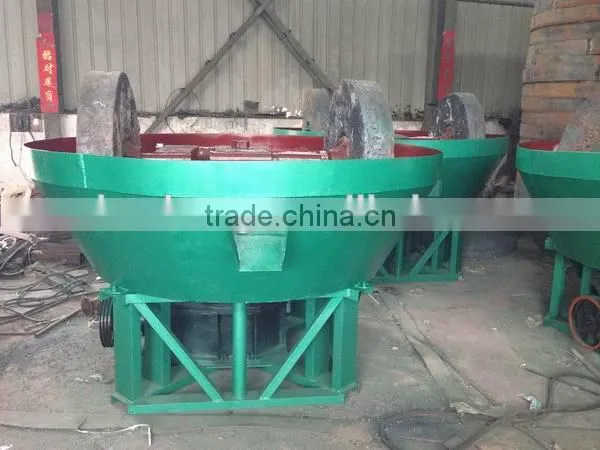

Henan manufacturer wholesale placer gold wet grinding machine
The schematic diagram of the placer gold wet grinding machine,base on it, we made some improvements through the user' feedback
Why do customers choose Huahong?
Specification of placer gold wet grinding machine
The placer gold wet grinding machine is a new mill, small investment, high yield, the production cost is low, good benefits.
The placer gold wet grinding machine is named by the diameter of roller. Φ1300,Φ 1350,Φ 1400,Φ 1500,Φ 1600 is suitable for selection of iron ore, molybdenum ore ,lead ore ,zinc ore, antimony ore and so on. Φ 850, Φ 900, Φ 1000,Φ 1100,Φ 1200 is suitable for selection of gold ore.
Usage and Maintenance of placer gold wet grinding machine
1. The normal operation of the mill, before they start feeding.
2. This machine prohibit strip start, the outage at boot time, you must first clean up the residual ore in the middle of the milled slot and then start.
3. Should be uniform feeding not erratic, it is best to use the feeder.
4. Bearing frequent butter, gear box or car rear axle with frequent checks whether the loss of gear oil.
5. Regular checks of the various parts of the screw is loose.
6. Found bearing damage must be promptly replaced, shaft eccentric avoid damage to other parts
7. Mill runtime to pay attention to that the reducer or bearing part of the presence or absence of abnormal sound, whether the temperature is too high, the motor current is too large irregularities; should be shut down immediately if the above phenomenon, exclude.
8. Machine maintenance, to ensure safety, you must remove the motor belt.

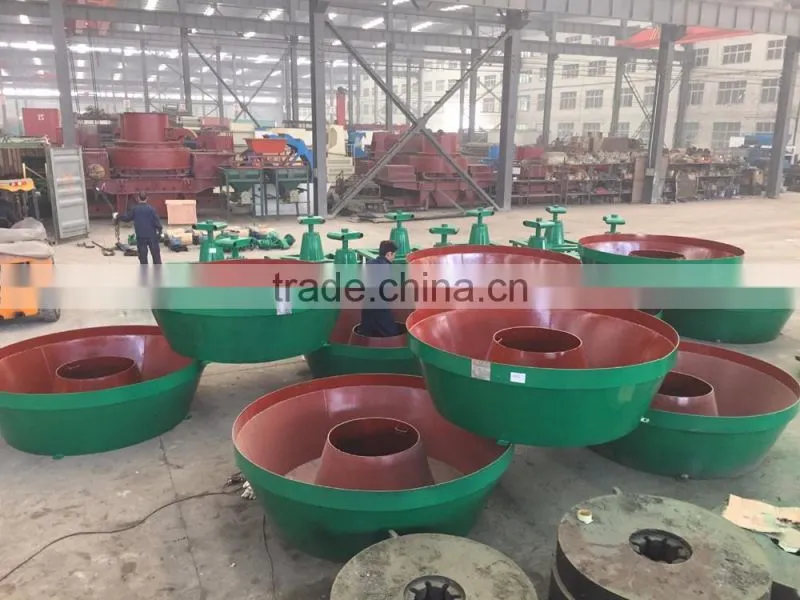

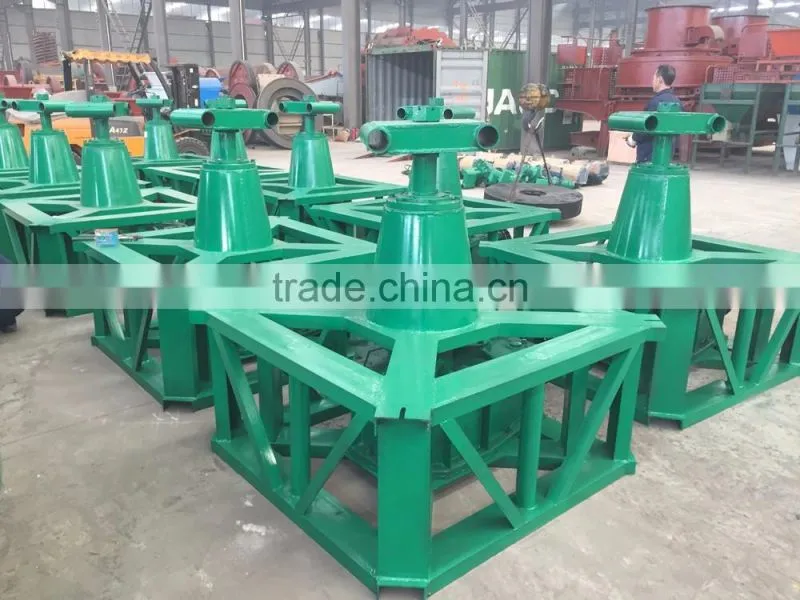

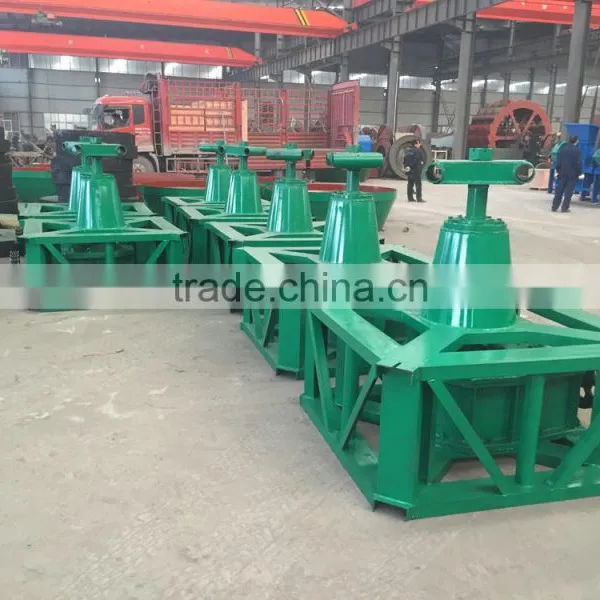

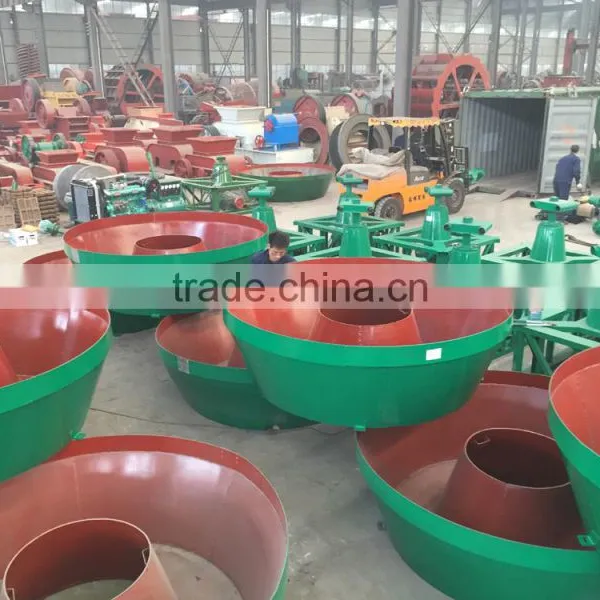

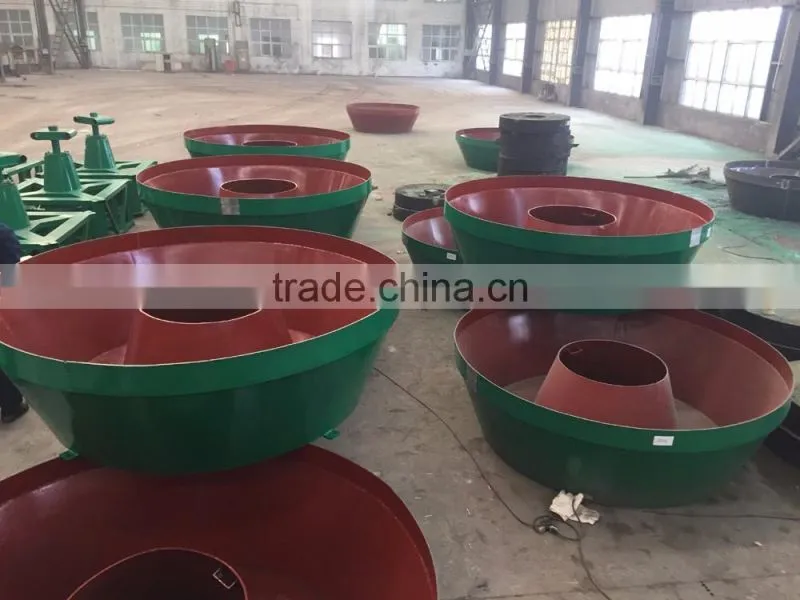

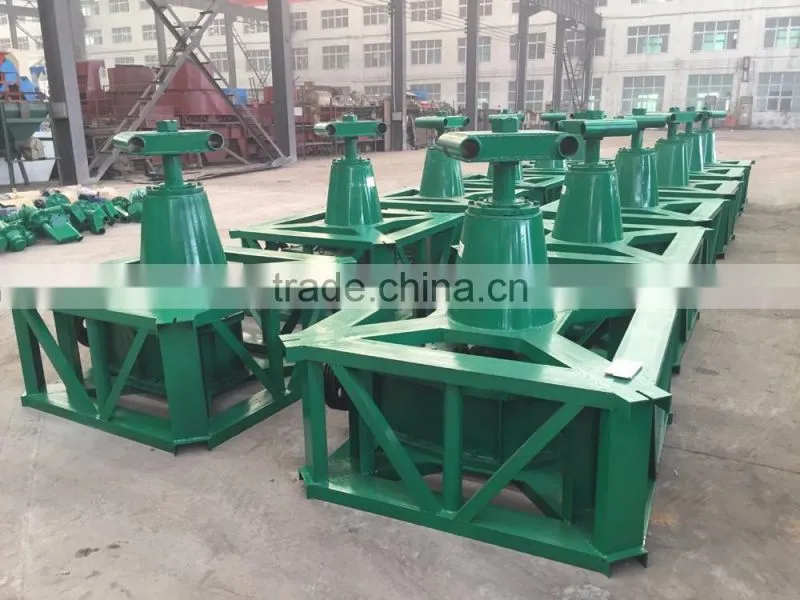

Placer gold wet grinding machine in large stock in our factory
Features of placer gold wet grinding machine
1.The size of gold sand material has to be blow 30 mm.
2.It's easy to use and energy saving.
3.This way can directly get pure gold
4.It is best suitable for small scale gold mine.
Based on the original placer gold wet grinding machine , we made several big improvements:
The new type placer gold wet grinding machine has smoother apperance, and better workmanship:
We combine the basin and the grinding pan together, for the new type placer gold wet grinding machine, the basin and grinding pan is one part, this improvement makes it easier to operate and highly improve the recovery rate of gold

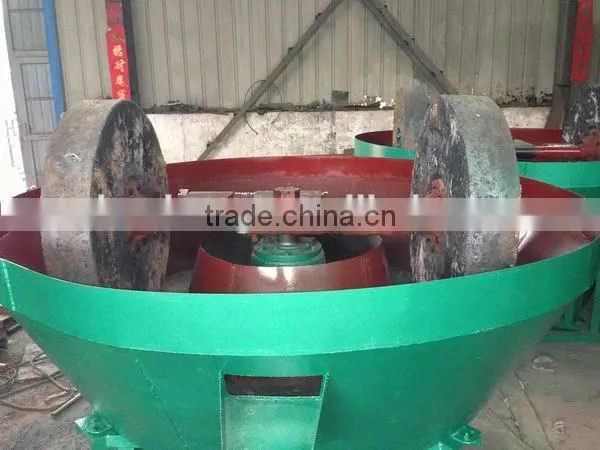

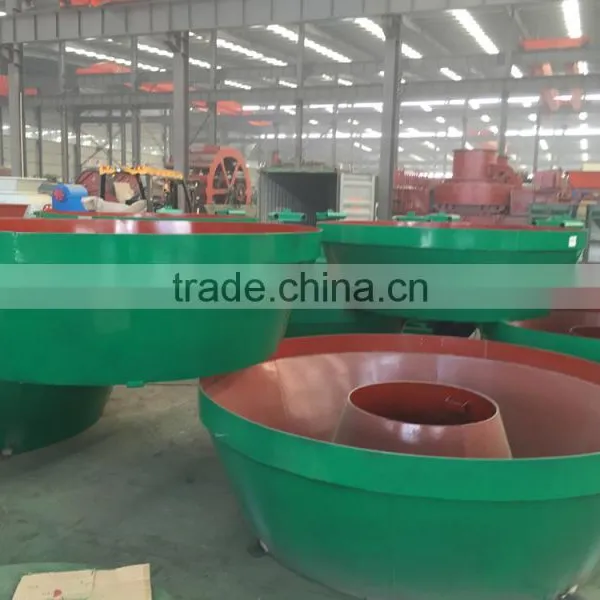

The new type
The following is the old type, there is gap between the basin and the grinding pan, and the gold particles easily run into the bottom of the pan
The steel plate of our new type placer gold wet grinding machine is thicker compared with the old type, making it more durable and not easy to deformation
The following is the old type placer gold wet grinding machine, the steel plate is thinner

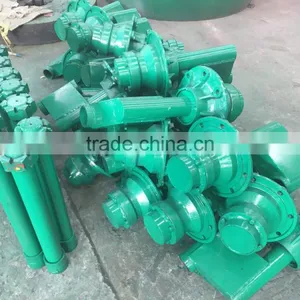

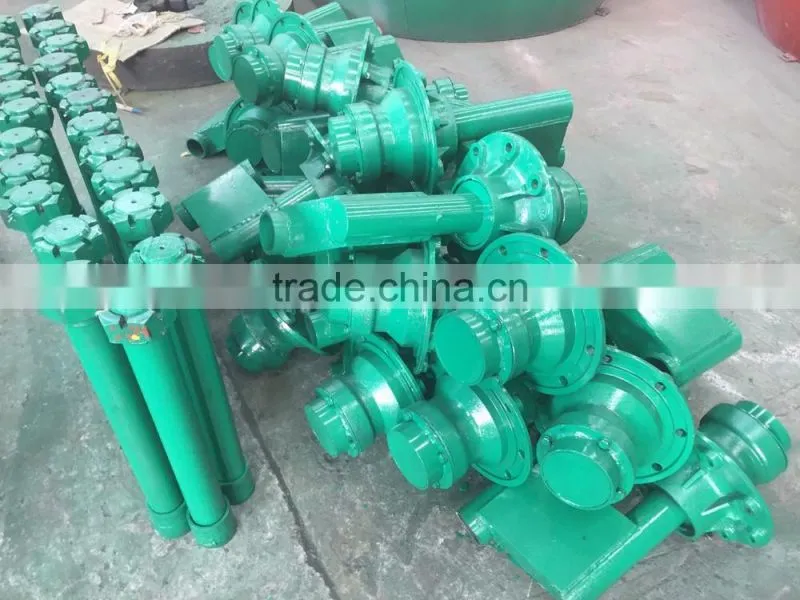

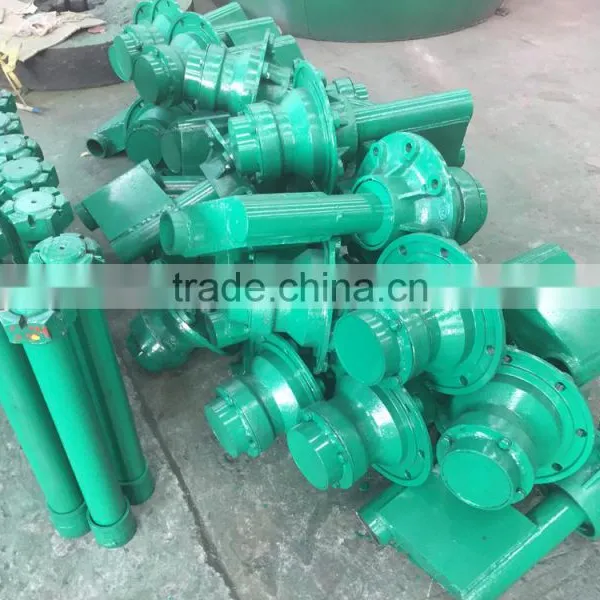

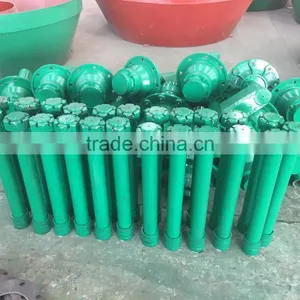

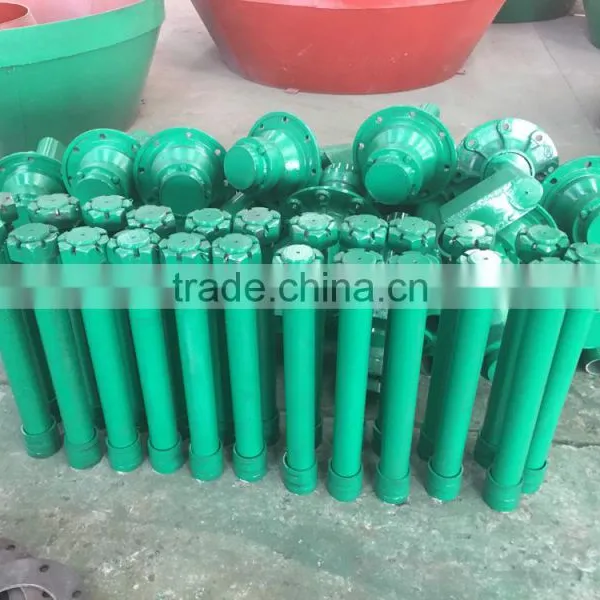

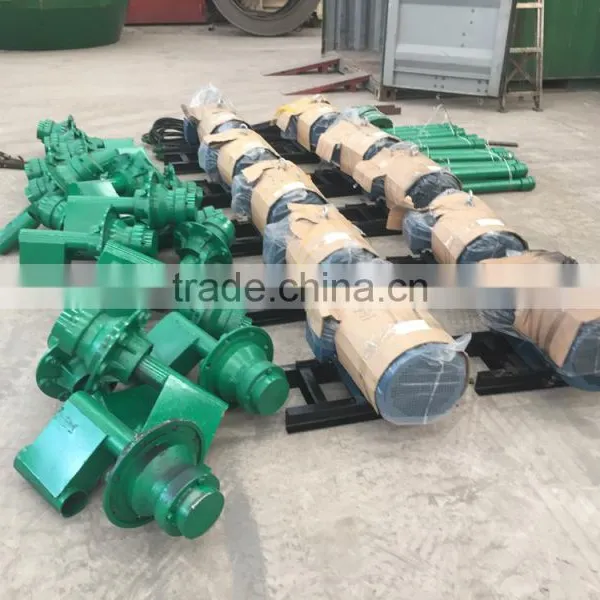

Note: the spare parts of the gold ore separator machine can be sold individually
Foreign Customer in visiting our factory

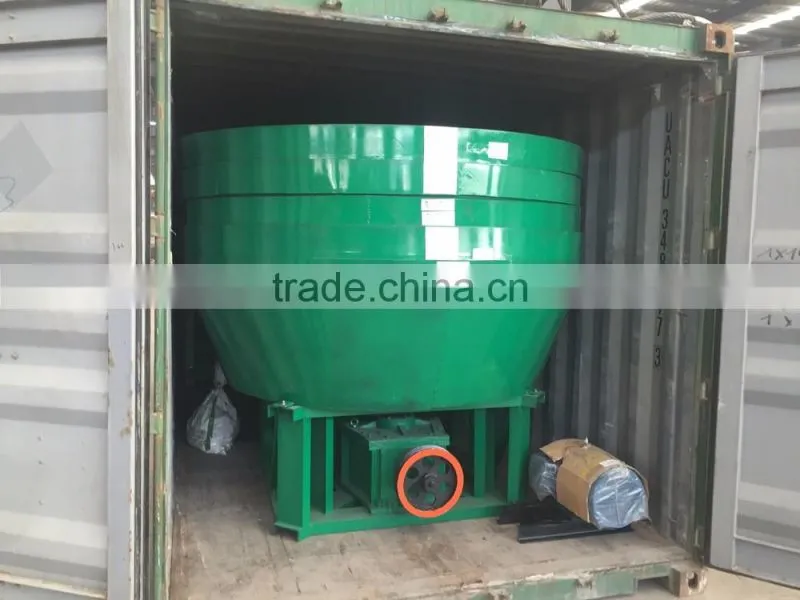

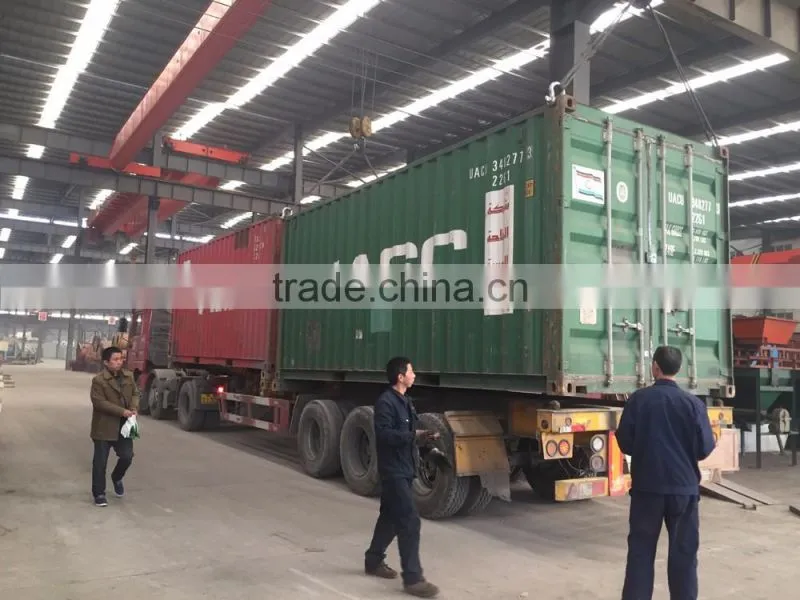

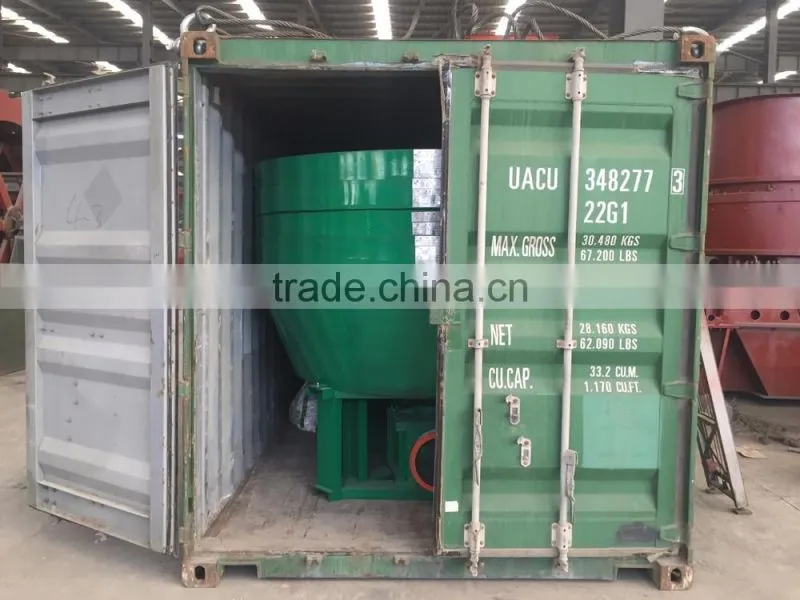

Placer gold wet grinding machine in shipment to Ghana
Technical Parameters of placer gold wet grinding machine
Model |
Specification |
Input size(mm) |
Process ability (t/h) |
Speed (r/min) |
Motor (kw) |
Weight (t) |
1600 |
1600×400×±20 |
Less than 30mm |
4 |
20-22 |
6-30 |
17 |
1500A |
1500×400×±20 |
3 |
20-22 |
6-22 |
15 |
|
1500B |
1500×350×±20 |
2.5-3 |
20-22 |
6-22 |
14 |
|
1500C |
1500×300×±20 |
2-2.5 |
20-22 |
6-22 |
12.5 |
|
1400 |
1400×250×±20 |
1.5-2 |
16-18 |
6-18.5 |
9.5 |
|
1300 |
1300×250×±20 |
1.5 |
21-23 |
6-15 |
7.8 |
|
1200A |
1200×220×±20 |
0.9-1.2 |
16-18 |
4-7.5 |
6.0 |
|
1200B |
1200×200×±20 |
0.8-0.1 |
21-23 |
4-7.5 |
5.8 |
|
1100 |
1100×200×±10 |
0.6-0.8 |
16-18 |
4-5.5 |
5.5 |
|
1000 |
1000×200×±10 |
0.5 |
21-23 |
4-5.5 |
4.5 |
|
900 |
900×150×±10 |
0.3 |
17-19 |
3 |
3.2 |
