Description of Placer gold grinding machine,wet gold grinding machine for Africa:
Zimbabwe placer gold wet grinding machine is named by the diameter of roller. Φ 850, Φ 900, Φ 1000, Φ 1100, Φ 1200, Φ1300, Φ 1350, Φ 1400, Φ 1500, Φ 1600 is suitable for selection of gold, iron, molybdenum, lead, zinc, antimony and so on.Zimbabwe placer gold wet grinding machine has features of small investment, high yield, low production cost and good benefits. And it is widely praised by users.
Maintainence of placer gold grinding machine,wet gold grinding machine for Africa:
1, the normal operation of the mill, before they start feeding.
2, sudan placer gold wet grinding machine prohibit strip start, the outage at boot time, you must first clean up the residual mine in the middle of the milled slot and then start.
3, should be uniform feeding not erratic, it is best to use the feeder.
4, bearing frequent butter, gear box or car rear axle with frequent checks whether the loss of gear oil.
5, regular checks of the various parts of the screw is loose.
6, found bearing damage must be promptly replaced, shaft eccentric avoid damage to other parts.
7, Zimbabwe placer gold wet grinding machine runtime to pay attention to that the reducer or bearing part of the presence or absence of abnormal sound, whether the temperature is too high, the motor current is too large irregularities; should be shut down immediately if the above phenomenon, exclude.
8, Zimbabwe placer gold wet grinding machine maintenance, to ensure safety, you must remove the motor belt.
Structure analysis of placer gold wet grinding machine:
View of placer gold grinding machine made in China:
Placer gold grinding machine,wet gold grinding machine for Africa gold and silver ore in our factory for view:
Placer gold grinding machine,wet gold grinding machine for Africa :
Wholesale gold wet grinding machine for gold ore for reference:

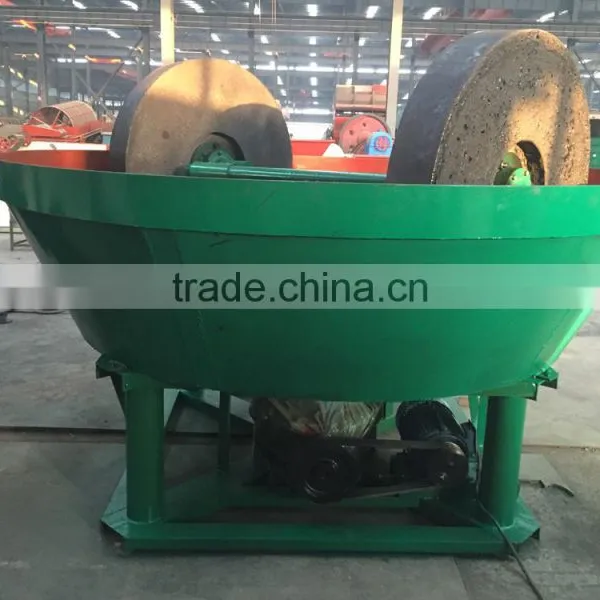

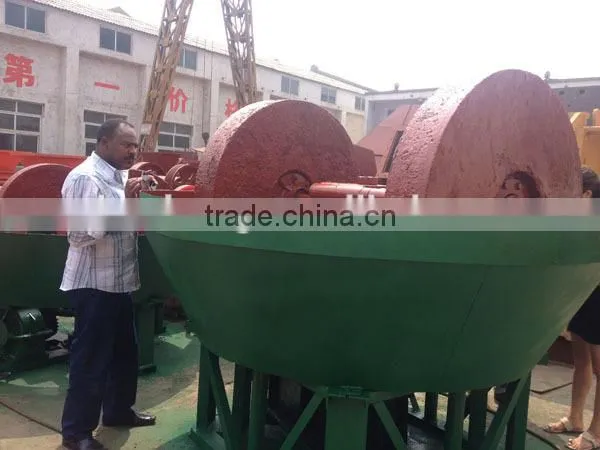

1300 model gold ore gold grinding machine with two grinding roller for view:
Gold and silver ore gold wet grinding machine for Zimbabwe:

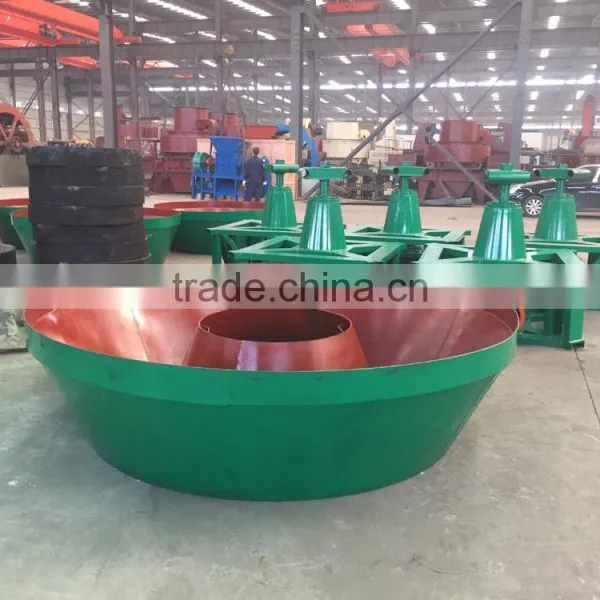

Basin of gold grinding machine in making process for reference:

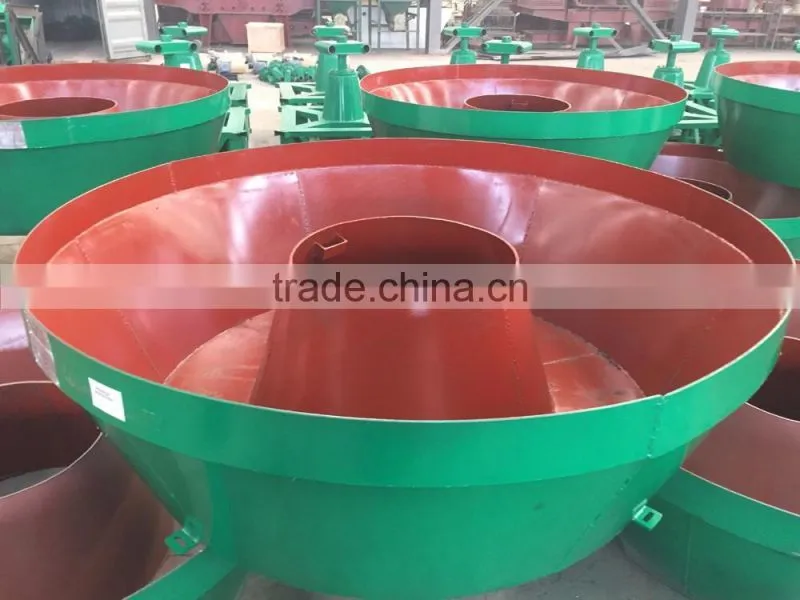

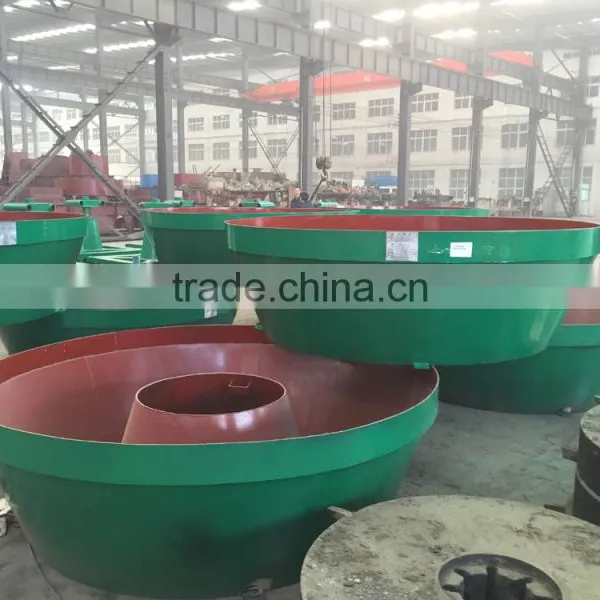

Painted basin of gold wet grinding machine in Huahong:

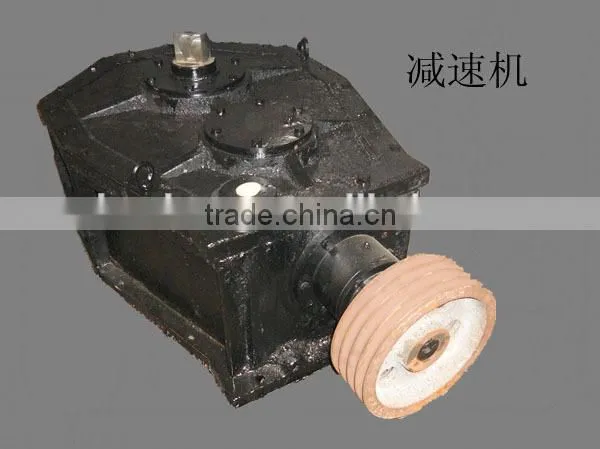

Gold ore gold wet grinding machine reduction box for reference in China:

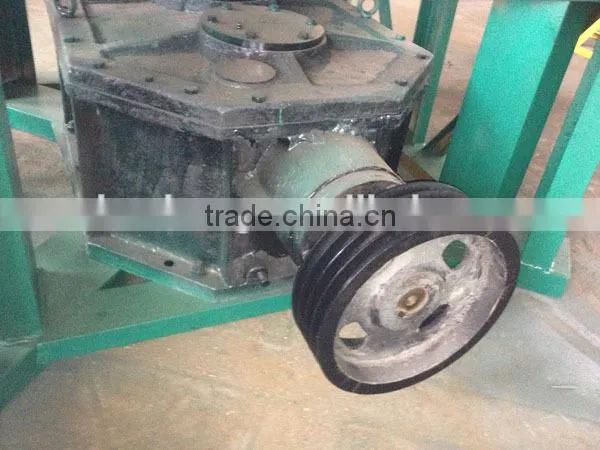

Speed Reducer applied in gold wet grinding machine for reference:
Grinding roller of gold wet grinding machine for gold and silver ore in stock for view:

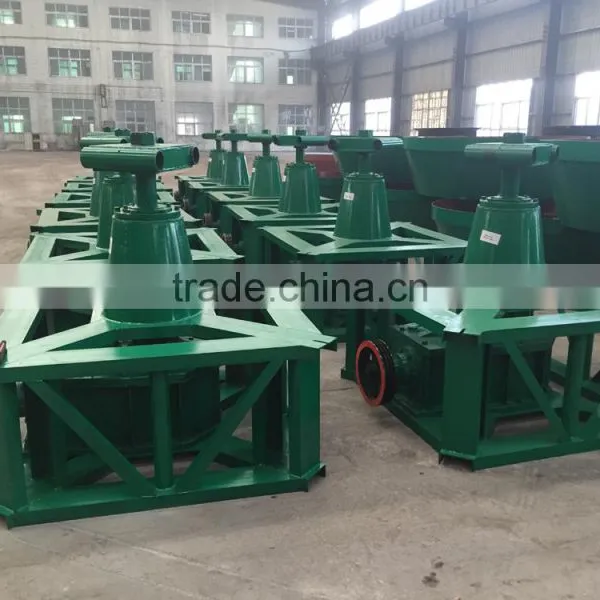

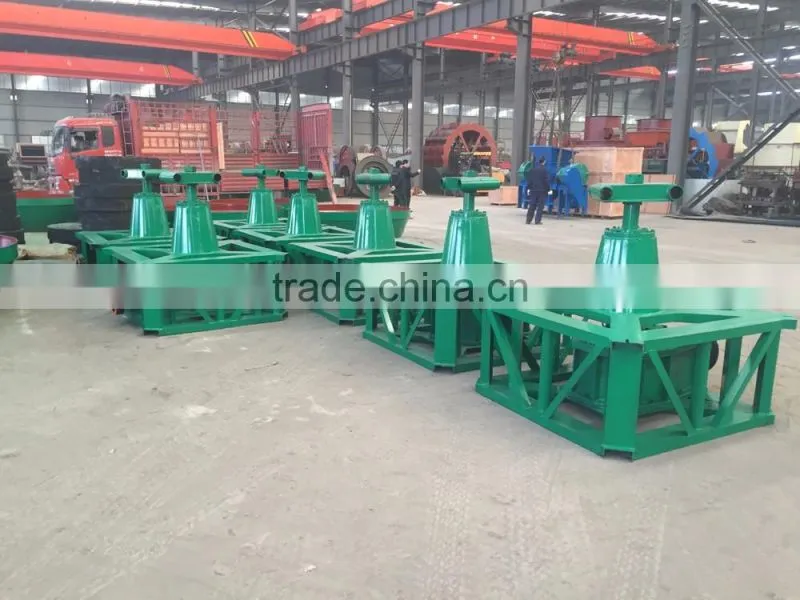

Grinding base of gold wet grinding machine for gold and silver ore made by Zhengzhou Huahong Machinery:

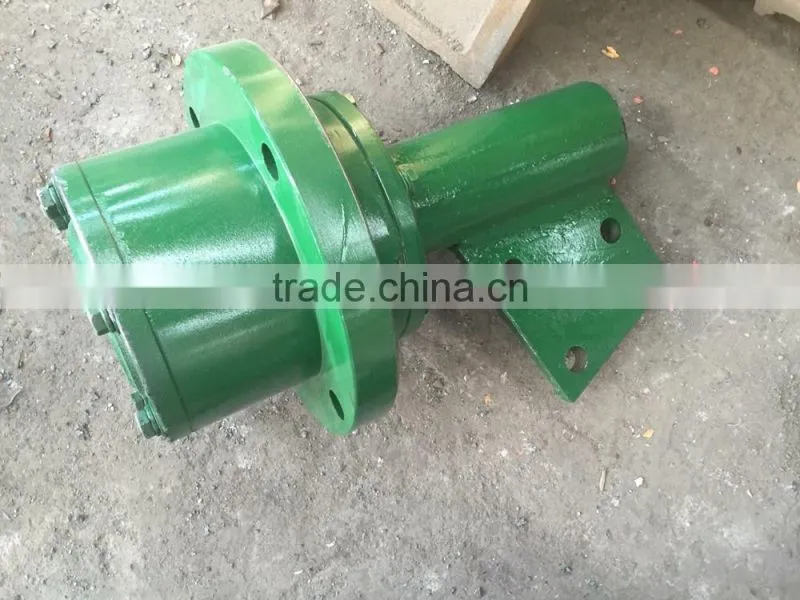

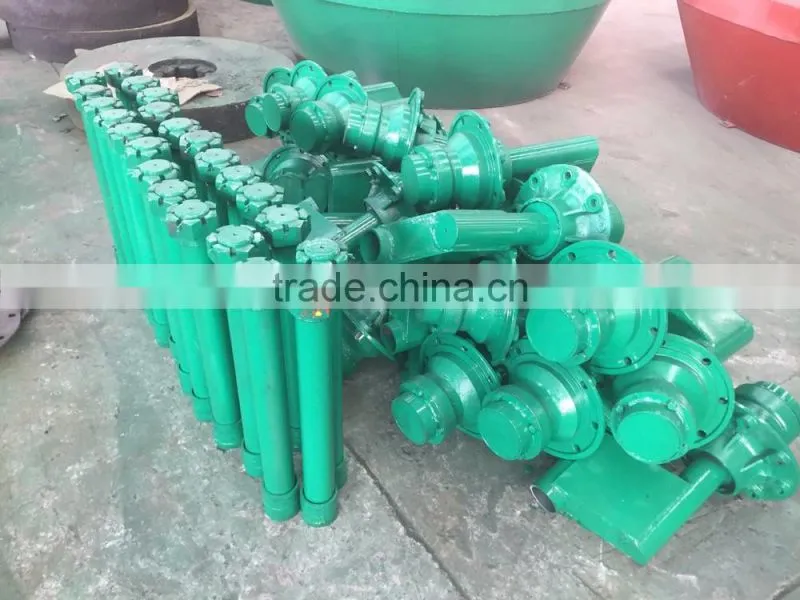

Cranck shaft and static crank arm for view:

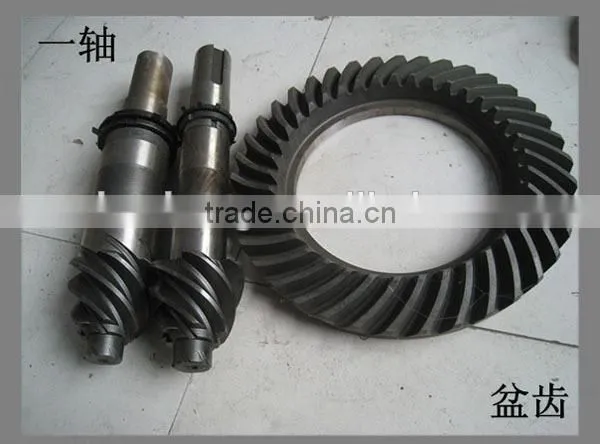

Axis and basin gear of gold wet grinding machine for view:
Main technical parameters:
Model |
Specification |
Input size(mm) |
Rotate Speed (r/min) |
Powder(kw) |
Weight(t) |
1600A |
1600×400×200×500±20mm |
30mm |
20-22 |
25KW |
14.5 |
1500A |
1500×350×200×460±20mm |
20-22 |
22KW |
13.5 |
|
1500B |
1500×350×150×460±20mm |
20-22 |
22KW |
12.3 |
|
1500C |
1500×300×150×420±20mm |
20-22 |
22KW |
11.3 |
|
1400A |
1400×250×150×350±20mm |
16-18 |
18.5kw |
8.5 |
|
1400B |
1400×250×150×350±20mm |
21-23 |
18.5kw |
8.5 |
|
1350A |
1350×250×150×350±20mm |
16-18 |
18.5kw |
8 |
|
1350B |
1350×250×150×350±20mm |
21-23 |
18.5kw |
8 |
|
1300A |
1300×250×150×350±20mm |
16-18 |
15kw |
7.5 |
|
1300B |
1300×250×150×350±20mm |
21-23 |
15kw |
7.5 |
|
1200A |
1200×200×80×250±20mm |
17-19 |
7.5kw |
5.5 |
|
1200B |
1200×200×80×250±20mm |
23-25 |
7.5kw |
5.5 |
|
1100A |
1100×200×80×250±20mm |
17-19 |
7.5kw |
5 |
|
1100B |
1100×200×80×250±20mm |
23-25 |
7.5kw |
5 |
|
1000 |
1000×200×80×250±20mm |
13-15 |
5.5kw |
4.5 |
|
900 |
900X200X80 |
10-15 |
5.5kw |
3 |
