China wet pan mill for gold selection , Gold Ore Grinding Wet Pan Mill price

Name: China wet pan mill for gold selection , Gold Ore Grinding Wet Pan Mill price
Brand: Huahong
Price: USD $3,000 - 15,000 / Set

FOB Price

USD $3,000 - $15,000 / Set

1 Set(Min.Order)

Supply Ability 80 Set / Sets per Month
Port Qingdao Shanghai Tianjin port
Payment Terms:T/T L/C Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Type:	Other, wet pan mill	Motor Type:	AC Motor
Power(W):	7.5kw	Capacity(t/h):	1-1.5t/h	Place of Origin:	Henan, China
Brand Name:	Huahong	Model Number:	1100	Weight:	5t
Certification:	ISO, CE, CIQ	Warranty:	One Year	After-sales Service Provided:	Engineers available to service machinery overseas

Packaging Details

wet pan mill packed in standard container 20/40ft in nude packing or packed as your request

Product Description

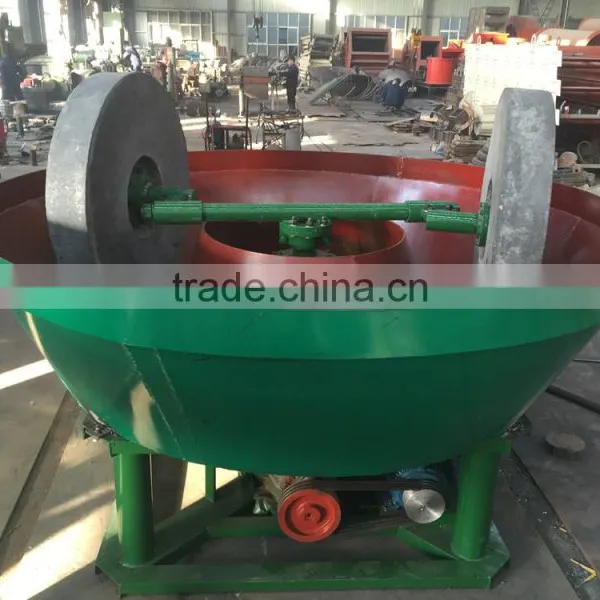

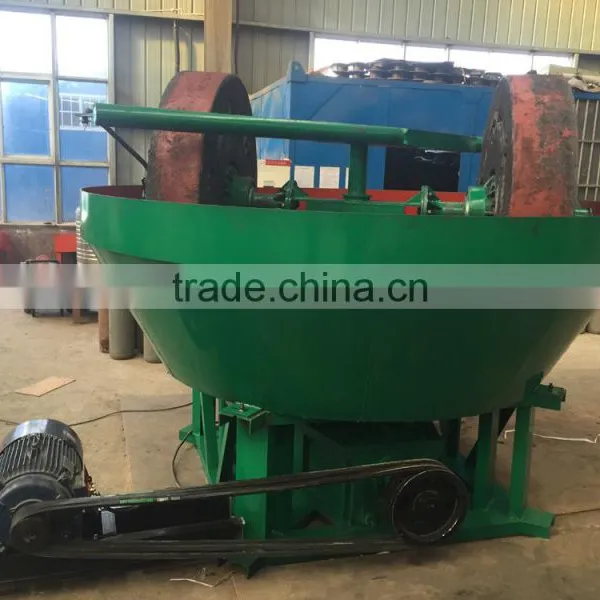

Brief introduction for wet pan mill

Wet pan mill is widely used for selecting ferrous metals, nonferrous metals and nonmetals, as well as precious metals like gold and silver. Based on the different structure it is divided into double roller grinding and three roller grinding. It is popular in Egypt, Sudan, Zimbabwe.

Parameters of wet pan mill
Model	Specification	input size (cm)	Rotation speed(r/min)	Power(kw)	Weight (t)	Capacity (t/h)
1600	1600400200*500±20	30	20-22	30	14.5	6-10
1500	1500350200*460±20	30	20-22	22	13.5	5-8
1400	1400250150*350±20	30	16-18	18.5	8.5	3-5
1300	1300250150*350±20	30	16-18	15	7.5	2-4
1200	120020080*250±20	30	17-19	11	5.5	1.5-2
1100	110020080*250±20	30	17-19	7.5	5.0	1-1.5
1000	100020080*250±20	30	13-15	5.5	4.5	1
900	90020080	30	10-15	5.5	3.0	0.5

Advantages of wet pan mill

1) The grinding wheels mix up the ores and produce ore pulp while pressing and rubbing the ores.

2) The ores and water are evenly mixed, which makes the pulp density and other indexes stable.

3) After the grinding process, the monomers are taken to the upper surface of the pulp and discharged through the overflow outlet of the water basin. Meanwhile, the coarse ores sink to the bottom of grinding base, being grinded continuously till they reach the required fineness.

4) The screening mesh set up at the overflow outlet of the water basin classifies the ore fineness strictly to avoid the over-grinding and uneven fineness, which helps create better condition for next working process.

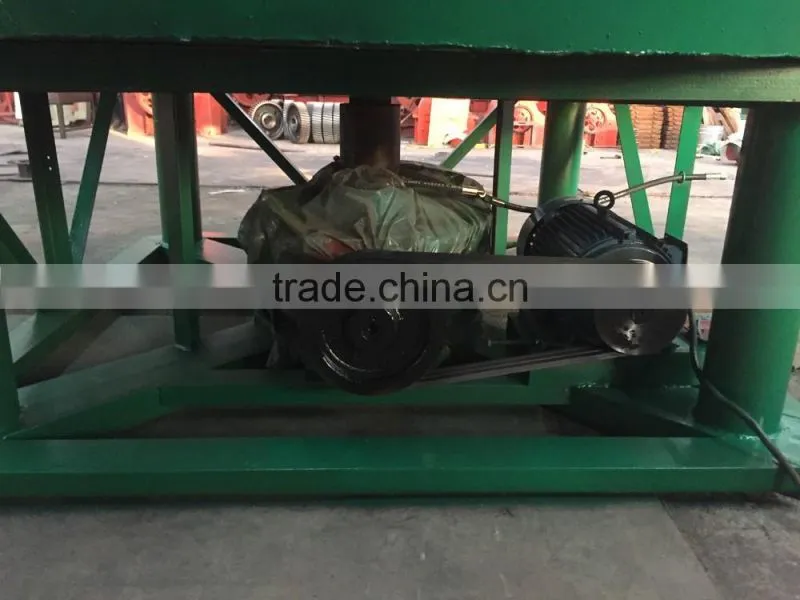

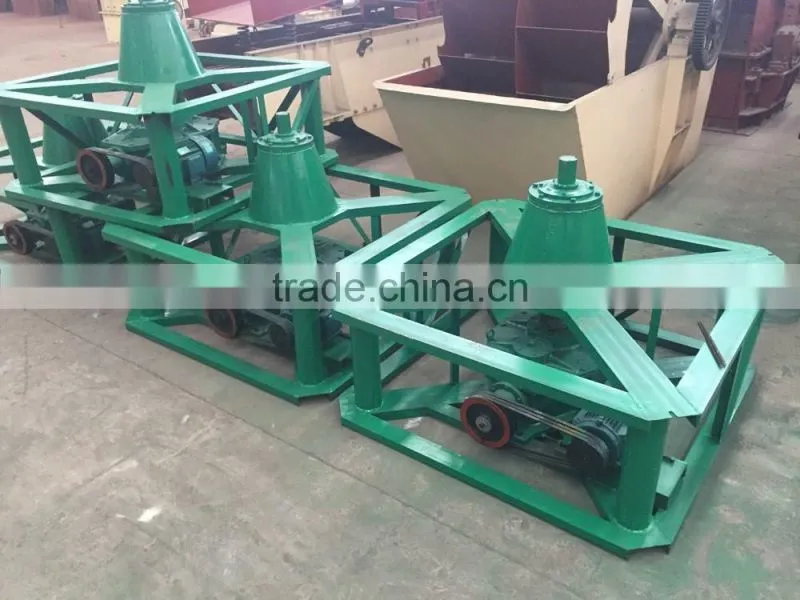

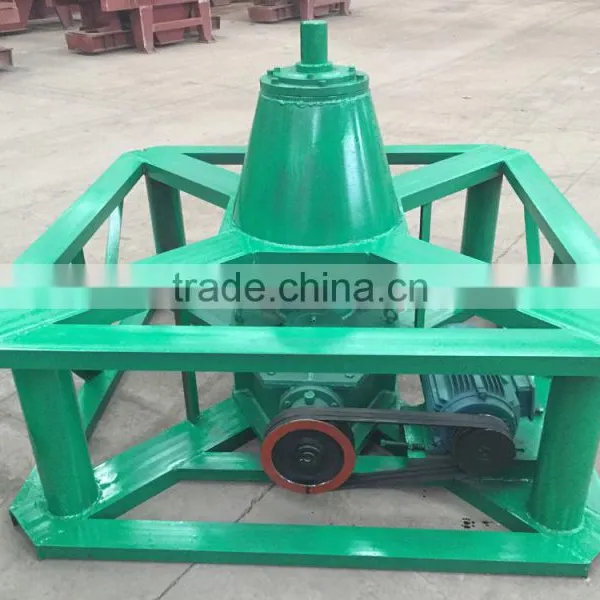

There are two kind of stand support: (One is that speed reducer and motor together is in the bottom of the stand support, another is that only speed reducer in the bottom of the stand support.)

Working Principles of wet pan mill

1) When inputting gold sand into the rolling drum, the rollers compress the sand over and over into tiny particles.
2) Please put in 5 kg mercury at first, the mercury can absorb the gold or other metals.
3) At last, use a high-density red cloth to wrap mercury up.
4) Then squeeze it, the mercury will be pressed out and pure gold stayed.
5) As to the large capacity, we can use mercury shaking machine and mercury steamer to replace the manual work.

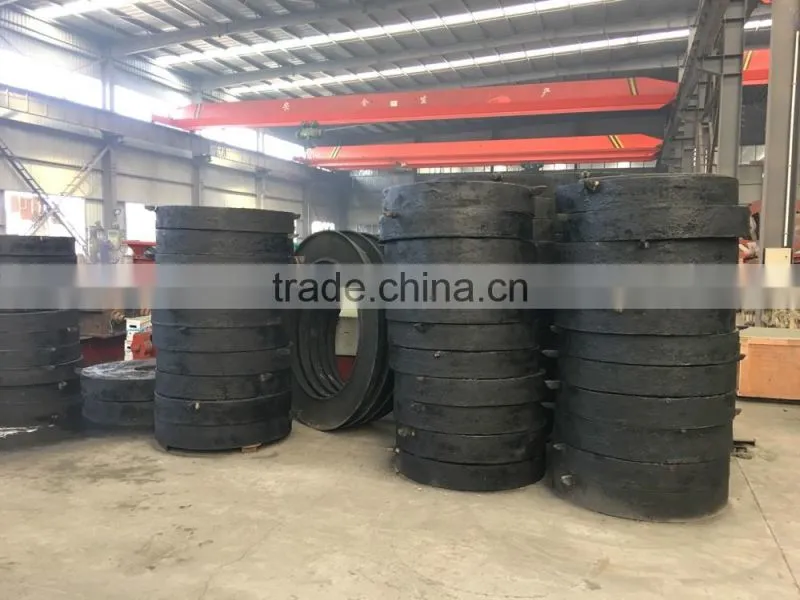

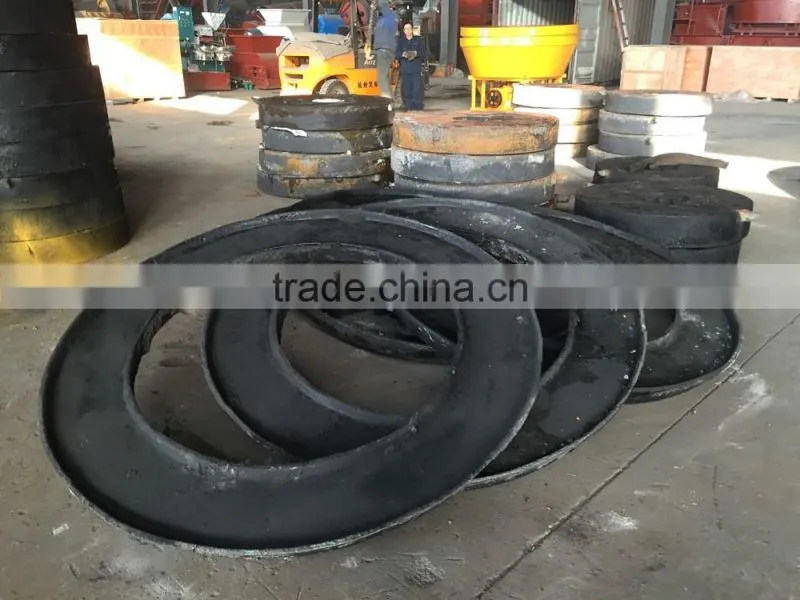

Our Casting iron working site for grind roller and grind base

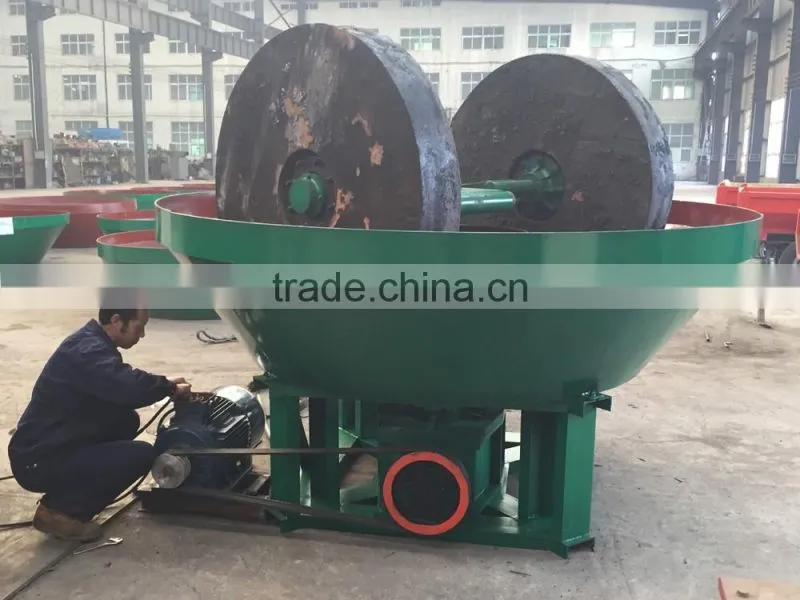

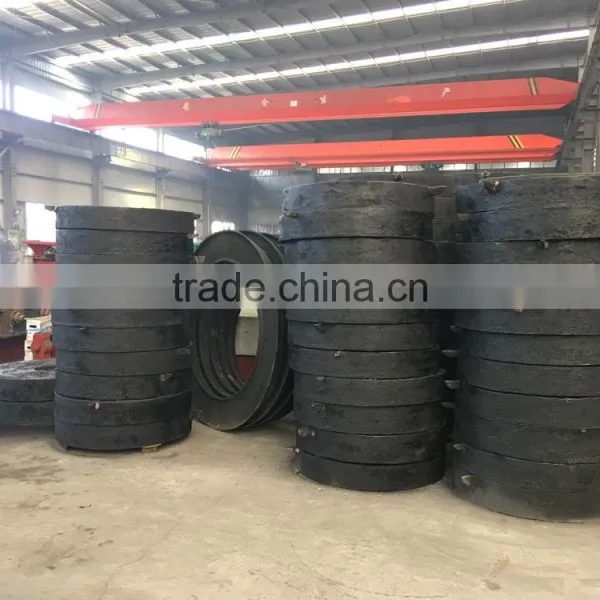

Grind roller /Wheel( If the roller surface has spot, it is normal. our eollwe is casting)

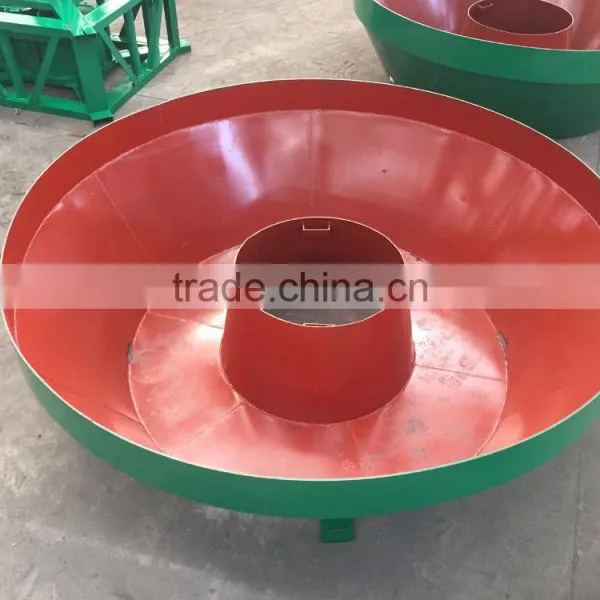

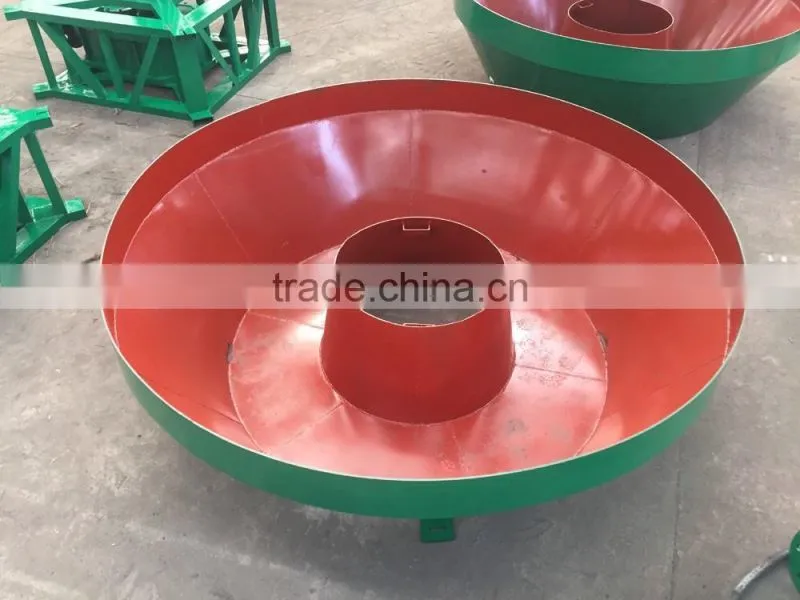

Grind base (It is the runway of the wheels)

Detailed Images

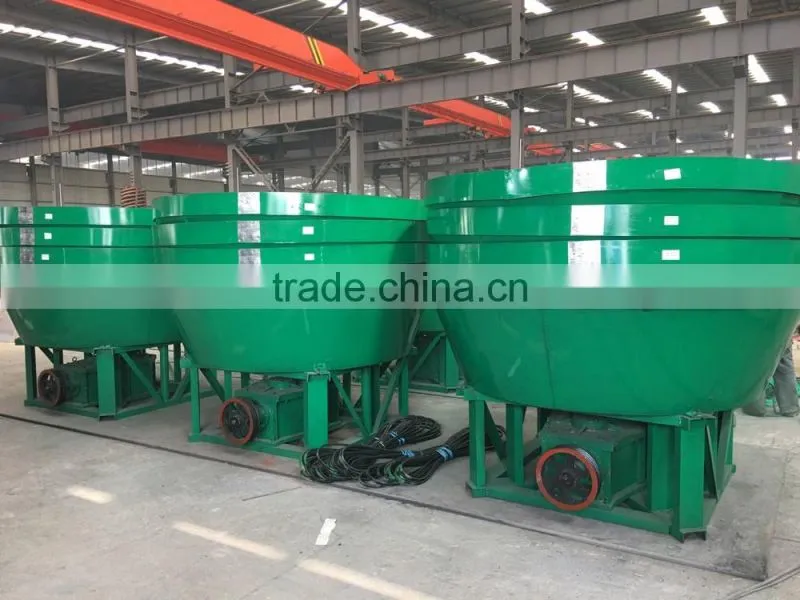

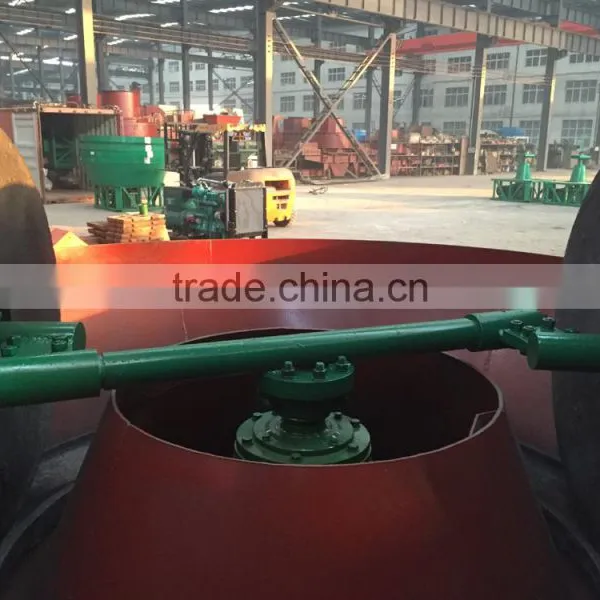

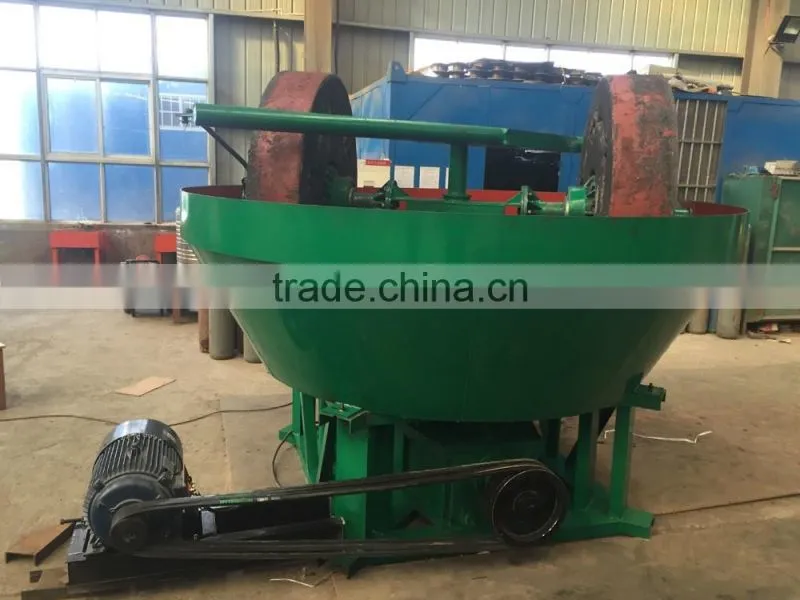

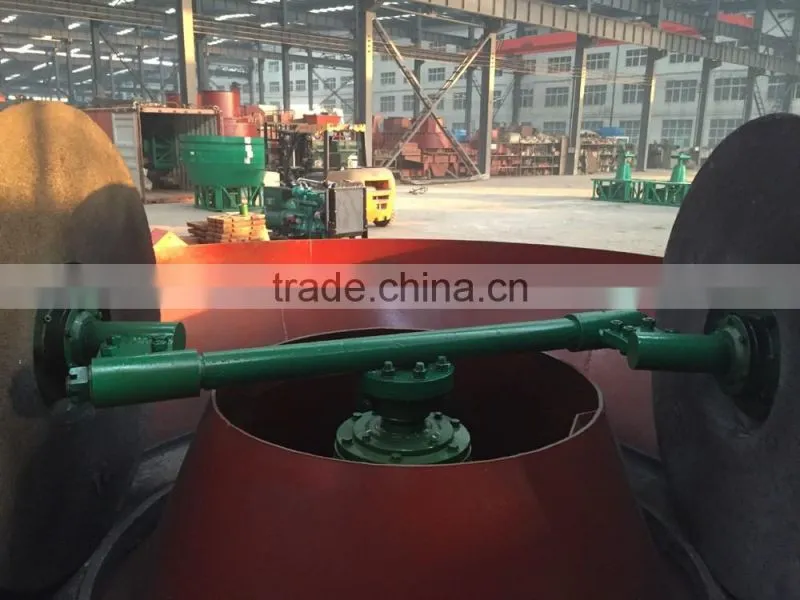

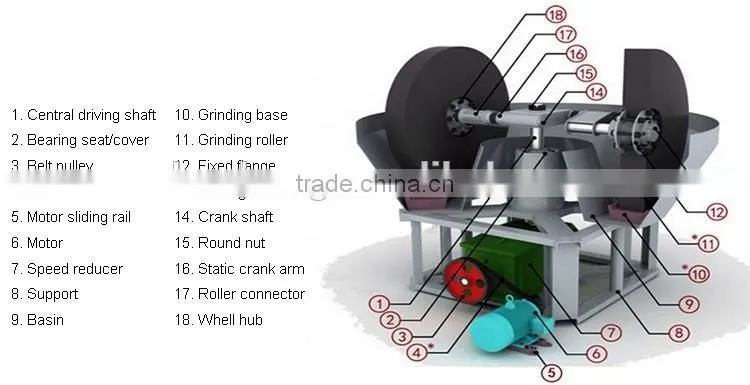

Wet pan mill components

Packing & Delivery

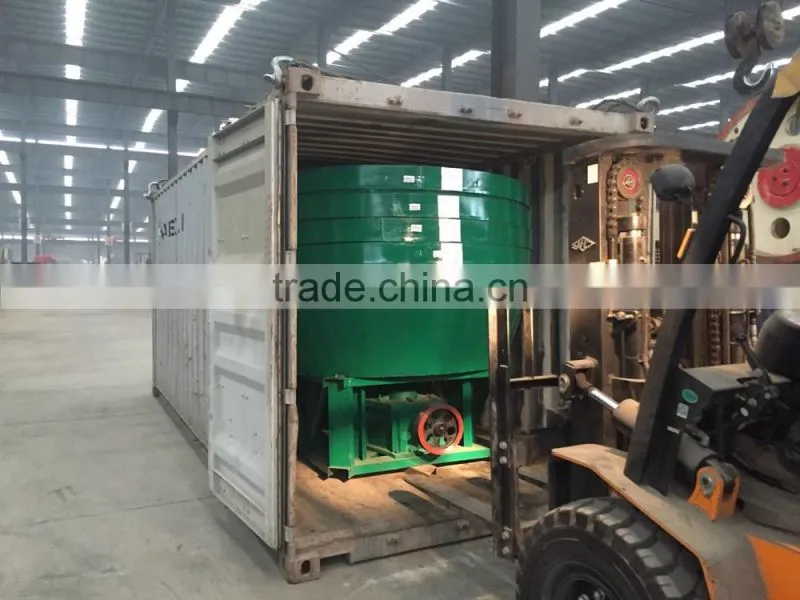

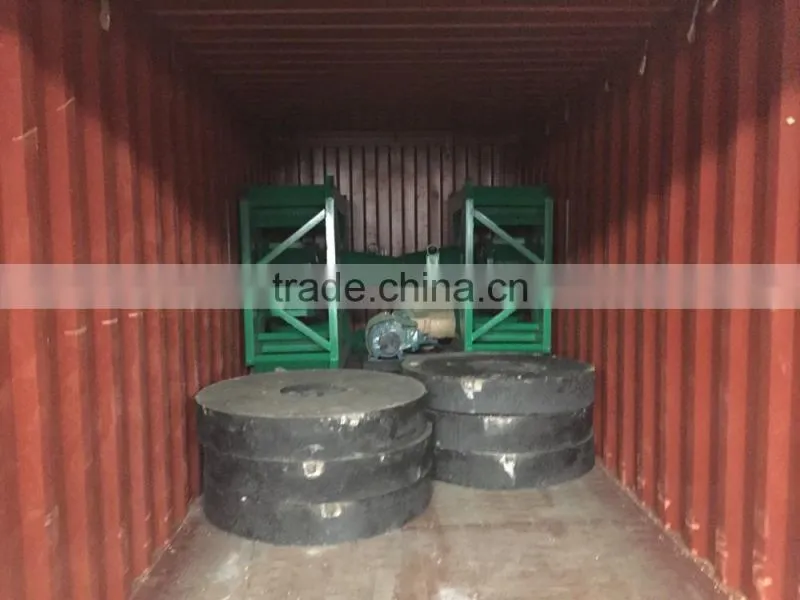

Packing:

The cargos are in nude packing. Some small components will be packed in carton. If the basin diameter is larger than container width, tha basin will be cutted, and you need to weld in your place.

Shipping

If the size is suitable for container ship, usually by container;
If the size is too big, usually by bulk ship or by container after truncation;
We have developed long-term and excellent relationship with many ocean freight partners, such as APL, COSCO, OOCL, CSCL, MSC, etc. And train carrying is also available.
