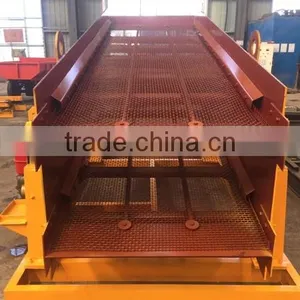

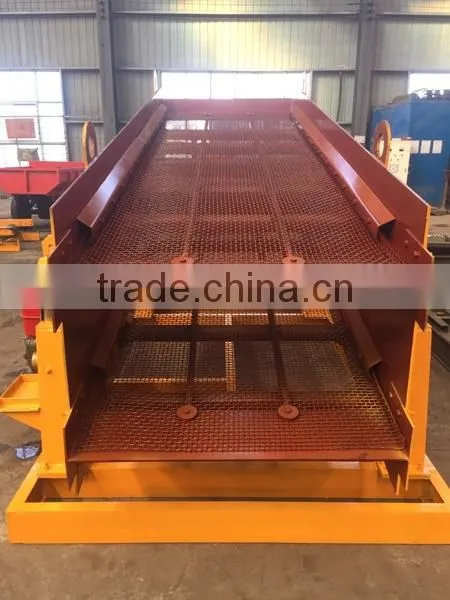

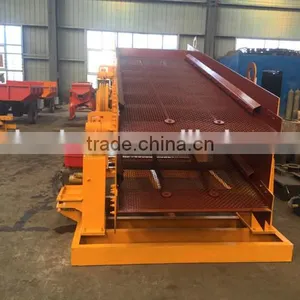

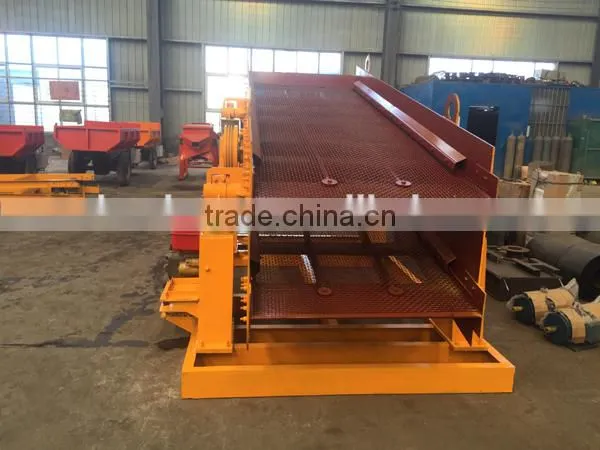

Circular vibrating screen , Vibrating screen,mining filter screen
- 50 Set / Sets per Month
- shanghai/tianjing/qingdao
- T/T Credit Card
- High frequency vibration screen, vibrating screen for mine
- China Circular Vibrating Screen Price, Sand Vibrating Screen for sale
- Circular vibrating screen , vibrating screen for mine
- 3 decks vibrating screen, Screening Machine for selecting stone
- 2YK Series Small Coal Vibrating Screen Price, horizontal Vibrating Sieve w
- 2YK series vibrating screen,Double Deck Vibrating Screen
Product Details
Condition: | New | Type: | Circular | Application: | Ore |
Place of Origin: | Henan, China | Brand Name: | huahong | Model Number: | 2yk1235 |
Voltage: | 220v,380v,required | Power(W): | 5.5kw | Dimension(L*W*H): | Standard |
Weight: | accroding the model | Certification: | ISO,CE,SGS | Warranty: | one year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
standard container,nude packs or in bulk
Product Description
Introduce of circular vibrating screen for mine
YK-type eccentric round vibrating screen is a commonly used simple mine-type linear vibrating screen, because of its screen box movement trajectory is round, so called circular vibrating screen. This series of vibrating screen is a layer of screening, can also use double screening, with a large capacity, low maintenance costs, easy to install and so on, suitable for coal, limestone, gravel, gravel, metal or non-metallic ores And other materials screening
Feature of circular vibrating screen for mining
(1) high vibration strength, production capacity, high screening efficiency;
(2) fine grain level have the opportunity to move to the lower part of the material, and through the sieve discharge;
(3) stuck in the material in the sieve can jump out to prevent the sieve plug;
(4) equipment maintenance convenience, the use of the whole cycle and long service life;
(5) the use of cross shaft universal joint or flexible coupling, such as flexible coupling, smooth operation;
(6) The screen machine structure is simple, help to improve the level of manufacturing equipment and assembly precision;
(7) can change the screen surface inclination, thus changing the material along the sieve surface speed, improve the handling capacity of the sieve;
(8) exciter with block eccentric form, not only to exciter eccentric mass single vibration force increases, and the excitation force can be randomized control, easy to modular design and use.
Circle Vibrating screen of working priciple
Vobrating screen uses electric exciter as vibrating source, the material will be thrown around the screen, at the same time doing forward sports, in order to achieve the screening purpose. Material from the feeder evenly enters into the machine's feeding inlet, with multilayer sieves to produce various of products and unqualified products on the screen or under the screen, then discharging from the outlet repectively. It can be used in the automatic production line.

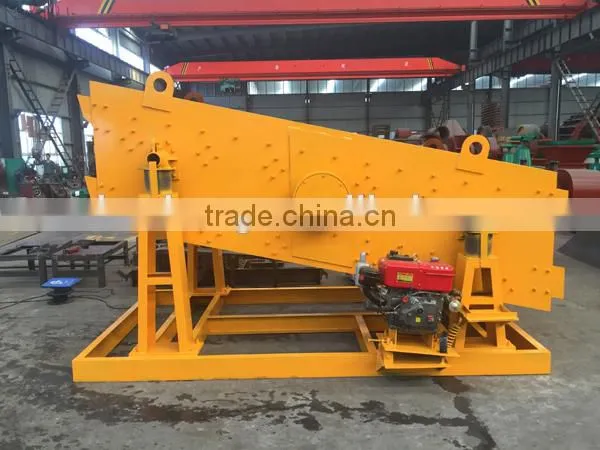

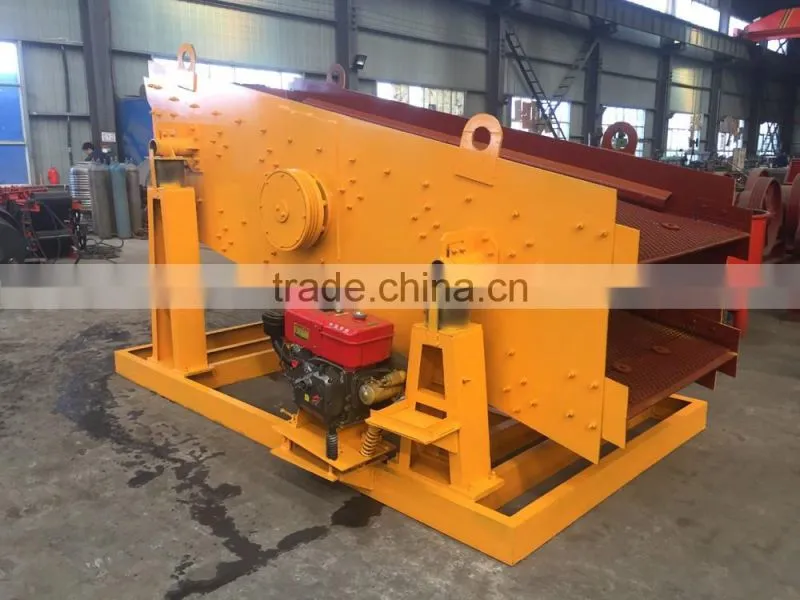

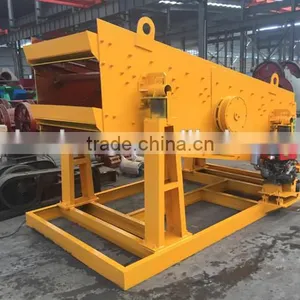

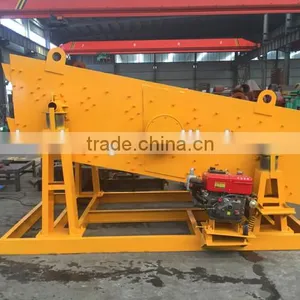

circular vibrating screen with diesel engine

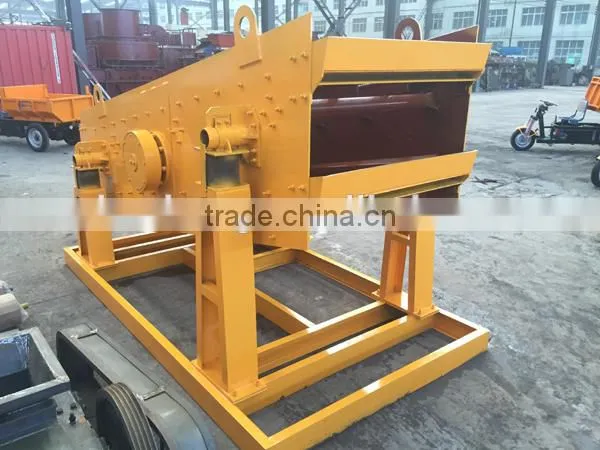

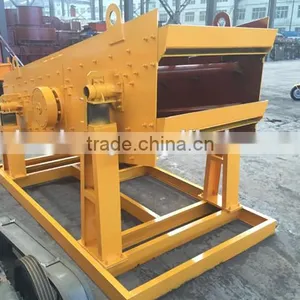

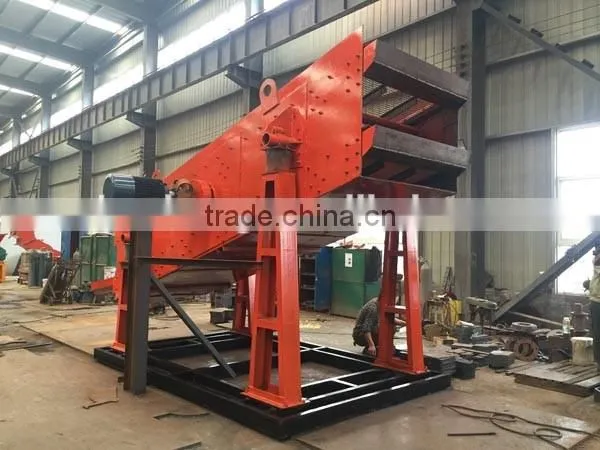

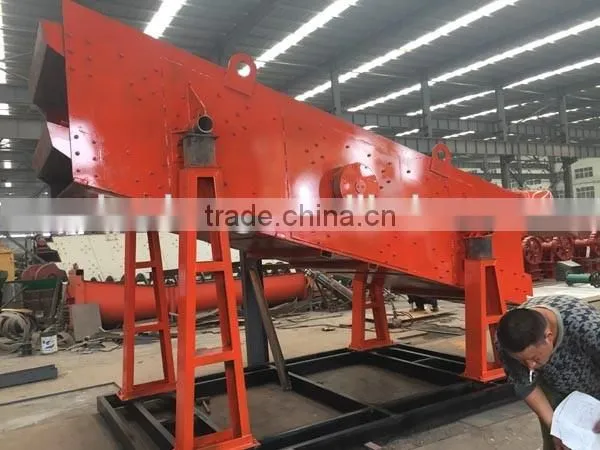

circular vibrating screen with electric motor

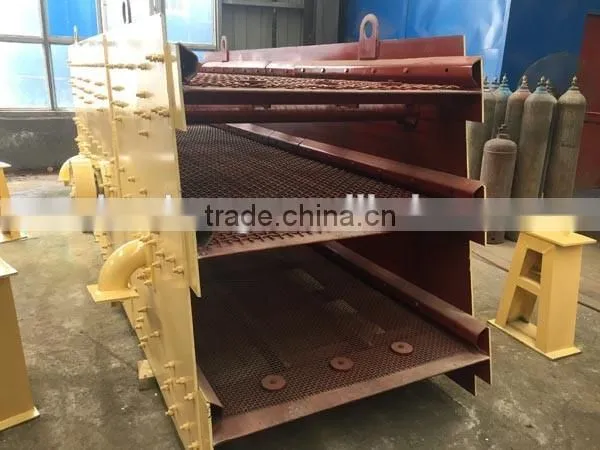

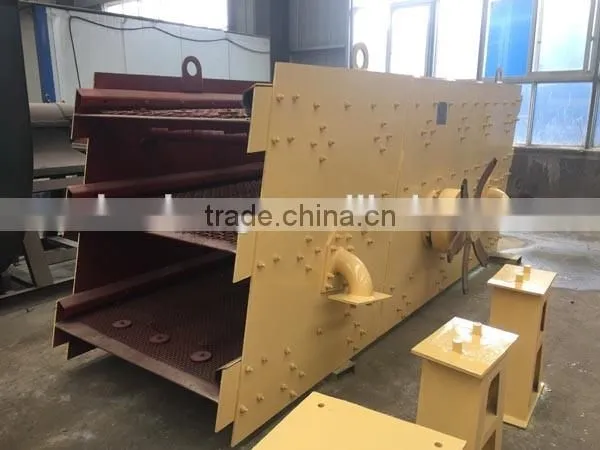

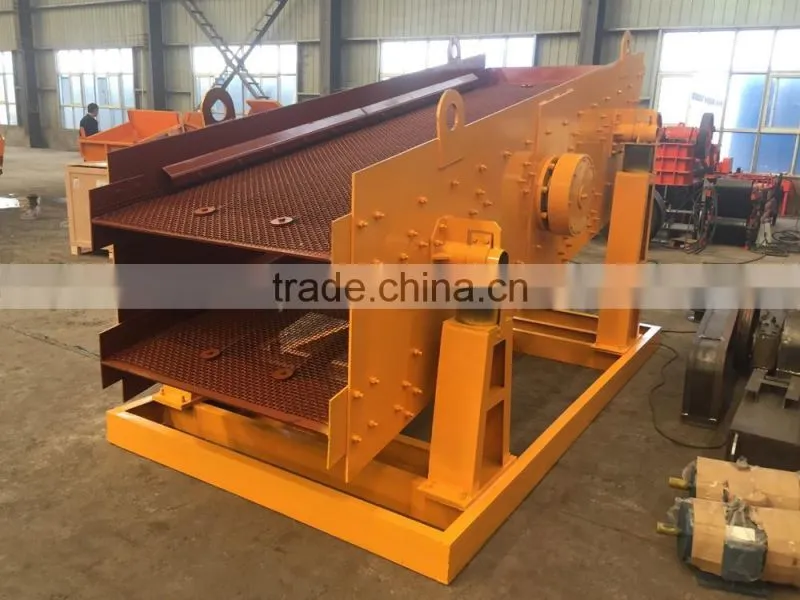

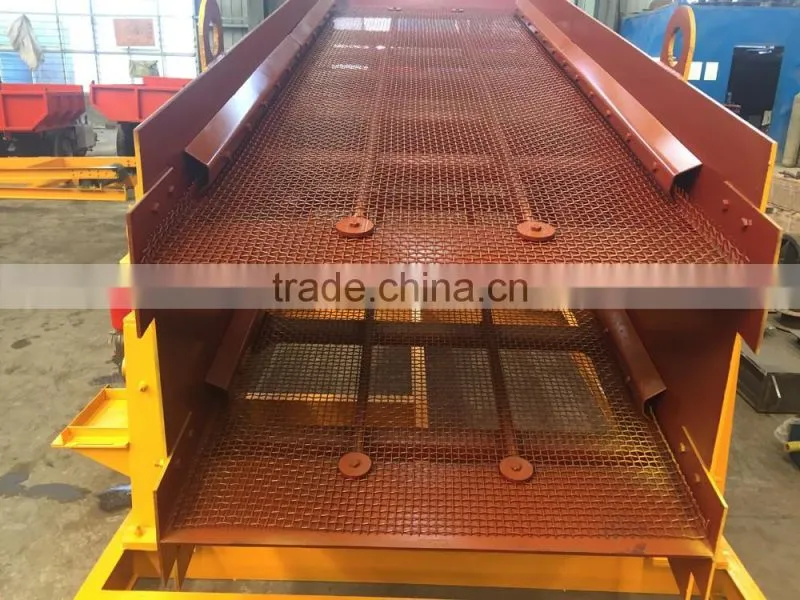

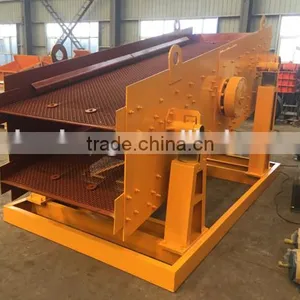

three - layer circular vibrating screen
Vibrating screen main Technical Parameters
Model | Layer | Dimension Size(mm) | Max.Feed Size(mm) | Capacity(t/h) | Vibrating Frequ Ency(r/min) | Power (kw) | Double Swing (mm) |
2YK1235 | 3 | 1200*3500 | 400 | 60-180 | 870 | 5.5 | 5-9 |
2YK1545 | 2 | 1500*4500 | 400 | 120-275 | 870 | 15 | 5-9 |
3YK1545 | 3 | 1500*4500 | 400 | 120-275 | 870 | 15 | 5-9 |
3YK1548 | 4 | 1500*4800 | 400 | 120-275 | 870 | 15 | 5-9 |
4YK1548 | 2 | 1500*4800 | 400 | 200-275 | 870 | 15 | 5-9 |
3YK1848 | 3 | 1800*4800 | 400 | 200-330 | 870 | 18.5 | 5-9 |
4YK1848 | 4 | 1800*4800 | 400 | 250-330 | 870 | 18.5 | 5-9 |
3YK1860 | 2 | 1800*6000 | 400 | 250-586 | 870 | 22 | 5-9 |
4YK1860 | 3 | 1800*6000 | 400 | 300-586 | 870 | 22-30 | 5-9 |
3YK2060 | 4 | 2000*6000 | 400 | 300-720 | 730 | 37 | 5-9 |
4YK2060 | 2 | 2000*6000 | 400 | 400-720 | 730 | 30-37 | 5-9 |
3YK2460 | 3 | 2400*6000 | 400 | 400-810 | 770 | 37 | 5-9 |
4YK2460 | 1 | 2400*6000 | 400 | 450-810 | 770 | 37 | 5-9 |
Q: Can I visit your factory?
A: Yes. Many domestic and international customers visit our factory every year.
Q: How long is the warranty of your equipment? Do you supply spare parts?
A: Our warranty period is one year generally. We can supply spare parts.
Q: Do you provide after-sale service?
A: Yes. We have a professional after-sale service team to promptly and thoroughly solve your problems.
Q: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports.
Q: Do you provide beneficiation flow chart?
A: Yes. Our experienced engineers are specialized in designing process flow for various ores beneficiation, including iron ore, tin ore, copper ore, gold ore, lead zinc ore, manganese ore, etc.
Q: Can you test our samples?
A: Yes. You can send your samples to us for test and analysis.
Q: Have you made the whole ore dressing lines?
A: Yes. We have made several large ore dressing lines at home and abroad.
Company Profile
Zhengzhou Huahong Machinery Equipment Co., Ltd. is located in Zhengzhou National Hi-Tech Industrial Development Zone, Henan Province. Our company has passed ISO9001 international quality system certification. Our company has two industrial plants of 10,000 square meters and we have 200 sets of large and medium-sized processing, welding and assembly equipment, with the maximum lifting capacity of 150 tons.
Our company mainly produces all kinds of jaw crushers, impact crushers, cone crushers, hammer crushers, Raymond mills, sand making machines, mineral processing equipment, milling machines, ball mills, and building material equipment.
Stone Production Line: mobile crushers, vertical compound crushers, roll crushers, roller crushers, impact crushers, impact crushers, hammer crushers, jaw crusher machines, efficient crushing machines, spiral stone washing machines, high efficiency sand washing machines, sixth generation sand products, hammer crushers, cone crushers and others.
Mineral production equipment: pressure machines, cylinder cooling machines, dryer belts, vertical dryers, rotary drum dryers, high frequency screens, spiral classifiers, flotation machines, dry magnetic separators, wet magnetic separators, ceramic ball mills, tube mills, energy saving ball mills and others.
Building equipment: cement production lines, cement mills, separators, rotary kilns, vertical coolers, vertical preheaters, 8-15 automatic hydraulic block making machines, 6-15 automatic block making machines, pulping machines, casting machines, steam curing cars, autoclave reactors, concrete block cutting machines, aerated concrete production lines and others.
Common equipment: feeders, pendulum feeders, ultrafine mills, screw conveyors, Raymond mills, vibrating screens, stone vibrating screens, electromagnetic vibrating feeders, TH ring chain bucket elevator machines, TD belt elevators, belt conveyors, scraper conveyors and others.
We have won a good reputation among customers with good quality, competitive prices and advanced techniques since our establishment.
We have 22 existing senior engineers, 30 engineers, 70 senior technicians and more than 800 employees. The Chief Engineer of China Machinery Industry has designed and developed several generations of leading crushers, sand (sand) machines and others for our company. Our company has introduced these products in recent years. Our products are popular in the United States, Germany and other countries and regions around the world. We have advanced equipment and techniques.
Since our inception, we have been sticking to our motto of "product update and advanced processing equipment and exquisite craft, rigorous inspection and testing, providing customers with quality products, and to obtain users' favor". Our products are exported worldwide.
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
