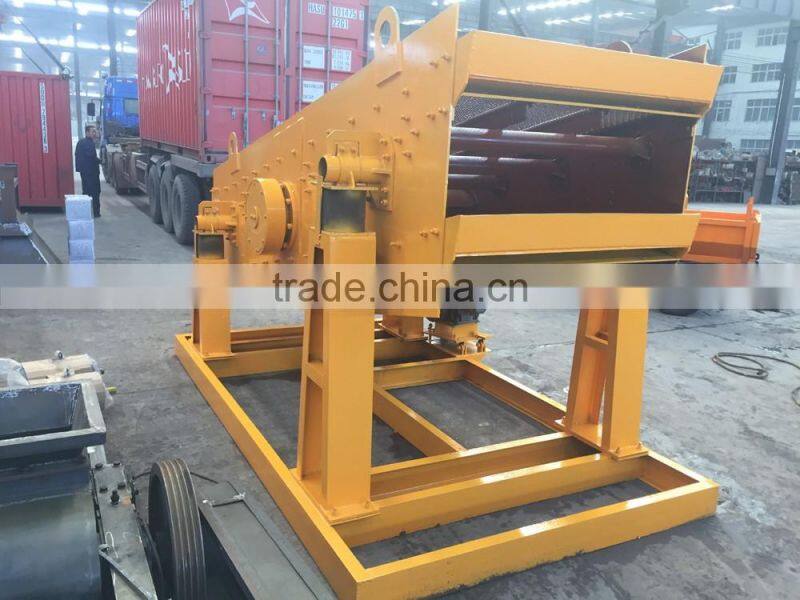

Introduce of circular vibrating screen for mine
YK-type eccentric round vibrating screen is a commonly used simple mine-type linear vibrating screen, because of its screen box movement trajectory is round, so called circular vibrating screen. This series of vibrating screen is a layer of screening, can also use double screening, with a large capacity, low maintenance costs, easy to install and so on, suitable for coal, limestone, gravel, gravel, metal or non-metallic ores And other materials screening
Feature of circular vibrating screen for mining
(1) high vibration strength, production capacity, high screening efficiency;
(2) fine grain level have the opportunity to move to the lower part of the material, and through the sieve discharge;
(3) stuck in the material in the sieve can jump out to prevent the sieve plug;
(4) equipment maintenance convenience, the use of the whole cycle and long service life;
(5) the use of cross shaft universal joint or flexible coupling, such as flexible coupling, smooth operation;
(6) The screen machine structure is simple, help to improve the level of manufacturing equipment and assembly precision;
(7) can change the screen surface inclination, thus changing the material along the sieve surface speed, improve the handling capacity of the sieve;
(8) exciter with block eccentric form, not only to exciter eccentric mass single vibration force increases, and the excitation force can be randomized control, easy to modular design and use.
Circle Vibrating screen of working priciple
Vobrating screen uses electric exciter as vibrating source, the material will be thrown around the screen, at the same time doing forward sports, in order to achieve the screening purpose. Material from the feeder evenly enters into the machine's feeding inlet, with multilayer sieves to produce various of products and unqualified products on the screen or under the screen, then discharging from the outlet repectively. It can be used in the automatic production line.

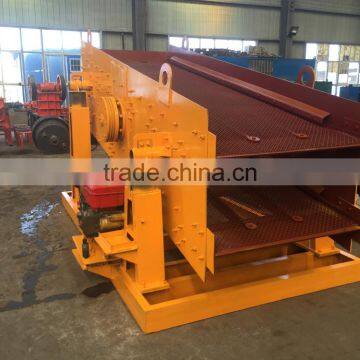

circular vibrating screen with diesel engine
circular vibrating screen with electric motor
three - layer circular vibrating screen
Vibrating screen main Technical Parameters
Model |
Layer |
Dimension Size(mm) |
Max.Feed Size(mm) |
Capacity(t/h) |
Vibrating Frequ Ency(r/min) |
Power (kw) |
Double Swing (mm) |
2YK1235 |
3 |
1200*3500 |
400 |
60-180 |
870 |
5.5 |
5-9 |
2YK1545 |
2 |
1500*4500 |
400 |
120-275 |
870 |
15 |
5-9 |
3YK1545 |
3 |
1500*4500 |
400 |
120-275 |
870 |
15 |
5-9 |
3YK1548 |
4 |
1500*4800 |
400 |
120-275 |
870 |
15 |
5-9 |
4YK1548 |
2 |
1500*4800 |
400 |
200-275 |
870 |
15 |
5-9 |
3YK1848 |
3 |
1800*4800 |
400 |
200-330 |
870 |
18.5 |
5-9 |
4YK1848 |
4 |
1800*4800 |
400 |
250-330 |
870 |
18.5 |
5-9 |
3YK1860 |
2 |
1800*6000 |
400 |
250-586 |
870 |
22 |
5-9 |
4YK1860 |
3 |
1800*6000 |
400 |
300-586 |
870 |
22-30 |
5-9 |
3YK2060 |
4 |
2000*6000 |
400 |
300-720 |
730 |
37 |
5-9 |
4YK2060 |
2 |
2000*6000 |
400 |
400-720 |
730 |
30-37 |
5-9 |
3YK2460 |
3 |
2400*6000 |
400 |
400-810 |
770 |
37 |
5-9 |
4YK2460 |
1 |
2400*6000 |
400 |
450-810 |
770 |
37 |
5-9 |
