Stone Crusher Specifications For Sale Gravel Vibrating Feeder
- Shanghai Tianjin Guangzhou Qingdao port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Model 960*3800 Stone Vibrating Feeder for Sale
-
China Electromagnetic Vibrating Feeder Price
-
Mining Vibrating Feeder Machine,Vibratory Feeder Machine,vibrating Feeder
-
GZD 960*3800 Small Vibrating Grizzly Feeder With High Efficiency
-
Circular Vibrating Feeder,coal Feeder,Grizzly Vibrating Feeder Price
-
Stone Vibrating Grizzly Screen Feeder With Low Price
Product Details
| Condition | New | Application | Mining Industry | |
| Power Type | Electric | Capacity(t/h) | 80-600/h | |
| Place of Origin | Henan, China | Brand Name | Huahong | |
| Model Number | GZD | Power(W) | 7.5--kw | |
| Dimension(L*W*H) | customise | Weight | 3895-5200kg | |
| Certification | CE ISO CCC SGS | Warranty | 12 months | |
| After-sales Service Provided | Overseas third-party support available |
vibrating feeder are packed by standard wooden case.
Product Description
Stone Crusher Specifications For Sale Gravel Vibrating Feeder
1. Working principle for vibrating feeder machine:
Vibrating feeder machineconsists of vibrating frame, spring, vibrator, motor vibrating device and motor. The vibrator is made of two fixed eccentric shafts whose gears are jogged. When installation, the two gears must be jogged according to the sign. Through drive of the motor, the two eccentric shafts start rotating to produce a linear huge power which forces the feeder to vibrate. Through the vibration, the materials will slip and sling on the funnel, moving forward, when the materials pass the screening part, smaller parts will fall down, and avoiding the further crushing, so screening purpose can be reached.
2. Brief description for vibrating feeder machine:
Vibrating feeder machine can feed block or granule materials from the material storage to charging device
evenly and continuously. It can realize even feeding for crushers in sandstone production line and
make rough screening for materials. Widely applied in combined operation of crushing and screening in the industries like metallurgy, mine, mine ion, building materials, chemicals, etc.
3. Technical parameters for vibrating feeder machine:
Model | Max. feed size (mm) | shot-size (mm) | Capacity (t/h) | Power (kw) | Dimension (mm) | Weight (kg) |
GZD850×3000 | 400 | 850x3000 | 80-120 | 7.5 | 3100×1750×1640 | 3360 |
GZD960×3800 | 500 | 960x3800 | 120-210 | 11-15 | 3850×1905×1630 | 3800 |
GZD1100×4200 | 580 | 1100x4200 | 200-430 | 11-15 | 4400×2050×1660 | 4170 |
GZD1100×4900 | 580 | 1100x4900 | 280-500 | 15-18.5 | 5200×2050×1700 | 4520 |
GZD1300×4900 | 650 | 1300x4900 | 450-600 | 18.5-22 | 5200×2350×1750 | 520 |

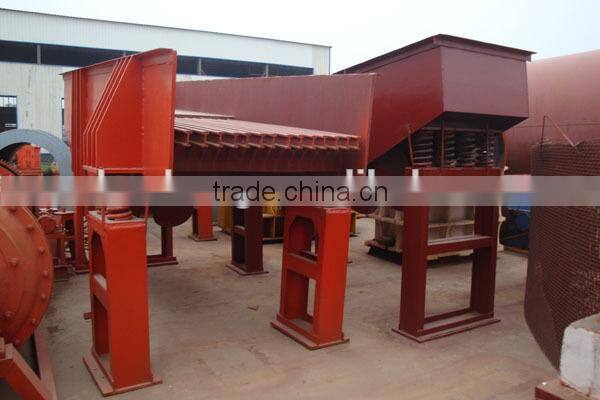

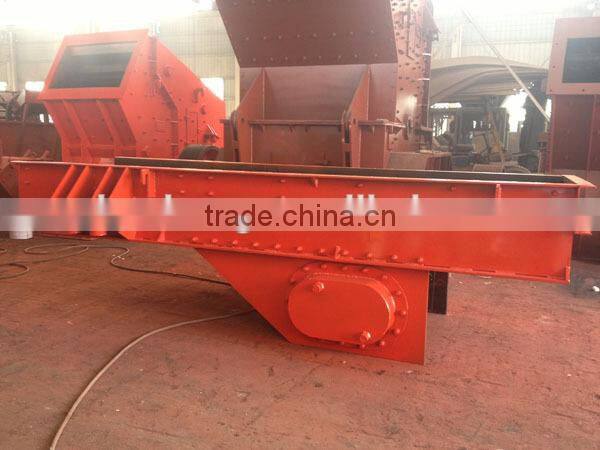

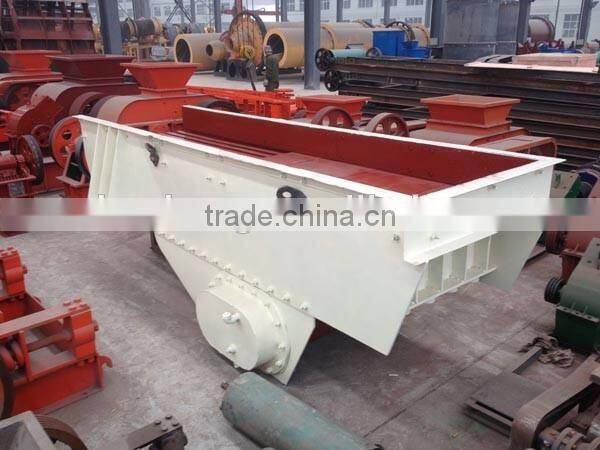

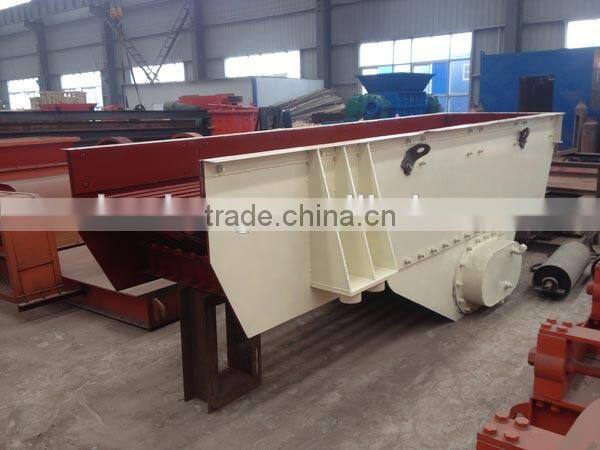

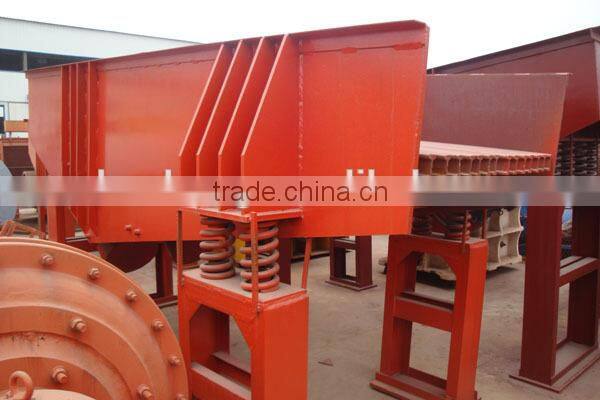

4. Product details show for vibrating feeder machine:
5. Advantages for vibrating feeder machine:
Heavy-duty, Durable and All-Welded Structure

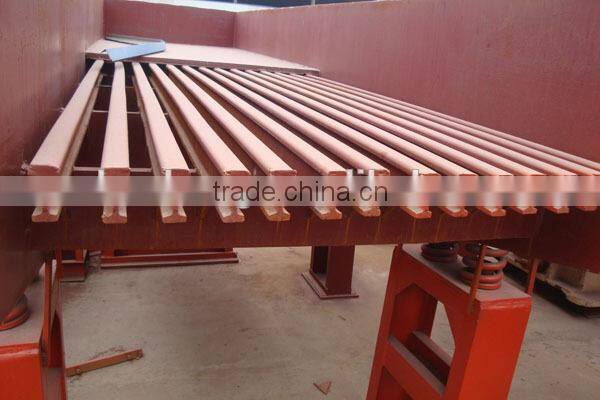

Removable and Adjustable Grizzly Bars
Adjustable Excited Force
Enclosed Oil-bath Lubrication
Packaging Detail:
All the cargos are packed by crate wood,other parts are nude package ,or as client demand.

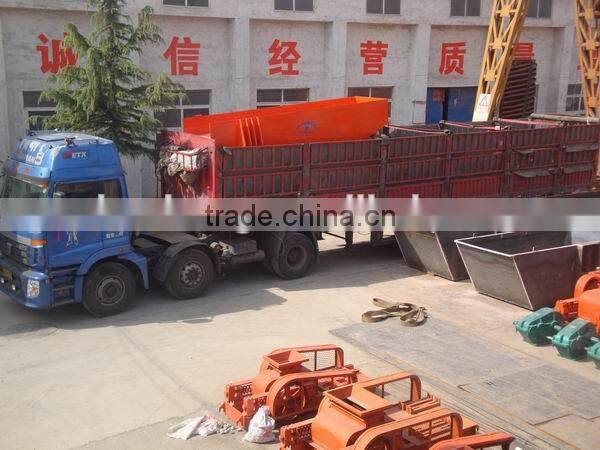

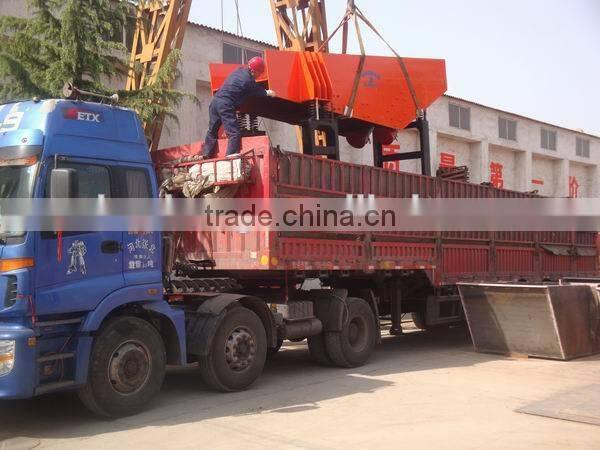

Delivery Detail:
- If the size is suitable for container ship, usually by container;
- If the size is too big, usually by bulk ship or by container after truncation;
- Transport ways are based on reducing cost for you and keep the crane performance!




Zhengzhou Huahong Machinery to be the leading enterprise which is professional manufacture
double roller crusher,grading crusher, double teeth roller crusher ,our double roller crusher with new
design.We provide variety of double roller crusher with high processing capacity, featured structure.
As a specialized manufacurer and exporter in china, Zhengzhou Huahong striving its best to service
our customer.Our machines are all through ISO CE SGS certificate. More details PLS click on http://zzhuahong.en.china.cn/


1. Are you a trading company or a manufacturer?
We are a manufacturer.
2. How can I get to your company?
You can get a flight to Zhengzhou Xinzheng International Airport . and we can go to airport to pick you up directly.
All our clients from home or abroad, are warmly welcome to visit our factory and inspect our products!
3. How long is your guarantee?
One year(Calculated from the equipment arrives the customer’s side.). After this period we will definitely support
you when needed. You will be welcome to contact us with any problem may happened.
4. Will you send engineers to install the plant?
yes, but at an extra cost payable by the customer. Or you can get local contractors to do thecommissioning and we send one supervising engineer.
- Sales manager cell number is 24hours available.
- Payment terms is flexible.
- Design the product according to your technical request.
- Our engineer is willing to help fixing the crane for you.
- Diversity products.
- Delivery on time.
- Warranty: 12 months.
- Trade Assurance Service.(Trade Assurance is a free payment protection service for buyers.
The service is offered by participating suppliers, and is designed to protect your payment if your order is not shipped on time, or if the pre-shipment product quality (optional) does not match the terms agreed on your contract.
Your payment is protected up to 100% of an amount - agreed between you and the supplier - called the Trade Assurance Order Amount.)
I am Helen Li, always being on serve you.
We cherish every order from every customer.
Company Profile
Zhengzhou Huahong Machinery Equipment Co., Ltd. is located in Zhengzhou National Hi-Tech Industrial Development Zone, Henan Province. Our company has passed ISO9001 international quality system certification. Our company has two industrial plants of 10,000 square meters and we have 200 sets of large and medium-sized processing, welding and assembly equipment, with the maximum lifting capacity of 150 tons. Our company mainly produces all kinds of jaw crushers, impact crushers, cone crushers, hammer crushers, Raymond mills, sand making machines, mineral processing equipment, milling machines, ball mills, and building material equipment. Stone Production Line: mobile crushers, vertical compound crushers, roll crushers, roller crushers, impact crushers, impact crushers, hammer crushers, jaw crusher machines, efficient crushing machines, spiral stone washing machines, high efficiency sand washing machines, sixth generation sand products, hammer crushers, cone crushers and others. Mineral production equipment: pressure machines, cylinder cooling machines, dryer belts, vertical dryers, rotary drum dryers, high frequency screens, spiral classifiers, flotation machines, dry magnetic separators, wet magnetic separators, ceramic ball mills, tube mills, energy saving ball mills and others. Building equipment: cement production lines, cement mills, separators, rotary kilns, vertical coolers, vertical preheaters, 8-15 automatic hydraulic block making machines, 6-15 automatic block making machines, pulping machines, casting machines, steam curing cars, autoclave reactors, concrete block cutting machines, aerated concrete production lines and others. Common equipment: feeders, pendulum feeders, ultrafine mills, screw conveyors, Raymond mills, vibrating screens, stone vibrating screens, electromagnetic vibrating feeders, TH ring chain bucket elevator machines, TD belt elevators, belt conveyors, scraper conveyors and others. We have won a good reputation among customers with good quality, competitive prices and advanced techniques since our establishment. We have 22 existing senior engineers, 30 engineers, 70 senior technicians and more than 800 employees. The Chief Engineer of China Machinery Industry has designed and developed several generations of leading crushers, sand (sand) machines and others for our company. Our company has introduced these products in recent years. Our products are popular in the United States, Germany and other countries and regions around the world. We have advanced equipment and techniques. Since our inception, we have been sticking to our motto of "product update and advanced processing equipment and exquisite craft, rigorous inspection and testing, providing customers with quality products, and to obtain users' favor". Our products are exported worldwide. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
