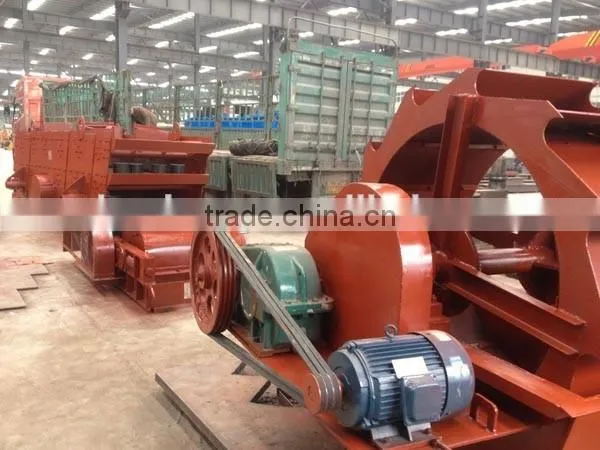

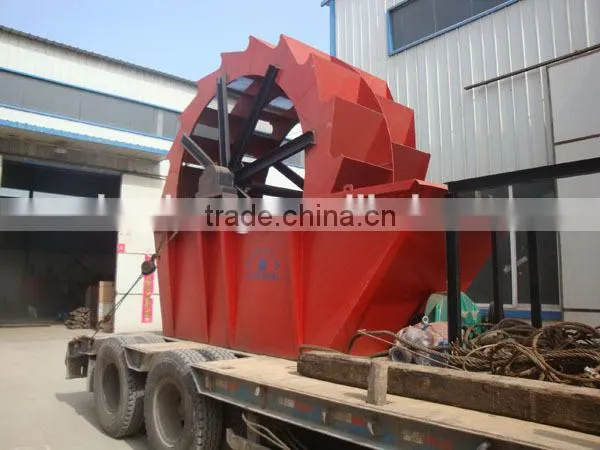

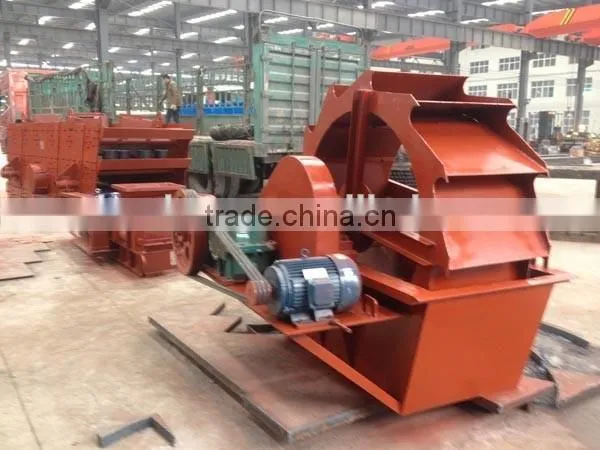

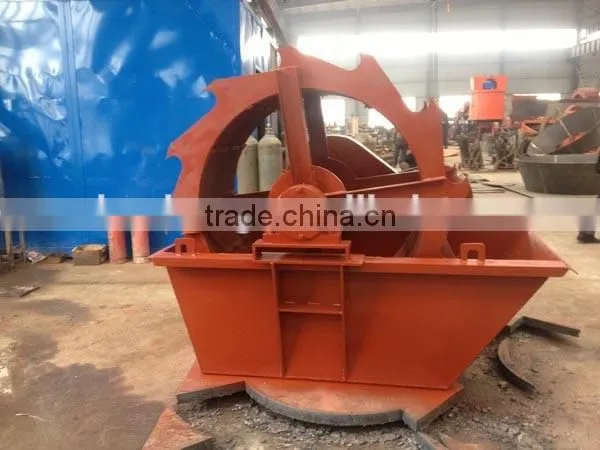

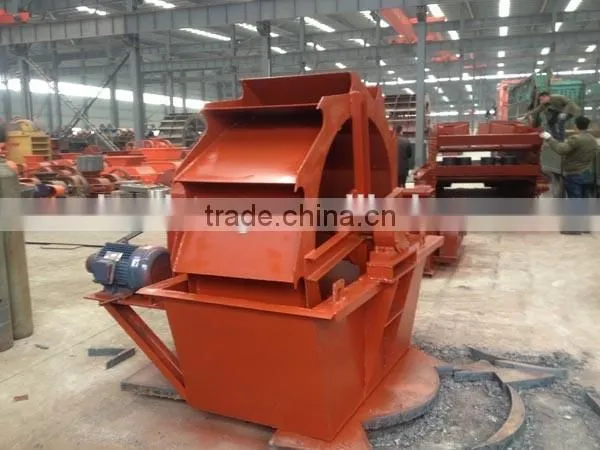

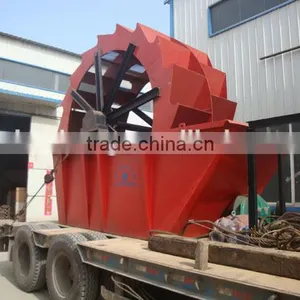

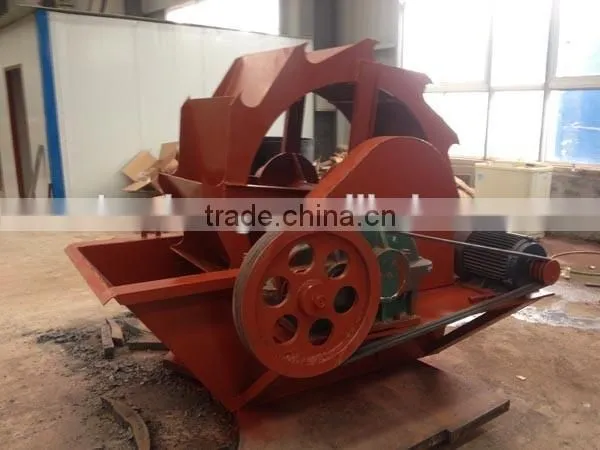

mini sand washing machine price
1. Breif description for sand washing machine:

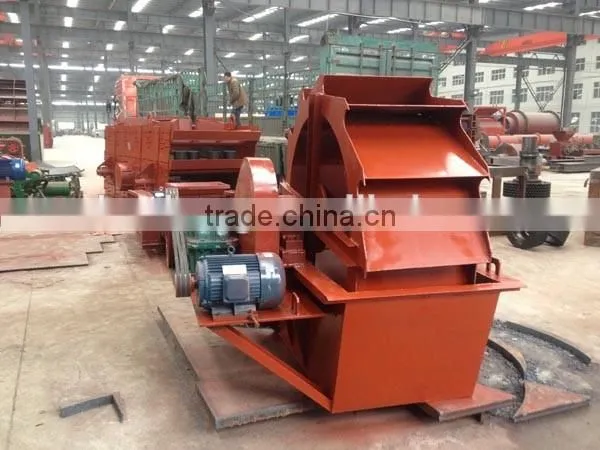

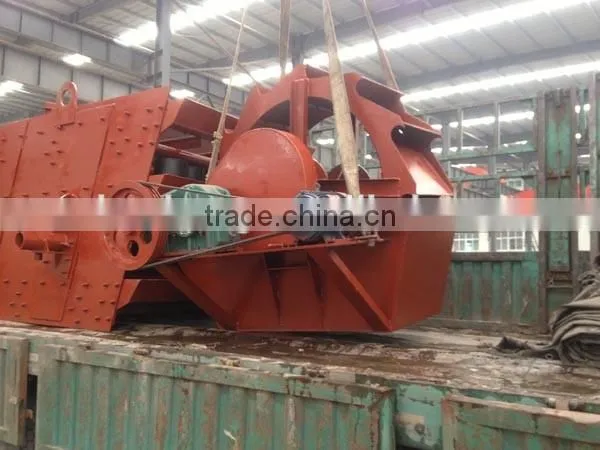

Bucket sand washing machine price is a high-efficiency sand washing equipment adopting wheel-like structure, which works with sand making machine. It can wash the stone powder and impurity from the mixed sand that made by sand making machine, which can improve the sand quality.
2. Applications for sand washing machine:
The sand washing equipment is widely used in washing, grading and dehydrating in the industry of stone factories, construction site and quartz sand in glass factory.
3. Advantages for sand washing machine:
1. High efficiency, reasonable structure, high capacity and low consumption
2. The bearing device of impeller drive is separated from water and materials in water, which greatly protects the bearing from soaking, sand and pollutants.
3. Compared with the spiral sand washing machine, the loss of medium and fine sand and powder is minimized, and the grade and fineness can meet the required standard
4. This machine is with long service life and low maintenance costs.
4. Working principle for sand washing machine:

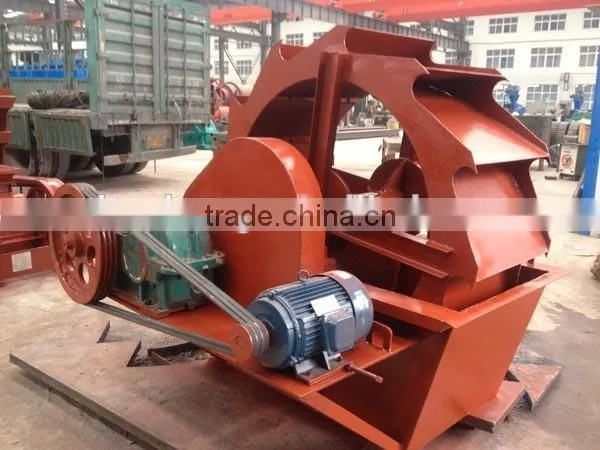

The electric motor runs slowly with the impellor after decelerated by the belt, decelerator and gears wheel. The sand and stone flow into washing launder from feeding launder, rolls with the impellor, and grinds each other. The impurity covering the sand is washing away. At the same time, add more water, the strong water flow will take away waste and some low-weight wastes from washing launder. Through the above process, the washing function is finished. The clean sand and stone is lift up by vane. When it goes up slowly, the water begins to drop through the mesh and fall back in the washing launder. On one hand, water is removed from the sand and stone; on the other hand, the water can be fully used. Finally, the sand and stone goes to the out launder from the rotary impellor to finish the washing task.
5. Technical parameters for sand washing machine:
Model |
XS2000 |
XS2600 |
XS2800 |
XS3000 |
XS3200 |
XS3600 |
Wheel bucket diameter(mm) |
2000 |
2600 |
2800 |
3000 |
3200 |
3600 |
Rotate speed(r/min) |
0.8-1.2 |
0.8-1.2 |
0.8-1.2 |
0.8-1.2 |
0.8-1.2 |
0.5-1.2 |
Capacity (t/h) |
5-20 |
20-50 |
50-100 |
30-70 |
80-120 |
120-150 |
Return sand capacity(t/h) |
1-5 |
5-20 |
10-30 |
5-25 |
15-35 |
25-40 |
Motor Power (kw) |
5.5 |
5.5 |
7.5 |
7.5 |
11 |
15 |
Weight (kg) |
2000 |
3500 |
5100 |
7200 |
8800 |
14200 |
Packaging Detail:
All the cargos are packed by crate wood,other parts are nude package ,or as client demand.
Delivery Detail:

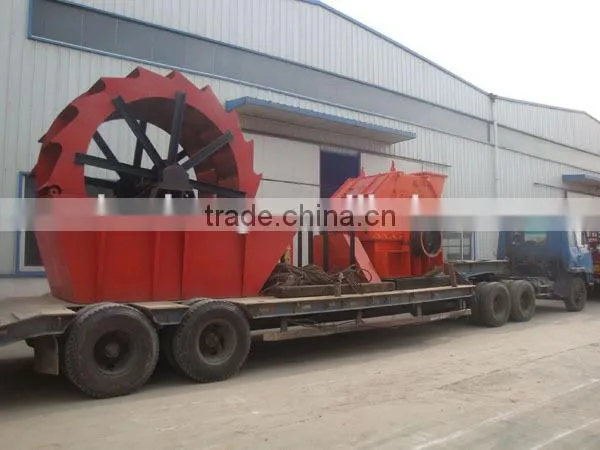

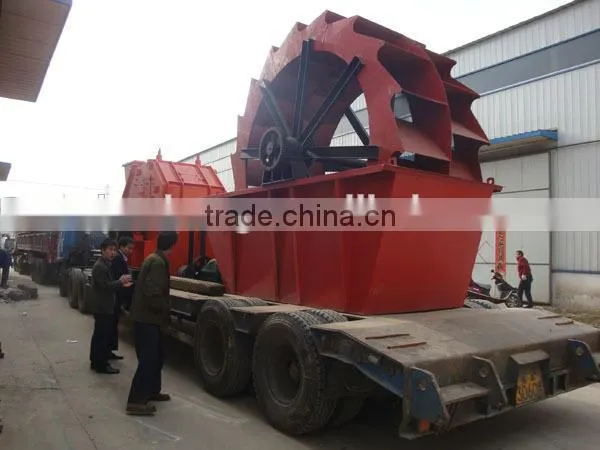

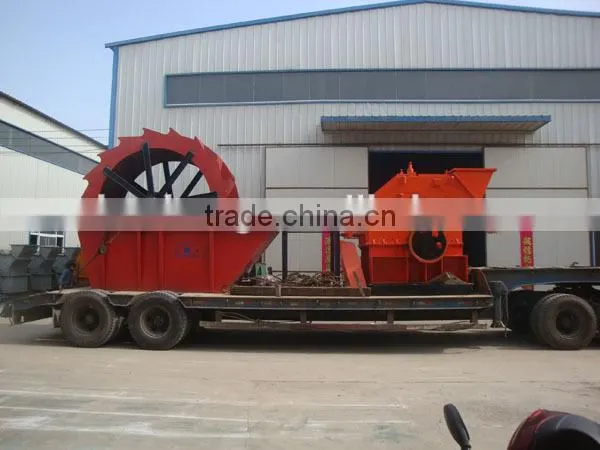

- If the size is suitable for container ship, usually by container;
- If the size is too big, usually by bulk ship or by container after truncation;
- Transport ways are based on reducing cost for you and keep the crane performance!
Zhengzhou Huahong Machinery to be the leading enterprise which is professional manufacture double roller crusher,grading crusher, double teeth roller crusher ,our double roller crusher with new design.We provide variety of double roller crusher with high processing capacity, featured structure. As a specialized manufacurer and exporter in china, Zhengzhou Huahong striving its best to service our customer.Our machines are all through ISO CE certificate. More details PLS click on https://img13.fr-trading.com/
- Sales manager cell number is 24hours available.
- Payment terms is flexible.
- Design the product according to your technical request.
- Our engineer is willing to help fixing the crane for you.
- Diversity products.
- Delivery on time.
- Warranty: 12 months.
-
Trade Assurance Service.(Trade Assurance is a free payment protection service for buyers.
The service is offered by participating suppliers, and is designed to protect your payment if
your order is not shipped on time, or if the pre-shipment product quality (optional) does not
match the terms agreed on your contract.
Your payment is protected up to 100% of an amount - agreed between you and the supplier - called the Trade Assurance Order Amount.)
I am Helen Li, always being on serve you.
We cherish every order from every customer.
