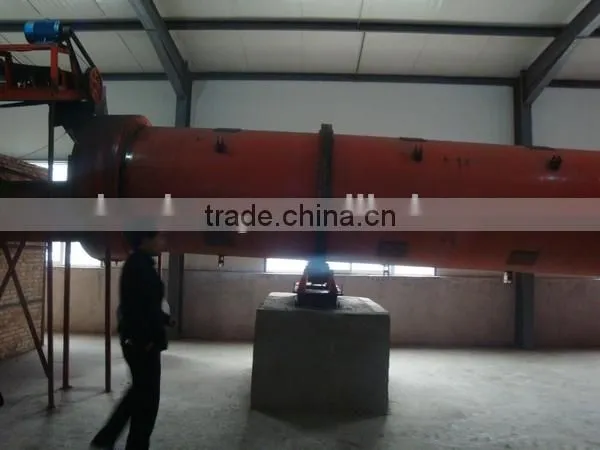

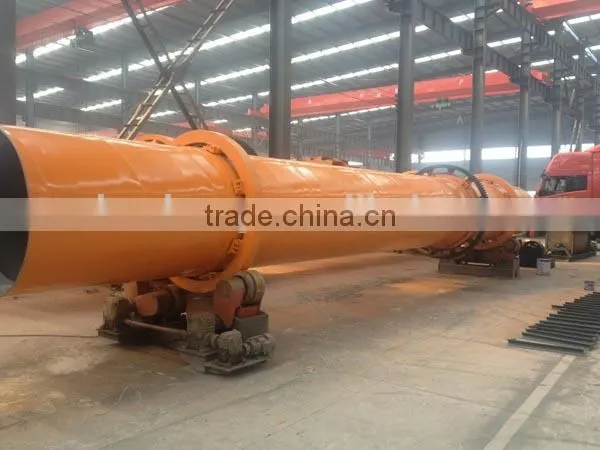

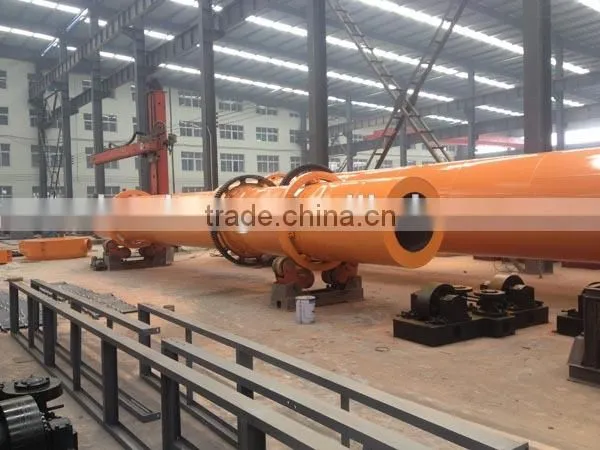

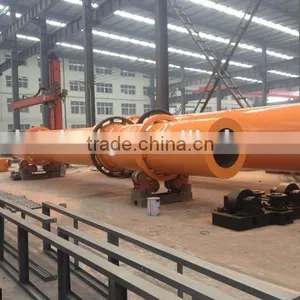

Professional Indirect rotary dryer with heat insulation
- 500 Set / Sets per Month
- Shanghai Qingdao Tianjin
- T/T Credit Card
- Professional Indirect Heating Double Stage Carob Fruits Dryer (also called Pods Dryer)
- easy to operate rotary dryer, rotary drum dryer with lower price for sale
- Rotary Dryer Working Principle,drum dryer main feature
- Application of mesh belt dryer,box dryer machine
- mesh belt dryer price for sale,Application of mesh belt dryer
- Mesh belt dryer price for sale,working process of mesh belt dryer
Product Details
Condition: | New | Type: | Rotary Drying Equipment | Place of Origin: | Henan, China |
Brand Name: | Huahong | Model Number: | 2250*12000 | Voltage: | 220v,230v,380v |
Power(W): | 22kw | Dimension(L*W*H): | 2250*12000mm(dia*length) | Weight: | 54t |
Certification: | ISO9001 | Warranty: | 1year | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
nude packs, in bulk or others
Product Description
Huahong new design rotary dryer for sale
Rotary dryer application:
Rotary dryer is widely used for drying materials in the industries of cemet, mine, contruction, chemical, food, compoud fertilizer, etc. Feeding and discharging unit is installed with thermocouple to control drier temperature. The temperature change of drier's feeding end can be indicated by the thermometer to control the inner drier temperature ( generally 250-350°C)
Rotary dryer Structure:
Rotary dryer machine is mainly composed of shell, back and forth supporting wheel, feeding and discharging unit and gear cap. The accessories which are not in the the scope of this machine include firebox, feeding and discharging equipment, dust catcher, etc.
Rotary dryer working principle:
Rotary dryer adopts direct flow type of heating with heat soure from firing unit. The material to be dried is pushed back immindiately by spiral board when enters the shell from feeding tank and feeding chute. Because the dryer is installed in slope, material flows to the back end under gravity and rotation force, meanwhile, it is lifted by board repeatedly and thrown down accordingly, which make the material form even curtain, and exchange heat sufficiently with inner the heat flow. In the end, water in the material is dried by repeatedly scattering.
Rotary dryer specifications:
Model (mm) | Obliquity(%) | Rotation speed (r/min) | Feeding temperature (degree) | Power (kw) | Capacity(t/h) | Weight (t) |
Ø600x6000 | 3-5 | 3-8 | <=700 | 3 | 0.5-1.5 | 2.9 |
Ø800x8000 | 3-5 | 3-8 | <=700 | 4 | 0.8-2.0 | 3.5 |
Ø800x10000 | 3-5 | 3-8 | <=700 | 4 | 0.8-2.5 | 4.5 |
Ø1000x10000 | 3-5 | 3-8 | <=700 | 5.5 | 1.0-3.5 | 5.6 |
Ø1200x10000 | 3-5 | 3-8 | <=700 | 7.5 | 1.8-5 | 14.5 |
Ø1200x12000 | 3-5 | 3-8 | <=700 | 11 | 2-6 | 14.8 |
Ø1500x12000 | 3-5 | 2-6 | <=800 | 15 | 3.5-9 | 17.8 |
Ø1800x12000 | 3-5 | 2-6 | <=800 | 18 | 5-12 | 25 |
Ø2200x12000 | 3-5 | 1.5-6 | <=800 | 18.5 | 6-15 | 33 |
Ø2200x18000 | 3-5 | 1.5-6 | <=800 | 22 | 10-18 | 53.8 |
Ø2200x20000 | 3-5 | 1.5-6 | <=800 | 30 | 12-20 | 56 |
Ø2400x20000 | 3-5 | 1.5-5 | <=800 | 37 | 18-30 | 60 |
Ø3000x20000 | 3-5 | 1.5-5 | <=800 | 55 | 25-35 | 78 |
Ø3000x25000 | 3-5 | 1.5-5 | <=800 | 75 | 32-40 | 104.9 |
After-sell service
1) our engineer will guide and train worker to install and operate equipments, detailed installing drawing will be offered.
2) if there is any problem about equipments during reasonable operation within one year, we will ask engineer to solve problems for you.
place order or send inquiry we would like to know the following information:
-What kind of material you are going to dry?
-Capacity per hour you need?
-Moisture before and after dry you required?
-Fuel available for the dryer?
