Industry mesh belt Box dryer,mesh belt dryer price for sale,box dryer
Application of mesh belt dryer:
Machine is especially suitable for good breathable sheet, strip, granular materials such as coal, so which is
widely used in machinery and chemicals ,food, medical, building material, electrical and other industries.
working process of mesh belt dryer
1.The raw materials should be distributed on the mesh belt through dryer suitable mechanism such as star
distributor, swing belt, crusher or granulator, the conveyer passes through the channel including one or
several heating units.
2.Each heating unit of mesh belt dryer is equipped with air heater and circle system, each channel has one
or several damp discharge systems.
3.When the conveyer passes through it, hot air will pass through the raw material from up to bottom or from
bottom to up, in this way raw materials would be dried evenly.
Mainparts: head, working sections,tail, mesh belt,driving settings, fan, furnace, etc.
Mesh belt dryer disply
Technical parameters of dryer :
Type | HH-1.2-8 | HH-1.2-10 | HH-1.6-8 | HH-1.6-10 | HH-2-8 | HH-2-10 | |
Quantity of unit | 4 | 5 | 4 | 5 | 4 | 5 | |
Belt width(m) | 1.2 | 1.6 | 2 | ||||
Length of drying section(m) | 8 | 10 | 8 | 10 | 8 | 10 | |
Thickness of raw material(mm) | ≤60 | ||||||
Operation temperature(°C) | 50-140 | ||||||
Steam pressure(MPa) | 0.2-0.8 | ||||||
Steam consume(kg/h) | 120-300 | 150-375 | 150-375 | 170-470 | 180-500 | 225-600 | |
Drying time(h) | 0.2-1.2 | 0.25-1.5 | 0.2-1.2 | 0.25-1.5 | 0.2-1.2 | 0.25-1.5 | |
Drying strength(kg/h) | 60-160 | 80-220 | 75-220 | 95-250 | 100-260 | 120-300 | |
Power equipped(kw) | 11.4 | 13.6 | 11.4 | 13.6 | 14.7 | 15.8 | |
Overall dimensions | L(m) | 9.56 | 11.56 | 9.56 | 11.56 | 9.56 | 11.56 |
W(m) | 1.49 | 1.49 | 1.9 | 1.9 | 2.32 | 2.32 | |
H(m) | 2.3 | 2.3 | 2.4 | 2.4 | 2.5 | 2.5 | |
Weight(kg) | 4500 | 5600 | 5300 | 6400 | 6200 | 7500 | |

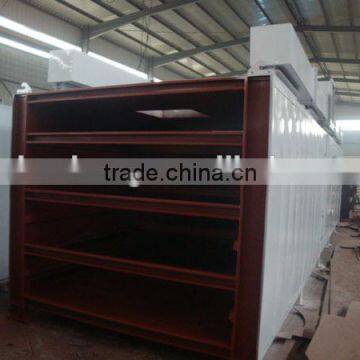

This is mesh belt machine
Various of dryer
Rotary drum dryer display
1.Pre-sale services
1) Selecting equipment type;
2) Designing and fabricating the products in accordance with the special requirements of the clients;
3) Training technical personnel for our clients;
4) Providing construction and technology consultations or working out proper construction schemes for those new, special or difficult projects.
2.Services provided during the sale:
Respect our clients; present the clients with ease, relaxation and a surprise; devote ourselves to improve the total value of our clients.
1) Checking products acceptance ahead of delivery;
2) Introducing the Golden service system to our clients.
3. After-sale services
Improve the added value of our products, and let the clients free from the using troubles:
1) Assisting the clients preparing for the first construction scheme;
2) Installing and testing the equipments;
3) Training the first-line operators on site;
4) Examining the equipment regularly;
5) Taking the initiatives to eliminate the failure(s) rapidly at site;
6) Distributing the guarantee fittings door-to-door;
Zhengzhou Huahong Machinery Equipment Co., Ltd. is a professional machine mining manufacturer with decades of years' experience. Our main product are grinding mills, Crushers,Dryer,Ball Mill, Sand making&washing machines, vibrating screens, etc. They are all design ed, produced, manufactured and tested in accordance with the standard of ISO9001 quality system standard. Our products are recognized as quality products by technical supervision departments
We manufacture TengFei brand mining machinery which are 100% of our own design, production detection and marketing
Ceertificate:
we are manufacture ,we can make it accroding your requipment ,if you want to know more about the machine ,please contact me
