Home > Products > Rotary dryer > Top quality Clay Dryer, rotary drum dryer with low Energy consumption
Top quality Clay Dryer, rotary drum dryer with low Energy consumption
- 50 Set / Sets per Month
- shanghai tianjing qingdao
- T/T Credit Card
- used grain dryers sale,sawdust dryer for sale, electric grain dryer
- Rice dryer,mini coal dryer,small rotary drum dryer
- Hot sale farm using maize dryer machine
- Moringa leaf drying machine
- China Professional Wood Chip Dryer/Mesh Belt Drying Machine/Cassava Drying Machine
- High Moisture Raw Material Mesh Belt Dryer/Conveyor Dryer/Mesh Belt Drying Machine
Product Details
Condition: | New | Type: | Rotary Drying Equipment | Place of Origin: | Henan, China |
Brand Name: | Huahong | Model Number: | 1.2*12 | Voltage: | 220v/380v |
Power(W): | 11kw | Dimension(L*W*H): | as specification | Weight: | 13.1t |
Certification: | ISO,CE,SGS | Warranty: | One Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
Standard container Package or as Required
Product Description
Application of rotary dryer:
The rotary drum dryer made by our company can be used in building materials, metallurgy, chemical industry, cement plant for drying of limestone slag, coal powder, slag, clay stone. This dryer is formed of rotary body, lifting blade, driving device, supporting device and sealing ring...
Advantages of Rotary dryer:
1. High thermal efficiency(≥ 60%)
2. Medium temperature in outlets(80 degree-120 degree)
3. Alloy steel plate or stainless steel plate
4. Guaranteed dry effect (≤ 10% after drying)
Working principles of rotary dryer:
1. Materials are sent to hopper of dryer drying machine by belt conveyor or bucket elevator
2. Materials enter the barrel installed with slope to horizontal line from the higher side
3. Hot air enters the barrel from the lower side, and then materials and hot air mix together
4. Materials go to the lower side by gravity when the barrel is rotating
5. Lifters on the inner side of barrel lift materials up and down in order to make materials and hot air mix completely, which is designed to improve the producing efficiency of dryer drying machine.
Technical Parameters of the Rotary Dryer
Model (mm) | Obliquity(%) | Rotation speed (r/min) | Feeding temperature (degree) | Power (kw) | Capacity(t/h) | Weight (t) |
Ø600x6000 | 3-5 | 3-8 | <=700 | 3 | 0.5-1.5 | 2.9 |
Ø800x8000 | 3-5 | 3-8 | <=700 | 4 | 0.8-2.0 | 3.5 |
Ø800x10000 | 3-5 | 3-8 | <=700 | 4 | 0.8-2.5 | 4.5 |
Ø1000x10000 | 3-5 | 3-8 | <=700 | 5.5 | 1.0-3.5 | 5.6 |
Ø1200x10000 | 3-5 | 3-8 | <=700 | 7.5 | 1.8-5 | 14.5 |
Ø1200x12000 | 3-5 | 3-8 | <=700 | 11 | 2-6 | 14.8 |
Ø1500x12000 | 3-5 | 2-6 | <=800 | 15 | 3.5-9 | 17.8 |
Ø1800x12000 | 3-5 | 2-6 | <=800 | 18 | 5-12 | 25 |
Ø2200x12000 | 3-5 | 1.5-6 | <=800 | 18.5 | 6-15 | 33 |
Ø2200x18000 | 3-5 | 1.5-6 | <=800 | 22 | 10-18 | 53.8 |
Ø2200x20000 | 3-5 | 1.5-6 | <=800 | 30 | 12-20 | 56 |
Ø2400x20000 | 3-5 | 1.5-5 | <=800 | 37 | 18-30 | 60 |
Ø3000x20000 | 3-5 | 1.5-5 | <=800 | 55 | 25-35 | 78 |
Ø3000x25000 | 3-5 | 1.5-5 | <=800 | 75 | 32-40 | 104.9 |

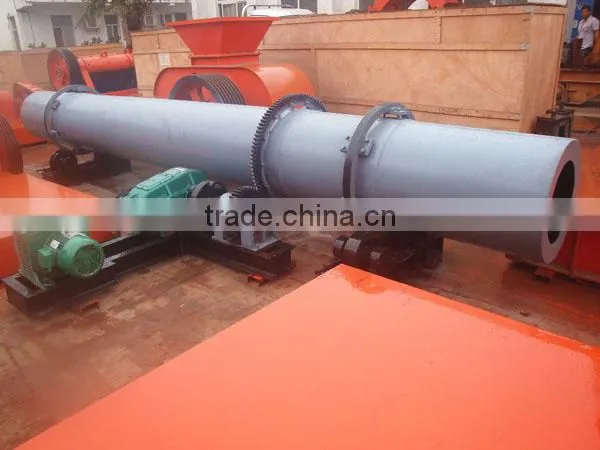

Rotary Dryer photos
Rotarty dryer inside look:
Rotary dryer's Air Blower
Packing details | standard export packing; nude packing, wood case package |
Delivery time | within 5 - 25 days after order confirmed |
Delivery
1.Ocean freight partners are: APL, COSCO, OOCL, CSCL, MSC, etc. and train shipping is also available.
2.We will remind you before boat arrival.
1>.Pre-sale services: enthusiasm
We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
2>.Sale services: servant
Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
3>.After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
Supplying technique, building design, instruction, installation and debugging for free.
4>.We provide one-year warranty to make sure your machine runs consistently. We always offering lifelong services and provide spare parts for a long term,and repair main parts under right using for free in two years.
Zhengzhou Huahong Machinery & Equipment (Group) Co., Ltd. is located in National Hi-Tech Industrial Development Zone of Zhengzhou City, Henan Province, Our products passed the ISO9001 international quality system certification. It has won the glory of provincial superior enterprise. Huahong company's quality of products have been in a leading and dominant position in machinery industry of China. Its high-quality products and first-class services were also have been praised by overseas and domestic customers.
Customer Visiting:
place order or send inquiry we would like to know the following information:
-What kind of material you are going to dry?
-Capacity per hour you need?
-Moisture content before and after dry you required?
-Fuel available for the dryer?
Contact Person: Linda
Skype: huahongmachine05
Tel/WhatsApp: +86 15093303198
Hi, I am Linda. Awaiting for your inquiry.
Company Profile
Zhengzhou Huahong Machinery Equipment Co., Ltd. is located in Zhengzhou National Hi-Tech Industrial Development Zone, Henan Province. Our company has passed ISO9001 international quality system certification. Our company has two industrial plants of 10,000 square meters and we have 200 sets of large and medium-sized processing, welding and assembly equipment, with the maximum lifting capacity of 150 tons.
Our company mainly produces all kinds of jaw crushers, impact crushers, cone crushers, hammer crushers, Raymond mills, sand making machines, mineral processing equipment, milling machines, ball mills, and building material equipment.
Stone Production Line: mobile crushers, vertical compound crushers, roll crushers, roller crushers, impact crushers, impact crushers, hammer crushers, jaw crusher machines, efficient crushing machines, spiral stone washing machines, high efficiency sand washing machines, sixth generation sand products, hammer crushers, cone crushers and others.
Mineral production equipment: pressure machines, cylinder cooling machines, dryer belts, vertical dryers, rotary drum dryers, high frequency screens, spiral classifiers, flotation machines, dry magnetic separators, wet magnetic separators, ceramic ball mills, tube mills, energy saving ball mills and others.
Building equipment: cement production lines, cement mills, separators, rotary kilns, vertical coolers, vertical preheaters, 8-15 automatic hydraulic block making machines, 6-15 automatic block making machines, pulping machines, casting machines, steam curing cars, autoclave reactors, concrete block cutting machines, aerated concrete production lines and others.
Common equipment: feeders, pendulum feeders, ultrafine mills, screw conveyors, Raymond mills, vibrating screens, stone vibrating screens, electromagnetic vibrating feeders, TH ring chain bucket elevator machines, TD belt elevators, belt conveyors, scraper conveyors and others.
We have won a good reputation among customers with good quality, competitive prices and advanced techniques since our establishment.
We have 22 existing senior engineers, 30 engineers, 70 senior technicians and more than 800 employees. The Chief Engineer of China Machinery Industry has designed and developed several generations of leading crushers, sand (sand) machines and others for our company. Our company has introduced these products in recent years. Our products are popular in the United States, Germany and other countries and regions around the world. We have advanced equipment and techniques.
Since our inception, we have been sticking to our motto of "product update and advanced processing equipment and exquisite craft, rigorous inspection and testing, providing customers with quality products, and to obtain users' favor". Our products are exported worldwide.
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
