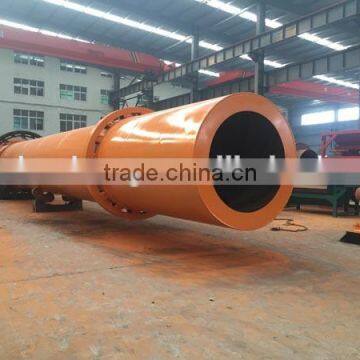

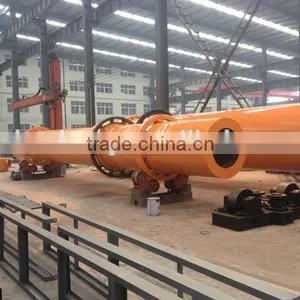

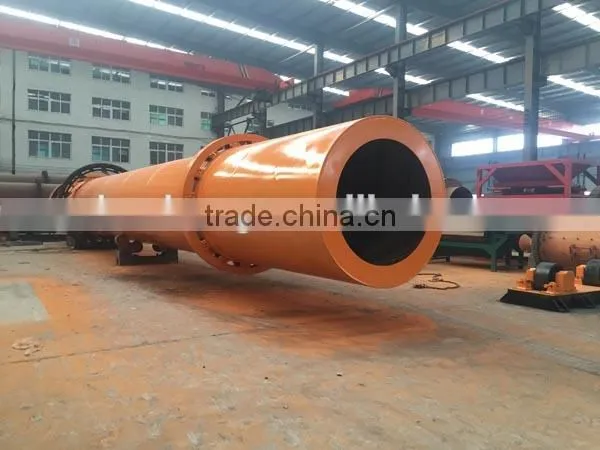

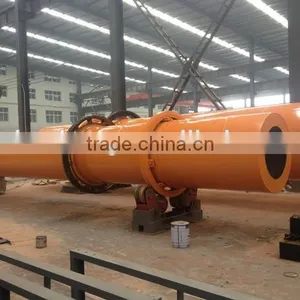

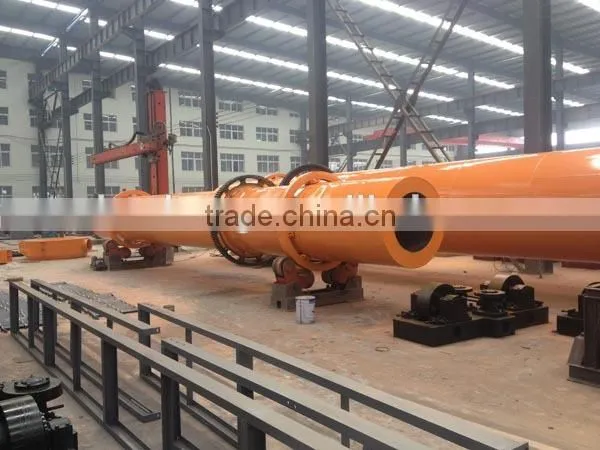

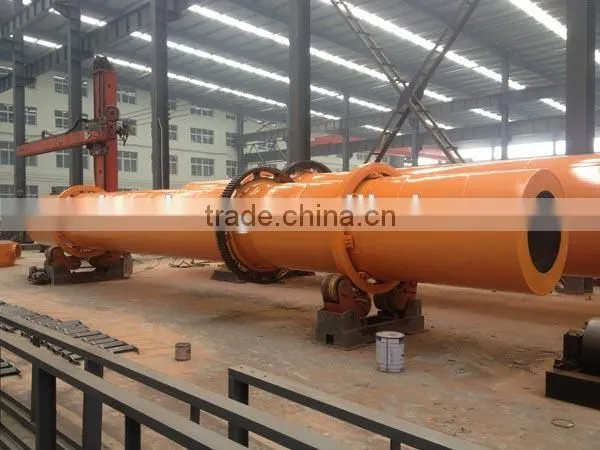

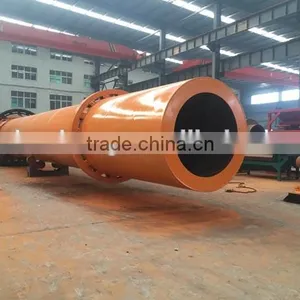

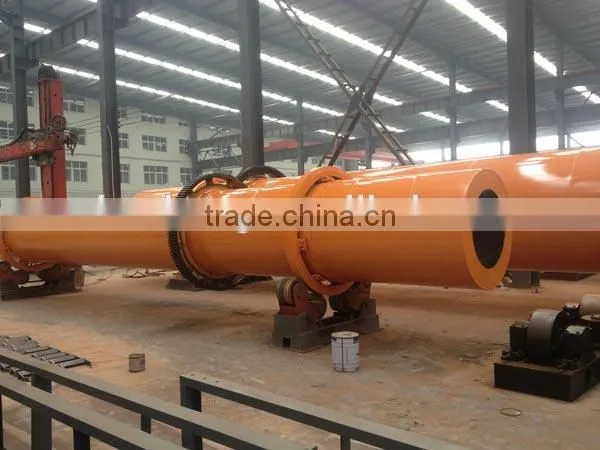

Rotary Dryer, Drum Dryer, Sawdust Sand Dryer Machine
1. Brief dwscription for rotary drum dryer:
Rotary drum rotary is also known as rotary drum dryer.Mainly composed of rotary body, lifting blade, driving device, supporting device and sealing ring and widely used in sawdust, wood chips, building materials, metallurgy, chemicals, industrial drying slag, cement limestone, coal, slag, clay.
2. Advantages for rotary drum dryer:
Rotary drum dryer is also known as rotary drum dryer.Mainly composed of rotary body, lifting blade, driving device, supporting device and sealing ring and widely used in sawdust, wood chips, building materials, metallurgy, chemicals, industrial drying slag, cement limestone, coal, slag, clay.
3. Working principle for rotary drum dryer:
Materials are sent to hopper of rotary rotary by belt conveyor or bucket elevator, then enter the barrel installed with slope to horizontal line from the higher side, and hot air enters the barrel from the lower side, and then materials and hot air mix together. Materials go to thelower side by gravity when the barrel is rotating. Lifters on the inner side of barrel lift materials up and down in order to make materials and hot air mix completely, which is designed to improve the producing efficiency of rotary dryer.
4. Techinical parameters for rotary drum dryer:
|
Model (mm) |
Obliquity(%) |
Rotation speed (r/min) |
Feeding temperature (degree) |
Power (kw) |
Capacity(t/h) |
Weight (t) |
Ø600x6000 |
3-5 |
3-8 |
<=700 |
3 |
0.5-1.5 |
2.9 |
Ø800x8000 |
3-5 |
3-8 |
<=700 |
4 |
0.8-2.0 |
3.5 |
Ø800x10000 |
3-5 |
3-8 |
<=700 |
4 |
0.8-2.5 |
4.5 |
Ø1000x10000 |
3-5 |
3-8 |
<=700 |
5.5 |
1.0-3.5 |
5.6 |
Ø1200x10000 |
3-5 |
3-8 |
<=700 |
7.5 |
1.8-5 |
14.5 |
Ø1200x12000 |
3-5 |
3-8 |
<=700 |
11 |
2-6 |
14.8 |
Ø1500x12000 |
3-5 |
2-6 |
<=800 |
15 |
3.5-9 |
17.8 |
Ø1800x12000 |
3-5 |
2-6 |
<=800 |
18 |
5-12 |
25 |
Ø2200x12000 |
3-5 |
1.5-6 |
<=800 |
18.5 |
6-15 |
33 |
Ø2200x18000 |
3-5 |
1.5-6 |
<=800 |
22 |
10-18 |
53.8 |
Ø2200x20000 |
3-5 |
1.5-6 |
<=800 |
30 |
12-20 |
56 |
Ø2400x20000 |
3-5 |
1.5-5 |
<=800 |
37 |
18-30 |
60 |
Ø3000x20000 |
3-5 |
1.5-5 |
<=800 |
55 |
25-35 |
78 |
Ø3000x25000 |
3-5 |
1.5-5 |
<=800 |
75 |
32-40 |
104.9 |
Packaging Detail:
All the cargos are packed by crate wood,other parts are nude package ,or as client demand.

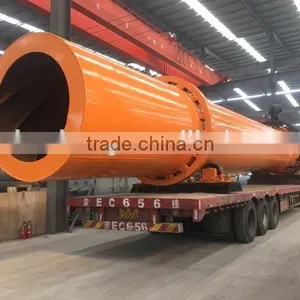

Delivery Detail:
- If the size is suitable for container ship, usually by container;
- If the size is too big, usually by bulk ship or by container after truncation;
- Transport ways are based on reducing cost for you and keep the crane performance!
Zhengzhou Huahong Machinery to be the leading enterprise which is professional manufacture double roller crusher,grading crusher, double teeth roller crusher ,our double roller crusher with new design.We provide variety of double roller crusher with high processing capacity, featured structure. As a specialized manufacurer and exporter in china, Zhengzhou Huahong striving its best to service our customer.Our machines are all through ISO CE certificate. More details PLS click on http://zzhuahong.en.china.cn/
- Sales manager cell number is 24hours available.
- Payment terms is flexible.
- Design the product according to your technical request.
- Our engineer is willing to help fixing the crane for you.
- Diversity products.
- Delivery on time.
- Warranty: 12 months.
-
Trade Assurance Service.(Trade Assurance is a free payment protection service for buyers.
The service is offered by participating suppliers, and is designed to protect your payment if
your order is not shipped on time, or if the pre-shipment product quality (optional) does not
match the terms agreed on your contract.
Your payment is protected up to 100% of an amount - agreed between you and the supplier - called the Trade Assurance Order Amount.)
WhatsApp: 0086 187 3836 0709 Wechat: CRF0329
I am Helen Li, always being on serve you.
We cherish every order from every customer.
