Specifications:
1. Most professional raymond mill
2.Energy-Saving about 20%~35%
3.Stable performance
4.Most Competitive Price

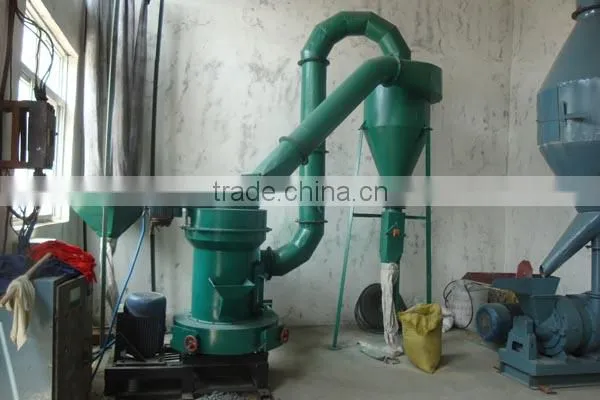

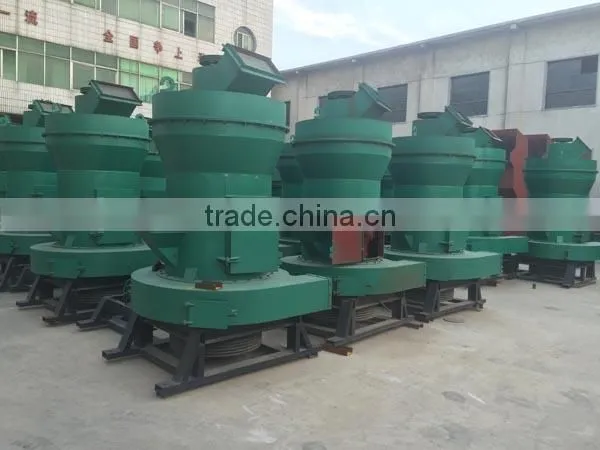

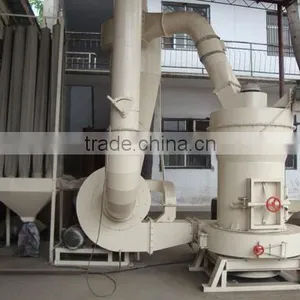

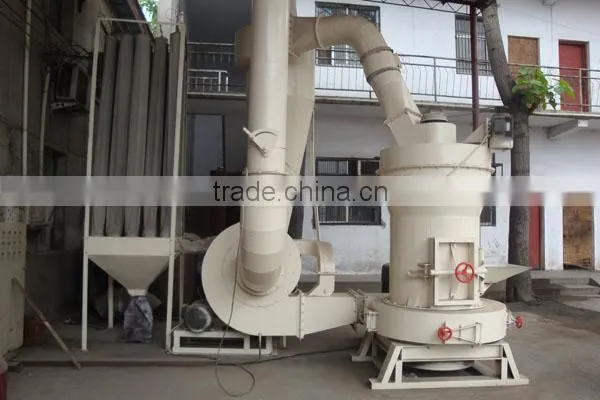

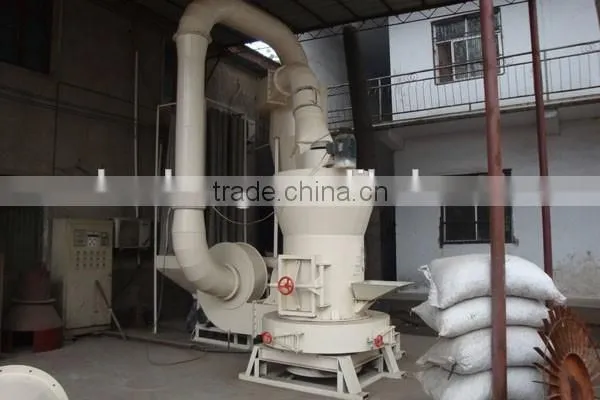

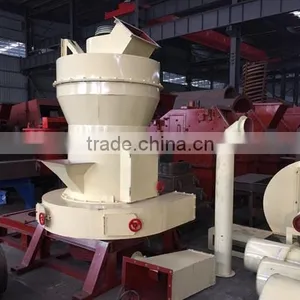

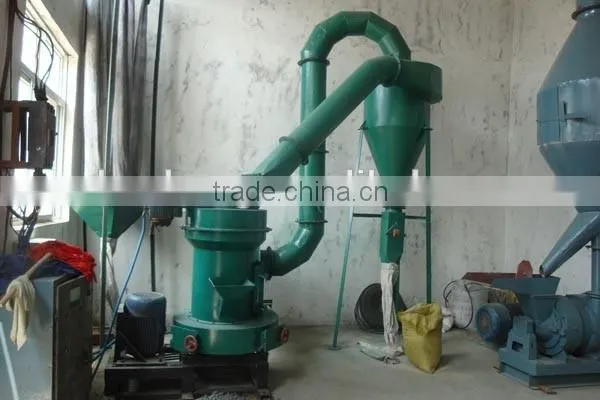

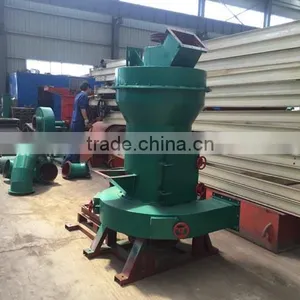

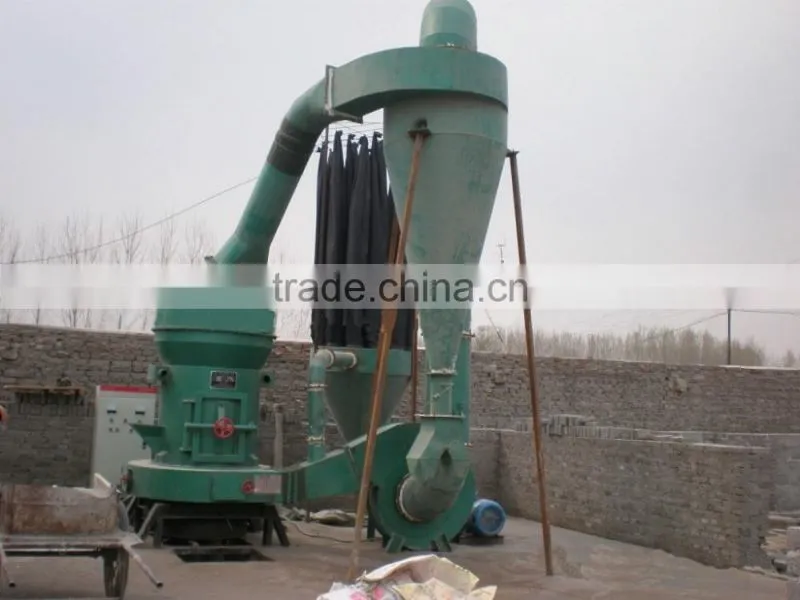

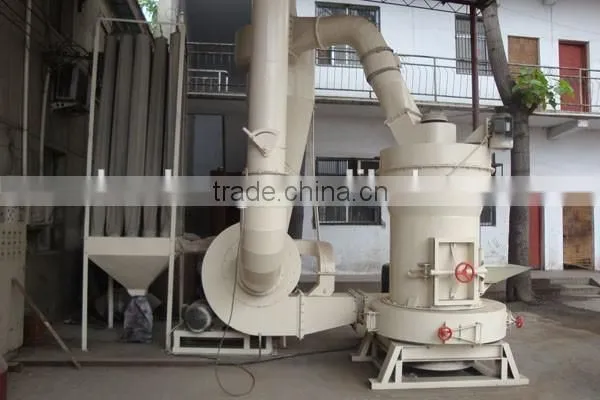

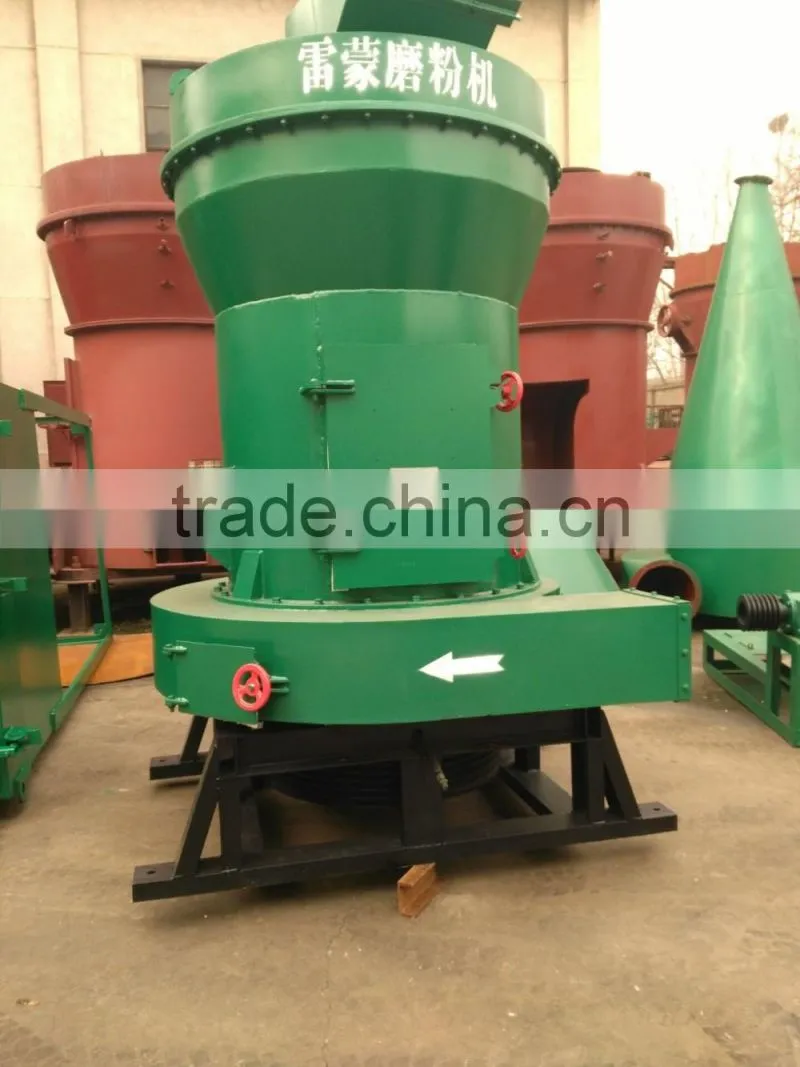

High capacity limestone mill machine, small raymond mill machine price
1. Application of the raymond mill:
Raymond mill is widely used in mining industry, also is popular in building materials, chemical engineering and metallurgy industries. It can grind the non-flammable and non-explosive materials such as barite, calcite, potash feldspar, dolomite, gypsum, talcum, mica, marble, limestone, kaolin, clay, coal etc. It also has wide applications.
2. Advantages of ratmond mill:
1).Take small area.
2).Simple structure and easy operation.
3).Closed system and steady performance
4).Adopt durable material.
5).It has long service life.
6).It can be controlled intensively and high automation
3.Features of raymond mill:
1) High Efficiency
Under the same finished final size and the same motor power, the capacity of the machine is twice as much as jet mill, mixing grinder and ball mill, and energy consumption decreased 30%.
2) Long lifecycle of spare parts

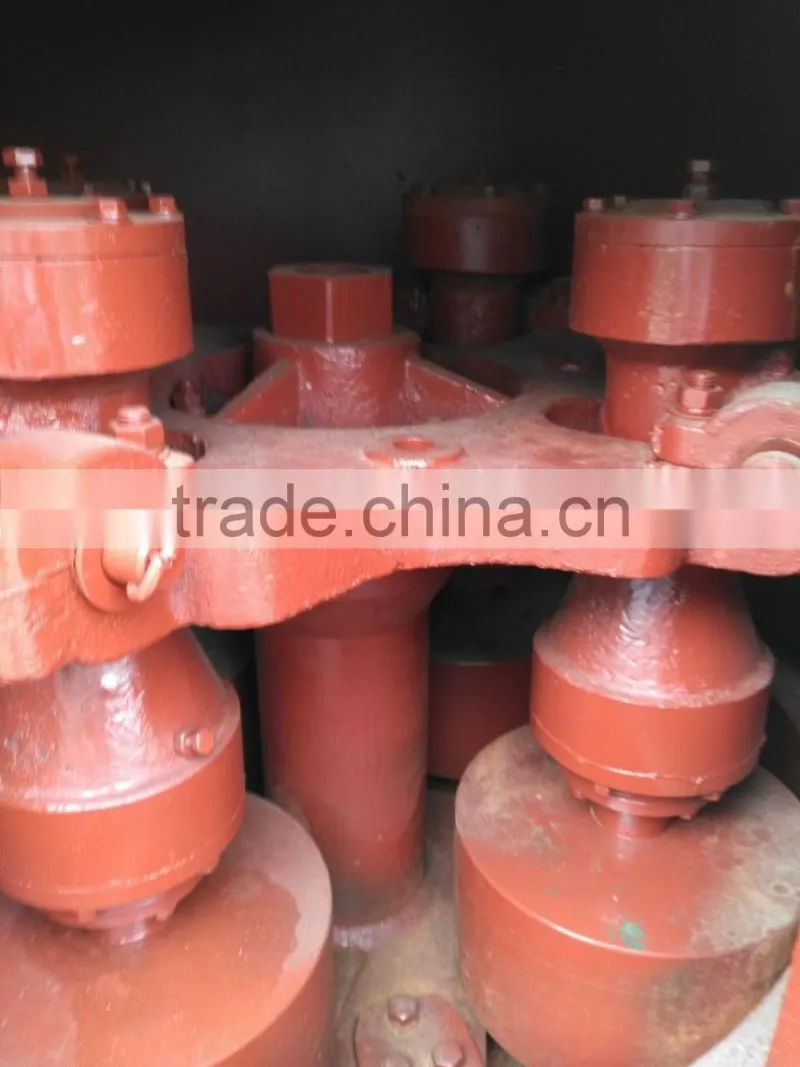

The ring and roller are forged by special material with high utilization,the lifetime can reach 2-5 years for grinding calcite.
3)High safety and reliability
As no rolling bearings or screws in grinding cavity, there are no problems caused by bolts shedding or rapid wear of bearings and seal components.
4) High fineness, flexible adjustment
The final fineness of the grinding materials can be adjusted between 325 meshes and 2500 mesh (47-5 micron), and the product fineness can reach D97≤5μm.
5) Environment-friendly
Parameters of the Raymond mill:
Type |
NO. |
Mater in grade (mm) |
Fineness of product (mesh) |
Capacity (t/h) |
Main power (kw) |
Blower (kw) |
Separator (kw) |
Dimension (mm) |
3R1510 |
3 |
10 |
80-325 |
0.3-1.2 |
7.5 |
5.5 |
1.1 |
3200*2100*4500 |
3R2115 |
3 |
20 |
80-325 |
0.4-1.6 |
15 |
11 |
2.2 |
4100*3300*4500 |
3R2615 |
3 |
20 |
80-325 |
0.5-2.7 |
18.5 |
15 |
2.2 |
4300*3500*4500 |
3R2715 |
3 |
20 |
80-325 |
0.7-3 |
22 |
18.5 |
2.2 |
5300*4100*5200 |
4R3016 |
4 |
20 |
80-325 |
0.8-5 |
30 |
30 |
2.2 |
5300*4100*5200 |
4R3015 |
4 |
25 |
80-325 |
1.0-4 |
30 |
22 |
2.2 |
5500*4300*5400 |
4R3216 |
4 |
25 |
80-325 |
1.0-8 |
45 |
30 |
5.5 |
7100*5900*7900 |
4R3220 |
4 |
28 |
80-400 |
1-10 |
45 |
37 |
5.5 |
8000*6000*9500 |
5R4119 |
5 |
30 |
80-400 |
5-10 |
75 |
75 |
7.5 |
9200*7250*9700 |
6R4427 |
6 |
35 |
80-400 |
9-15 |
132 |
132 |
11 |
12550*5700*8355 |
| Packing details | standard export packing; nude packing, wood case package |
| Delivery time | within 5 - 25 days after order confirmed |
1>.Pre-sale services: enthusiasm
We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
2>.Sale services: servant
Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
3>.After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
Supplying technique, building design, instruction, installation and debugging for free.
4>.We provide one-year warranty to make sure your machine runs consistently. We always offering lifelong services and provide spare parts for a long term,and repair main parts under right using for free in two years.
ISO9001:2008
CE certificate
Zhengzhou Huahong Machinery & Equipment (Group) Co., Ltd. is located in National Hi-Tech Industrial Development Zone of Zhengzhou City, Henan Province, Our products passed the ISO9001 international quality system certification. It has won the glory of provincial superior enterprise. Huahong company's quality of products have been in a leading and dominant position in machinery industry of China. Its high-quality products and first-class services were also have been praised by overseas and domestic customers. More details, please click this wedsite to learn.
Web:www.zzhuahong.en.china.cn
1.How is the quality of your products?
Our products are manufactured strictly according to national and international standard, and we take a test on every grinder before delivery.
2.Guaranteed:
If products’quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
3.How about price?
Yes, we are factory and be able to give you the lowest price than market one, and we have a policy that “ for saving time and absolutely honest business attitude,we quote as low as possible for any customer, and discount can be given according to quantity”.
