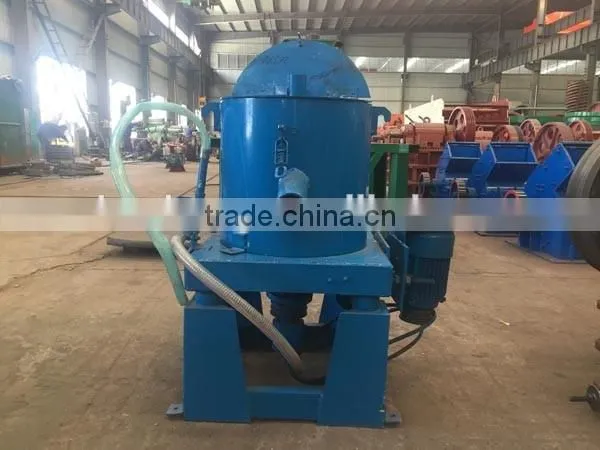

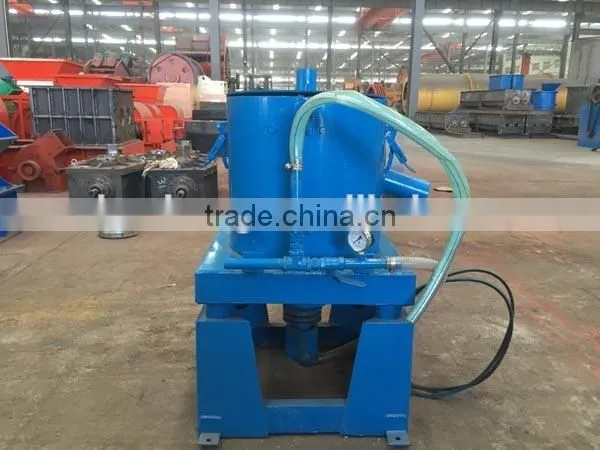

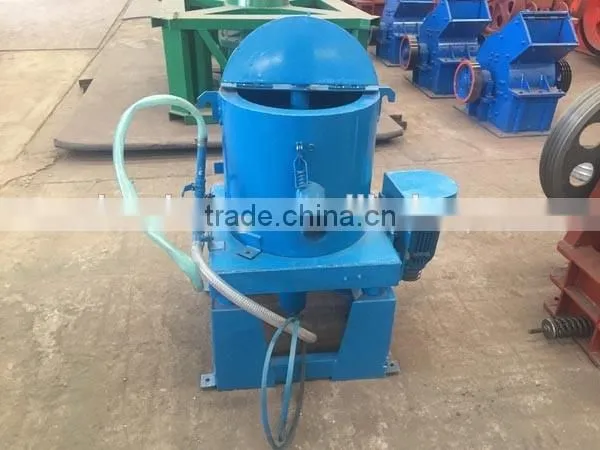

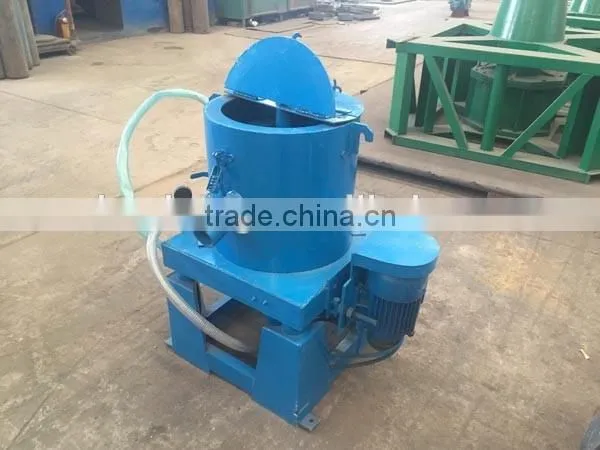

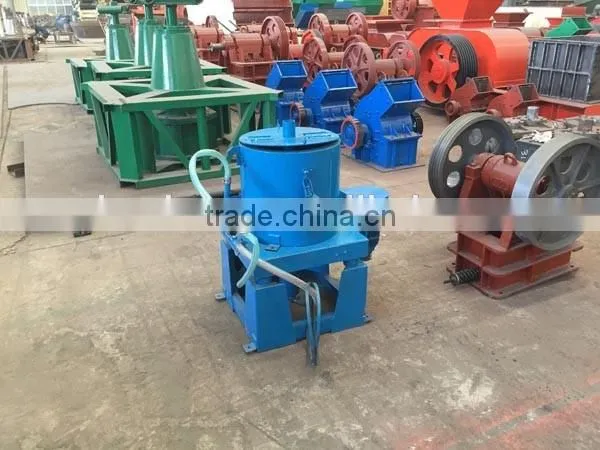

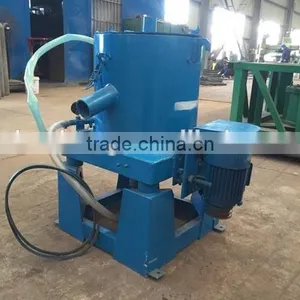

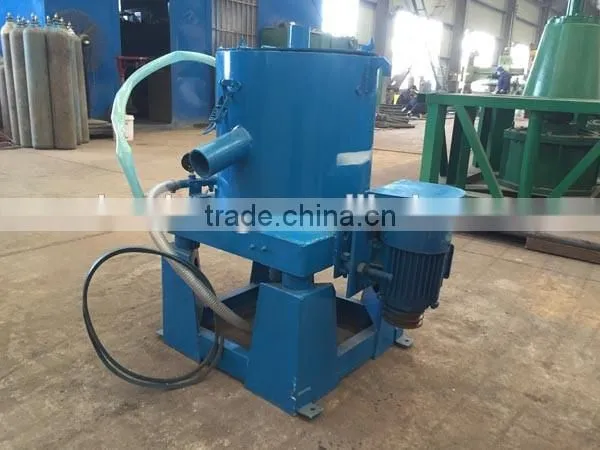

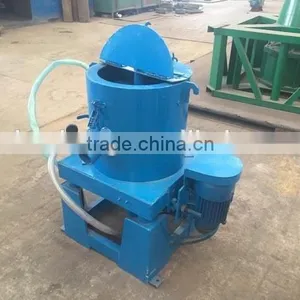

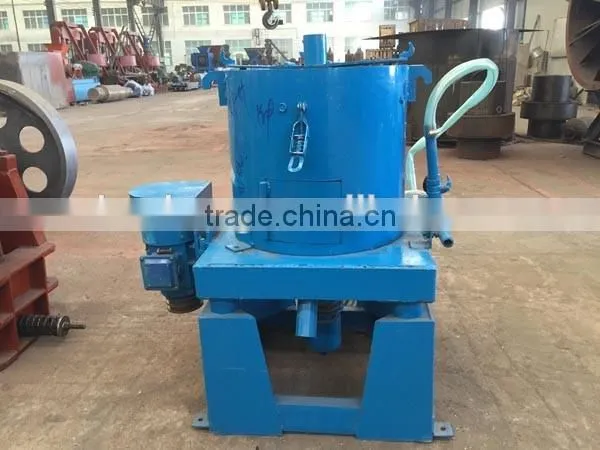

STLB30 mining machinery/gold centrifugal concentrator mineral separator
1.Introduction for gold concentrates:
The Water Jacket Alluvial Gold Concentrator is a high efficiency gold separation machine with updated technology. Taking advantage of the traditional gold centrifugal concentrator, the Water Jacket Alluvial gold concentrator offers a solution to handle the hardened material, which will decrease the recovery rate during the separation process. The solution is to add a water jacket device inside the concentrator.
2. Applications for gold concentrates:
The application shows that gold grain size less than 5mm, the recovery rate up to 90%, while gold grain size less than 2.5mm, the rate can be 92%.
3.Machine structure for gold concentrates:

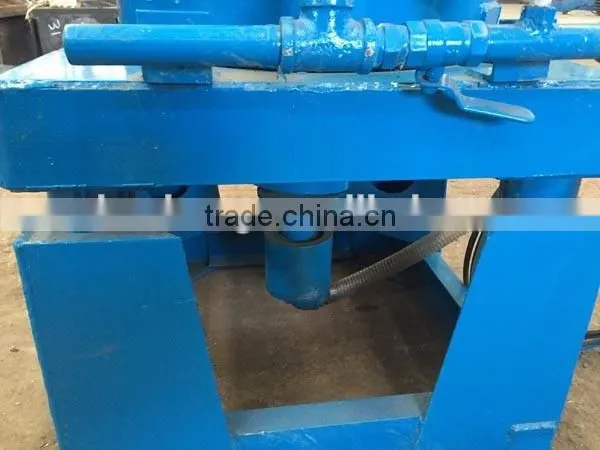

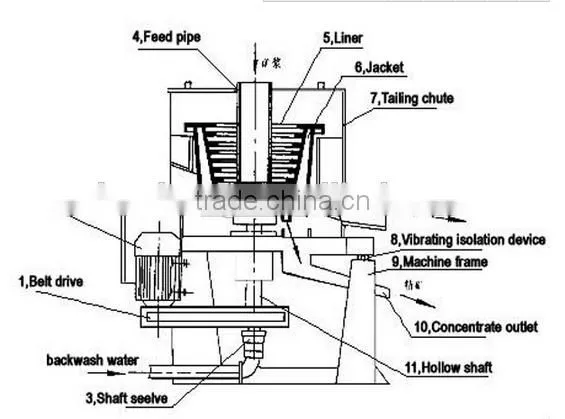

Water Jacket gold concentrator consists of pipelines, mainframe, tailing chute, drive motor, vertical shaft and separation device.

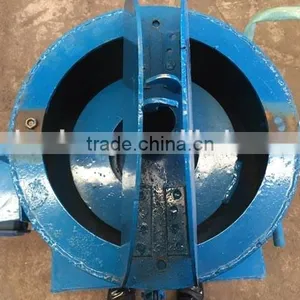

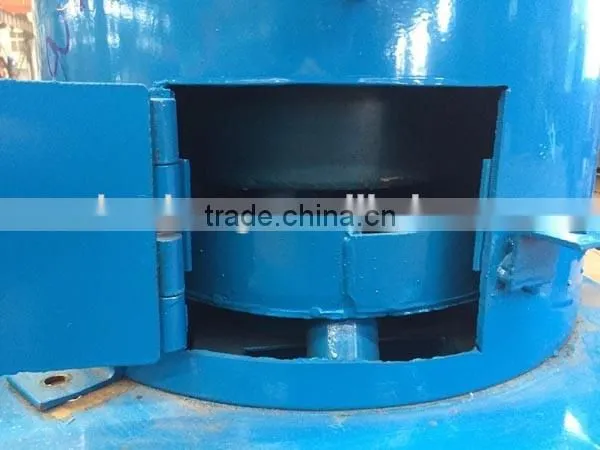

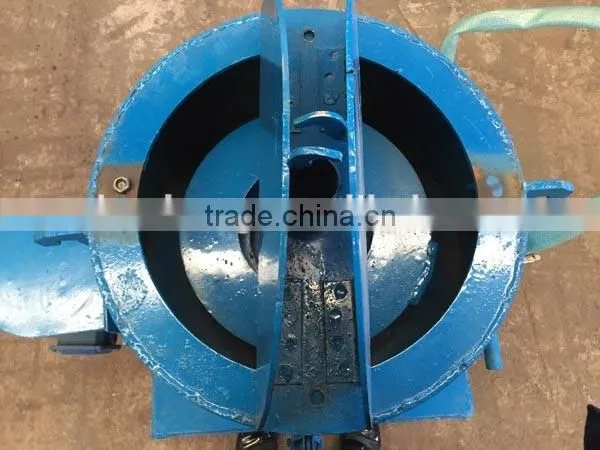

The separation device is cone unit includes two layers; the inner layer is made by stainless steel plate, with circle gratings and small holes on the wall, the outer layer is made by mild steel plate. The two layers form a close water jacket system.
4. Operation principle for gold concentrates:

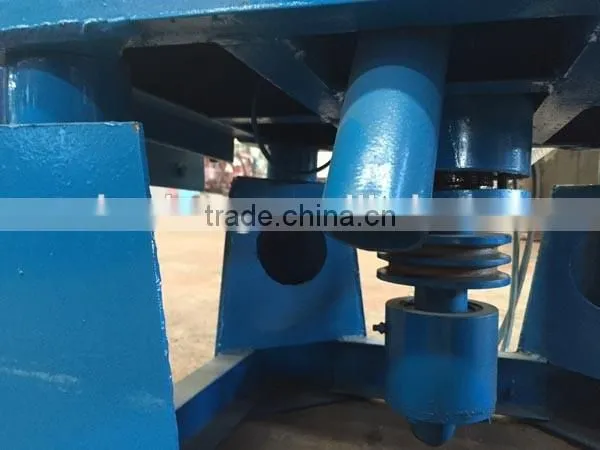

The main shaft is a hollow shaft, the pressurize backwash water come from the shaft, then goes into the separation unit, the water spray from holes to the gratings. During the process, the pressure of the water shall be 0.06-0.15MPa.
The slurry which is mixed with water and grinded ore and sand will be injected to the mainframe. With the heavy centrifugal force, the slurry will be move upward along the cone body, the light particles will be extracted from the upper part of cone, then discharge through the tailing outlet. The heavy particles will be stay in the gratings of the inner layer.
5. Technic parameter for gold concentrates:
| Model | STLB20 | STLB30 | STLB60 | STLB80 | STLB100 |
| Capacity(t/h) | 0-0.6 | 2-3 | 8-12 | 40-45 | 80-120 |
| Fluidization water Required(m³/h) | 2-3 | 3-5 | 7-10 | 30-36 | 60-80 |
| Slurry Water Required( m³/h) | 1.5-4 | 5-7 | 8-12 | 40-45 | 70-100 |
| Feeding Density(%) | 0-50 | 0-50 | 0-50 | 0-50 | 0-50 |
| Feeding Size(mm) | 0-3 | 0-3 | 0-5 | 0-5 | 0-6 |
| Concentrate Cleaning Up Cycle | Vein gold 1-3 hours & placer gold 2-6 hours | ||||
| Concentrate Weight(Kg) | 2 | 3-5 | 10-20 | 40-50 | 70-85 |
| Power(kw) | 0.75 | 1.5 | 4 | 11 | 18.5 |
| Weight(Kg) | 205 | 380 | 1100 | 2300 | 3200 |
| Dimensions L*W*H(mm) | 914x700x900 | 1160x885x1165 | 1820x1450x1700 | 2520x1900x2020 |
2600x2000x2400 |

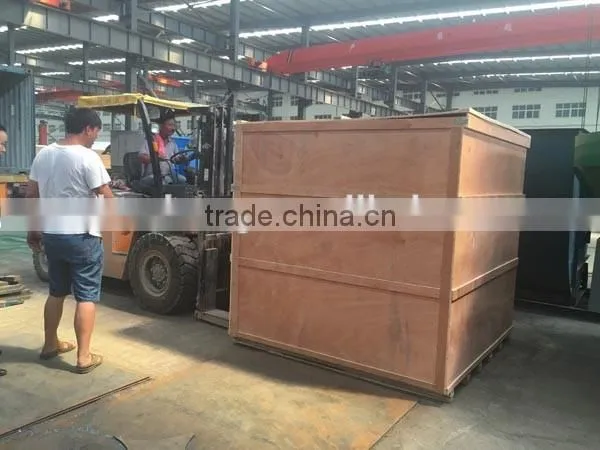

Packaging Detail:
All the cargos are packed by crate wood,other parts are nude package ,or as client demand.
Delivery Detail:
- If the size is suitable for container ship, usually by container;
- If the size is too big, usually by bulk ship or by container after truncation;
- Transport ways are based on reducing cost for you and keep the crane performance!
Zhengzhou Huahong Machinery to be the leading enterprise which is professional manufacture
double roller crusher,grading crusher, double teeth roller crusher ,our double roller crusher with new
design.We provide variety of double roller crusher with high processing capacity, featured structure.
As a specialized manufacurer and exporter in china, Zhengzhou Huahong striving its best to service
our customer.Our machines are all through ISO CE SGS certificate. More details PLS click
on https://img13.fr-trading.com/
The invoice certification
The embassy certification
- Sales manager cell number is 24hours available.
- Payment terms is flexible.
- Design the product according to your technical request.
- Our engineer is willing to help fixing the crane for you.
- Diversity products.
- Delivery on time.
- Warranty: 12 months.
-
Trade Assurance Service.(Trade Assurance is a free payment protection service for buyers.
The service is offered by participating suppliers, and is designed to protect your payment if
your order is not shipped on time, or if the pre-shipment product quality (optional) does not
match the terms agreed on your contract.
Your payment is protected up to 100% of an amount - agreed between you and thesupplier - called the Trade Assurance Order Amount.)
