Specifications
Magnetic separator:1.Various magnetic field intensity,
2.Robust structure,
3.High raliability,
4.Low cost.
Description of magnetic separator for sand iron concentrate line:
1.Series CTB half upstream wet drum permanent magnetic separator is usually used for separating fine-grained iron magnetite from non-magnetic materials.
2.Its composite magnetic system consists of high performance rare earth permanent magnet (main magnetic source) and ferrite permanent magnet.
3.With a high magnetic field intensity, this machine can make a continuous row of ore feed and discharge. It also has enough working clearance and high processing capacity.
4.Series CTB half upstream wet drum permanent magnetic ore separator is widely applied in the separation of various kinds of iron ores and gold ore.
5.In order to increase the grade or capacity, several sets of wet drum magnetic separators can be installed in series connection or parallel connection. All our wet drum magnetic separators comply with international standard.
Advantages:
1)Short magnetic circuit,
2) little magnetic flux leakage
3) high magnetic intensity
4)low energy consumption
5) fine beneficiating results
6)simple structure and easy to maintain.

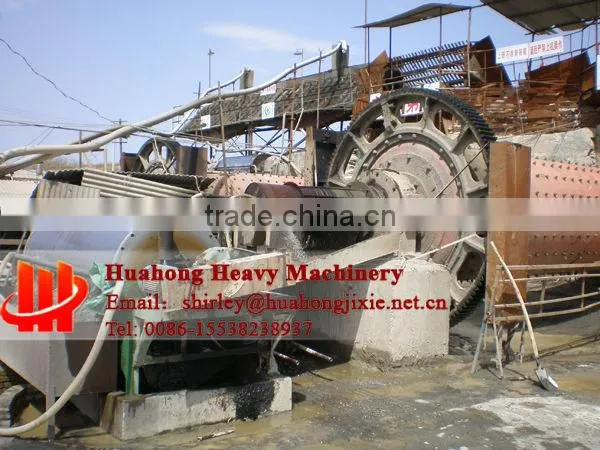

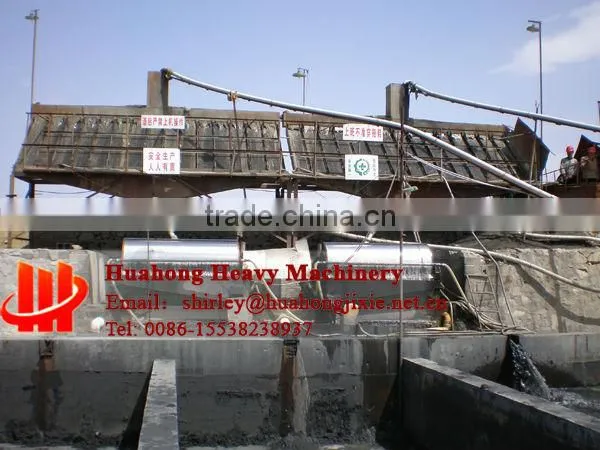

Field application of magnetic separator:
Main technical parameters:
| Model | Magnetic intensity | Capacity(t/h) | Motor power(kw) | Weight(kg) |
| CTB600X900 | 1450 | 8-15 | 1.1 | 910 |
| CTB600X1800 | 1500 | 15-25 | 2.2 | 1340 |
| CTB750X1800 | 1550 | 30-45 | 3 | 2050 |
| CTB900X1800 | 1650 | 35-60 | 4 | 3000 |
| CTB1050X2400 | 1650 | 60-95 | 5.5 | 5020 |
| CTB1200X3000 | 1650 | 80-150 | 7.5 | 7800 |
| CTB1500X3000 | 1650 | 120-200 | 11 | 9600 |
