Specifications
Flotation machine1.high reliability
2.nice performance
nvenient maintenance
4.reasonable price

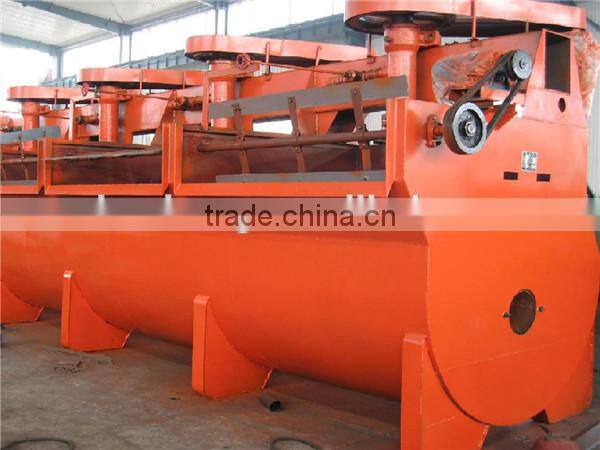

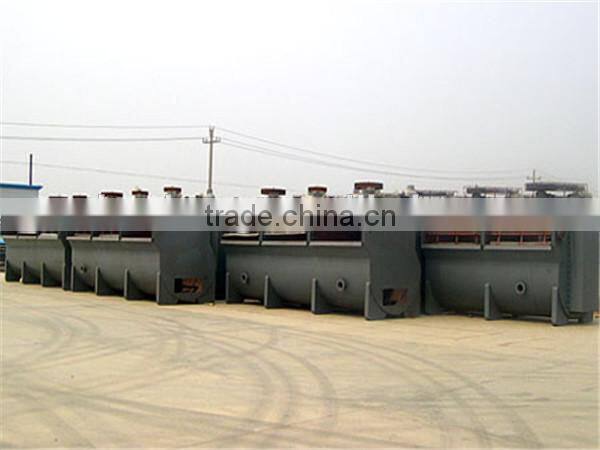

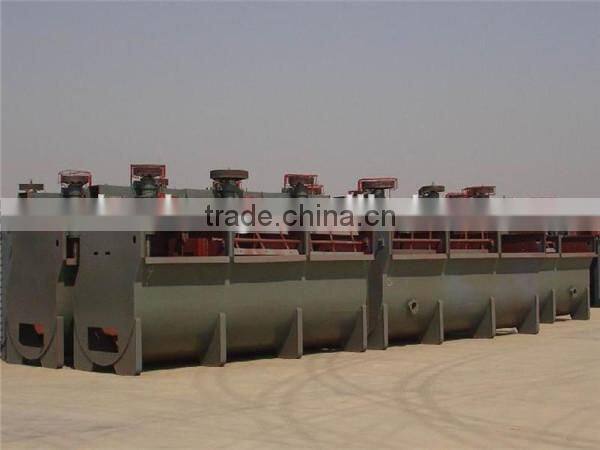

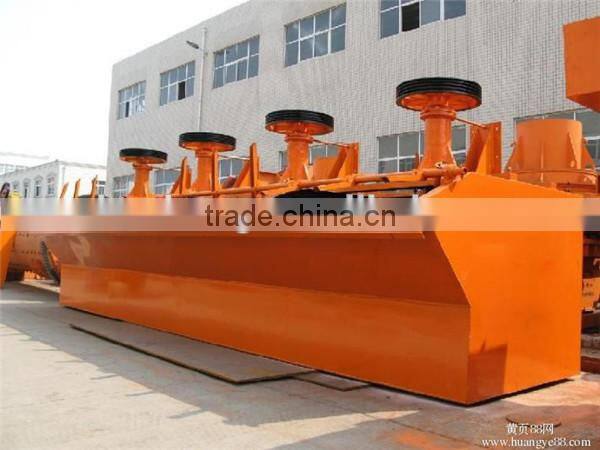

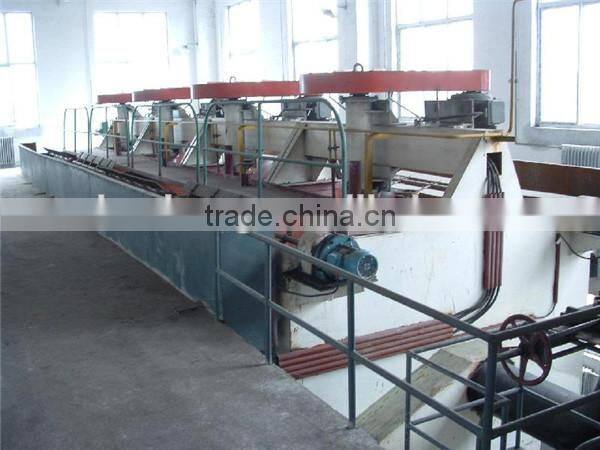

2014 Best Quality Copper Ore Flotation Machine for sale
Copper ore Flotation Machine
The flotation machine is the latest design to use the circular tank concept and comnines the benefits of circular cells with the unique features of the Minerals mechanism to create the ideal conditions to maximize flotation performance for all roughing, cleaning and scavenging duties.
Application of copper ore flotation machine
The machine can be used to separate nonferrous metal, ferrous metal, noble metal, nonmetallic mine, chemical material and recycle mine.
Advantage of copper Ore Flotation Mchine
1.High inhalation, low power
2.Each chute can inhale gas, sink magma, separate
3.There is no need of accessory equipments horizontal equipment.
4.It is easy to change the flow chart
5.The cycling way of magma is very reasonble
6.It can reduce the impurities to a great extent
7.There is automatic equipment on the magma surface. It is easy to adjust
8.The upward one makes the magma cycle toward upward, which the downward one makes the magma cycle downward
Features of copper ore Flotation machine
1.Excellent air-absorption capacity
2.Low energy consumption
3.Optimized design, the mineral slurry loops reasonably in cells without auxiliary equipment
4.Self-control functions
5.Special designed impeller which can produce upper ans lower circulation of mineral slurry respectively
Flotation Separation Model List
Model |
SF0.37 |
SF0.7 |
SF1.2 |
SF2.8 |
SF4 |
|
Cell Volume(m3) |
0.37 |
0.7 |
1.2 |
2.8 |
4 |
|
Diameter of Impeller(mm) |
300 |
350 |
450 |
550 |
650 |
|
Capacity(m3/min) |
0.2-0.4 |
0.3-0.9 |
0.6-1.2 |
1.5-3.5 |
0.5-4 |
|
Speed of Impeller(m3/min) |
352 |
400 |
312 |
268 |
238 |
|
Motor |
Type |
Y90L-4 |
Y100L2-4 |
Y132M2-6 |
Y160L-6 |
Y180L-6 |
Y90S-4 |
Y90S-4 |
Y90S-4 |
Y90S-4 |
Y90L-4 |
||
Power(kw) |
1.5 |
3 |
5.5 |
11 |
15 |
|
1.1 |
1.1 |
1.1 |
1.1 |
1.5 |
||
Dimension(mm) |
700x700x500 |
900x920x850 |
1100x1100x1100 |
1700x1600x1500 |
1850x2050x1200 |
|
Weight(kg) |
468 |
600 |
1373 |
2338 |
2660 |
|
