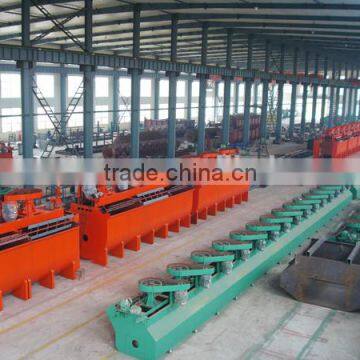

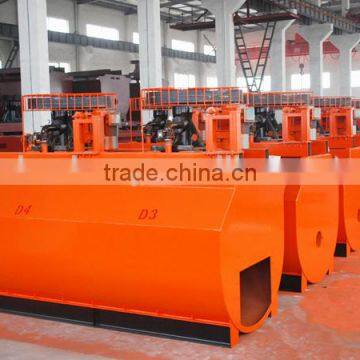

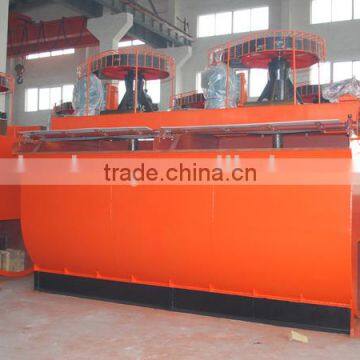

Help Center2015 Hot Sale Flotation Machine ,Selection Metal and Nonmetal Minerals
Related Products
-
Copper Ore Flotation Equipments, Flotation Machine for SaleUS$ 1,000 - 99,999MOQ: 1 Set -
Mining Machinery Factory Best Price Gold Separator Flotation Machine for SaleUS$ 1 - 99,999MOQ: 1 Set
-
Long Working Life Gold Flotation Euipment , Flotation MachineUS$ 1 - 99,999MOQ: 1 Set
-
Coal, Fluorite, Talc Separating Machinery Flotation MachineUS$ 800 - 8,000MOQ: 1 Set
-
Flotation Machine/mineral Flotation Machine/SF Self-priming Flotation MachineUS$ 800 - 8,000MOQ: 1 Set
1.Introduction of Flotation machine
Flotation machine is used for separating ferrous and non-ferrous metals. It can be also used for separation of non-metal materials such as coal fluorite and steatite. The impeller rotates by triangle belt of the motor, with produces centrifugal function and causes negative pressure.0n one hand it draws in enough air mixed with ore magma; on the other hand it agitates to mix ore magma with chemical medicines. At the same time, it minifies bubbles so that minerals can stick above them .float on the surface of magma, and form mineralized bubbles. The height of plate can be adjusted to control fluid level so that the available bubbles can be scrapped out by scrapers.
2.Working principle of inflation mechanical flotation machine
When the flotation machine works, the motor drives the impeller to revolve, so the centrifugal effect and negative pressure are produced. On one hand, ample air is absorbed and mixed with mineral slurry, on the other hand, the mixed mineral slurry is mingled with additive, meanwhile, the foams are thinning, the mineral is bounded with foams, and floats up to the surface of mineral slurry and the mineralized foam is formed. The liquid surface can be adjusted with the height of adjustment flashboard, so that the useful foams are scraped with squeegee.
3.Features of flotation machine
Flotation Machine has the advantages of large air-absorption capacity and low energy consumption. Every cell owns three functions: air absorption, slurry absorption, and flotation separation, and the cells form a floatation separation loop by itself without any auxiliary equipment, and is allocated horizontally, which favors the change of flow. The circulation of mineral slurry is reasonable, and can avoid the disposition of coarse sand to the largest extent. There is self-control device on the surface of mineral slurry, so it is easy to adjust it. The impeller has backward-inclined upper and lower vanes, which produce upper and lower circulation of mineral slurry respectively.
Floatation Process
Structure:
