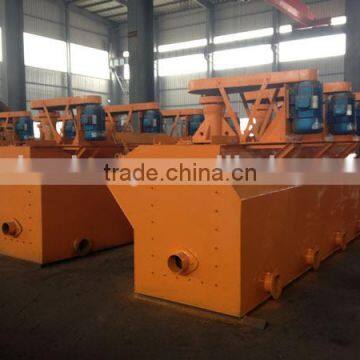

hot sale huahong brand excellent grade flotation machine/mineral product floatation machine /metal mineral flotation equipment
Introduction
Flotation machine is used for separating ferrous and non-ferrous metals. It can be also used for separation of non-metal materials such as coal fluorite and steatite. The impeller rotates by triangle belt of the motor, with produces centrifugal function and causes negative pressure.0n one hand it draws in enough air mixed with ore magma; on the other hand it agitates to mix ore magma with chemical medicines. At the same time, it minifies bubbles so that minerals can stick above them .float on the surface of magma, and form mineralized bubbles. The height of plate can be adjusted to control fluid level so that the available bubbles can be scrapped out by scrapers.
Working principle
When the flotation machine works, the motor drives the impeller to revolve, so the centrifugal effect and negative pressure are produced. On one hand, ample air is absorbed and mixed with mineral slurry, on the other hand, the mixed mineral slurry is mingled with additive, meanwhile, the foams are thinning, the mineral is bounded with foams, and floats up to the surface of mineral slurry and the mineralized foam is formed. The liquid surface can be adjusted with the height of adjustment flashboard, so that the useful foams are scraped with squeegee.
Features
Flotation Machine has the advantages of large air-absorption capacity and low energy consumption. Every cell owns three functions: air absorption, slurry absorption, and flotation separation, and the cells form a floatation separation loop by itself without any auxiliary equipment, and is allocated horizontally, which favors the change of flow. The circulation of mineral slurry is reasonable, and can avoid the disposition of coarse sand to the largest extent. There is self-control device on the surface of mineral slurry, so it is easy to adjust it. The impeller has backward-inclined upper and lower vanes, which produce upper and lower circulation of mineral slurry respectively.
technical parameters
Model | Valid volume (m3/slot) | Impeller diameter (mm) | Capacity (m3/min) | Impeller rotation speed (r/min) | Scraper rotation speed (r/min) | Motor | Dimension 4-slot machine (mm) | Weight (t/slot) | |
Model | Power (kw) | ||||||||
XJK-0.13 | 0.13 | 200 | 0.05-0.16 | 600 | 17.5 | Y90L-4 | 1.5 | 2100865900 | 0.35 |
XJK-0.23 | 0.23 | 250 | 0.12-0.28 | 500 | 17.5 | Y90L-4 | 1.5 | 262511301290 | 0.41 |
XJK-0.35 | 0.35 | 300 | 0.15-0.5 | 470 | 17.5 | Y100L1-4 | 2.2 | 301213501320 | 0.45 |
XJK-0.62 | 0.62 | 350 | 0.3-0.9 | 400 | 16 | Y100L2-4 | 3 | 380015001550 | 0.85 |
XJK-1.1 | 1.1 | 500 | 0.6-1. 6 | 330 | 26 | Y132M-6 | 5.5 | 468018201950 | 1.4 |
XJK-2.8 | 2.8 | 600 | 1.5-3.5 | 280 | 26 | Y160L-6 | 11 | 775026002700 | 2.43 |
Structure
Motor well installed for flotation machine
Pre-sales service:
Be a good consultant and assistant to customers, to ensure our customer's investment rewarded with great profit.
1.Enough details about the ores or slags shall be learned, sometimes a test is needed for some ores.
2. Equipment of right model is selected for customers.
3. Customized products and processing flow sheet can be designed and developed to meet customer's special needs,
4. Engineer could be sent to observe customer's working site to come up with an optimized solution accordingly.
On-sales service:
Every customer is respected and convenience and reliability will be provided. We are devoted to helping you to benefit as much as possible.
1. Inspection is a must before delivering of the goods.
2. Assistance to make a construction plan by supplying all drawings and data needed.
3. Most favorable scheme for you with the guaranteed quality.
4. Timely communication to make sure improvement of project and your requirement met.
After-sales service:
1. Installation, adjustment, and testing of equipment is available.
2. Train of technicians and workers at site is promised.
3. Service engineers will not leave until ensuring the whole line running well after the installation & adjustment is finished.
4.If any failure or question about the machines or the processing line, contact us and we are available at any time.
Zhengzhou Huahong Machinery & Equipment (Group) Co., Ltd. is located in National Hi-Tech Industrial Development Zone of Zhengzhou City, Henan Province, Our products passed the ISO9001 international quality system certification. It has won the glory of provincial superior enterprise. Huahong company's quality of products have been in a leading and dominant position in machinery industry of China. Its high-quality products and first-class services were also have been praised by overseas and domestic customers.
We are factory direct sales, our company can customize professional product according to customer 's requirements .
welcome to visit our factory !
