2016 hot selling trommel screen for sale
Introduction of trommel screen:
This series of Trommel Screen are always used in processing minerals such as ferrous metals including hematite & magnetite And nonferrous metals including Lead, Zinc, Gold and Silver etc. This machine works in a re-circulating network with Ball mill, which can upgrade the fineness of ferrous and nonferrous metals. Its efficiency is twice as that of Spiral Classifier.
Features of trommel screen:
1. The screen holeis not easy jamed.
2 smoothly operation and low noise.
3 simple structure and easy maintenance.
4 the screening tube can be closed, easy to collect dust airtight.
5 the high reliability and one-time investment is less.
6 high screening efficiency, long service life.
View of trommel screen sieve machine for reference:
Model |
Capacity |
Power |
Screen Diameter |
Screen Length |
Discharge Size |
Input Size |
Dimension |
Weight |
(t/h) |
(kw) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(kg) |
|
GTS1015 |
50 |
3.0 |
1000 |
1500 |
0~100 |
≤300 |
2600×1400×1700 |
2200 |
GTS1020 |
100 |
4.0 |
1000 |
2000 |
3390×1400×2140 |
2800 |
||
GTS1225 |
160 |
5.5 |
1200 |
2500 |
4146×1600×2680 |
4200 |
||
GTS1530 |
250 |
7.5 |
1500 |
3000 |
4460×1900×2820 |
5100 |
||
GTS1545 |
350 |
11 |
1500 |
4500 |
≤400 |
5960×1900×3080 |
6000 |
|
GTS1848 |
450 |
15 |
1800 |
4800 |
6500×2350×4000 |
7500 |
||
GTS2055 |
600 |
22 |
2000 |
5500 |
7500×2550×4800 |
9600 |
||
GTS2265 |
800 |
30 |
2200 |
6500 |
8500×2750×5000 |
12800 |

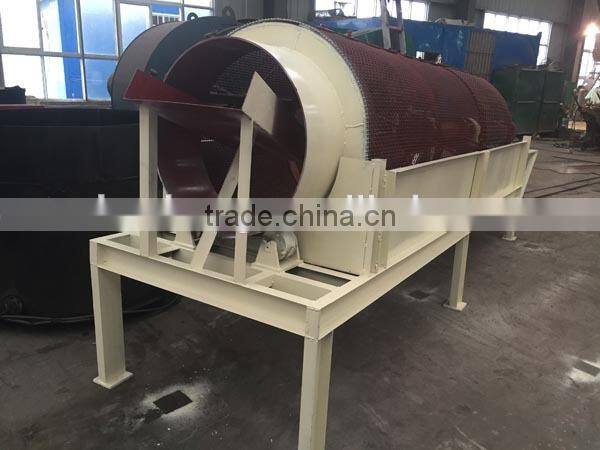

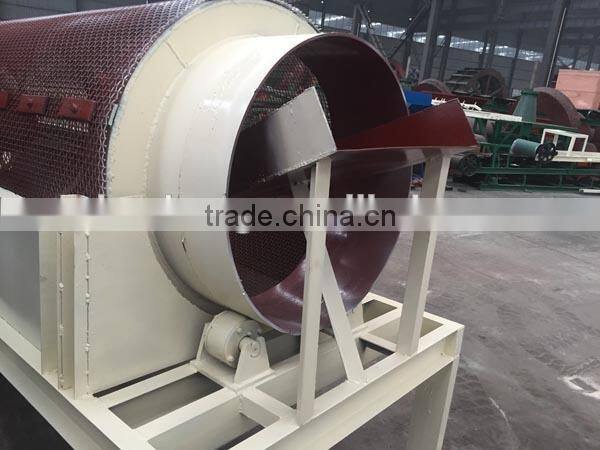

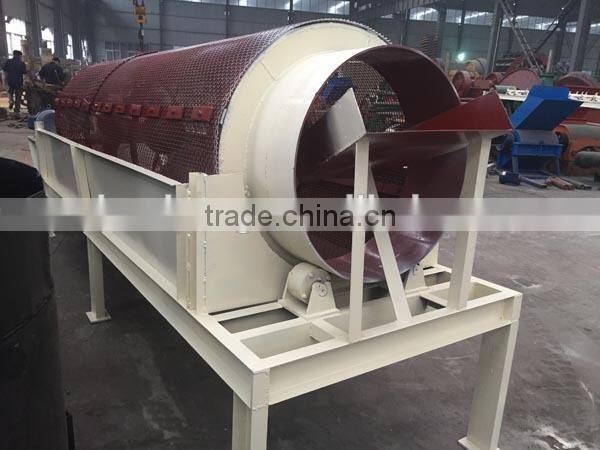

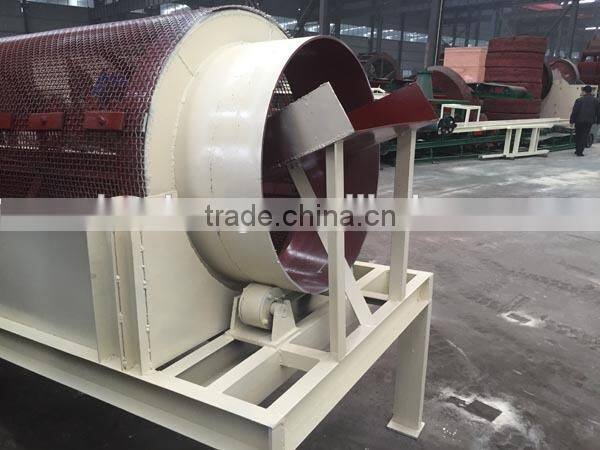

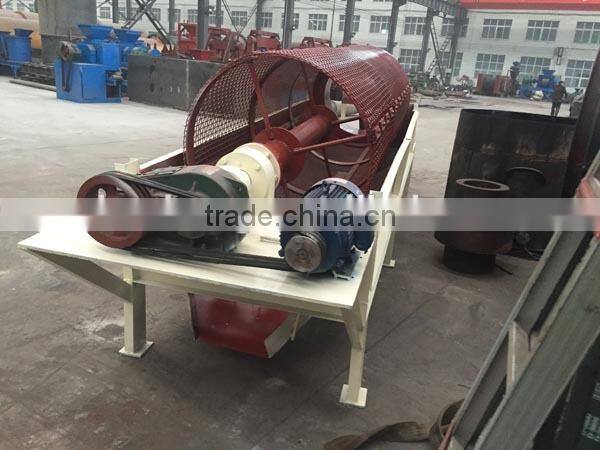

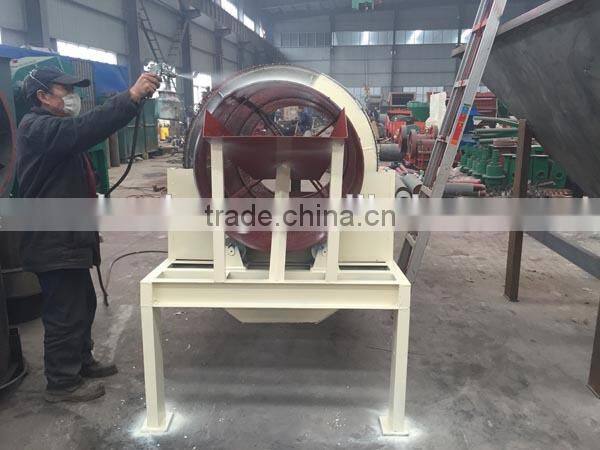

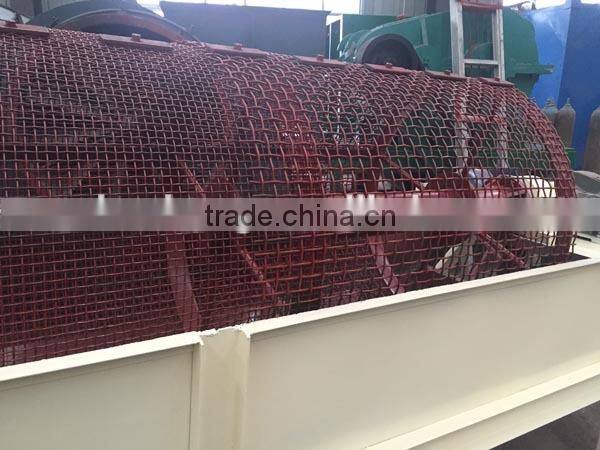

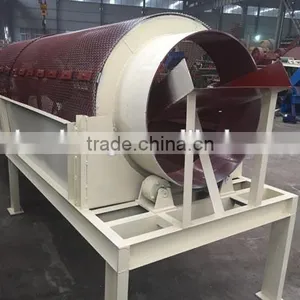

This is our model 1225 trommel:

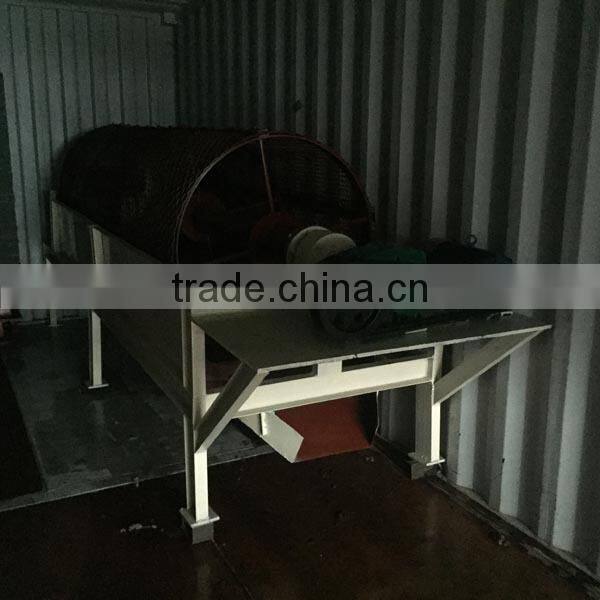

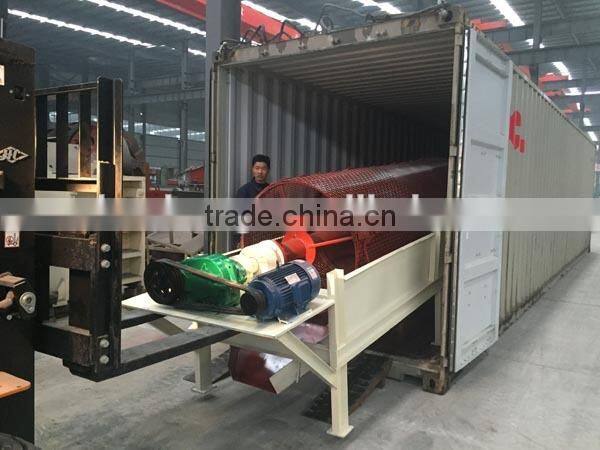

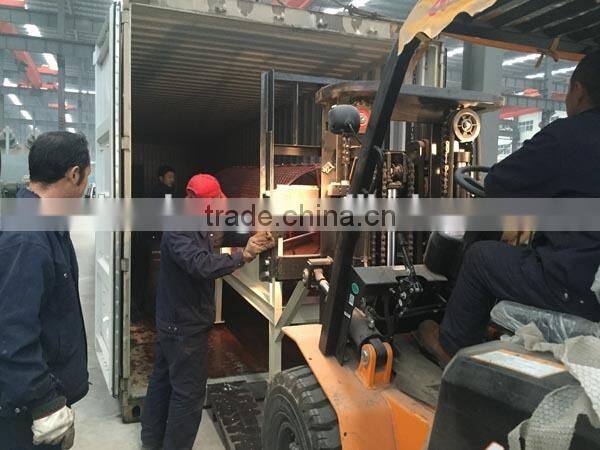

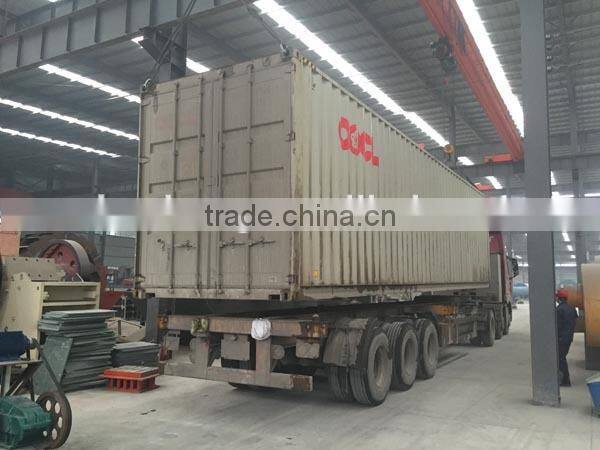

Our trommel is on delivery to Africa:
