Gold washing machine, gold trommel wash plant, mini gold wash plant
1. Brief introduction for vibrating sieve machine
Huahong drum sieve screen, sand screen is special designed for clients, it with water pipes, water pumps, hopper and belt conveyor. special equipments can be produced according to your required.

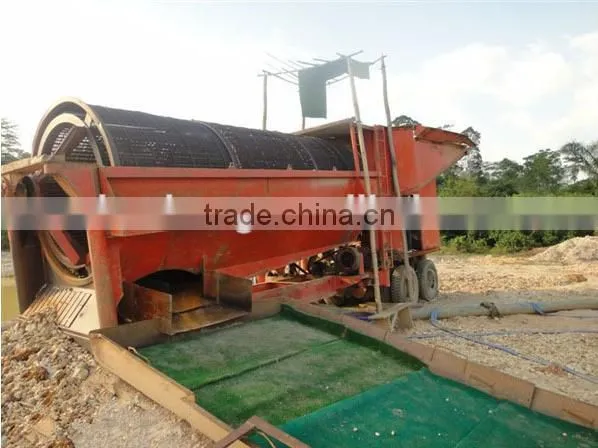

one set drum screen plant with hooper and belt conveyor pictures show
2. Applications for vibrating sieve machine
- Glass industry
- Chemical industry
- Plastic industry
- Food industry
- Pharmaceuticals industry
- Foundry industry
1. Large processing capacity for separating out multiple grades
2. Simple structure, smooth running, low noise, less blocking of mesh screen
3. Easy installation and maintenance
4. ISO9001:2008, BV, SGS, CE certification
4. Technical parameters for vibrating sieve machine
Zhengzhou Huahong Machinery Equipment Co., Ltd | |||||
Model |
Capacity(Myriad T/Year) |
Capacity(T/H) |
Sieve Dia.(mm) |
Length (m) |
Power (kw) |
GTS-3 |
3 |
10.4 |
Φ1200 |
3.5 |
4 |
GTS-5 |
5 |
13.8 |
Φ1200 |
4 |
5.5 |
GTS-10 |
10 |
27.8 |
Φ1400 |
5 |
7.5 |
GTS-15 |
15 |
47.7 |
Φ1500 |
6 |
11 |
5.Operation and maintance for vibraing sieve machine
1. Structure: rotary trommel consists of hopper, screening drum, frame, motor and decelerator and discharging conveyor.
2. Operating principles: Materials are fed into the hopper and then go into the drum. They are lifted up by the rotation and aerated as it falls back down. This action is repeated with each revolution along the length of the drum. The final materials passe through the screen openings while the larger material tumbles towards its eventual exit at the rear of the drum and smaller materials will fall down onto the conveyor and be sent to other place.
Packaging & Shipping
Why Choose Zhengzhou Huahong Machinery?
1. Over 12 years experience in tricycle and mining field.
2. CE ISO SGS certificates from official govement.
3. Fisrt-class pre-sales service and after-sales service.
4. 12 months warranty for complate machine.
5. Trade arrurance service.
6. Proffssional engineers team, design as your demands.
More details PLS click on https://img13.fr-trading.com/
-
1. Are you a trading company or a manufacturer?
We are a manufacturer.
2. How can I get to your company?
You can get a flight to Zhengzhou Xinzheng International Airport . and we can go to airport to pick you up directly.
All our clients from home or abroad, are warmly welcome to visit our factory and inspect our products!
3. How long is your guarantee?
One year(Calculated from the equipment arrives the customer’s side.). After this period we will definitely support
you when needed. You will be welcome to contact us with any problem may happened.
4. Will you send engineers to install the plant?
yes, but at an extra cost payable by the customer. Or you can get local contractors to do thecommissioning and we send one supervising engineer.
