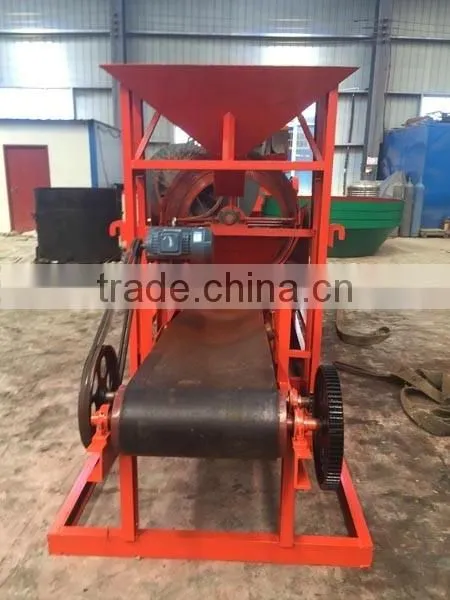

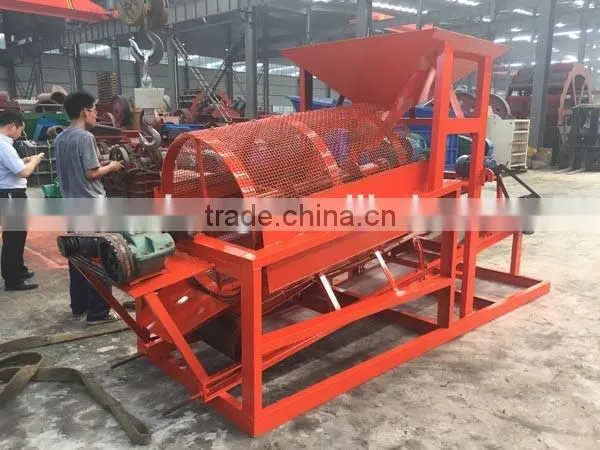

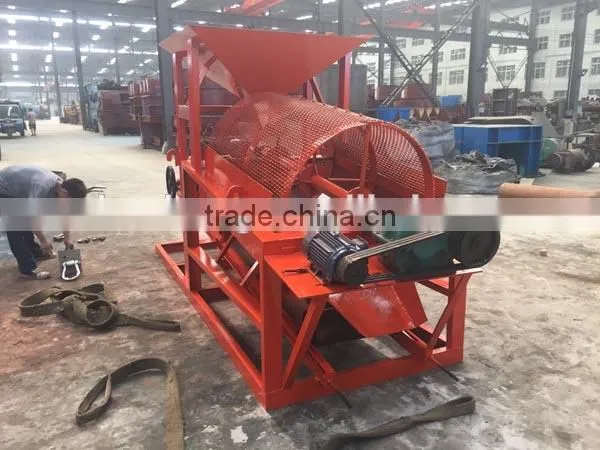

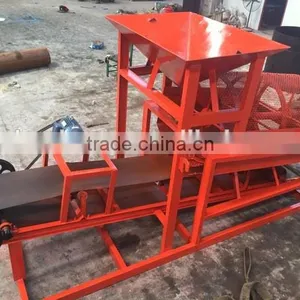

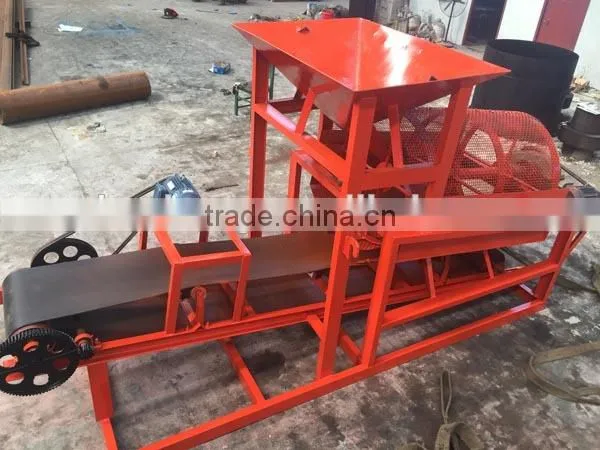

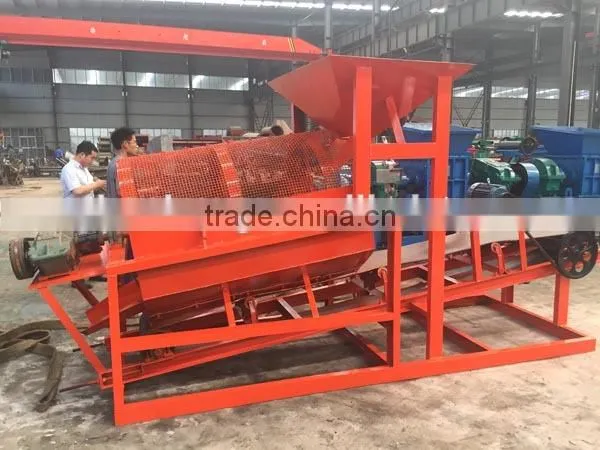

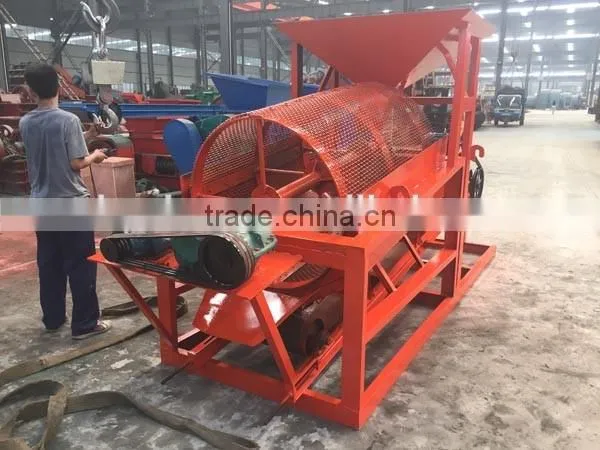

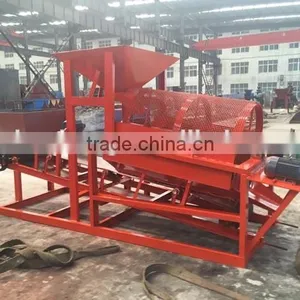

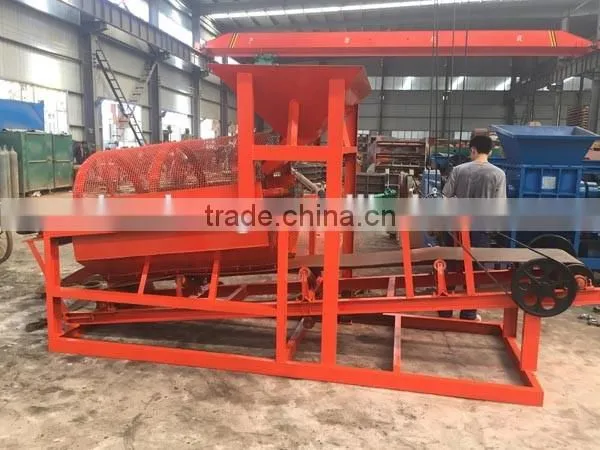

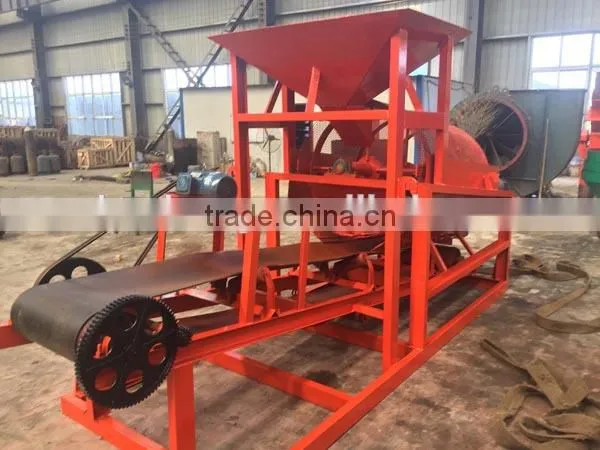

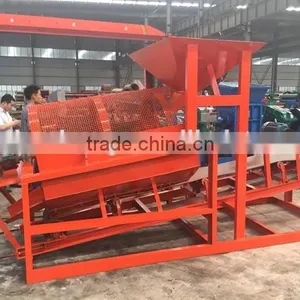

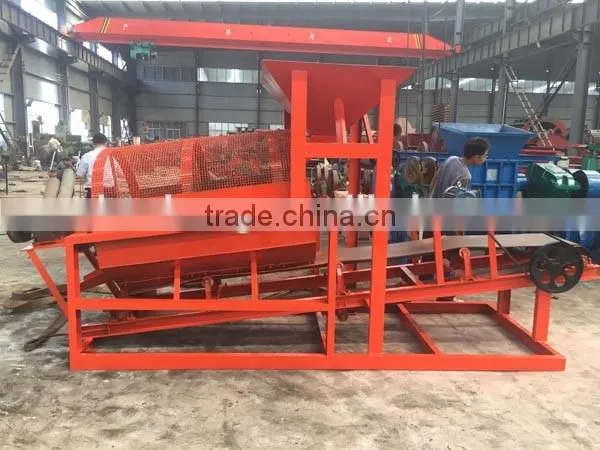

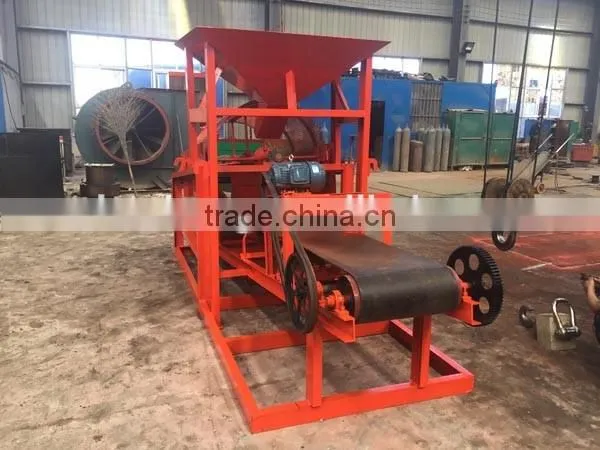

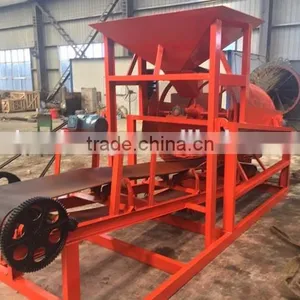

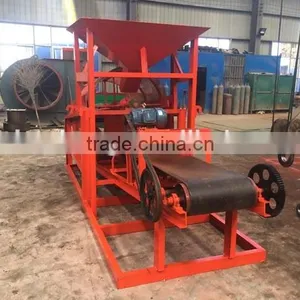

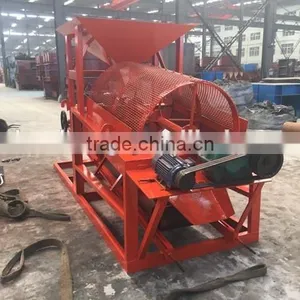

Help CenterRotary Drum Screen ,screen Conveyor With Hopper
Related Products
-
Small Gold Washing Plant, New Washing Plant, Gold Trommel Wash PlantUS$ 1,000 - 7,000MOQ: 1 Set -
China Rotary Drum ScreenUS$ 1 - 4,000MOQ: 1 Set
-
Gold Washing Plant Trommel Screen, Small Sandwast Trommel ScreenUS$ 1,000 - 7,000MOQ: 1 Set
-
Used Trommel Screen for Sale, Sand Gravel Trommel ScreenUS$ 1,000 - 7,000MOQ: 1 Set
-
China High Capacity Gold Mining Trommel MachineUS$ 1 - 4,000MOQ: 1 Set
specification of rotary drum screen
1. long bearing lifetime
2. high efficiency and low energy sumption
3. high credits and good quality
4. not easy to be blocked
Description of Rotary drum Screen:
Drum Vibrating sieving screen is widely used in classifying the solid materials in coal,mining, electric power, light industry and other industries, screening the wet materials in metallurgy, construction industry and chemical industry ,too. With a high screen transmittance,it is particularly suitable for the screening of wet and sticky materials.The screening pores can never be blocked,and this product is widely used for the screening and griding of coal,gravel and other materials in electric power,minging,metallurgy,building materials,chemical and other industries.
Model |
Capacity |
Power |
Screen Diameter |
Screen Length |
Discharge Size |
Input Size |
Dimension |
Weight |
(t/h) |
(kw) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(kg) |
|
GTS1015 |
50 |
3.0 |
1000 |
1500 |
0~100 |
≤300 |
2600×1400×1700 |
2200 |
GTS1020 |
100 |
4.0 |
1000 |
2000 |
3390×1400×2140 |
2800 |
||
GTS1225 |
160 |
5.5 |
1200 |
2500 |
4146×1600×2680 |
4200 |
||
GTS1530 |
250 |
7.5 |
1500 |
3000 |
4460×1900×2820 |
5100 |
||
GTS1545 |
350 |
11 |
1500 |
4500 |
≤400 |
5960×1900×3080 |
6000 |
|
GTS1848 |
450 |
15 |
1800 |
4800 |
6500×2350×4000 |
7500 |
||
GTS2055 |
600 |
22 |
2000 |
5500 |
7500×2550×4800 |
9600 |
||
GTS2265 |
800 |
30 |
2200 |
6500 |
8500×2750×5000 |
12800 |
