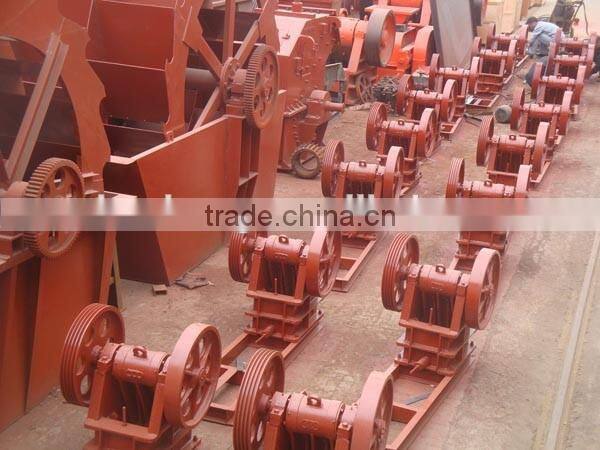

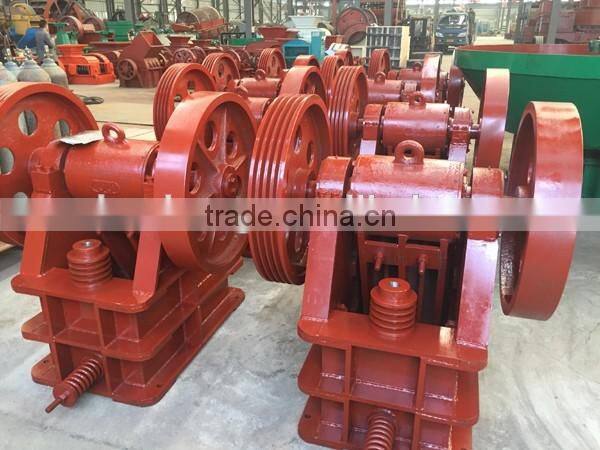

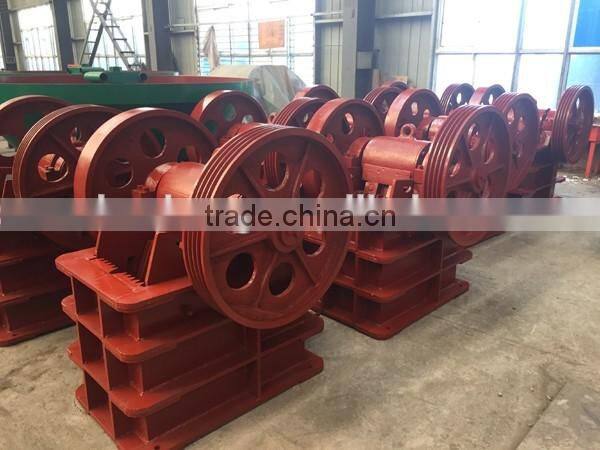

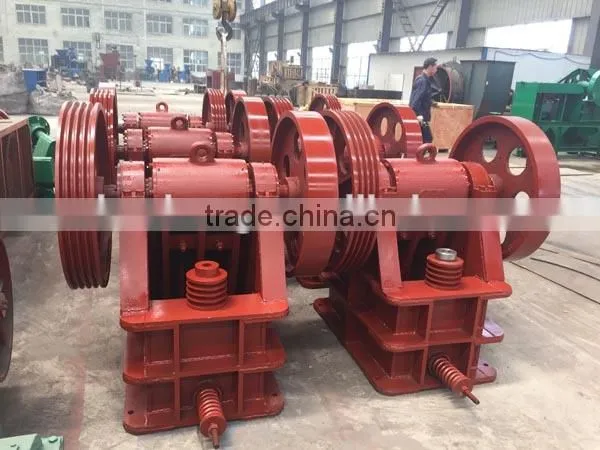

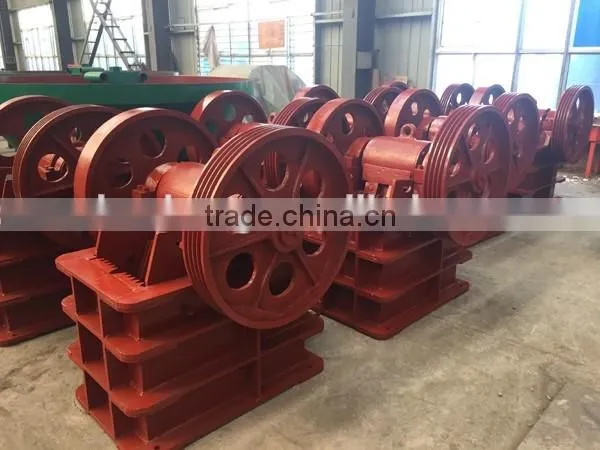

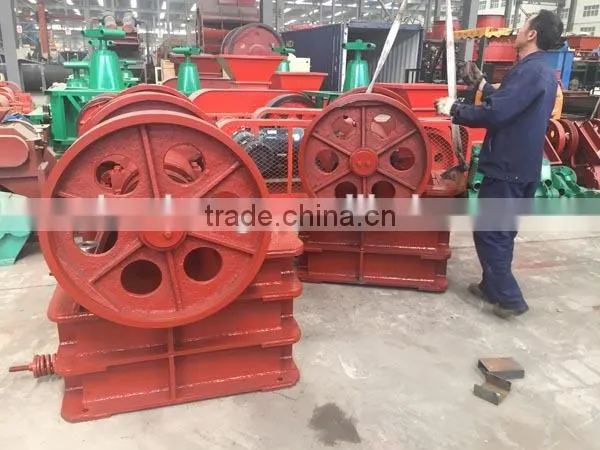

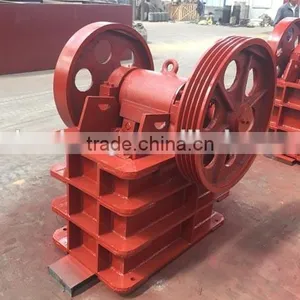

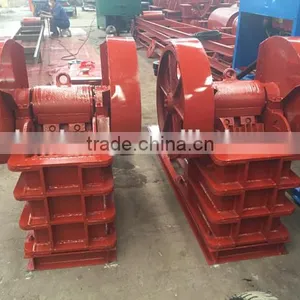

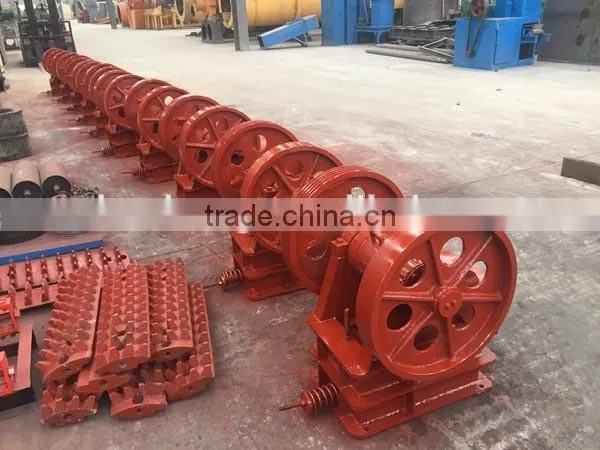

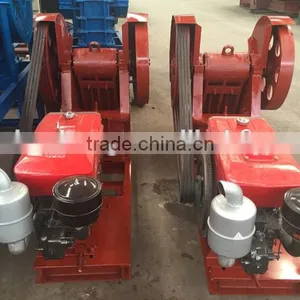

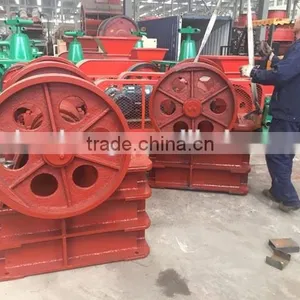

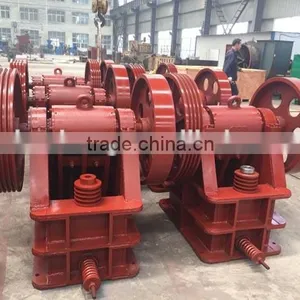

Help CenterJaw Crusher Manufacturer ,stone Crushing Equipment
Related Products
-
Hammer Crusher ,stone Breaker MachineUS$ 1,000 - 3,000MOQ: 1 Set -
New Fine Rock CrusherUS$ 500 - 1,200MOQ: 1 Set
-
4PG0806 Four Roller Crusher for Final Size 0.1-2mmUS$ 2,500 - 100,000MOQ: 1 Set
-
New Hammer Mill Crusher for CoalUS$ 500 - 1,200MOQ: 1 Set
-
New Design Small Mobile Hammer Mill,mobile Hammer Crusher for SaleUS$ 500 - 1,200MOQ: 1 Set
working principle ;Motor driven belt and pulley, through the eccentric shaft to move up and down before and after the e-jaw, when the moving jaw to promote the movement of the plate, the material was crushed or broken. When the moving jaw and moving jaw in the eccentric shaft, under the action of the spring back when the previous has been crushed or broken material from the jaw of the lower discharge port. With the continuous rotation of the motor and crusher E for cyclical crushing and excretion of materials, to achieve mass production.
Feature ;
The use of finite element analysis technology, equipment has a higher work intensity, contribute to the improvement of production efficiency.
Jaw crusher chamber with a symmetrical "V" -shaped structure, so that the actual inlet width and nominal feed width of the line.
Nesting mouth to adjust more quickly and easily. Jaw crusher equipped with wedge discharge port adjustment device, the device than the old gasket adjustment is more simple, safe and fast.
Bearing the choice of larger specifications, higher carrying capacity. E-crusher are equipped with the same specifications than other crusher larger and more durable eccentric shaft bearings, its higher bearing capacity and effective sealed bearings to greatly extend the life.
Product dates
| Model | Feed opening size (mm) |
Max feed size(mm) |
Adjustable range (mm) |
Capacity (t/h) |
Eccentric shaft rotary speed (r/min) |
Motor power (kw) |
Total weight (t) |
Overall dimensions (L*W*H)(mm) |
| PE-150×250 | 150×250 | 125 | 10-40 | 1-3 | 250 | 5.5 | 0.8 | 720×660×850 |
| PE-200×300 | 200×300 | 180 | 15-50 | 2-6 | 260 | 7.5 | 1.2 | 910×750×990 |
| PE-200×350 | 200×350 | 180 | 18-70 | 3-10 | 260 | 11 | 1.5 | 1000×870×990 |
| PE-250×400 | 250×400 | 210 | 20-60 | 5-20 | 300 | 15 | 2.8 | 1300×1090×1270 |
| PE-400×600 | 400×600 | 340 | 40-100 | 16-60 | 275 | 30 | 7 | 1730×1730×1630 |
| PE-500×750 | 500×750 | 425 | 50-100 | 40-110 | 275 | 55 | 12 | 1980×2080×1870 |
| PE-600×750 | 600×750 | 500 | 150-200 | 80-240 | 275 | 55 | 15.8 | 2070×2000×1920 |
| PE-600×900 | 600×900 | 500 | 65-160 | 50-180 | 250 | 55 | 17 | 2190×2206×2300 |
| PE-750×1060 | 750×1060 | 630 | 80-140 | 110-320 | 250 | 90-110 | 29 | 2660×2430×2800 |
| PE-800×1060 | 800×1060 | 640 | 160-220 | 130-330 | 250 | 110 | 29.8 | 2710×2430×2800 |
| PE-830×1060 | 830×1060 | 650 | 160-220 | 150-336 | 250 | 110 | 30.7 | 2740×2430×2800 |
| PE-870×1060 | 870×1060 | 660 | 200-260 | 190-336 | 250 | 110 | 31.5 | 2810×2430×2800 |
| PE-900×1060 | 900×1060 | 685 | 230-290 | 230-390 | 250 | 110 | 33 | 2870×2420×2940 |
| PE-900×1200 | 900×1200 | 750 | 95-165 | 220-450 | 200 | 110 | 52 | 3380×2870×3330 |
| PE-1000×1200 | 1000×1200 | 850 | 195-265 | 315-500 | 200 | 110 | 55 | 3480×2876×3330 |
| PE-1200×1500 | 1200×1500 | 1020 | 150-300 | 400-800 | 180 | 160 | 100.9 | 4200×3300×3500 |
| PEX-150×750 | 150×750 | 120 | 18-48 | 8-25 | 320 | 15 | 3.8 | 1200×1530×1060 |
| PEX-250×750 | 250×750 | 210 | 25-60 | 13-35 | 330 | 30 | 5.5 | 1380×1750×1540 |
| PEX-250×1000 | 250×1000 | 210 | 25-60 | 16-52 | 330 | 30 | 7 | 1560×1950×1390 |
| PEX-250×1200 | 250×1200 | 210 | 25-60 | 20-61 | 330 | 37 | 9.7 | 2140×1660×1500 |
| PEX-300×1300 | 300×1300 | 250 | 20-90 | 16-105 | 300 | 55 | 15.6 | 2720×1950×1600 |
1.Zhengzhou Huahong Machinery Equipment Co., Ltd. mainly produces iron selecting equipment,kinds of drederes, dredging equipment, sand washing and sand making equipment, gold panning equipment, magnetic separating, crusher and so on, there are more than hundred kinds of products.
2.We design produce various of products according to the customers requirement and geographical condition. It is a modern largescale mineral processing equipment manufacturer for research and development, engineering design, producing installation, commissioning and after sale service.
3.We attach the development of scientific research, and form strategic partnership with the major research institutions. And we had established good cooperation with Import and export trading company, established Shandong magnetic equipment Research Instituting.
4.Honesty and credit is our bussiness value , customer first.First-class quality and first class service is the business life.
| Main Markets | Total Revenue(%) | Main product(s) |
|---|---|---|
| Africa | 18.00% | Mining Machinery |
| North America | 15.00% | Mining Machinery |
| Western Europe | 15.00% | Mining Machinery |
| South America | 10.00% | Mining Machinery |
| Southeast Asia | 10.00% | Mining Machinery |
| Oceania | 10.00% | Mining Machinery |
| Mid East | 10.00% | Mining Machinery |
| South Asia | 5.00% | Mining Machinery |
| Domestic Market | 5.00% | Mining Machinery |
| Eastern Asia | 2.00% | Mining Machinery |
1.are you the manufacturer
actually ,yes ,we are the manufacruer ,if you wang to visit our factory ,we can pick you up
2.how long is the warranty ?
one year
......
Name ;Jessica
we chat ;+8613949058207
QQ;2623204968
whatsapp;+8613949058207
phone number ;+8613949058207
I always being on serve you.
