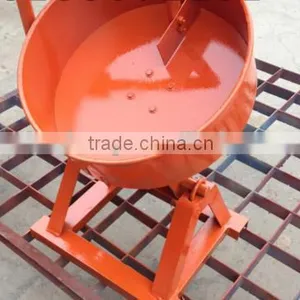

Disc type wet granulation machine
- 100 Set / Sets per Month
- Qingdao Tianjin Shanghai
- T/T L/C D/P D/A Credit Card PayPal
- Hot sale compound Organic Fertilizer Granulator with small capacity
- 500KG per 8 hour small disc fertilizer granulator with diameter 500mm
- SL-5 small mini disc granulator for fertilizer line
- EPS foam shredding machine
- China high quality mini fertilizer roller press machine
- New design coal Ball Press Machine/ Briquette Press Machine With CE
Product Details
Condition: | New | Product Type: | Other, wood | Place of Origin: | Henan, China |
Brand Name: | HuaHong | Model Number: | SL-5 | Voltage: | customised |
Power(W): | 0.75kw | Dimension(L*W*H): | 0.7*0.5*0.65(m) | Weight: | 90kg |
Certification: | ISO9001 | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
nude packs or in bulk or other standard packaging
Product Description
New organic fertilizer production line for agriculture
Application of disc granulator making machine
It is one of common equipments in compound fertilizer industry. Generally, it is applicable to smaller scale fertilizer production of medium and low concentration. The slope degree of its pan can be adjusted from 40 degree to 55 degree.
This is a medium-scale organic fertilizer production line:
Advantages of disc granulator
1) High granulating rate, more than 93%, homogeneous grain.
2) Reliable quality, the pan is made of thicken steel plate, never be out of shape.
3) Easy to operate, convenient maintenance.
Working principle of disc granule-making machine
the pan revolves at a certain angle with the horizontal plane driven by the motor through reducer. The powder will rise along with the revolving pan under the friction between the powder and the pan, on the other hand, the powder will fall down under the function of its gravity. At the same time, the powder is to the pan edge because of the centrifugal force. The powder material rolls in a certain trace under the function of these three forces. It gradually becomes the required size, then overflows by the pan edge
Final production line features: 1 .low density 2. fireproof 3. heat insulation
Technical Parameter of comminutor:
Model | Diameter of the disk(mm) | Height of disk(mm) | Volume(m3) | Rotate speedr/min | Power(kw) | Capacity(T/h) |
SL25 | 2500 | 500 | 2.5 | 13.6 | 7.5 | 1-1.5 |
SL28 | 2800 | 600 | 3.7 | 13.6 | 11 | 1-2.5 |
SL30 | 3000 | 600 | 4.2 | 13.6 | 11 | 2-3 |
SL32 | 3200 | 600 | 4.8 | 13.6 | 11 | 2-3.5 |
SL45 | 4500 | 600 | 6.1 | 12.28 | 37 | 10 |

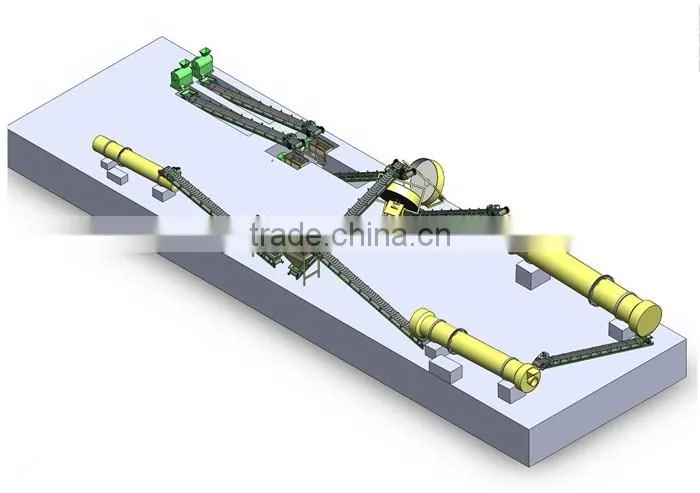

The whole line pictures:

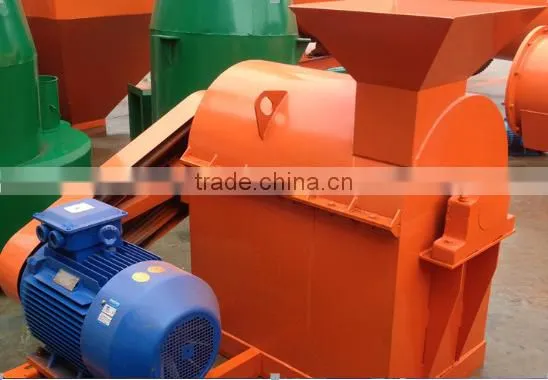

Raw material crusher picture:

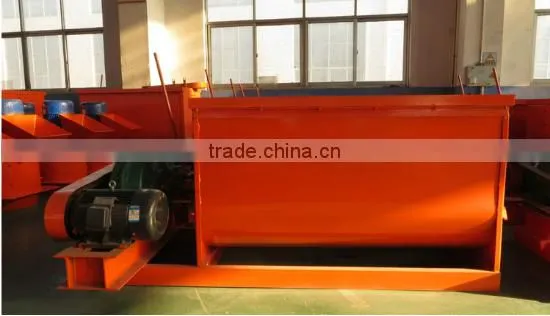

Double shaft mixer:

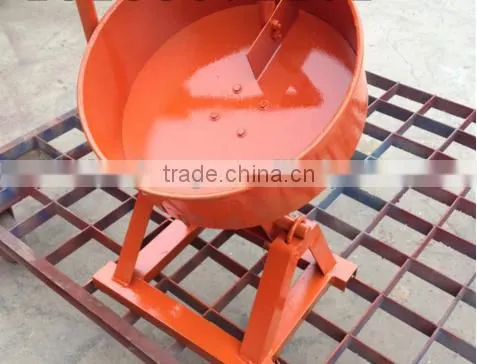

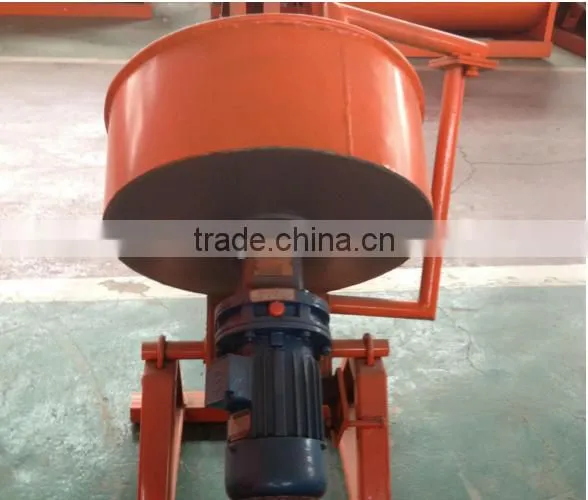

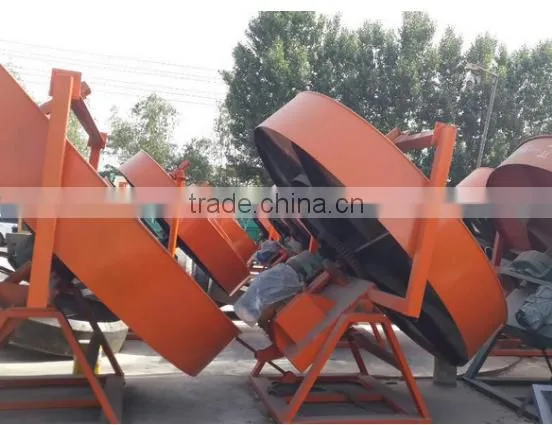

Disc granulator:

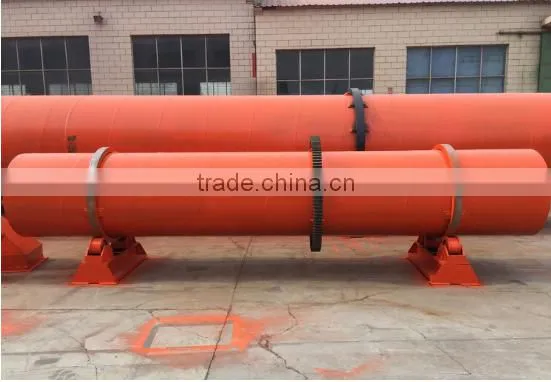

Rotary dryer:

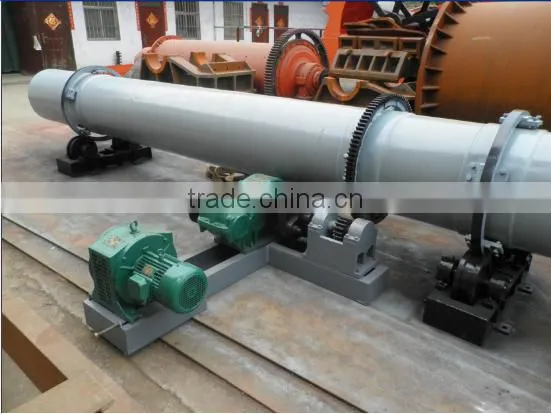

Rotary coller:

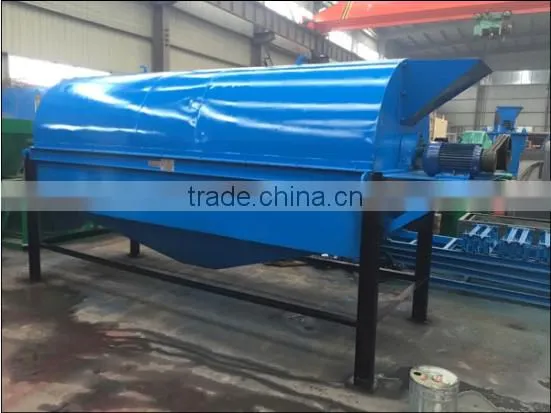

Rotary sieve:
Coating machine:

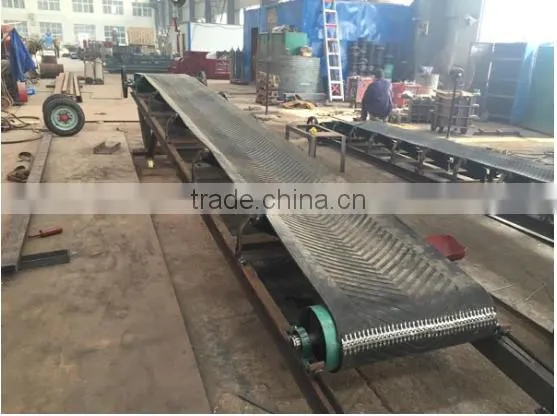

Belt conveyor:
My email is: tomgao(at)
My skype is: haoheweimin6
Mobile phone number: 0086-15538238903
QQ number is: 2819981331
Company Profile
Zhengzhou Huahong Machinery Equipment Co., Ltd. is located in Zhengzhou National Hi-Tech Industrial Development Zone, Henan Province. Our company has passed ISO9001 international quality system certification. Our company has two industrial plants of 10,000 square meters and we have 200 sets of large and medium-sized processing, welding and assembly equipment, with the maximum lifting capacity of 150 tons.
Our company mainly produces all kinds of jaw crushers, impact crushers, cone crushers, hammer crushers, Raymond mills, sand making machines, mineral processing equipment, milling machines, ball mills, and building material equipment.
Stone Production Line: mobile crushers, vertical compound crushers, roll crushers, roller crushers, impact crushers, impact crushers, hammer crushers, jaw crusher machines, efficient crushing machines, spiral stone washing machines, high efficiency sand washing machines, sixth generation sand products, hammer crushers, cone crushers and others.
Mineral production equipment: pressure machines, cylinder cooling machines, dryer belts, vertical dryers, rotary drum dryers, high frequency screens, spiral classifiers, flotation machines, dry magnetic separators, wet magnetic separators, ceramic ball mills, tube mills, energy saving ball mills and others.
Building equipment: cement production lines, cement mills, separators, rotary kilns, vertical coolers, vertical preheaters, 8-15 automatic hydraulic block making machines, 6-15 automatic block making machines, pulping machines, casting machines, steam curing cars, autoclave reactors, concrete block cutting machines, aerated concrete production lines and others.
Common equipment: feeders, pendulum feeders, ultrafine mills, screw conveyors, Raymond mills, vibrating screens, stone vibrating screens, electromagnetic vibrating feeders, TH ring chain bucket elevator machines, TD belt elevators, belt conveyors, scraper conveyors and others.
We have won a good reputation among customers with good quality, competitive prices and advanced techniques since our establishment.
We have 22 existing senior engineers, 30 engineers, 70 senior technicians and more than 800 employees. The Chief Engineer of China Machinery Industry has designed and developed several generations of leading crushers, sand (sand) machines and others for our company. Our company has introduced these products in recent years. Our products are popular in the United States, Germany and other countries and regions around the world. We have advanced equipment and techniques.
Since our inception, we have been sticking to our motto of "product update and advanced processing equipment and exquisite craft, rigorous inspection and testing, providing customers with quality products, and to obtain users' favor". Our products are exported worldwide.
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
