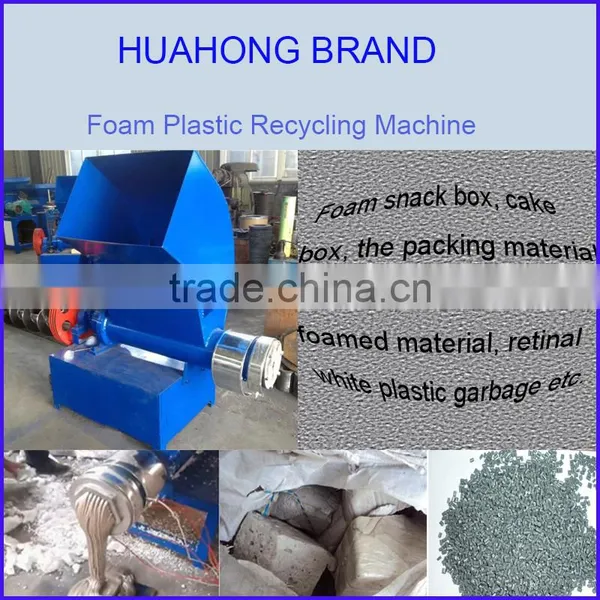

EPS Foam Melting Machine| EPS Hot Melting Recycling Machine| Foam Plastic Recycling Machine| Eps Compactor (Whatsapp/Viber/Wechat: +86-15538238903)
Machine Description:
1.Twin shaft crushing blades. This machine adopts manual feeding, the material will be crushed by the twin shaft blades and conveyed to the barrel of the main machine through the screen.
2.The screw of the main machine can convey and heat the material to melt condition, then extrude them and hydraulic blade cut them to pieces for easy storage and transportation.
3.The shapes of the products can be designed according to customers' requirements.
Working Principle:
The twin shaft crushing blades are two parallel blade shafts with different rotation direction. Each blade shaft has 18 blades and is driven by the gear box to crush material that will be conveyed to the barrel through the screen. The material will be sent by the high speed rotary screw to the heating barrel. Then they will be melted under high temperature and extruded to expected shapes.
Paraemters of EPS Hot Melting Compactor
This is the simple and cheap model. If you need the advanced machine, we also could supply.
Model |
PAS-150 |
size of motor (hp) |
18.5kw=25hp |
size of screw (mm) |
diameter 60mm |
length of screw (mm) |
960mm |
size of tube (mm) |
220mm |
size of feeder (length*wide) |
300*275mm |
total dimension of the machine |
1.25*1.05*1.3m with motor |
capacity of the machine per hour |
150-200kg/h |
size of gear |
small gear--90mm, large gear--260mm |
