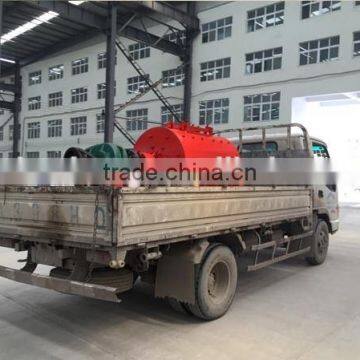

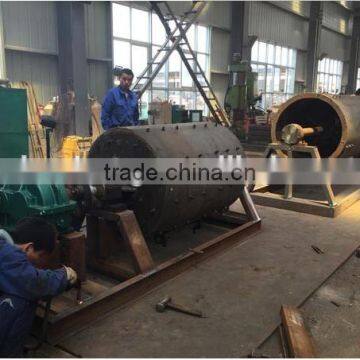

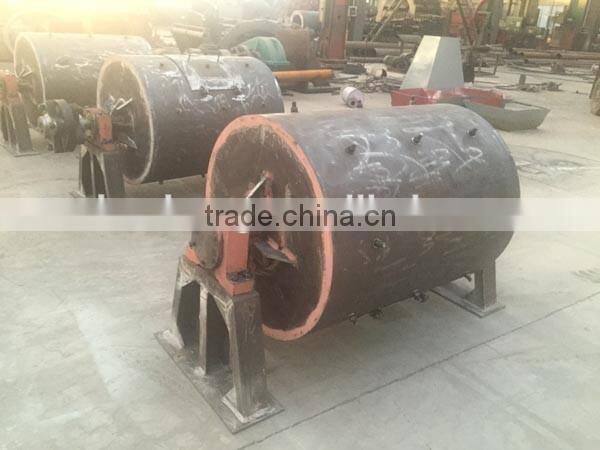

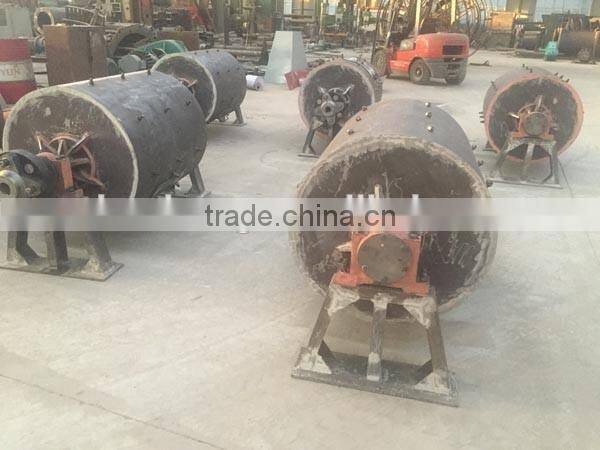

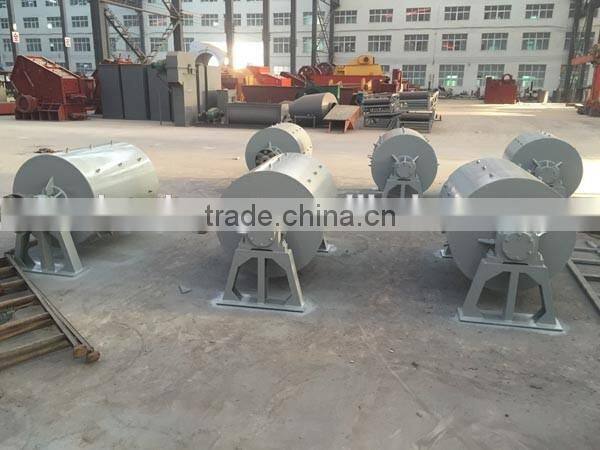

Ball Mill for Ceramic Industry/ Batch Ball Mill
- 220 Set / Sets per Month
- Qingdao Tianjin Shanghai Dalian port
- T/T L/C D/P D/A Credit Card PayPal
- Energy Saving Wet Ball Mill Grinding Material Into Fineness Powder
- Hot Sale Tube Mill for Grinding Cement, Raw Material Clinker etc Harness Material
- High Efficient Ultrafine Gold Ball Mill for Sale
- Hot Sell Alumina Ceramic Ball Mill with Competitive Price Chinaware Ball Mill
- Small Ceramic Ball Mill, Batch Ball Mill Passed ISO Certificated
- High Quality 350 Mesh Cement Mill
Product Details
Condition: | New | Type: | Ball Mill | Motor Type: | AC Motor |
Power(W): | 2.2-4kw | Capacity(t/h): | 0.05t/h | Place of Origin: | Henan, China |
Brand Name: | Huahong | Model Number: | TCQ600*700 | Dimension(L*W*H): | different |
Weight: | 1t | Certification: | ISO CE SGS GOST | Warranty: | 12 Months |
After-sales Service Provided: | Overseas third-party support available |
Packaging Details
2 ton ball mill are packed by wooden case.
Product Description

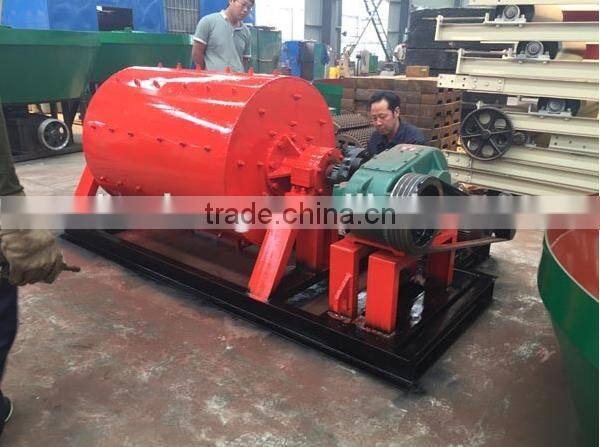

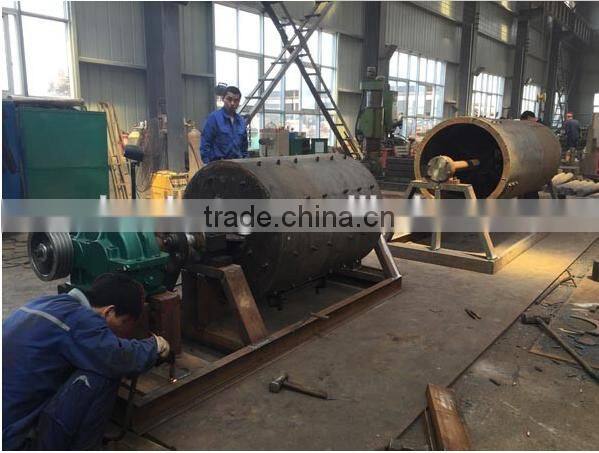

Ball Mill for Ceramic Industry/ Batch Ball Mill
1. Brief introduction for ball mill:
This machine works in both dry and wet methods intermittently, to mill, mix and discharge materials such as feldspar, quartz and clay. The slurry can pass through 1000 sieve pore. It's a kind of super fine grinding mill, so the feed material should be in medium size to get best grinding efficiency and economic profit.
2. Applications for ball mill:
1. TCQ ball mill is a mini type powder processing machine for milling the materials into powders after
they are crushed.
2. It is widely applied to the production of cements, silicate products, building materials, fireproof
materials, fertilizers, glass, ceramics as well as nonferrous and ferrous metal processing industries.
3. It could carry out dry and wet millings on different materials.
3. Working principle for ball mill:
1. Our TCQ type ball mill is of horizontal, cylindrical and tubular structure.
2. It comes with two cabins and is a grate abll mill.
3. The materials are evenly fed through the charging device to first warehouse where there are step
scales boards, corrugated scale boards and different specification of steel balls.
4. When the cylinder rotates, the centrifugal force produced causes the steel balls to impact and grind
the materials in the ball mill.
5. The materials are then lead to the second cabin for further milling until into powders and are
discharged from the outlet.
4. Structure for ball mill:
Ball mill structure: Contained feeding system, the discharging system, the transmission system(speed reducer, small transmission gear, electrical machinery, electric control) & etc.
5. Technical parameters for ball mill:
Type | Capacity(T/Batch) | Rotational speed (r/min) | Motor power (kw) | Weight(t) |
TCQ600x700 | 0.05 | 50 | 2.2-4 | 1 |
TCQ800x600 | 0.075 | 42 | 3-5.5 | 1.5 |
TCQ900x1200 | 0.2 | 36 | 5.5-11 | 2.6 |
TCQ1200x1400 | 0.5 | 32 | 11-18.5 | 4.3 |
TCQ1500x1800 | 1 | 28 | 15-22 | 6.5 |
TCQ1800x2100 | 1.5 | 26 | 18.5-30 | 8.8 |
TCQ2100x2100 | 2.5 | 22 | 22-37 | 13 |
TCQ2200x2400 | 3 | 20 | 28-45 | 15 |
TCQ2500x2900 | 5 | 16 | 27-55 | 19 |
TCQ2800x3700 | 8 | 14.5 | 55-75 | 26 |
TCQ3000x3700 | 10 | 14 | 75-90 | 32 |
Packaging Detail:
All the cargos are packed by crate wood,other parts are nude package ,or as client demand.
Delivery Detail:
- If the size is suitable for container ship, usually by container;
- If the size is too big, usually by bulk ship or by container after truncation;
- Transport ways are based on reducing cost for you and keep the crane performance!
Zhengzhou Huahong Machinery to be the leading enterprise which is professional manufacture double roller crusher,grading crusher, double teeth roller crusher ,our double roller crusher with new design.We provide variety of double roller crusher with high processing capacity, featured structure. As a specialized manufacurer and exporter in china, Zhengzhou Huahong striving its best to service our customer.Our machines are all through ISO CE certificate. More details PLS click on http://zzhuahong.en.china.cn/
- Sales manager cell number is 24hours available.
- Payment terms is flexible.
- Design the product according to your technical request.
- Our engineer is willing to help fixing the crane for you.
- Diversity products.
- Delivery on time.
- Warranty: 12 months.
- Trade Assurance Service.(Trade Assurance is a free payment protection service for buyers.
The service is offered by participating suppliers, and is designed to protect your payment if
your order is not shipped on time, or if the pre-shipment product quality (optional) does not
match the terms agreed on your contract.
Your payment is protected up to 100% of an amount - agreed between you and the supplier - called the Trade Assurance Order Amount.)
I am Helen Li, always being on serve you.
We cherish every order from every customer.
Company Profile
Zhengzhou Huahong Machinery Equipment Co., Ltd. is located in Zhengzhou National Hi-Tech Industrial Development Zone, Henan Province. Our company has passed ISO9001 international quality system certification. Our company has two industrial plants of 10,000 square meters and we have 200 sets of large and medium-sized processing, welding and assembly equipment, with the maximum lifting capacity of 150 tons.
Our company mainly produces all kinds of jaw crushers, impact crushers, cone crushers, hammer crushers, Raymond mills, sand making machines, mineral processing equipment, milling machines, ball mills, and building material equipment.
Stone Production Line: mobile crushers, vertical compound crushers, roll crushers, roller crushers, impact crushers, impact crushers, hammer crushers, jaw crusher machines, efficient crushing machines, spiral stone washing machines, high efficiency sand washing machines, sixth generation sand products, hammer crushers, cone crushers and others.
Mineral production equipment: pressure machines, cylinder cooling machines, dryer belts, vertical dryers, rotary drum dryers, high frequency screens, spiral classifiers, flotation machines, dry magnetic separators, wet magnetic separators, ceramic ball mills, tube mills, energy saving ball mills and others.
Building equipment: cement production lines, cement mills, separators, rotary kilns, vertical coolers, vertical preheaters, 8-15 automatic hydraulic block making machines, 6-15 automatic block making machines, pulping machines, casting machines, steam curing cars, autoclave reactors, concrete block cutting machines, aerated concrete production lines and others.
Common equipment: feeders, pendulum feeders, ultrafine mills, screw conveyors, Raymond mills, vibrating screens, stone vibrating screens, electromagnetic vibrating feeders, TH ring chain bucket elevator machines, TD belt elevators, belt conveyors, scraper conveyors and others.
We have won a good reputation among customers with good quality, competitive prices and advanced techniques since our establishment.
We have 22 existing senior engineers, 30 engineers, 70 senior technicians and more than 800 employees. The Chief Engineer of China Machinery Industry has designed and developed several generations of leading crushers, sand (sand) machines and others for our company. Our company has introduced these products in recent years. Our products are popular in the United States, Germany and other countries and regions around the world. We have advanced equipment and techniques.
Since our inception, we have been sticking to our motto of "product update and advanced processing equipment and exquisite craft, rigorous inspection and testing, providing customers with quality products, and to obtain users' favor". Our products are exported worldwide.
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
