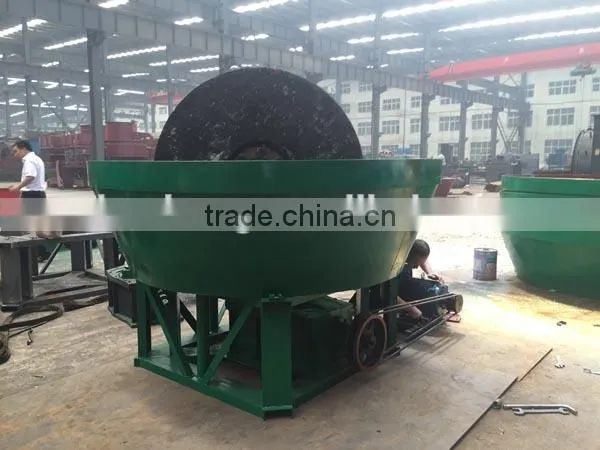

Introduction of wet pan mill

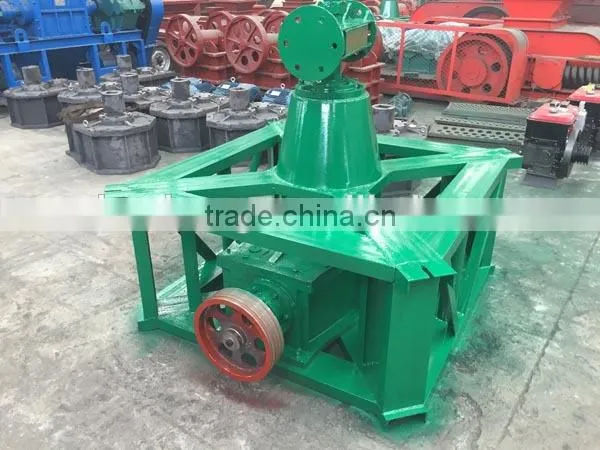

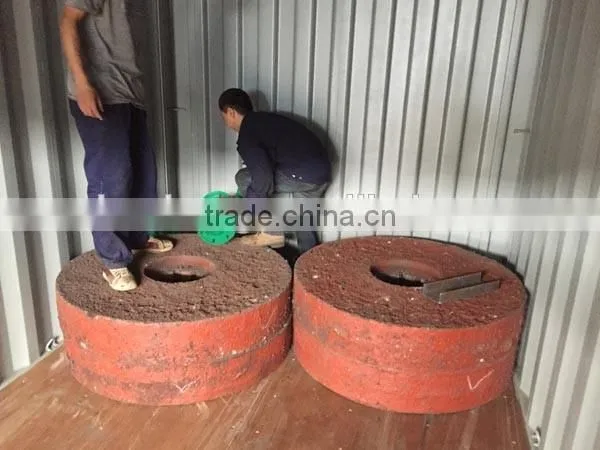

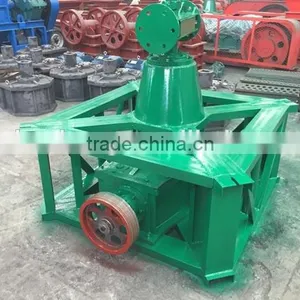

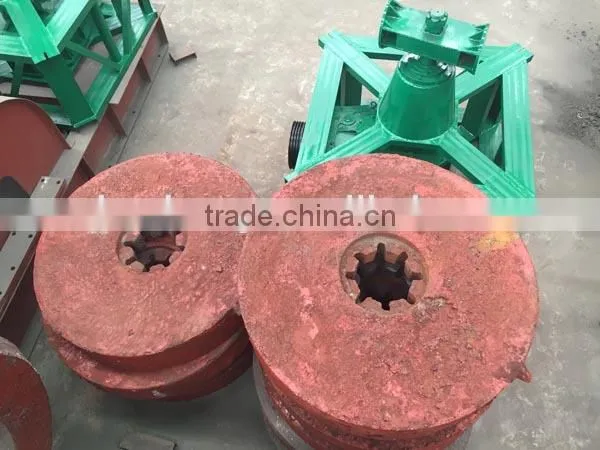

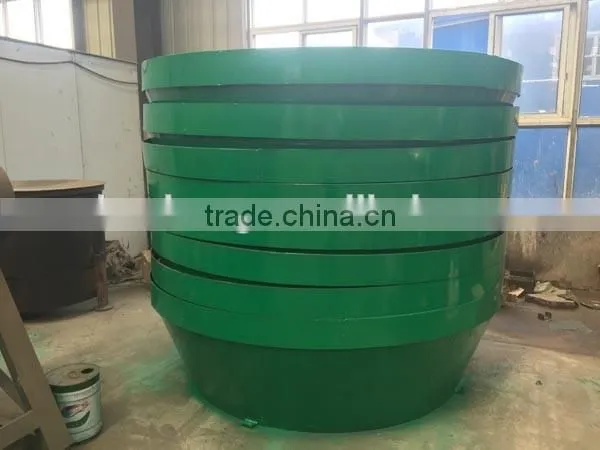

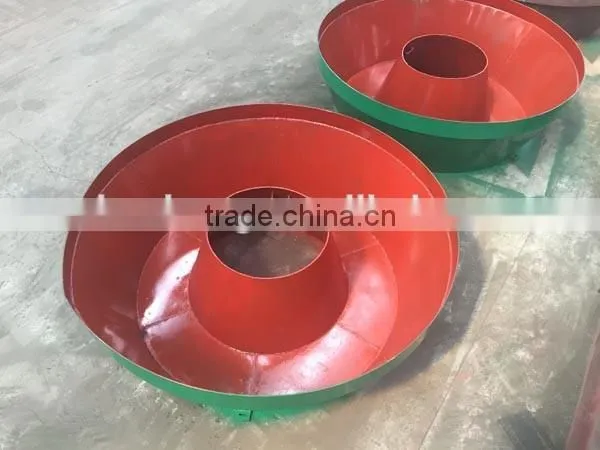

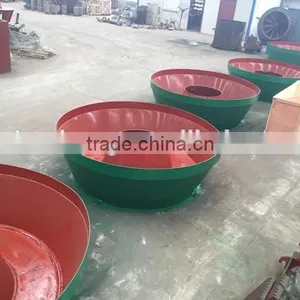

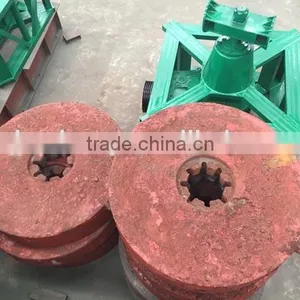

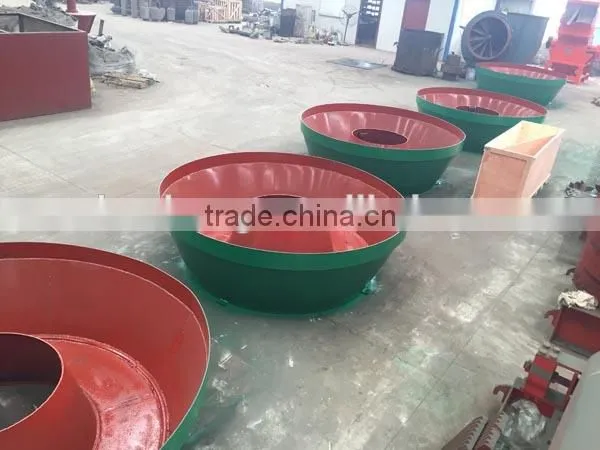

This roller wet pan mill mainly include power plant, frame, birdbath, grinding wheel, pan and other parts, using moving wheel grinding work way: first of all, the grinding pan mill motor will transmit power to the reducer, by the reducer, through a large vertical pass torque at the top of the horizontal axis and then it through a horizontal two axis pull rod to grinding wheel, the grinding wheel have driving force, along the horizontal axis do counterclockwise motion;Studio of the grinding wheel can be turning around wet mill big vertical shaft, and around the wheel of center shaft rotation, pan is stationary;Add ore materials, in the mill from the extrusion wheel of its own weight, grinding wheel with the pan during the revolution of great friction, by repeated after extrusion, kneading, grinding, were crushed.
Wet pan mill Application
Wet pan mill used with gold, silver, lead, zinc, iron, molybdenum, copper, antimony mine, mine, all ball mill can be selected grind gold machine can be used. It grinds gold through the raw material mixing, rolling, crushing, rolling repeatedly reach moisture equilibrium ratio of uniform, low gas content, improve the forming rate and forming quality, grind the material through the machine molding Products with high density, good strength, no porosity ratio weight. Energy efficient, high volume of output, the product is used for iron ore process tailings recovery, not to slag the loss of effective resources can be fully utilized.

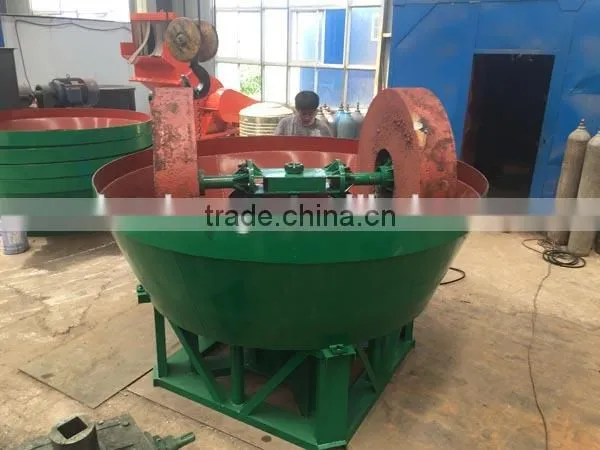

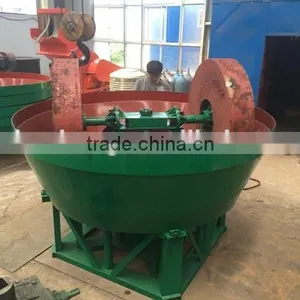

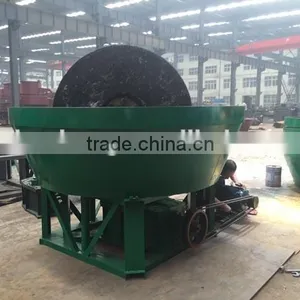

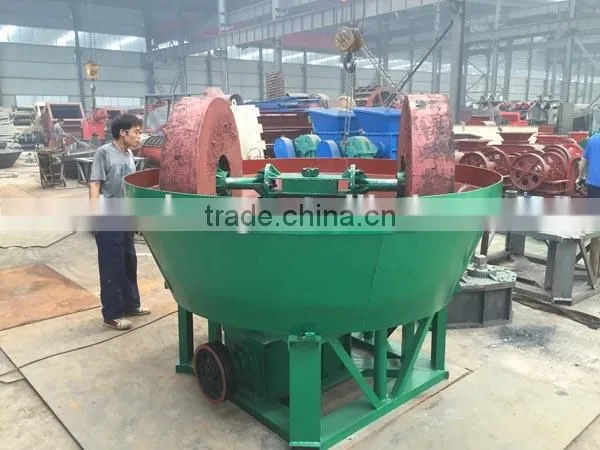

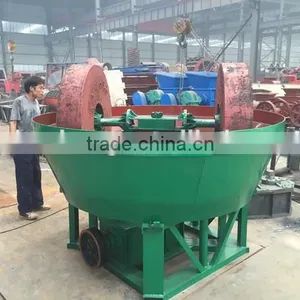

Three roller wheel wet pan mill
1. Are you a trading company or a manufacturer?
We are a manufacturer.
2. How can I get to your company?
You can get a flight to Zhengzhou Xinzheng International Airport . and we can go to airport to pick you up directly.
All our clients from home or abroad, are warmly welcome to visit our factory and inspect our products!
3. How long is your guarantee?
One year(Calculated from the equipment arrives the customer’s side.). After this period we will definitely support
you when needed. You will be welcome to contact us with any problem may happened.
4. Will you send engineers to install the plant?
yes, but at an extra cost payable by the customer. Or you can get local contractors to do thecommissioning and we send one supervising engineer.
The operation and maintenance:
1) The raw material should be put into the machine after the machine running normally.
2) This machine is not allowed to state with the material in the machine. If the machine is stopped because of stoppage, the residual material in the machine should be cleared. Then start the machine again.
3) The material should be put into the machine uniformity, not sometimes much sometimes less. It's better to use a feeding equipment.
4) The bearing part should be add butter regularly.
5) Every bolts should be checked to avoid flexible.
6) The bearing should be changed in time if it is damaged to avoid damage other parts.
7) While the machine is running formally, you should check if there is abnormal sound in the reducer box and or bearing part, if there is a too high temperature, if there is too big motor current and so on. If it happened, you should stop the machine to remedy of the trouble.
8) The motor V-belt should be removed while examine and repair the machine for your safe.
our technical engineer will privod technical services in a year.
The thchnical parameters
| Model | specification |
Input size (mm) |
Process ability (t/h) |
Speed (r/min) |
Motor (kw) |
Weight (t) |
| 1600 | 1600×400×±20 |
less than 30 mm |
4 | 20—22 | 6—30 | 17 |
| 1500A | 1500×400×±20 | 3 | 20—22 | 6—22 | 15 | |
| 1500B | 1500×350×±20 | 2.5—3 | 20—22 | 6—22 | 14 | |
| 1500C | 1500×300×±20 | 2—2.5 | 20—22 | 6—22 | 12.5 | |
| 1400 | 1400×250×±20 | 1.5—2 | 16—18 | 6—18.5 | 9.5 | |
| 1300 | 1300×250×±20 | 1.5 | 21—23 | 6—15 | 7.8 | |
| 1200A | 1200×220×±20 | 0.9—1.2 | 16—18 | 4—7.5 | 6.0 | |
| 1200B | 1200×200×±20 | 0.8—1 | 21—23 | 4—7.5 | 5.8 | |
| 1100 | 1100×200×±10 | 0.6—0.8 | 16—18 | 4—5.5 | 5.5 | |
| 1000 | 1000×200×±10 | 0.5 | 21—23 | 4—5.5 | 4.5 | |
| 900 | 900×150×±10 | 0.3 | 17—19 | 3 | 3.2 |
