Product Details
Condition: | New | Type: | Cold Rolling Mill | Place of Origin: | Jiangsu, China |
Brand Name: | world | Model Number: | W11-4x2000 | Voltage: | 220v-380v-440v |
Power(W): | 4KW | Dimension(L*W*H): | 2500x1000x1000mm | Weight: | 2ton |
Certification: | ISO | Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
roller rolling machine

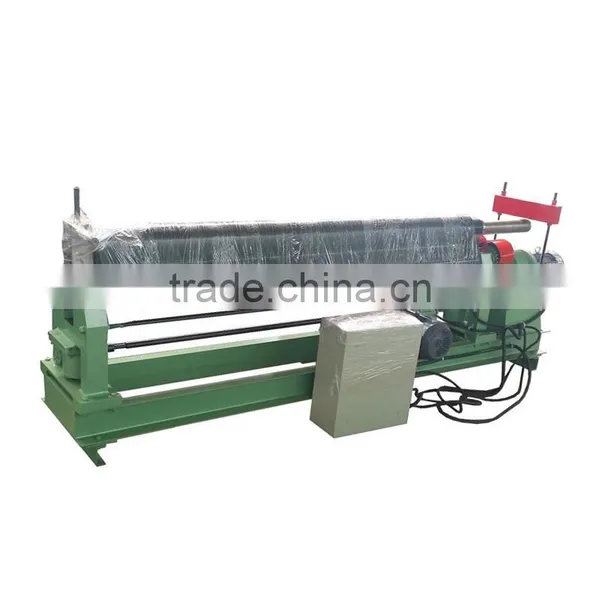

metal roller rolling machine with mechanical lifting system
Features:
1. The machine is composed by two main parts, there are working parts and transmission parts. Working parts include two lower rollers and one upper roller with roller bearings. The lower roller is the capstan; the upper roller is driven roller. Height of upper roller can be adjusted freely. Besides, the transmission part contains main motor, reduction box, etc.
2. The main motor drive the main reduction box, and then the main reduction box drive the lower roller. Direction of rotation of the lower roller can be controlled by the main motor.
3. Subsidiary motor drive the subsidiary reduction box, then the upper roller could perform vertical movement.
4. Unloading equipment can help operator take out finished products.
Specifications:
No. | Parameters | W11-4x2000 |
1 | Bending thickness | 4mm |
2 | Bending width | 2000mm |
3 | Steel plate yield limit | 245Mpa |
4 | Min. Bending diameter(full load) | T4×B2000×Φmin400mm |
5 | Diameter of upper roller | Φ160mm |
6 | Diameter of lower roller | Φ140mm |
7 | Distance between center of two lower roller | 260mm |
8 | Operation speed | 8m/min |
9 | Main motor | 4kw |
10 | Lifting transmission | Alloy worm gear and alloy nut |
