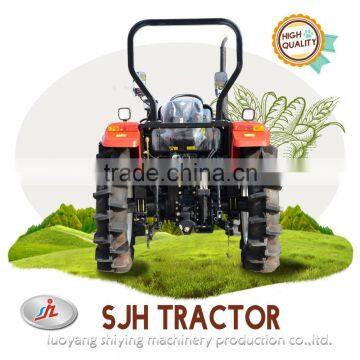

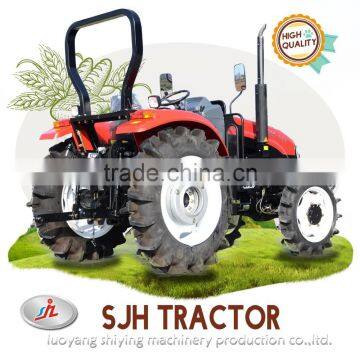

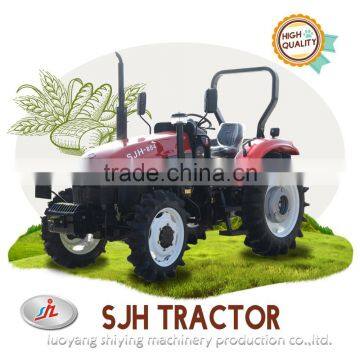

Help CenterSJH 80HP 4WD Agriculture Wheel Tractor
Related Products
| ||
Main character The East is red famous actor or actress engine , power mating are big , oil consumes low , dynamic economy well. The lifting mechanism lifting ability is big. may fly large-scale agricultural implements. speed change box structure is compact , the design intensity is big , the archives place is much , speed range is broad , proper various farmland school assignment, adopt defend against be out of stock for the time being structure , falling-in cover shift into , safety is reliable. entire hydraulic pressure changes to system, operation portable , nimble , makes turn the radius is small , maneuverability is good. have the hydraulic pressure style that the treadle controls running to brake the dyadic motor stoppage of machinery braking system that system and the handle control. Complete machine tractive force is big. may take large-scale various agricultural implements to carry out field school assignment. may choose the dress gas. | ||
Model | SJH804 | |
Type | 4×4 | |
Exterior size(mm) | Length | 4032 |
Width | 2050 | |
Height(up to muffle) | 2810 | |
Exterior Power(hp) | 80 | |
Engine Speed(r/min) | 2300 | |
PTO Rotating Speed(r/min) | 540/1000 | |
Wheel Tread(mm) | Front | (1610~1950for option)1610 |
Rear | (1620~2020for option)1620 | |
Min.Ground Clearance(mm) | 397 | |
Structure Weight(kg) | With Cabin | 3820 |
Without Cabin | 3570 | |
Turning Radius(m) | 4.2±0.3 | |
Rated Drawbar Pull(kN) | 18.6 | |
E N G I N E | Model | YTO LRC4108-T77-1 |
Type | Water cooled, vertical, 4 strokes | |
Cylinder | 4 | |
Bore×stroke(mm) | See the engine specification | |
Rated power(kW) | 59 | |
Rated speed(rpm) | See the engine specification | |
Tire size | F.wheel | 11.2-24 |
R.wheel | 16.9-34 | |
gears | 16+8 | |
Speed(km/h) | 2.31-34.85 | |
