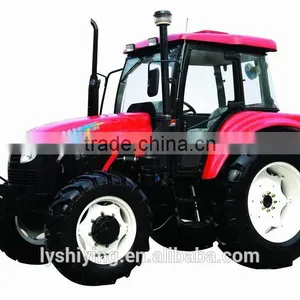

>Main features of agricultural tractor
1. Appearance with a new streamlined design, high-grade paint, bright colors, beautiful
and stylish.
2. Match dragged YTO engine power, low fuel consumption, better power ability and economy.
3. Full hydraulic steering system, light and flexible of manipulation, small turning radius and good maneuverability.
4. Full stand-alone power output shaft, which can meet the demand of rotary tillage,
straw, harvesting, planting, fertilizing and other operations.
5.Suspension system to enhance the force, can be suspended with large farm machinery and other agricultural operations.
6.Traction, optional air brake device for towing vehicles for transport operations.
7.1-3 slices optional hydraulic output multi-way valve used tomanipulate the folded target,
flip plow a variety of farm implements and shovel carriers, motor graders and dump trailers.
Model | SJH804 | SJH904 | SJH954 | SJH1004 | SJH1104 | SJH1254 | |
Type | 4×4 | ||||||
Exterior size(mm) | Length | 4032 | |||||
Width | 2050 | ||||||
Height(up to muffle) | 2810 | ||||||
Exterior Power(hp) | 80 | 90 | 95 | 100 | 110 | 125 | |
Engine Speed(r/min) | 2300 | 2300 | 2300 | 2300 | 2400 | 2400 | |
PTO Rotating Speed(r/min) | 540/1000
| ||||||
Wheel Tread(mm) | Front | (1610~1950for option)1610 | |||||
Rear | (1620~2020for option)1620 | ||||||
Min.Ground Clearance(mm) | 397 | ||||||
Structure Weight(kg) | With Cabin | 3820 | |||||
Without Cabin | 3570 | ||||||
Turning Radius(m) | 4.2±0.3 | ||||||
Rated Drawbar Pull(kN) | 18.6 | 19.1 | 21.5 | 20.5 | 22.3 | 22.3 | |
E N G I N E | Model | YTO LR4MC/4B3Z | YTO LR4B3Z-T75 | YTO LR4MC/4B3Z | YTO LR4MC/4B3Z | YTO LR4MC/4B3Z | YTO |
Type | Water cooled, vertical, 4 strokes
| ||||||
Cylinder | 4 | 6 | |||||
Bore×stroke(mm) | See the engine specification | ||||||
Rated power(kW) | 62.5 | 70 | 69.8 | 73.5 | 81 | 92 | |
Rated speed(rpm) | See the engine specification | ||||||
Tire size | F.wheel | 11.2-24 | |||||
R.wheel | 16.9-34 | ||||||
gears | 8F+4R/16F+8R | ||||||
Speed(km/h) | 2.31~34.85 | ||||||
