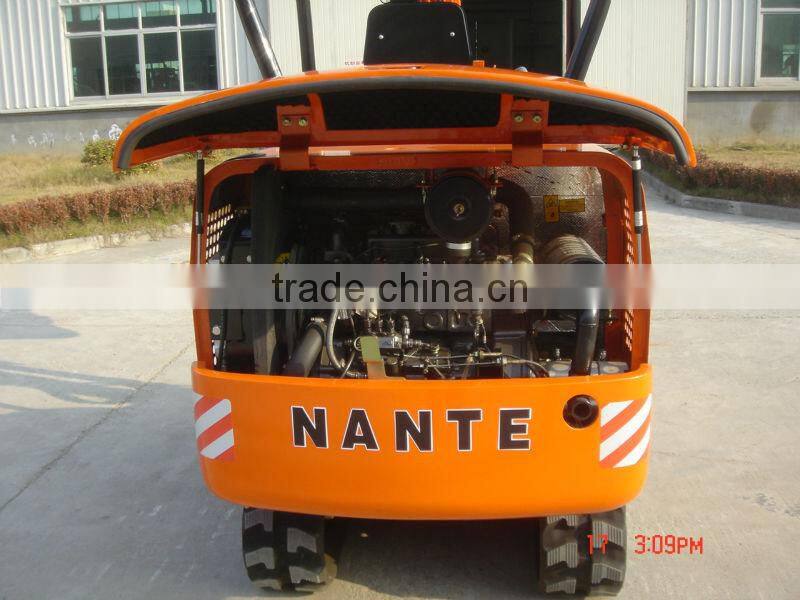

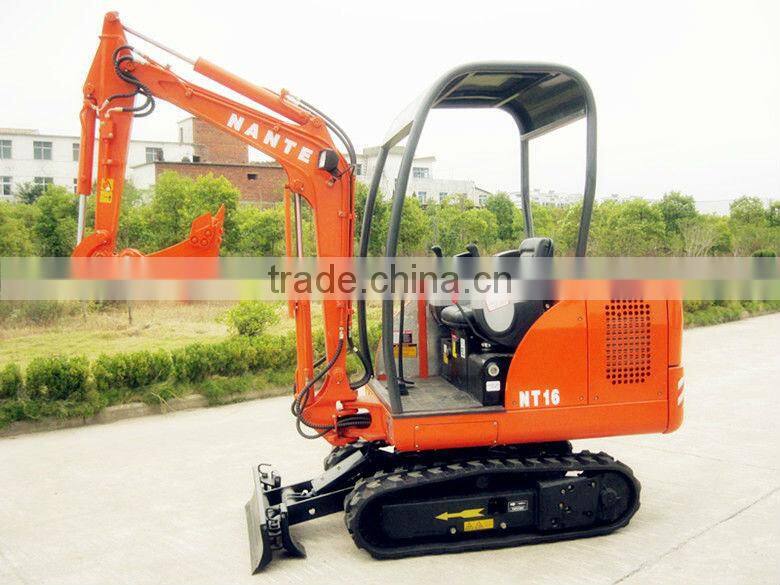

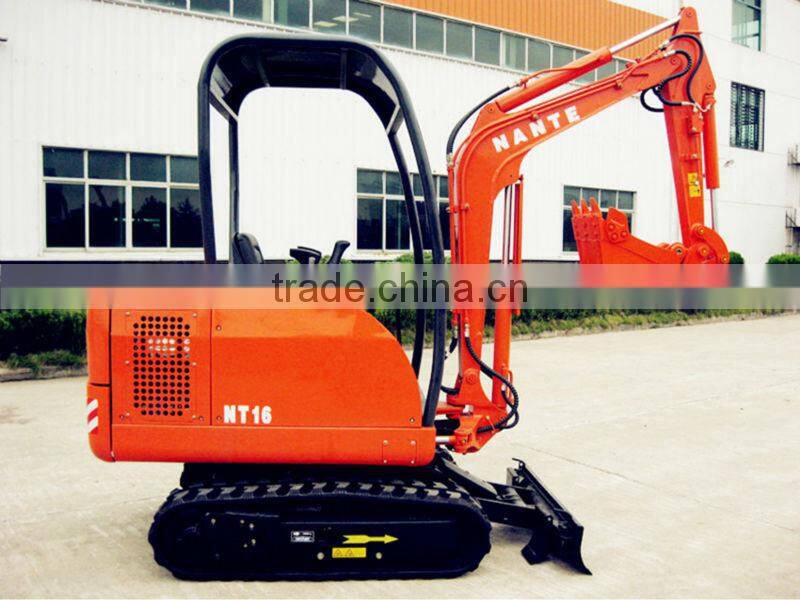

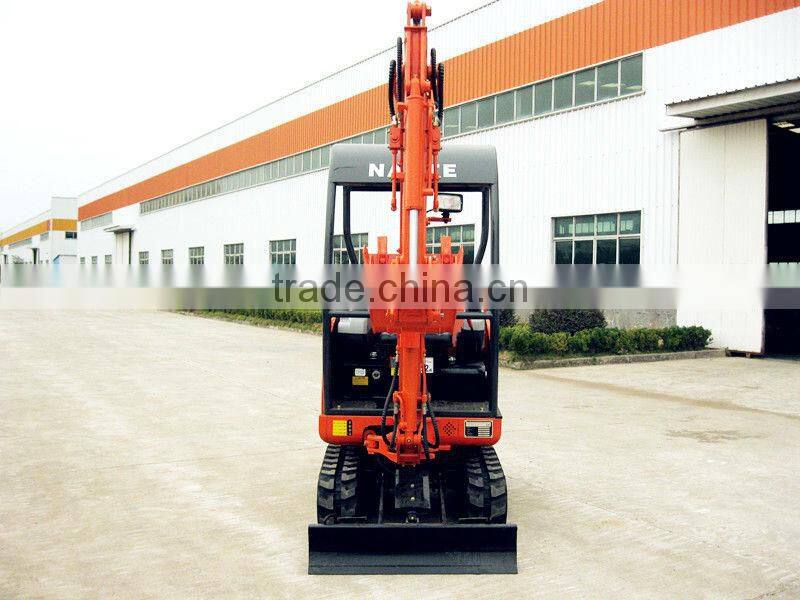

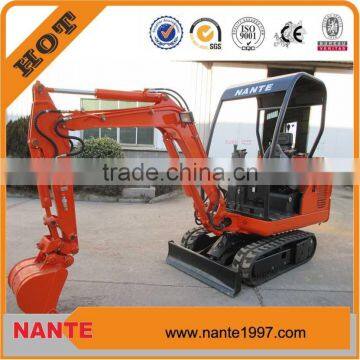

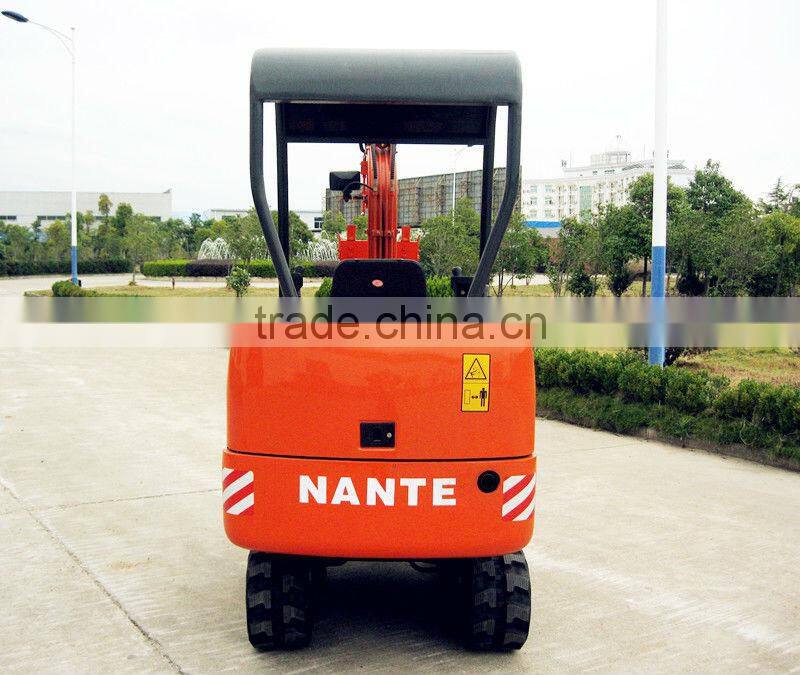

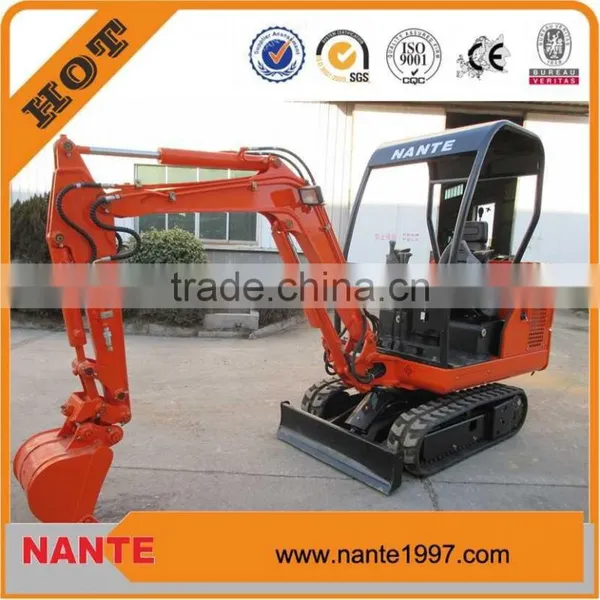

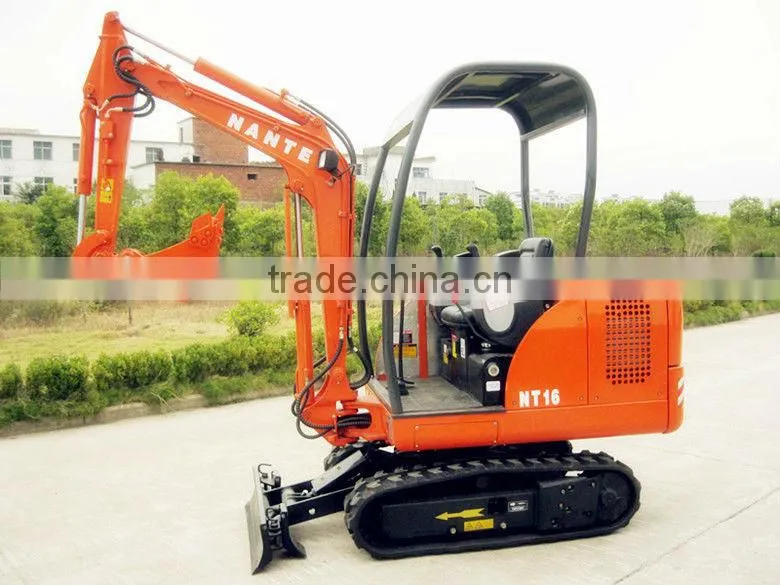

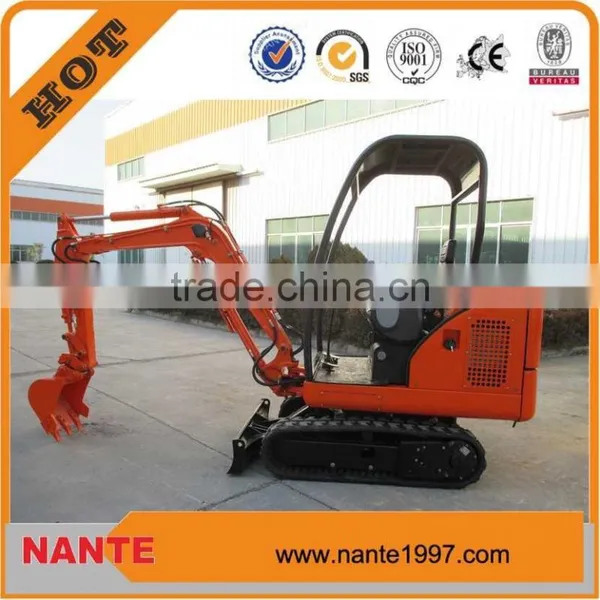

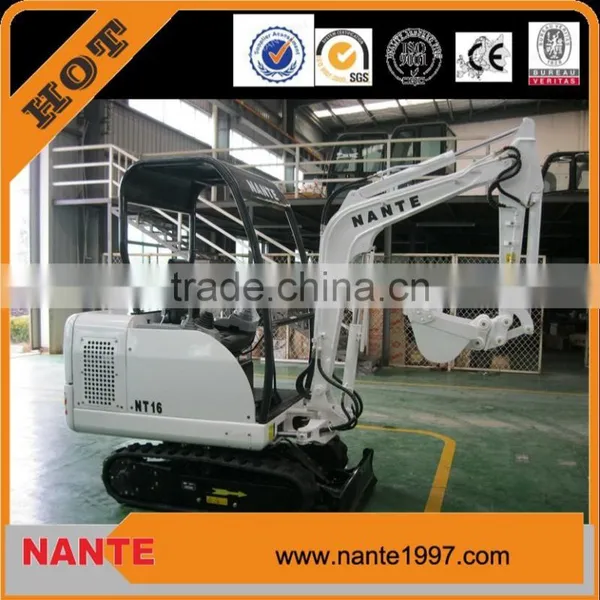

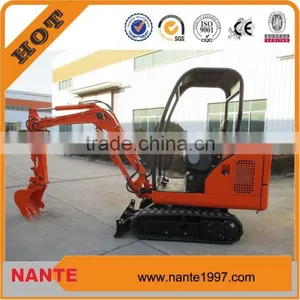

Nante NT16 Hydraulic mini crawler excavator with CE(1.7 Ton)
Our company is Specialized in design and manufacture of Medium & Mini construction machinery and its spare parts.
- With 13 years of experience and expertise in production
- Annual output:2000UNITS
- Top quality and best service
- We will do our best to meet your demand!
Specifications
Operating Weight (kg) 1700KG
Bucket
Standard Standard Bucket Capacity |
0.06 m³ |
Range |
0.05~0.1 m³ |
Engine
Model(optional) |
LAIDONG LL380B,CHINA |
YANMAR 3tnv82,JAPAN or KUBOTA | |
RatedEngine Power |
15.5kw/2400rpm |
PeakTorque |
71Nm/1680rpm |
Swing Drive
Max.Swing Speed 10rpm
Rear Swing Radius 1155mm
Digging Force
Bucket 14kn
Arm 10kn
Capacities
Fuel Tank 18L
Hydraulic Tank 25L
Maneuverability
Ground Pressure 30kpa
Travel Speed (Low/High) 0-4.5km/h
Gradeability 35°(70%)
Ground Clearance 230mm
Boom Swing Mechanism,optional
Boom Swing Angle(LH/RH) 80°/50°
Dozer
Width* Height 1050*230mm
Max.left above/Below Ground 190/250mm
Hydraulic System
Optional: CHINESE EATON or JAPANESE IMPORT
Pumps(2) |
Gear pump |
Capacity-Maximun |
2×21.6L/min |
System relief pressure-standard |
18MPa |
Pilot control hydraulic system-pump(1) |
Gear pump |
Maximun capacity |
7.2L/min |
Relief pressure |
3MPa |
Control valves- |
|
8 function multiple control vavle |
|
Pump#1 for right travel and swing and boom swing and arm |
|
Pump#2 for left travel and boom and bucket and dozzer |
|
Pump#3 for pilot valve |
|
Swing- |
|
motor(1) |
cycloid motor |
Speed |
0-10rpm |
Brake |
Hydraulically released |
Tail swing radius |
1130mm |
Tail swing overhang |
|
Travel- |
|
motor(2) |
cycloid motor |
Final drive |
Gear reduction |
Travel speed - |
Forward/reverse |
Low |
2.0km/h |
High |
0km/h |
Welcome to visit our Website : /.
