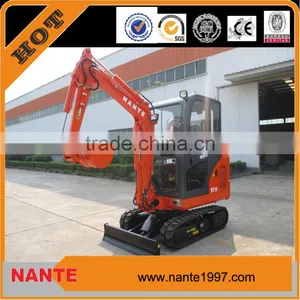

WELCOME TO NANTE
operating weight:1700kg |
(Standard Bucket Capacity):0.06m3 |
(Range): 0.05-0.1m3 |
engine(Model): YANMAR 3TNV82A |
(Rated Engine Power): 15.5KW/2400rpm
(Peak Torque):71N·M/1680rpm |
(Max. Swing Speed):10rpm |
(Rear Swing Radius):1155mm |
(Bucket): 14KN |
(Arm):10KN |
(Fuel Tank):18L |
(Hydraulic Tank): 25L |
(Groud Pressure):30kpa |
(Traveling Speed):0-4.5 km/h |
(Gradeablility):35%%d(70%) |
(Ground Clearance): 230mm |
Maximum traction force: 9KN |
Boom Swing Angle(LH/RH): 80%%d/50%%d |
(Dozer) |
(Width×Height): 1050×230mm |
Max. Lift above/Below Ground: 190/250mm |
(Hydraulic System) |
(Main Pump) |
(Type): (Gear Pump) |
(Pressure): 20MPa |
(Flow):2×25L/Min |
(Pilot Pump) |
(Type): (Gear Pump) |
(Pressure): 3.5MPa |
(Flow):10L/Min |
