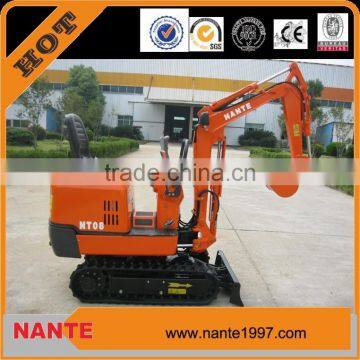

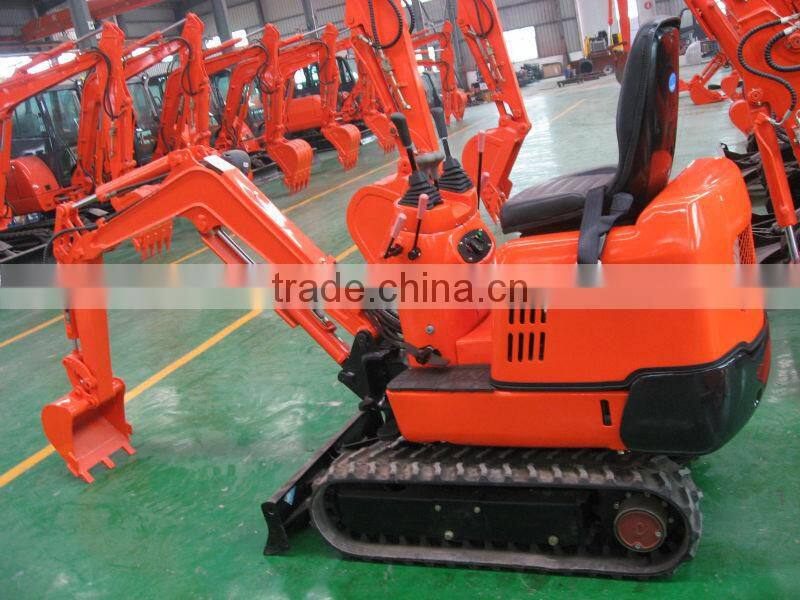

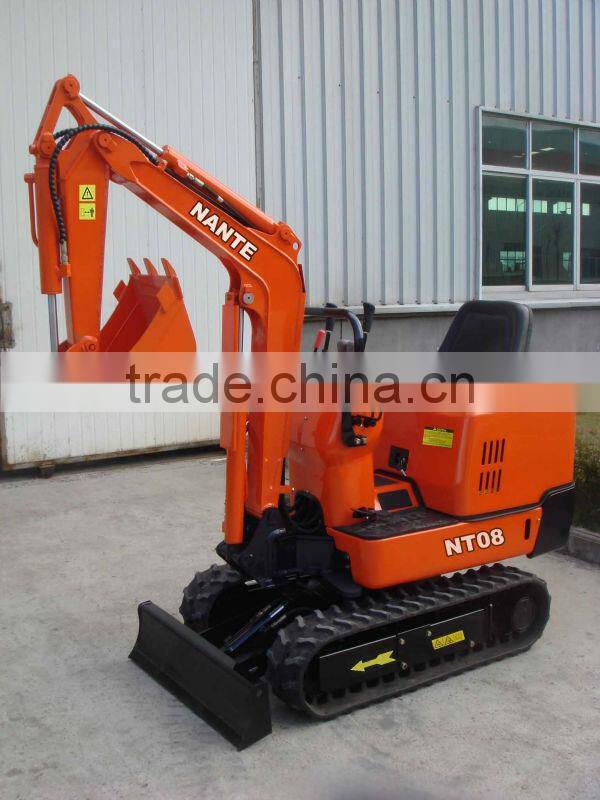

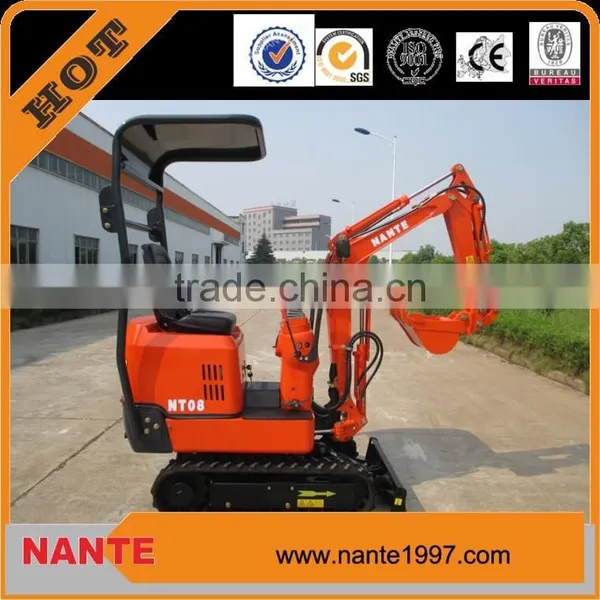

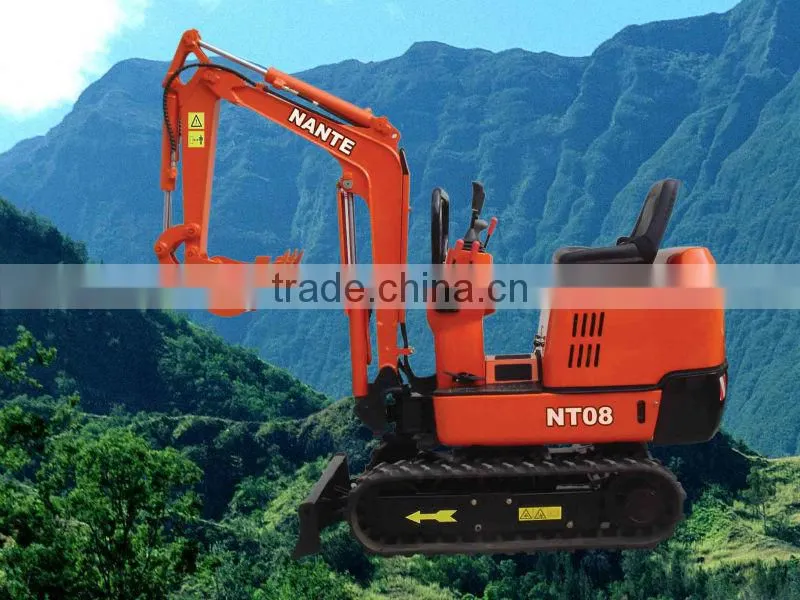

Nante hydraulic crawler mini excavator 1 ton with CE for garden

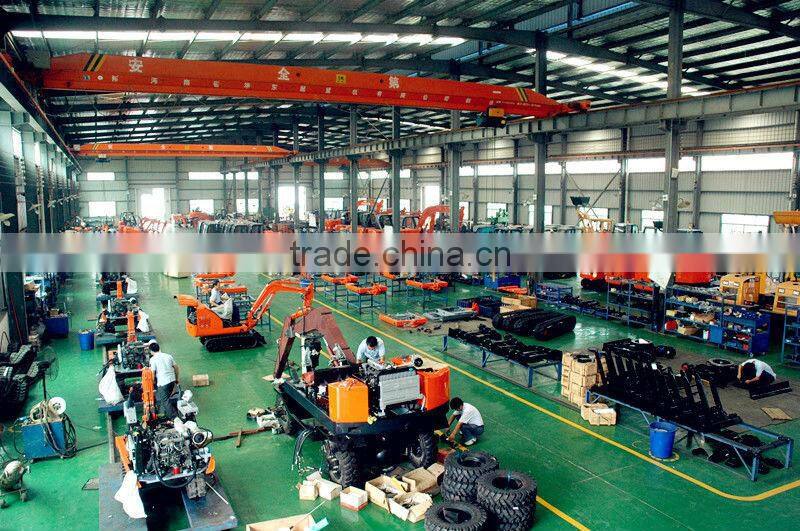

Our company is Specialized in design and manufacture of Medium & Mini construction machinery and its spare parts.
With 13 years of experience and expertise in production,Annual output:2000UNITS
We are confident that we can provide our customer with:
- Reliably Stable Quality
- Comprehensive and Considerate service
- Favorable Price
-
Professional Technical Support

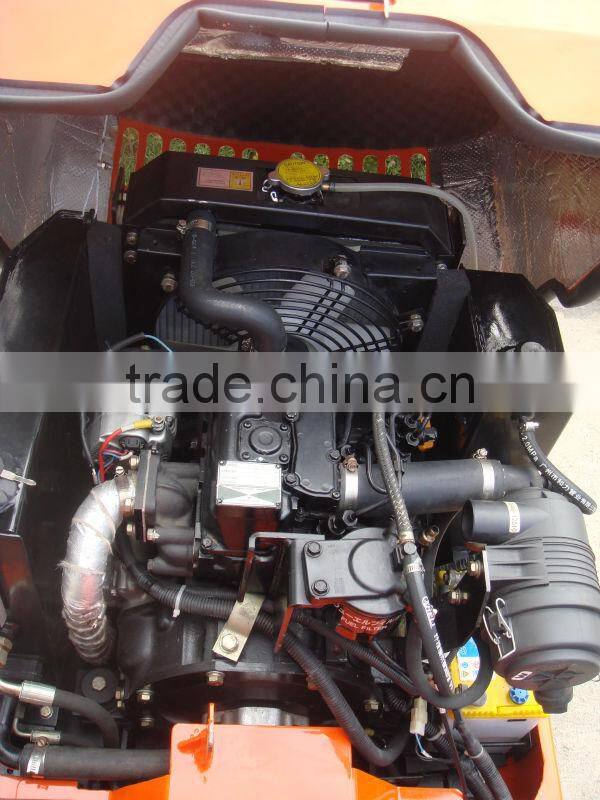

ENGINE
Model |
YANMAR 2TNV70 |
Cylinders |
2 |
Bore/Sttoke |
70*74 |
Displacement |
0.569L |
Fuel injection |
direct |
Fuel injection pump |
Mechanical |
Fuel |
Diesel |
Fuel filter |
Full flow |
Cooling |
water-cooling |
Horswpower(net) |
7.3kw@2400rpm |
Maximum torque(net) |
3.3N.m@1800rpm |
OPERATING WEIGHT
With 75kg operator |
kg |
820 |
Groungd pressure |
kpa |
25 |
ELECTRICAL
Voltage |
v |
12 |
Alternator |
amp |
10 |
Batteries |
v |
12 |
Heavy-duty | ||
UNDERCARRIAGE
Number of rollers |
||
Top |
0 |
each track |
Bottom |
3 |
each track |
Gradability |
30°(58%) |
|
OVERALL DIMENSIONS
Overall height |
mm |
1350 |
Overall length |
mm |
2760 |
width of upperstructure |
mm |
760 |
Track overall length |
mm |
1220 |
Track overall width shoes |
mm |
820 |
Track shoe width |
mm |
190 |
Genter to center(inler to sprocket) |
mm |
900 |
Upperstructure ground clearance |
mm |
360 |
Minimum ground clearance |
mm |
160 |
Tail swing radius |
mm |
820 |
Backfill blade height |
mm |
200 |
Working weight |
mm |
820 |
Ground pressure |
kg |
25 |
Tail swing overhang |
BOOM/ARM
Boom |
Swing |
° |
75 left/45 right |
Length |
mm |
1350 |
|
Boom weight |
kg |
30 |
|
Arm |
Length |
mm |
700 |
Arm weight |
kg |
15 |
PERFORMANCE SPECS
Maximum dig radius |
mm |
2730 |
Dig radius at groundline |
mm |
2650 |
Maximun dig depth |
mm |
1500 |
Dump height |
mm |
2000 |
Overall reach height |
mm |
2720 |
Bucket rotation |
° |
174 |
Vertical straight wall dig depth |
mm |
1040 |
Lift above groud |
mm |
105 |
Drop below groud |
mm |
210 |
Minimum rotation radius |
mm |
1005 |
Arm digging force |
KN |
8.5 |
Bucket digging force |
KN |
9.6 |
SERVICE CAPACITIES
Hydraulic tank |
Refill capacity |
L |
16 |
Total system |
L |
20 |
|
Engine |
w/filter change |
L |
1.5 |
Fuel |
L |
9.5 |
|
Radiator |
L |
2.5 |
HYDRAULICS
ITALY IMPORT MOTOR
| Pumps | Gear pump | |||
| Capacity-Maximum | L/min | |||
| System relief pressure | MPa | |||
| Control valves | 9 function multiple control vavle | |||
| Swing | Motor | Fixed displacement | ||
| Speed | 9.2rpm | |||
| Brake | Hydraulically released with dual cushion relief | |||
| Tail swing radius | 820mm | |||
| Travel | Motor | Fixed displacement axial piston design | ||
| Final drive | Planetary gear reduction | |||
| Travel Speed | 2km/h | |||
