Specifications
1.Reliable diesel engin2.Prossess great working mass
3.Equipped with padfoot
4.Adopt joint venture's gear pump and motor
Low price singel drum dual-amplitude vibratory roller with high reliability and easy to operate
1.Standard configuration of QLN214
Model : QLN214
Engine : YC6B120
1.Mechanical driving, hydraulic vibrating,double
amplitude,hydraulic steering
2.Special gear box and driving axle for road roller
3.Adopt joint venture's gear pump and motor
4. 4.With protective glass and cab with protective tipping gear.
2.Optional configuration of QLN214
1.Engine: cummins6BT5.9
shangchaiSC5D130
2.Air conditing cab
3.Puddlability random surveymeter;
3.Main Features of QLN214
1.Mechanical travel drive,double amplitude,hydraulic vibration and steering with optimal function/price ratio and reliable performance.
2.Reliable D6114 or YC6108 diesel engine for operation and maintenance.
3.Two sets of brake devices,a hand brake and foot pedal brake ,assure the machine's safety and dependability.
4.Spacious and comfortable cab mounted on top quality rubber damping elements.
5.World advanced technology is adopted for the hydraulic vibration technology,high in reliability,simple and convenient in maintenance and low in cost.
6.Equipped with padfoot or removal padfoot as option.
4.Main Technical Parameters of QLN214
| Model | QLN214 | ||||
| Operating mass | kg | 14000 | Vertical oascillation | ° | 8 |
| Static linear load | N/cm | 342 | Tyre size | 23.1-26 | |
| Vibration frequency | HZ | 30 | Overall length | mm | 5860 |
| Vibration amplitude | Mm | 1.8/0.9 | Overall width | mm | 2350 |
| Centrifugal force | KN | 290/160 | Overall height | mm | 3100 |
| Travel speed | Vibration round width | mm | 2100 | ||
| 1st gear | 2.0 | Drum dimeter | mm | 1600 | |
| 2nd gear | 4.0 | Drum thinckness | mm | 24 | |
| 3rd gear | 10.5 | Wheelbase | mm | 3160 | |
| Grade ability | % | 35 | Diesel model | YC6B120 | |
| Turning angle | ° | 35 | Diesel power | kw | 88 |
| Ground clearance | mm | 432 | Diesel speed | r/min | 2000 |
| Electrical vollage | V | 24 | Fuel tank capacity | L | 180 |
| Turning radius | mm | 7000 | Hydraulic capacity | L | 150 |

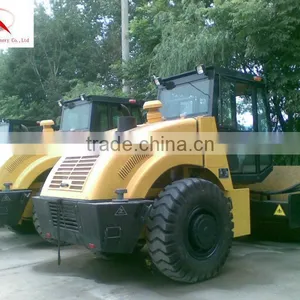

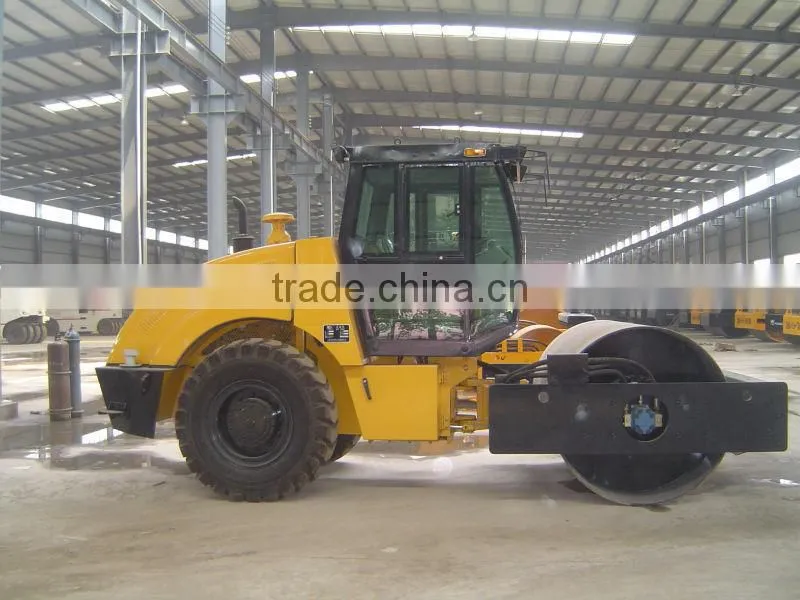

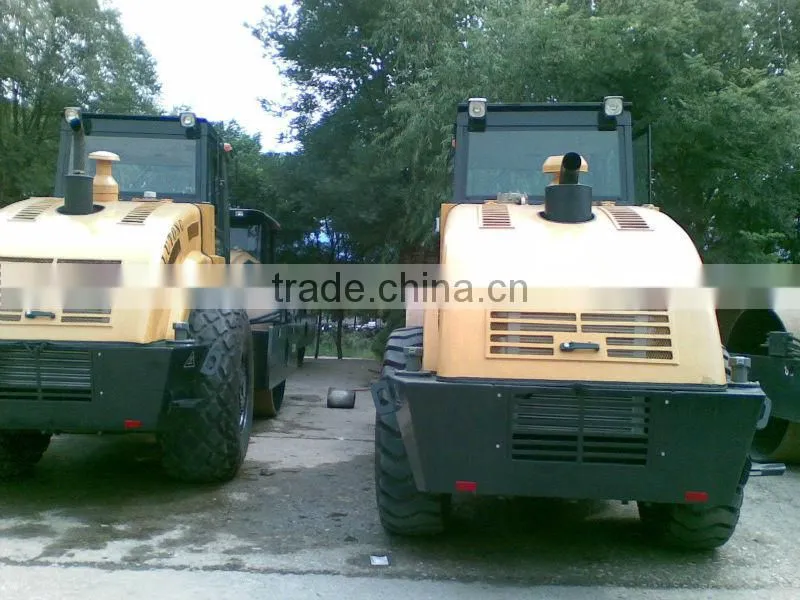

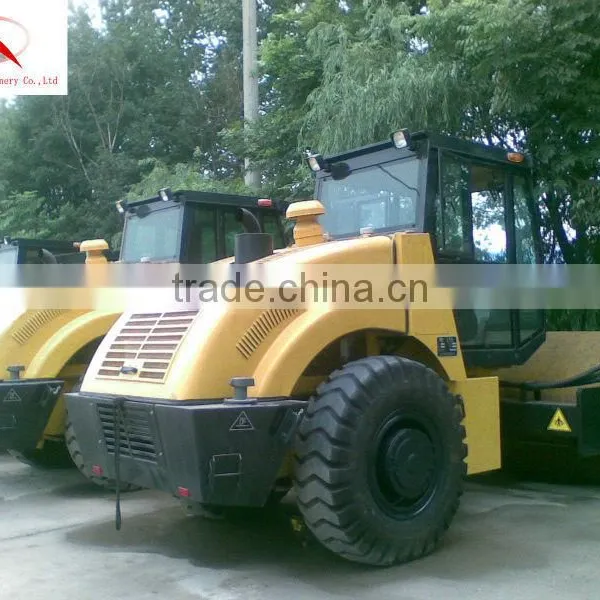

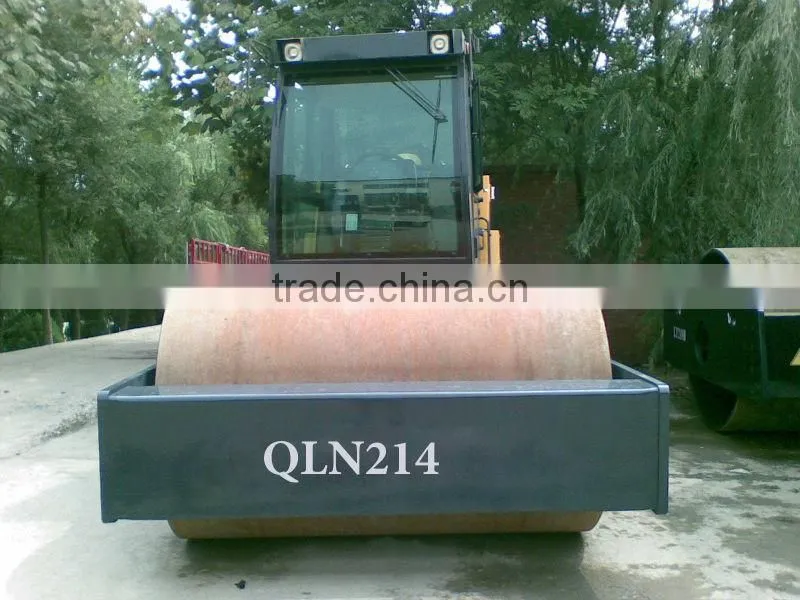

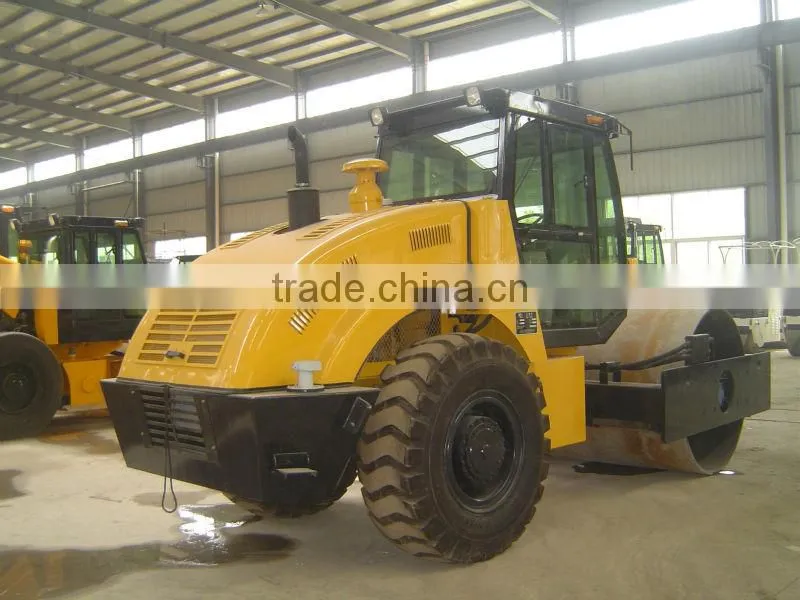

5.Pictures of QLN214
