Singel drum dual-amplitude vibratory road roller with CE easy to operate

Specifications

1.Reliable diesel engin
2.Prossess great working mass
3.Equipped with padfoot
4.Adopt joint venture's gear pump and motor

Singel drum dual-amplitude vibratory road roller with CE easy to operate



1.Standard configuration of QLN214



Model : RR214

Engine : YC6B120



1.Mechanical driving, hydraulic vibrating,double amplitude,hydraulic steering

2.Special gear box and driving axle for road roller

3.Adopt joint venture's gear pump and motor

4. 4.With protective glass and cab with protective tipping gear.



2.Optional configuration of QLN214



1.Engine: cummins6BT5.9

             shangchaiSC5D130



2.Air conditing cab
3.Puddlability random survey meter;



3.Main Features of QLN214



1.Mechanical travel drive,double amplitude,hydraulic vibration and steering with optimal function/price ratio and reliable performance.

2.Reliable D6114 or YC6108 diesel engine for operation and maintenance.

3.Two sets of brake devices,a hand brake and foot pedal brake ,assure the machine's safety and dependability.

4.Spacious and comfortable cab mounted on top quality rubber damping elements.

5.World advanced technology is adopted for the hydraulic vibration technology,high in reliability,simple and convenient in maintenance and low in cost.

6.Equipped with padfoot or removal padfoot as option.



4.Main Technical Parameters of QLN214



Model		QLN214
Operating mass	kg	14000	Vertical oascillation	°	8
Static linear load	N/cm	342	Tyre size		23.1-26
Vibration frequency	HZ	30	Overall length	mm	5860
Vibration amplitude	Mm	1.8/0.9	Overall width	mm	2350
Centrifugal force	KN	290/160	Overall height	mm	3100
Travel speed			Vibration round width	mm	2100
1st gear		2.0	Drum dimeter	mm	1600
2nd gear		4.0	Drum thinckness	mm	24
3rd gear		10.5	Wheelbase	mm	3160
Grade ability	%	35	Diesel model		YC6B120
Turning angle	°	35	Diesel power	kw	88
Ground clearance	mm	432	Diesel speed	r/min	2000
Electrical vollage	V	24	Fuel tank capacity	L	180
Turning radius	mm	7000	Hydraulic capacity	L	150

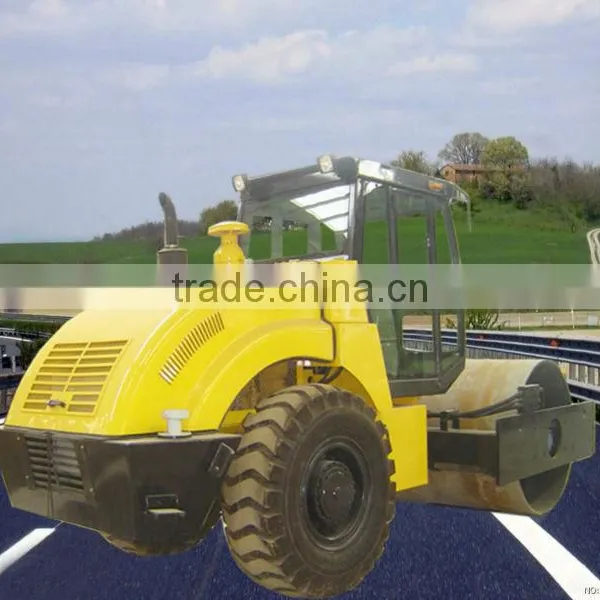

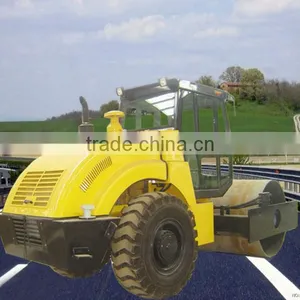

5.Pictures of  road roller



details picture



Our certificates:







NOTE:

We offer low price products with highest performance cost ratio.



If you are interested in our road roller, please feel free to contact us.



 Electronic catalog will be sent to you upon receipt of your inquiries.
